Oro užuolaida su šildytuvu Sonniger Guard CG0020, 150 W

Trumpai apie prekę

Prekė: Oro užuolaida su šildytuvu Sonniger Guard CG0020, 150 W. Kategorija: Oro užuolaidos.

• Gamintojas: Sonniger
• Modelis: CG0020
• Galia: 29000 W

#ID : CG0020

EAN : 5906660483311

Short description:

The new GUARD is a combination of modern design, strong technical parameters and adjustment of the operating range of the device. The GUARD air curtain is synonymous with modernity, superior quality and advanced technology.

GUARD is a professional and aesthetic air curtain whose main task is to maintain a protective barrier at the entrance to the facility. The GUARD curtain protects the entrance to the building from cold and warm air, as well as dust or insects. The use of the GUARD curtain allows you to minimize heat loss, which affects both the operating costs of the facility and the comfort of work. The GUARD curtain line is designed for facilities where the installation height of the devices does not exceed 4 m.

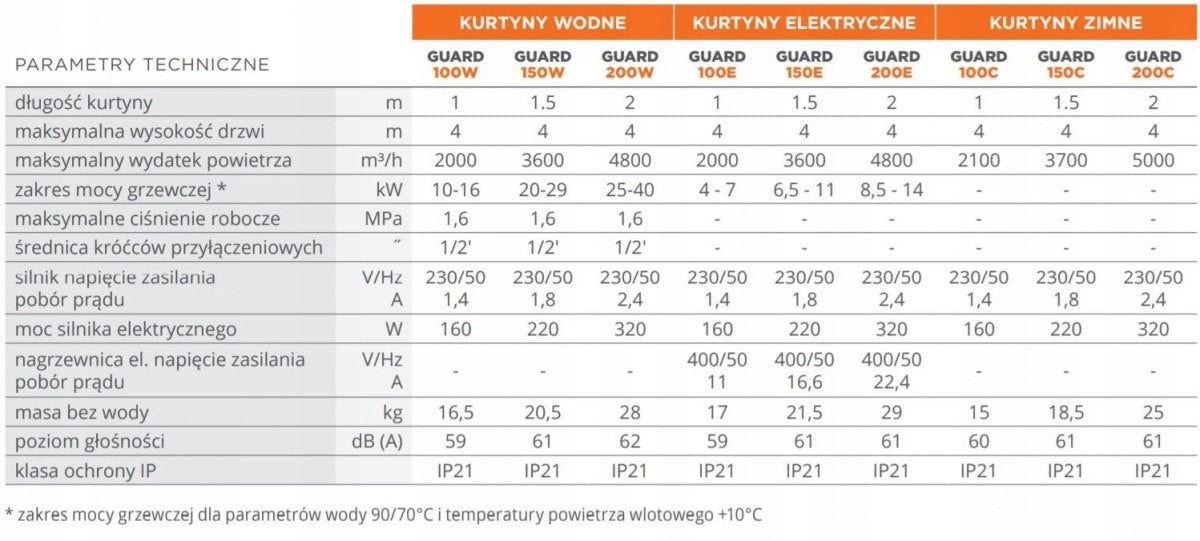

Technical data:

Curtain Length: 1,5m

Max. Door height: 4m

Max. door expenditure: 3600m3/h

Heating power range: 20,29 kW

Max. Operating pressure: 1,6MPa

Connection stub diameter: 1/2"

Motor supply voltage: 230/50 V/Hz

Power Consumption: 1,8 A

Power of electric motor: 220 W

Heater el. Supply voltage: --

Power Consumption: --

Weight without water: 20,5 kg

Volume Level: 61 dB (A)

IP Protection Class: IP21

*Heating power range for water parameters 90/70*C and inlet air temperature +10*C

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Sonniger
Parametry	Kind	with water heater
Parametry	Power	29000 W
Parametry	Product height	0.23 cm
Parametry	Product width	0.37 cm
Parametry	Product depth	36.8 cm
Parametry	Maximum mounting height	4 m
Parametry	Manufacturer code	CG0020
