Oro užuolaida virš durų AERIS 100 cm, 6000W, balta, 230V

Trumpai apie prekę

Prekė: Oro užuolaida virš durų AERIS 100 cm, 6000W, balta, 230V. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: AERIS AC100E1P
• Galia: 180 W

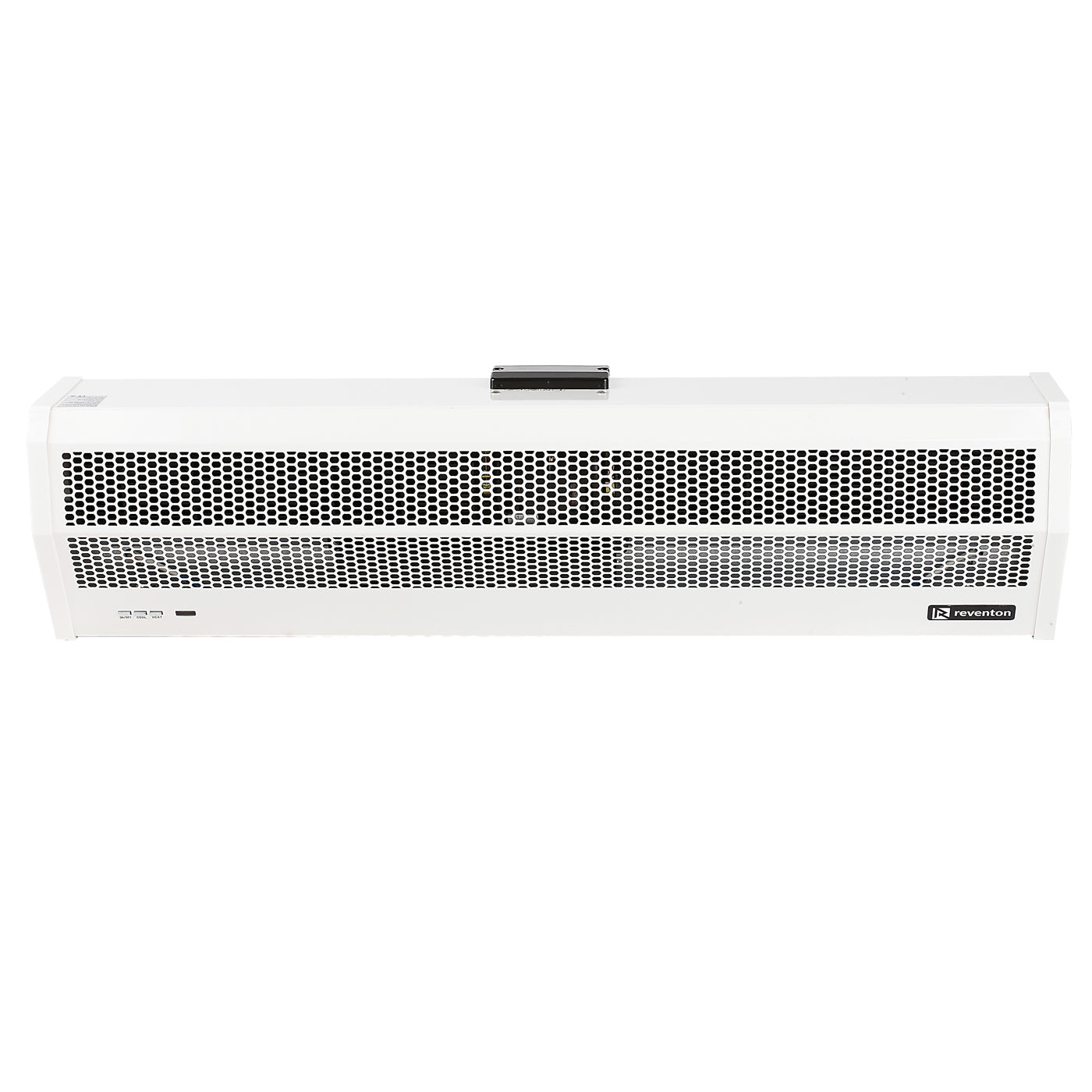

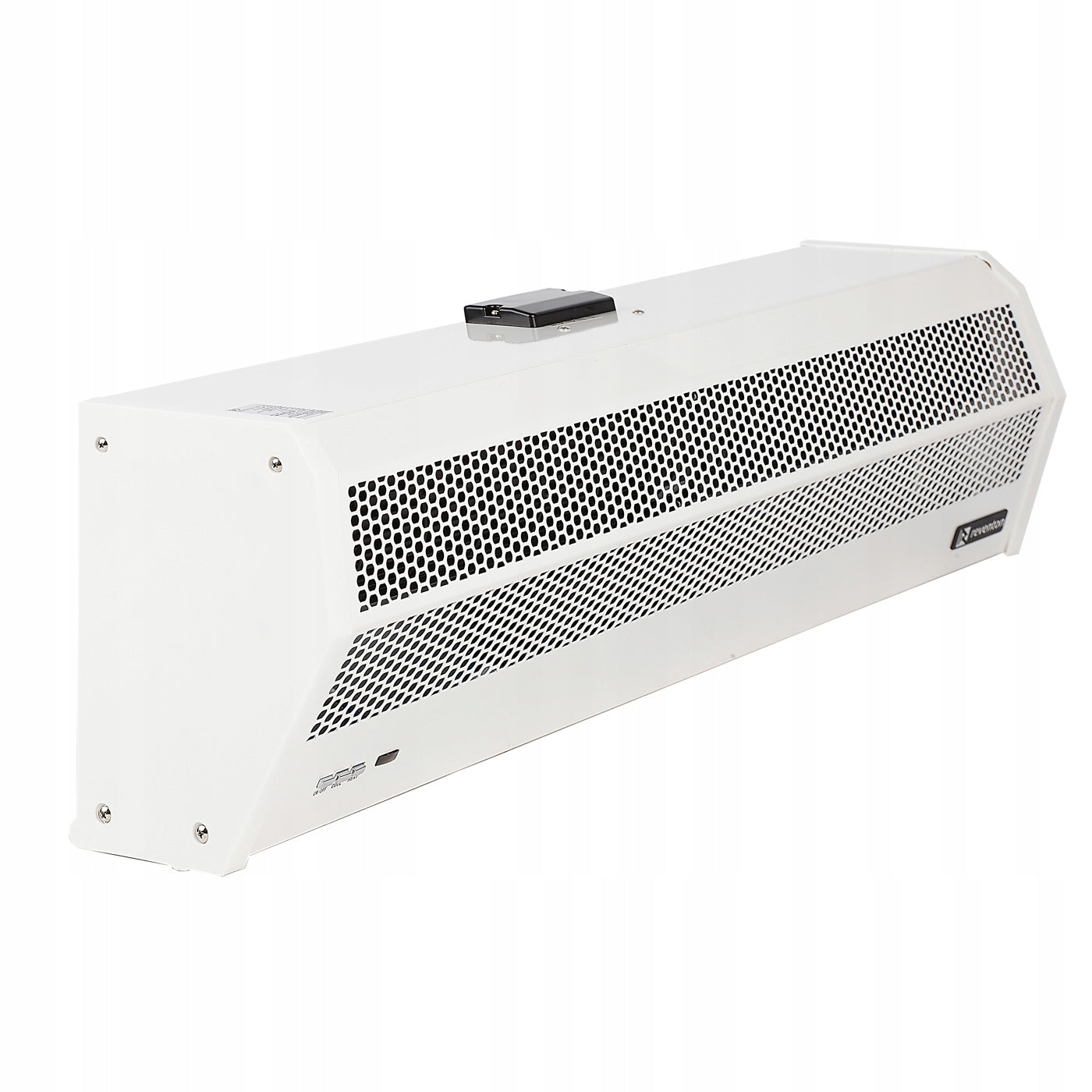

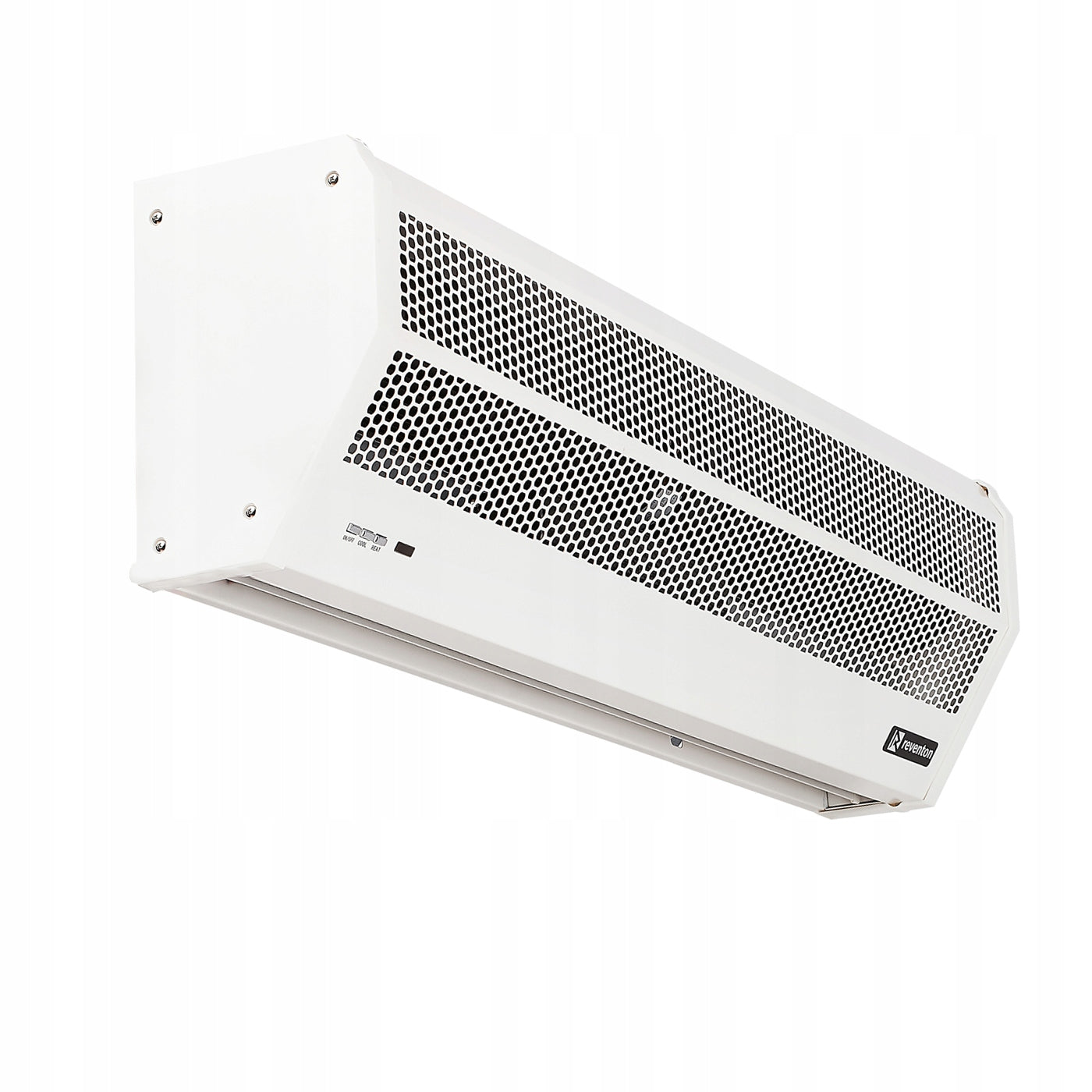

The AERIS electric curtain with a width of 1 meter is an ideal solution for securing standard door openings in shops, pharmacies, offices and service points. The device creates an effective thermal barrier that retains heat inside the premises in winter and protects against the influx of hot air, dust and insects in summer.

⚙ Instant Heating without C.O. Installation

The main advantage of the AC100E1P is the use of efficient electric heaters. Unlike water curtains, this model does not require connection to a central heating system. It is a “install and use” solution that works great in rental premises or where pipe supply would be too expensive and complicated.

💨 Efficient Air Stream and Quiet Operation

Despite its compact size, the curtain generates a strong and stable air flow with a range of up to 2,5 meters. Thanks to the use of modern transverse fans, the device operates smoothly and relatively quietly, providing comfort to both employees and customers staying near the entrance.

🛡 Aesthetics and Solid Construction

The housing is made of high quality powder coated steel in white (RAL 9016). It is resistant to scratches and high temperature generated by heaters. Minimalist design makes the curtain discreetly blends with modern door joinery and interior design.

🔌 Easy Control and Installation

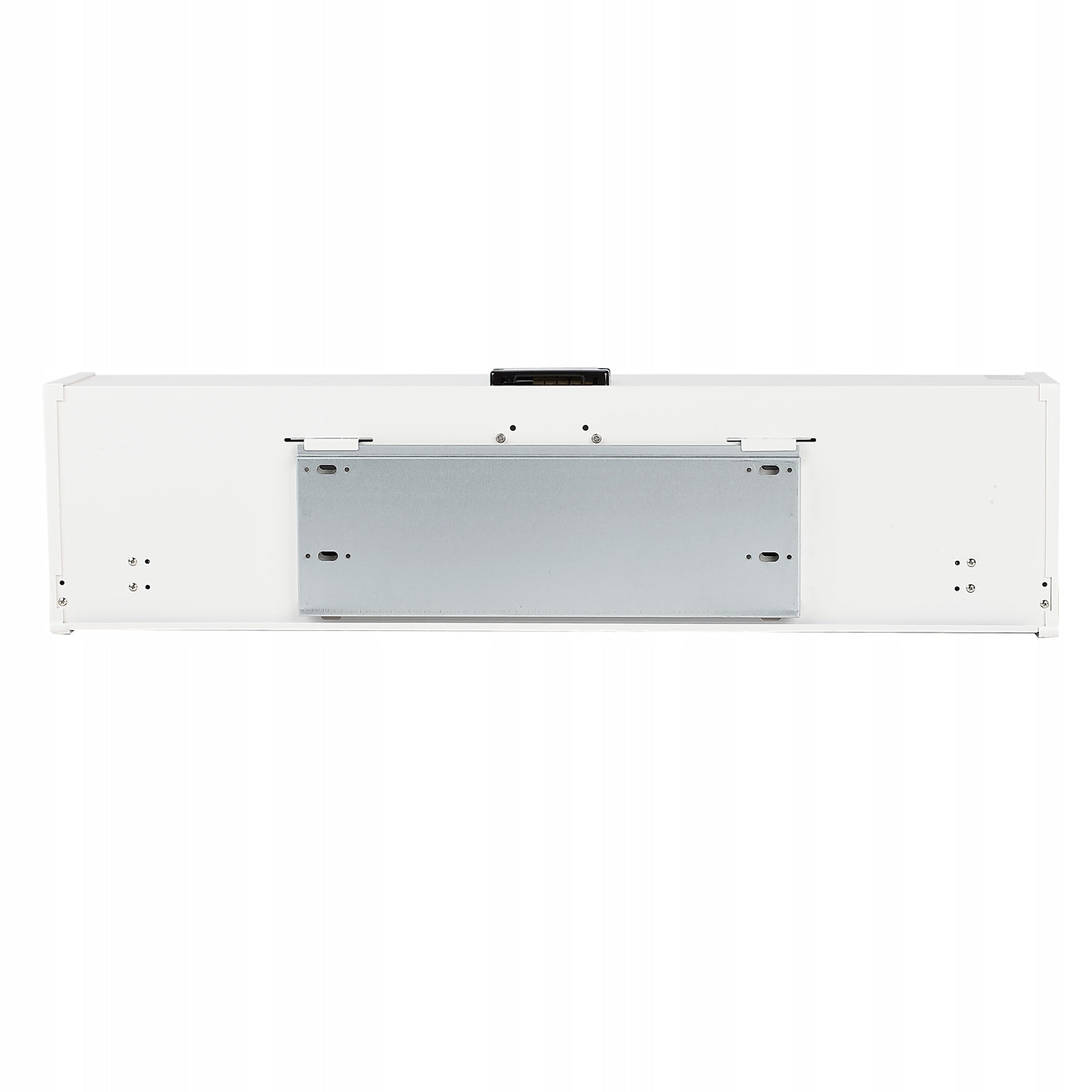

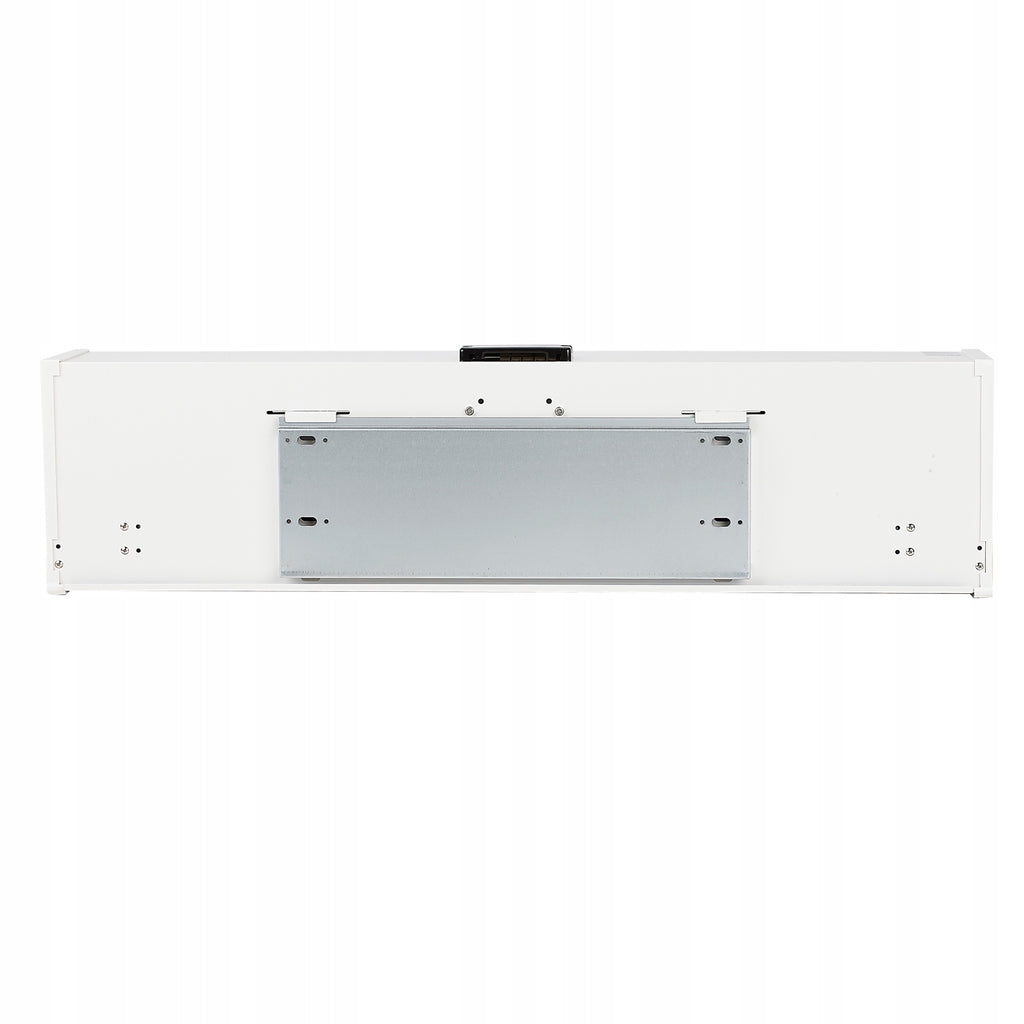

The device is adapted to operate at 230V, which facilitates connection in most commercial facilities. The mounting plate integrated into the housing allows for quick and secure hanging of the device directly above the door.

WORKING PARAMETERS:

• Width of the device: 1000 mm (1 meter)
• Heater type: Electric
• Maximum flux range: 2,5 m
• Maximum airflow: 1200 m³/h
• Power supply: 230V / 50Hz

📦 SET COMPOSITION – WHAT YOU WILL GET:

• ✅ Electric air curtain – AERIS AC100E1P (100 cm)
• ✅ Integrated mounting plate
• ✅ Instructions for use and assembly – in Polish
• ✅ Guarantee Card

ASSEMBLY:

• Mounting type: Levels (wall or underfloor)
• Recommended mounting height: Up to 2,5 m above the floor
• Quick installation: The integrated handle system reduces installation time to a minimum.

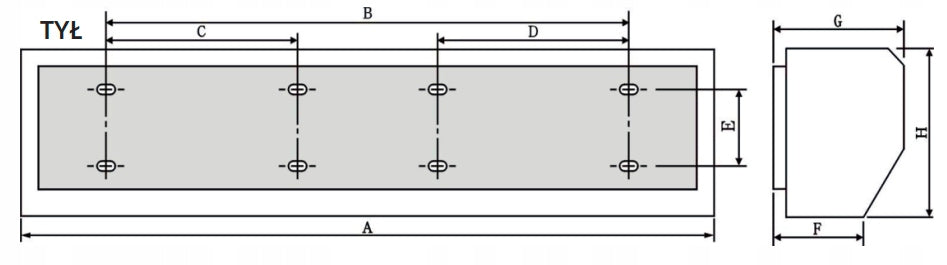

• A (Total width): 1000 mm
• B (Extreme hole spacing): 520 mm
• C (First section spacing): 260 mm (in the 1m model, the holes are usually symmetrical relative to the center)
• D (Second section spacing): 260 mm
• E (Height between holes): 130 mm
• F (Lower depth/base): 143 mm
• G (Total depth of top): 215 mm
• H (Total height): 180 mm

Application: Grocery stores, pharmacies, boutiques, offices, restaurants, hotels. The AERIS AC100E1P curtain fits perfectly into door openings up to 100 cm wide, providing effective protection against heat loss. Replacement for more expensive water systems, wherever the speed of installation and 230V power supply count.
