Oro užuolaida VTS EUROHEAT WING E200 AC, elektrinė

Trumpai apie prekę

Prekė: Oro užuolaida VTS EUROHEAT WING E200 AC, elektrinė. Kategorija: Oro užuolaidos.

• Gamintojas: VTS
• Modelis: 1-4-2801-0255
• Galia: 15000 W

The WING air curtain is a device whose purpose is to create an invisible barrier that separates environments with different air parameters from each other.

The minimalist shape of the WING curtain housing, inspired by the shape of the glider wing and the characteristic side covers with a diamond shape give the curtain form a unique harmony and elegance. The energy-efficient motor, efficient fan and double-row heat exchanger ensure quiet operation and the highest efficiency of the device.

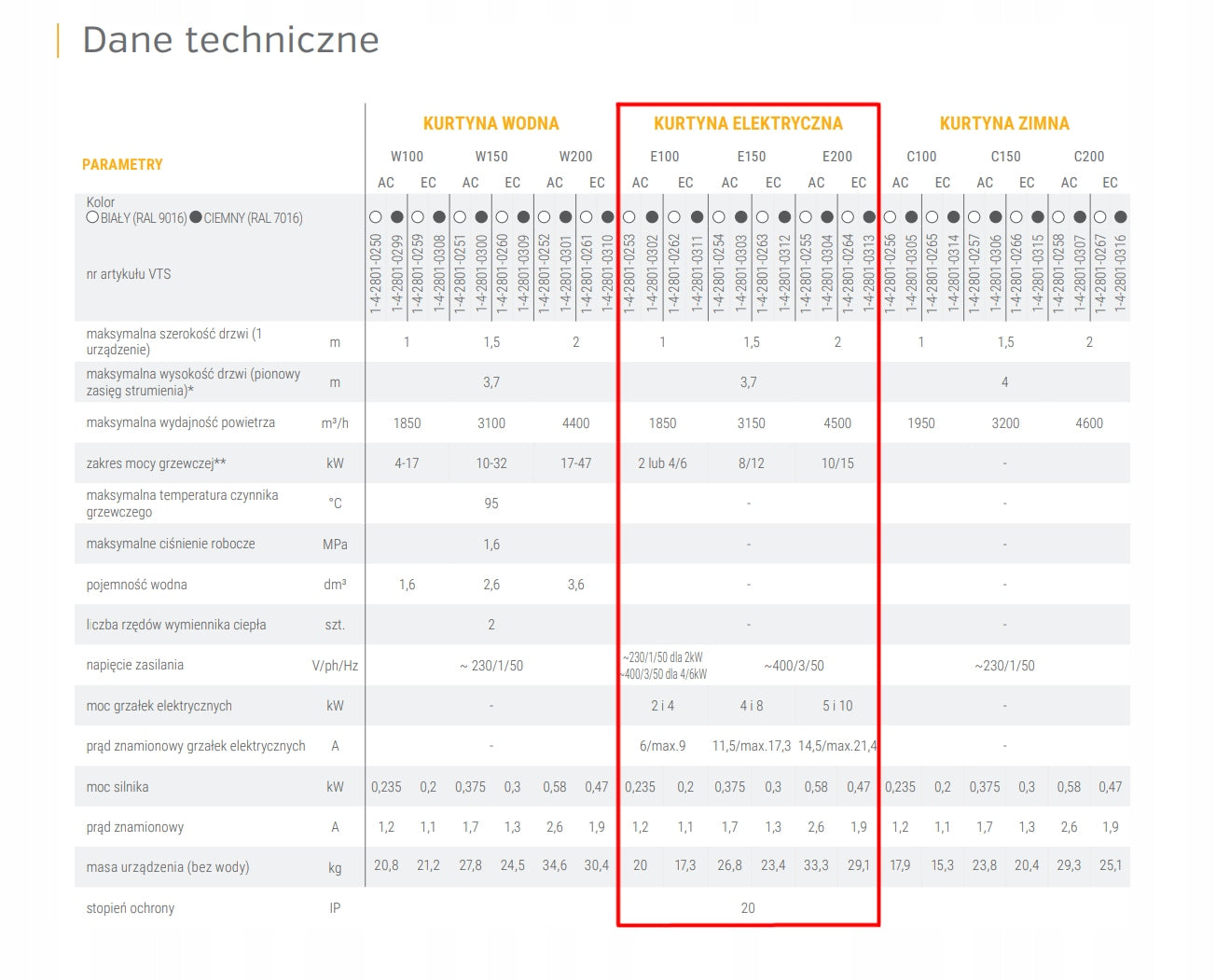

Parameters of WING E200 AC

• maximum width of the door for one device - 2m,
• maximum height of the door - 3,7m,
• heating power range - 10/15 (~400V/3/50) kW,
• maximum air expenditure - 4500 m3/h
• mass without water - 33,3kg,

• high efficiency of the device
• reliable three-speed motor
• three-stage fan speed control
• quick installation and intuitive connection

All WING curtains with electric heaters are adapted to work horizontally and in a group configuration. The design of the device stabilizing air flow effectively reduces the level of sound emitted to the environment.

The special design of the handlebars provides a 20% increase in the range of the air stream compared to traditional solutions. Thanks to the powerful AC motor, the WING E200 AC air curtain is capable of producing an air flow with a range of up to 3,7 meters with a maximum air expenditure of 4500 m3/h. The curtain reaches a heating power of up to 10/15kW three-phase powered (3~400V).

Accessories working with Wing E200 AC curtain:

• Set of entrustments WING 150/200 - 1-4-2801-0181
• Wall-mounted controller WING/VOLCANO AC - 1-4-0101-0438

Specifications
