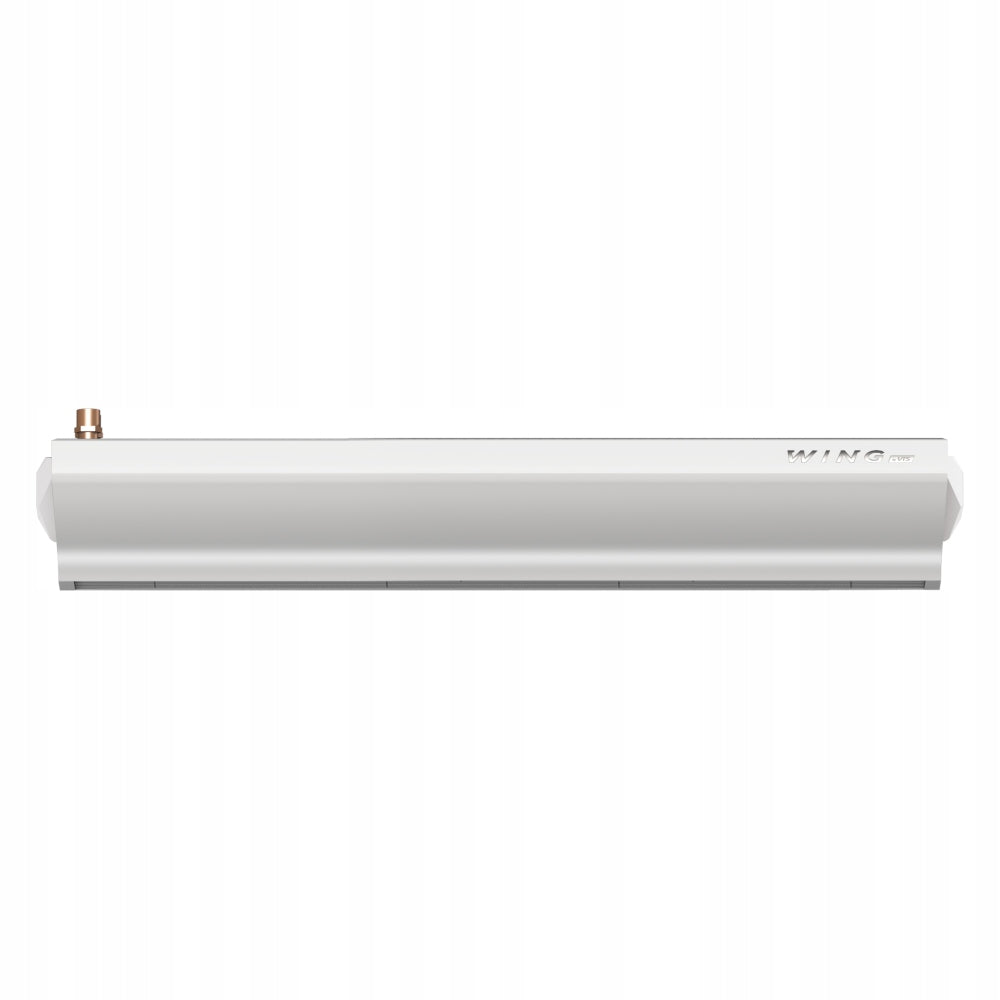

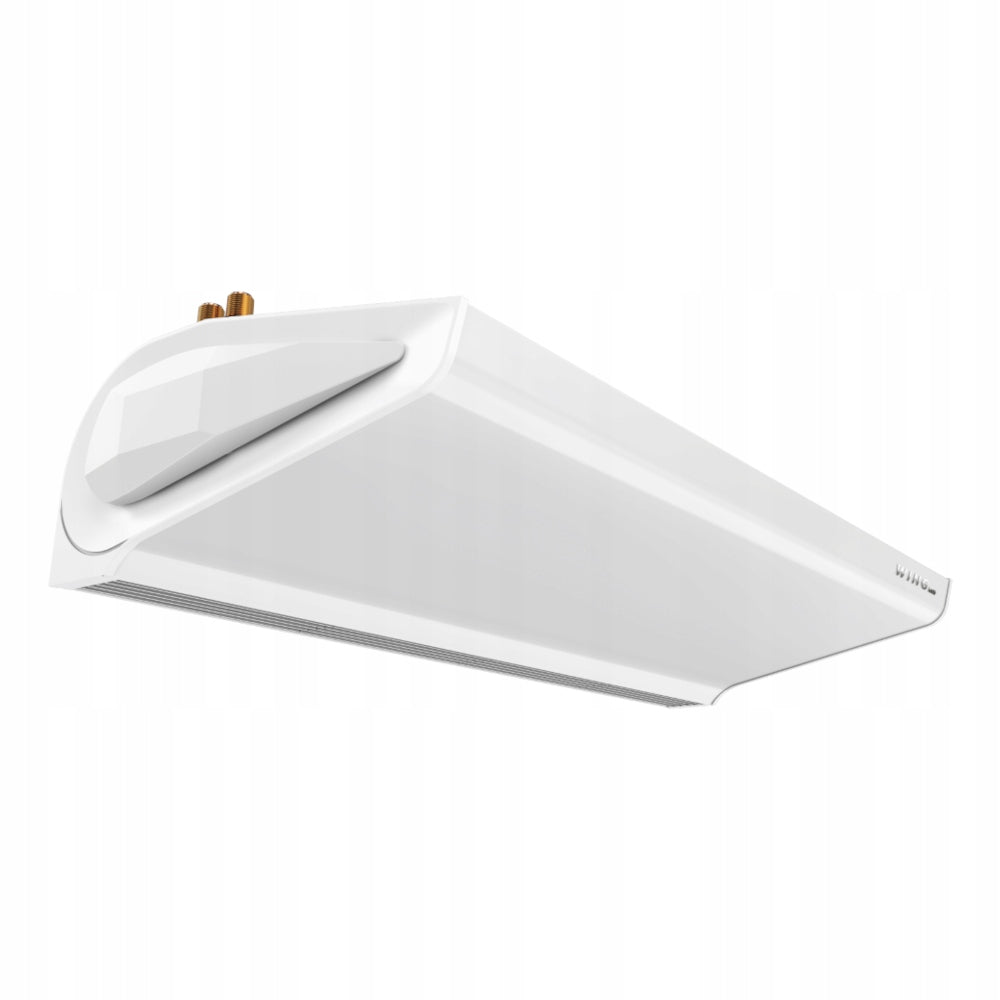

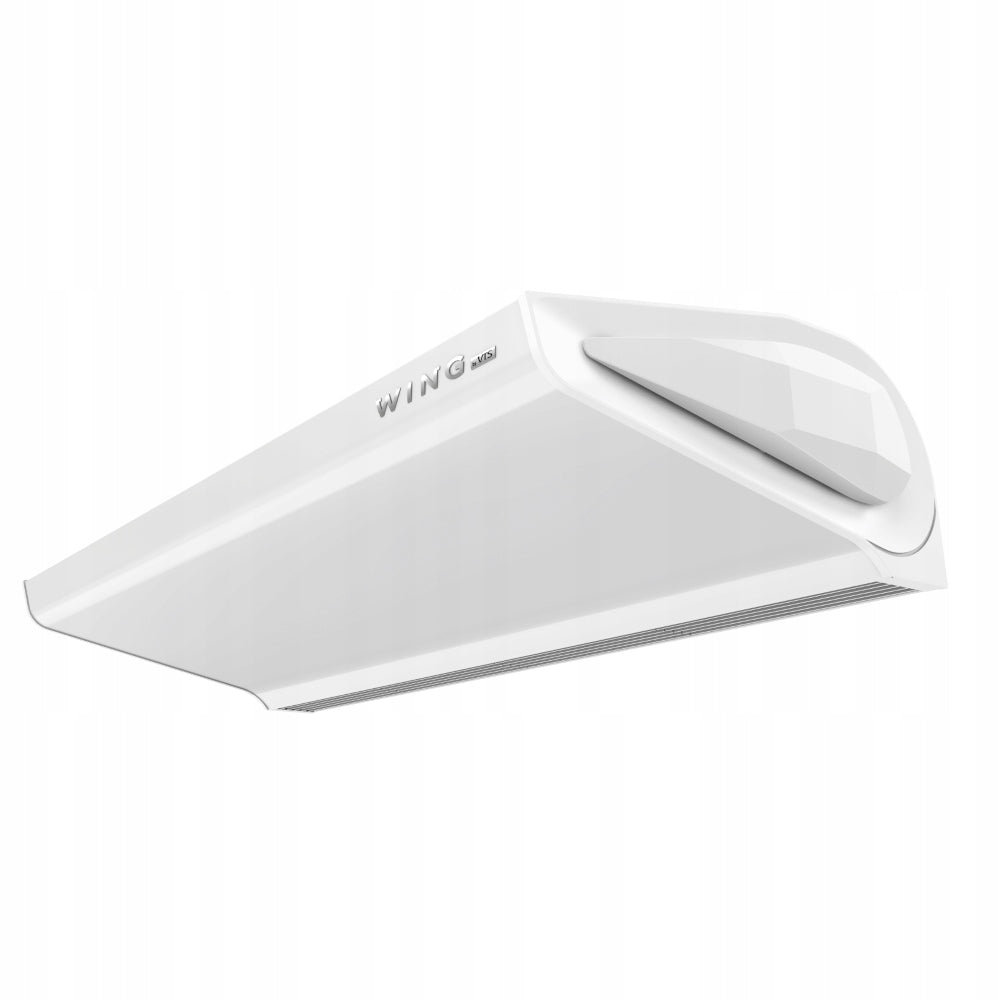

Oro užuolaida VTS WING W200 AC, 17–47 kW, vandeniui

Trumpai apie prekę

Prekė: Oro užuolaida VTS WING W200 AC, 17–47 kW, vandeniui. Kategorija: Oro užuolaidos.

• Gamintojas: VTS
• Modelis: 1-4-2801-0252
• Galia: 47000 W

>> FITTINGS -- RADIATORS -- BOILERS -- PUMPS -- TANKS -- < <

Air curtain with water heat exchanger WING W150 with three-speed AC motor

#ID: 1-4-2801-0252

EAN: 5902854430123

Weight: 34,6kg

WORKING WIDTH: 200 cm

The WING air curtain is a device whose purpose is to create an invisible barrier that separates environments with different air parameters from each other.

Air curtain with water exchanger and high-performance transverse fan.

The WING air curtain is available in three sizes - 1 m, 1,5 m, 2 m, which can be combined with each other in any configurations, which allows you to protect every entrance to the building.

The unique design allows for installation in prestigious places, meeting the highest aesthetic requirements of designers.

WING W air curtains can be mounted horizontally or vertically. Thanks to its slim shape, extremely low housing height and tilted air intake, it can be mounted in a very limited space above the door, without affecting performance.

Parameters of WING W150 AC

• maximum width of the door for one device - 2m,
• maximum height of the door - 3,7m,
• heating power range - 17-47 (~ 230/1/50) kW,
• maximum air expenditure - 4400 m3/h,
• mass without water - 33,5kg,

• high efficiency of the device
• reliable three-speed motor
• three-stage fan speed control
• quick installation and intuitive connection

A set of suspensions must be purchased for the curtain.

Accessories working with Wing W200 AC curtain:

• Suspension set WING W150/200 1-4-2801-0181
• Wall-mounted controller WING/VOLCANO - 1-4-0101-0438
