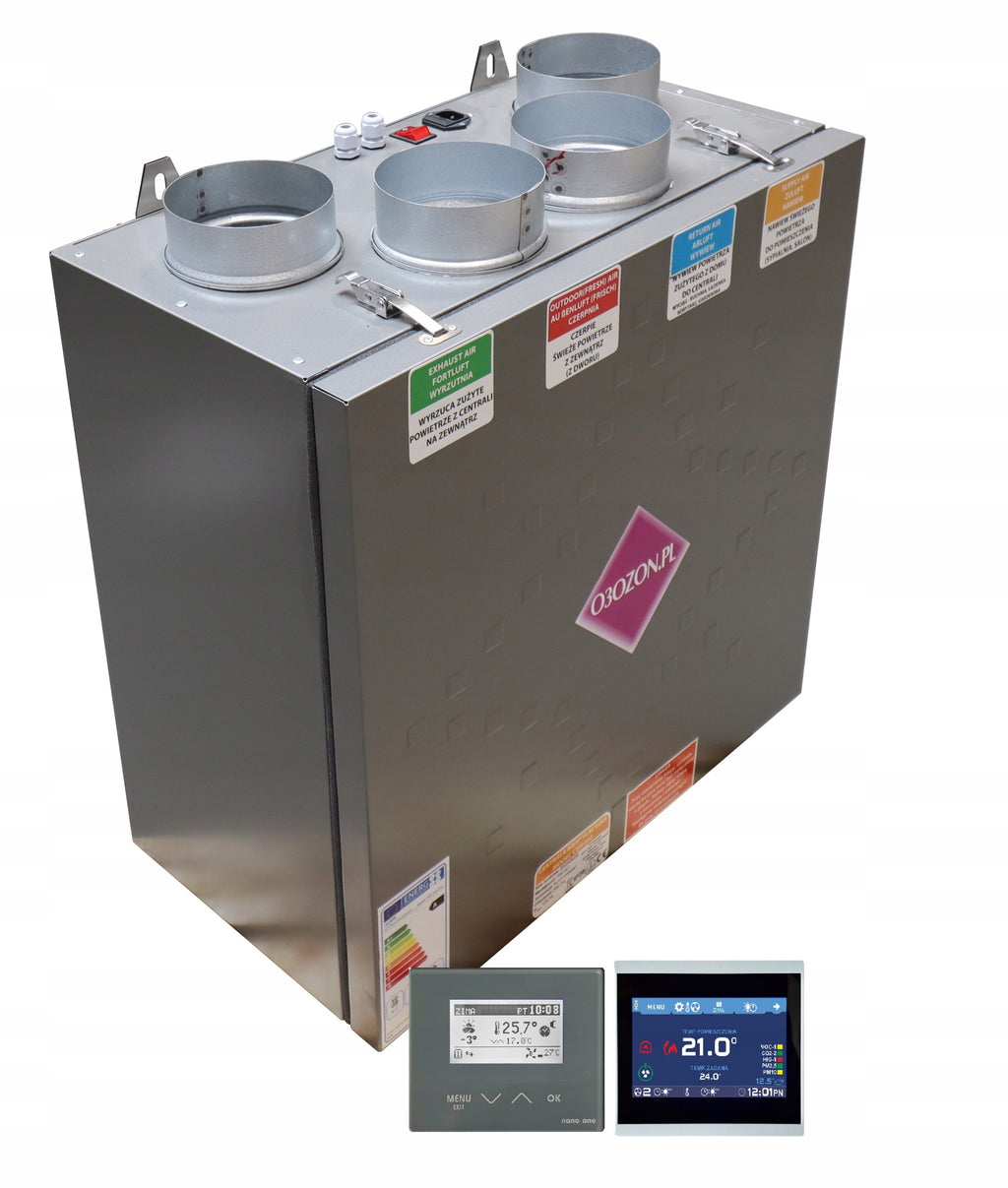

Oro vėdinimo įrenginys su rekuperatoriumi ir 160g jonizacija

Trumpai apie prekę

Prekė: Oro vėdinimo įrenginys su rekuperatoriumi ir 160g jonizacija. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: cwpp 160/120g

15 years of experience

The headquarters meets the requirements of WFOŚiGW regarding the Clean Air program.

Before you buy, watch the video https://www.youtube.com/watch?v=m8BvSsrRX5w

Built-in negative ionizer

Negative ion helps:

• Kill bacteria, viruses and fungi
• Facilitates breathing
• Clean and refresh the air
• Accelerate rest
• Increases concentration
• Helps in learning
• Improves fitness

THE CONTROL PANEL CONTAINS

• FAN "EC" WITH MAX CAPACITY UP TO 350m3/h GERMAN COMPANY
• BUILT-IN IONIZER
• DIAMETER OF THE STUB 120 mm
• RPM MAX 2400 rpm
• CLASS G4 FILTERS
• COUNTERCURRENT RECUPERATOR PULL-OUT EASY TO WASH
• RECUPERATOR EFFICIENCY FROM 65% to 92% (parameter depends on the difference in flow rate)
• POWER OF THE DEVICE FROM 8 TO 65W
• BUILT-IN AIR PURIFIER SYSTEM (MICRO PARTICLES)
• ANTI-ELECTROSTATIC SYSTEM
• HOUSING MADE OF SHEET METAL 0,7 mm ALUM-ZINC
• INSULATION THICKNESS 30 mm=3cm
• SOUND INSULATION
• FIREPLACE THERMAL INSULATION RESISTANT TO HIGH TEMPERATURES. WITH ALUMINIUM JACKET
• DRAINAGE OF LIQUEFIED WATER
• VERY GOOD VALUE FOR MONEY
• SPEED CONTROLLER
• OPERATING TEMPERATURE -25 to 50°C
• VERY GOOD VALUE FOR MONEY
• FIREPLACE OPERATION MODE
• AUTOMATIC TEMPORARY DEHUMIDIFICATION OF THE EXCHANGER
• INTEGRATION WITH THE CONTROL PANEL AND AUTOMATION SYSTEMS
• PROGRAMMABLE CLOCK ZONES
• BY-PASS ELECTRONIC
• ENTHALPIC EXCHANGER
• Filter- cartridge made as G4 class nonwoven fabric You do not have to buy expensive filters!!! . You can combine several filters eg G4+F9+H14 ps smog will be reduced in 80-90%
• CONTROL OF DUCT AIR CONDITIONING BASED ON HEAT PUMP OR ORDINARY AIR CONDITIONING
• POLISH PRODUCT

POLISH PRODUCT

ECS has over 14 years of experience in the production of equipment for industry, produces for the largest companies reputable, international.

Each model of the air handling unit is created on the basis of well-thought-out solutions and proven technology.

Filter- cartridge made as G4 class nonwoven fabric You do not have to buy expensive filters!!! . You can combine several filters eg G4+F9+H14 ps smog will be reduced in 80-90%

"EC" fans manufactured by MADE IN GERMANY were used

The use of larger fans increases their service life, and soundproofs the ventilation system

Filter:

Nonwoven fabric G4 (exhaust and supply)

• Very tannin filter, possibility of replacing the non-woven fabric itself, cost PLN 2-4
• Possibility to configure any filter from G1 to U15 (filters used in the operating room)
• Possibility to combine several filters at the same time
• Industrial work

Control:

• Possibility of control in facilities with intelligent installations
• Possibility to adjust optimal fan operating parameters

Specification:

• Efficiency of the control panel 160m3/h
• Power min 8W max 64W

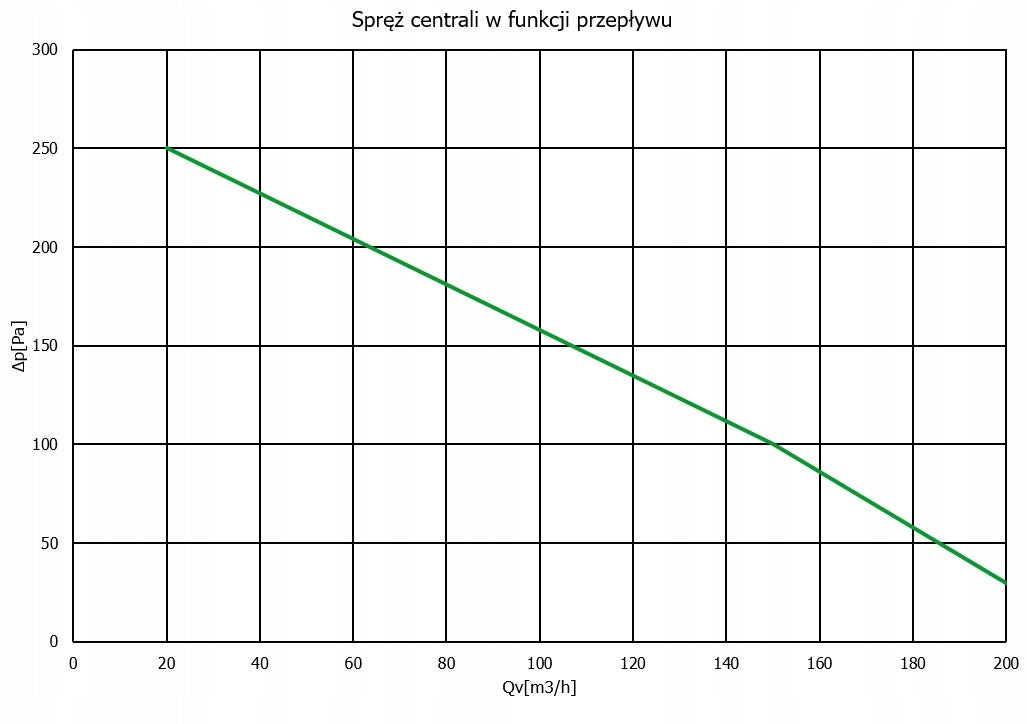

• Pressure up to 300Pa
• FAN CAPACITY "EC" 2x350m3/h
• VOLTAGE 230 V 50 Hz
• Heat recovery efficiency from 65% to 92%
• Engine speed 2400 rpm
• Noise level db/(A)3m 24-45
• Maximum operating speed up to 45C
• Housing material alumcynk sheet 0,7mm
• Wool 30mm
• Air supply filter G4
• Filter extractor G4
• Diameter of stubs 200 mm
• Recuperator efficiency up to max 95%
• COUNTERCURRENT recuperator
• Recuperator ENTHALPIC MATERIAL
• Anti-freeze system
• Weight about 30 kg QUALITY MUST WEIGH COMPARE WITH OTHER PRODUCTS OF THIS CLASS
• Dimensions 581x582x316 mm

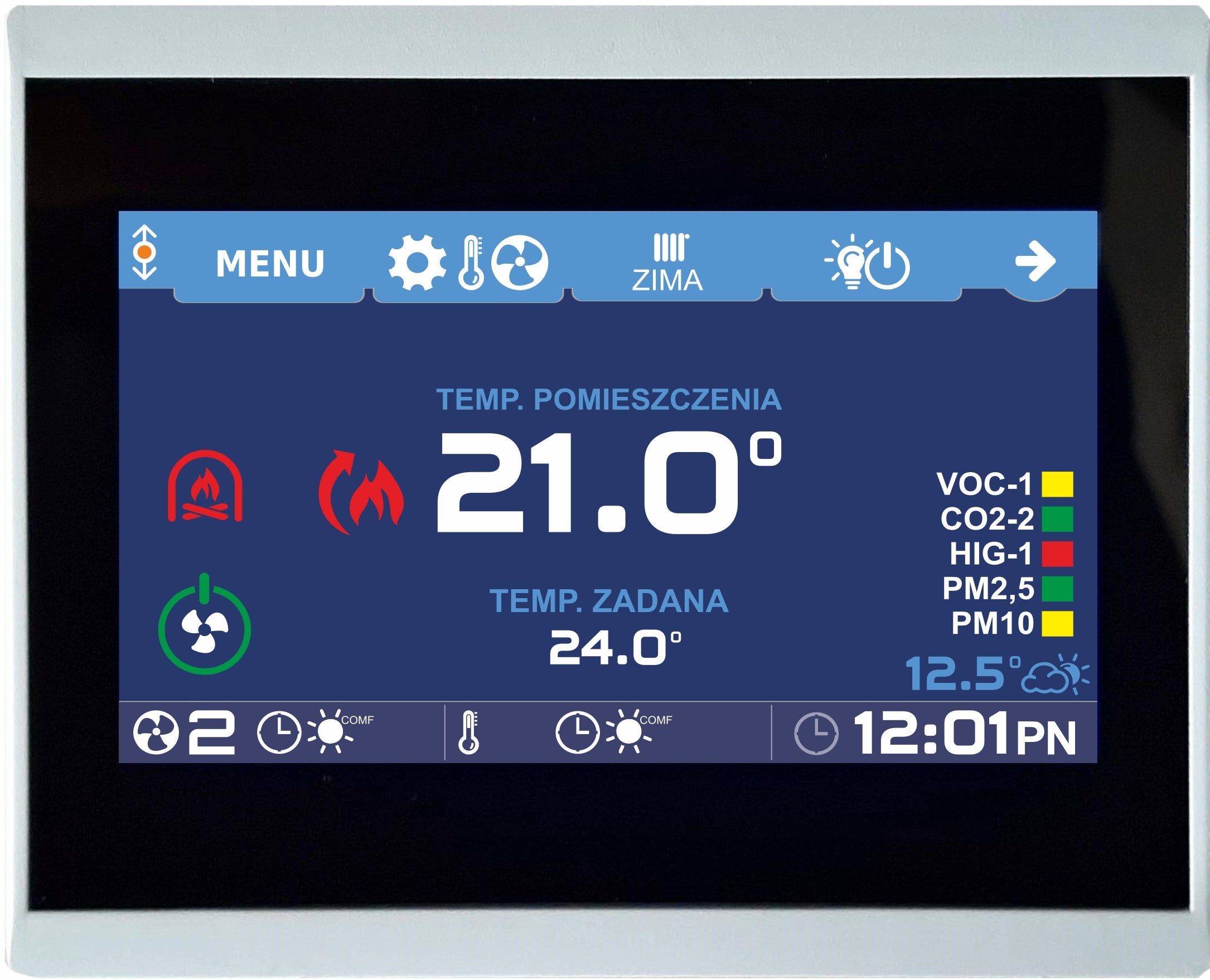

• TOUCH PANEL

• temperature measurement
• regulation of the supply force
• by-pass control
• setting a schedule
• heater control
• GWC control switching
• Configuration of secondary radiator control
• switching on the preheater
• choice of background color
• indication of soiled filter
• control of heater, freon radiator - possibility of connecting air conditioning
• possibility to connect humidity sensor
• FIREPLACE OPERATION MODE
• AUTOMATIC TEMPORARY DEHUMIDIFICATION OF THE EXCHANGER
• INTEGRATION WITH CONTROL PANEL AND AUTOMATION SYSTEMS
• PROGRAMMED CLOCK ZONES
• etc...

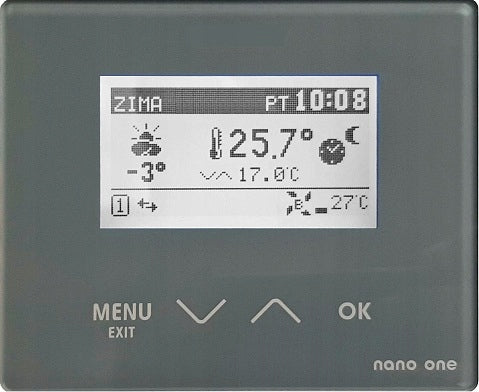

THERE IS A BLACK AND WHITE DRIVER IN THE STANDARD, BUT YOU CAN BUY A COLORED

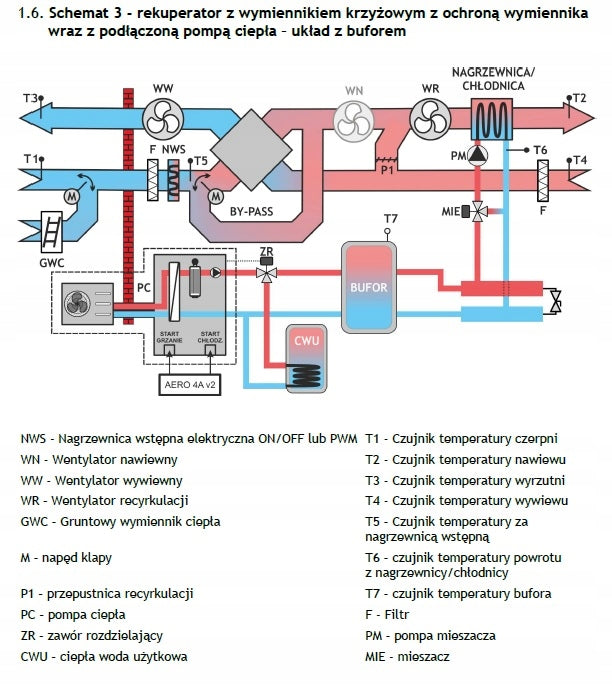

AIR CONDITIONING CONTROL SYSTEM POSSIBLE WITH CWPP 160/120 CONTROL PANEL

Note channel air conditioning lowers the temperature in summer. in rooms with 4-7c In winter, it heats rooms to temp, 20-22c if outside temp. will not fall below 2, -2c and is well made So objects with duct air conditioning require alternative heating, but it is profitable to install it because

-assembly costs are much lower than GWC,

-efficiency is several times greater than GWC

-operation and cleaning is very easy, compared to GWC

-very low heating costs of the facility, return on investment 2-3 seasons

-low operating costs

-brak in the facility of indoor air conditioning units

-very simple installation (external unit + freon cooler)

-etc...

See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself

• System presentation: ▶ https://youtu.be/zwnY-pdrwj8
• Presentation of the entire GWC duct air conditioning: ▶ https://youtu.be/m8BvSsrRX5w
• Durability of our products: ▶ https://youtu.be/a3_OZIj2fLI
• See recuperation assembly course: ▶ https://youtu.be/ZMhyH29QXEY
• How to choose an exchanger for the air handling unit: ▶ https://youtu.be/PQYRlMa0cU4
• How to select and make intakes and launchers: ▶ https://youtu.be/JaYdZvX_Jl0
• How to choose a recuperator, ventilation units: ▶ https://youtu.be/T4-kbpZCiRg
• Great anemostat theory for ventilation recuperation: ▶ https://youtu.be/hmj_Zri58Wo
• Linear diffuser mezzanine how to do: ▶ https://youtu.be/zW6ewKM40F4
• Great theory of ventilation recuperation: ▶ https://youtu.be/TUGCt0jLmsk
• Theory of anemostat distribution: ▶ https://youtu.be/2DrL7inP8xA
• Anemostat distributions according to PN-83: ▶ https://youtu.be/tT88G79NqjE
• Connecting distribution boxes: ▶ https://youtu.be/Uq1FjNinR7U
• Anemostat placements according to FASHION FACEBOOK: ▶ https://youtu.be/qKcPhyyynKM
• Distribution of anemostats Paruszewski's ideas: ▶ https://youtu.be/TzhaNNL84hU

See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...
