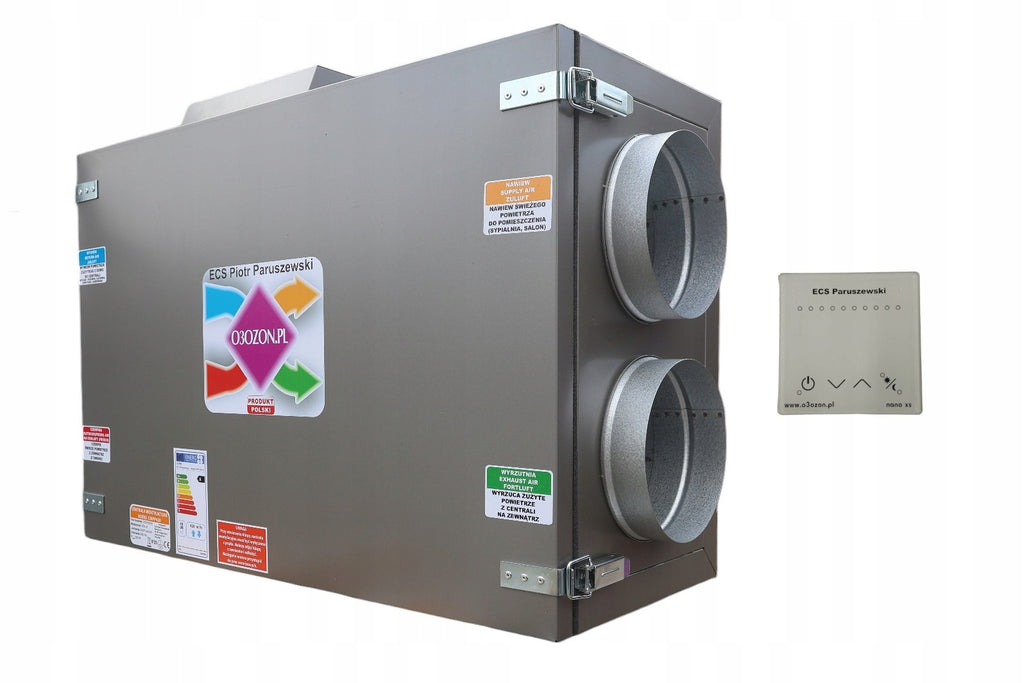

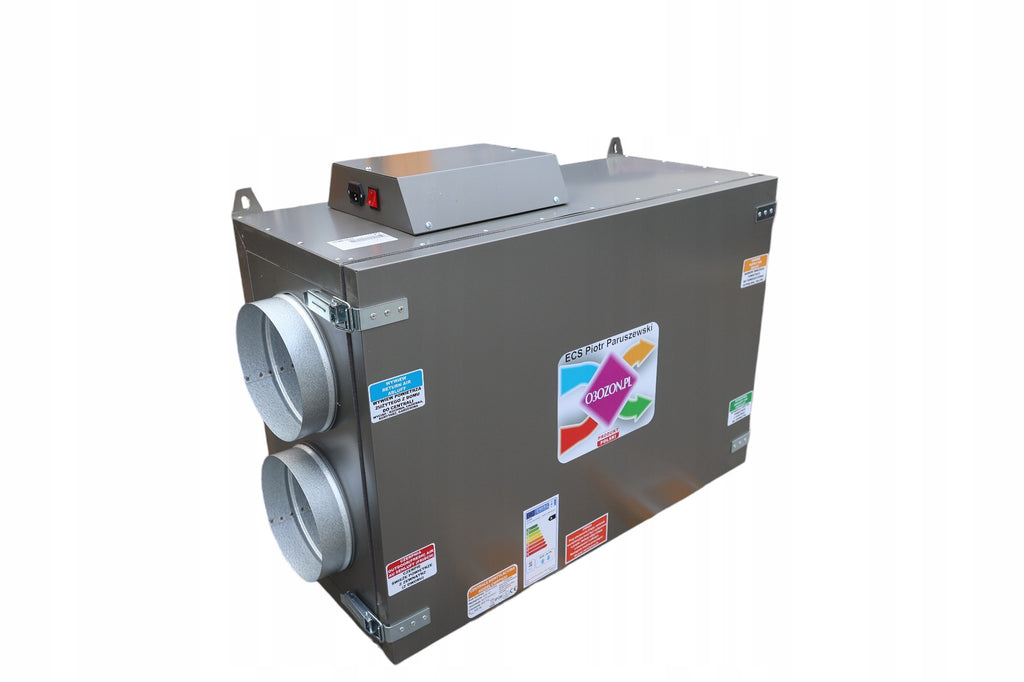

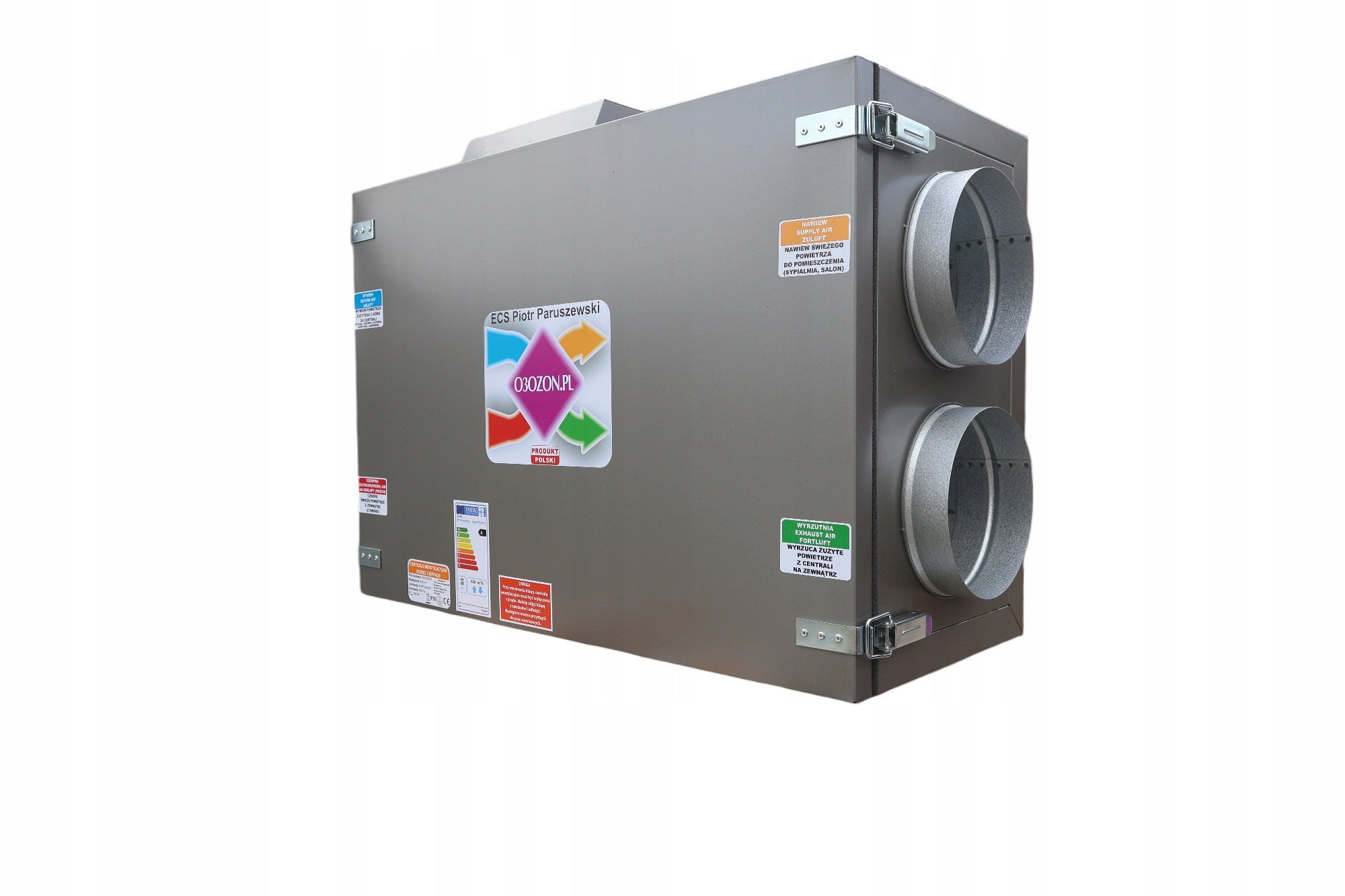

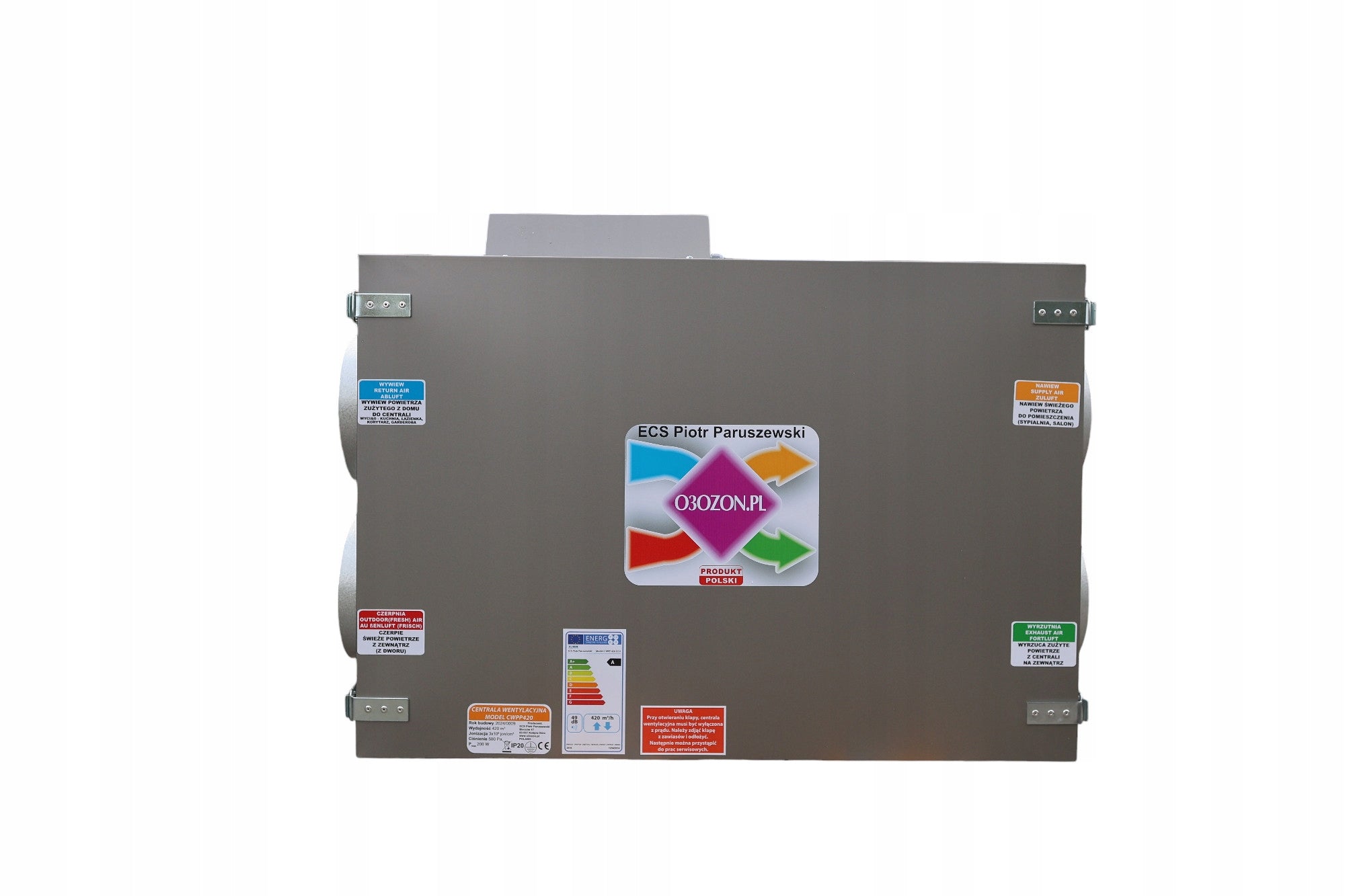

Oro vėdinimo rekuperatorius 500 m³/val. su jonizacija

Trumpai apie prekę

Prekė: Oro vėdinimo rekuperatorius 500 m³/val. su jonizacija. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: ECS
• Modelis: CWP 500/200

15 years of experience

Before you buy, watch the video https://www.youtube.com/watch?v=m8BvSsrRX5w

Ventilation unit recuperator

Model: CWP 500/200 jon16

PRODUCER: ECS – Piotr Paruszewski

Contains:

• Efficient fan: up to 950 m³/h
• Built-in ionizer for better air quality
• Diameter of the stub: 200 mm
• Maximum rotation: 2400 rpm
• Class G4 filters

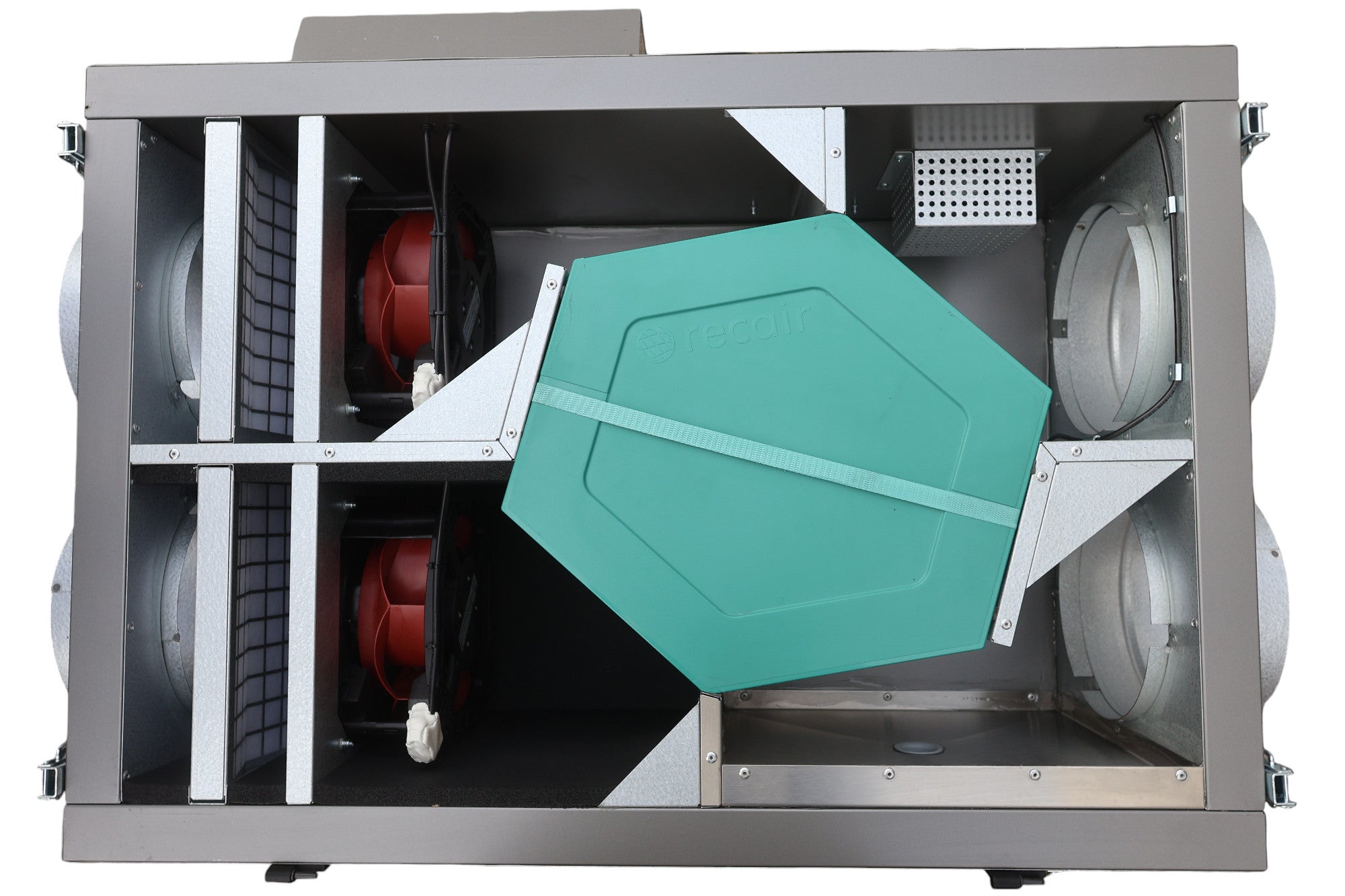

• Countercurrent recuperator: easy to remove and wash
• Recuperator efficiency: 65% to 92% (depending on flow temperature)
• Power of the device: from 70 to 220 W
• Microparticle cleaning system – built-in
• Anti-electrostatic system
• Information system about dirty filter
• Electronic by-pass
• Housing: 0,7mm thick alum-zinc sheet, rodent resistant and does not age
• Insulation:

  Acoustic

  Heat (fireplace) – resistant to high temperatures, with aluminum coating

  Isolation thickness: 40 mm (4 cm)

• Drain of liquefied water
• Very good value for money
• Rotational speed controller

PRODUCT Polish

ECS has over 14 years of experience in the production of equipment for industry, produces for the largest companies reputable, international.

Each model of the air handling unit is created on the basis of well-thought-out solutions and proven technology.

Filter- cartridge made as G4 class nonwoven fabric You do not have to buy expensive filters!!! . You can combine several filters eg G4+F9+H14 ps smog will be reduced in 80-90%

Made in Germany fans were used

WITH A CAPACITY OF 550M3

The use of larger fans increases their service life, and soundproofs the ventilation system

Case

The housing is made of thin alum zinc sheets galvanized on both sides, which are specially shaped on numerical machine tools and permanently mounted with galvanized rivets to create a rigid self-supporting structure. The alum zinc material provides excellent protection for surfaces that come into contact with ventilation air and seals all housing components. In terms of acoustic and thermal, the casing is protected with a 40 millimeter layer of wool

The task of the ionizer is to naturally clean the air of impurities, such as: , mites, anaerobic bacteria, cigarette smoke dust, pollen, etc.

The ventilation system with recuperation allows up to 8 times reduction of ventilation heat losses.

Filter

• Nonwoven fabric G4 (exhaust and supply)
• Economical replacement: possibility of replacing only the fleece for 2–4 PLN
• Available configurations: from G1 to U15 (also for use in operating rooms)
• Combining filters: option to use several filters at the same time
• Industrial work

Built-in negative ionizer

Benefits of Negative Ions:

• Kill bacteria, viruses and fungi
• Facilitate breathing
• Cleanse and refresh the air
• Accelerate the regeneration of the body
• Increase concentration
• Support the learning process
• Improves fitness and well-being

Control set

Set of devices: NANO XS control panel and AERO 2 actuator module for operating air handling units.

The set allows you to:

• Programming fan rotation in two operating modes (day/night)
• Forcing airing – maximum fan speed
• Alarm Status Indication (LED)

Driver Functions:

• Turning fans on and off
• Speed control: increasing and decreasing rotation
• Day/night mode: different speeds with setting memory
• LED Ruler: Rotation Level Indicator
• LED exclamation point: failure signaling

• 225mm
• Maximum capacity: 400 m³/h SEE CHARACTERISTICS BASED ON THIS

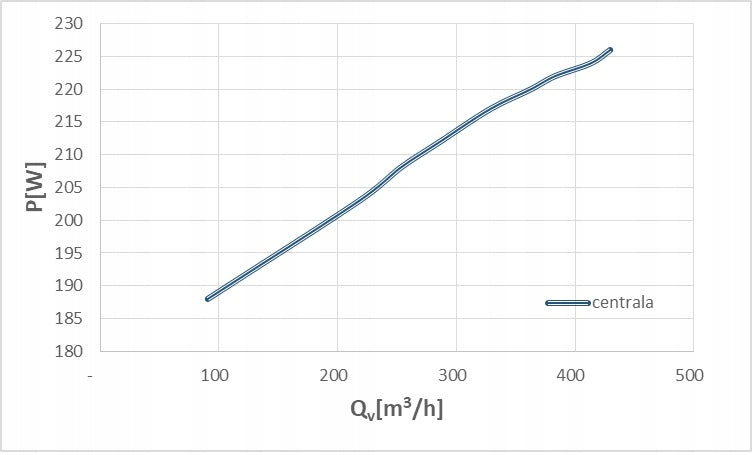

• Power: min 70 W – max 220 W

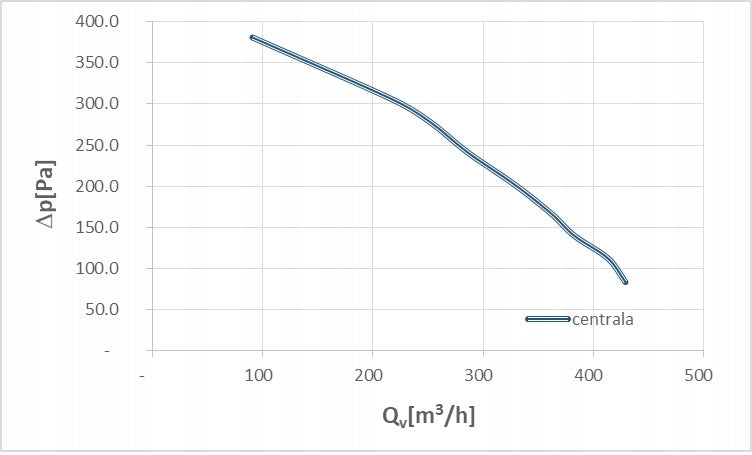

• Pressure: up to 200 Pa
• Fan capacity: 2 x 950 m³/h
• Voltage: 230 V, 50 Hz

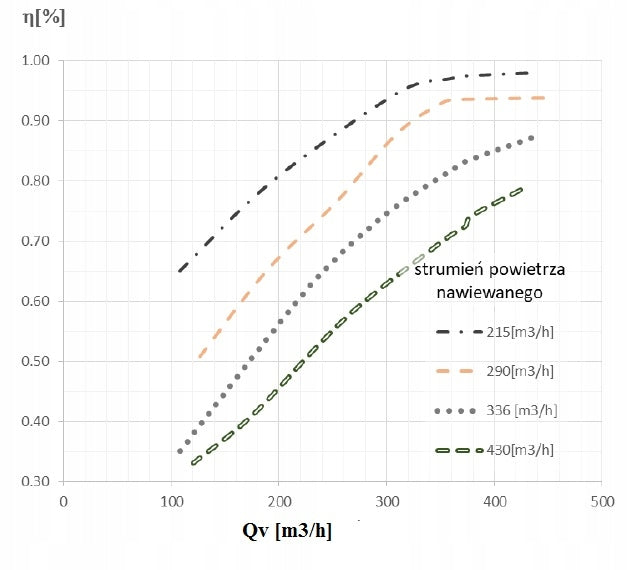

• Heat recovery efficiency: 65% to 92%
• Engine speed: 2400 rpm
• Noise level: 24 to 40 dB(A) at a distance of 3 m
• Maximum operating temperature: up to 45°C
• Housing material: 0,7mm thick alum-zinc sheet
• Insulation: 30 mm thick wool
• Filters:

  Air supply G4

  Exhaust G4

• Diameter of stubs: 200 mm
• Recuperator efficiency: up to 92% (countercurrent recuperator)
• Recuperator Material: Plastic
• Bypass: Summer Cassette Sold Separately
• Anti-freeze system
• Weight: about 60 kg (compare quality with other products of this class)
• Rotational speed controller

See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself

• System presentation: ▶ https://youtu.be/zwnY-pdrwj8
• Presentation of the entire GWC duct air conditioning: ▶ https://youtu.be/m8BvSsrRX5w
• Durability of our products: ▶ https://youtu.be/a3_OZIj2fLI
• See recuperation assembly course: ▶ https://youtu.be/ZMhyH29QXEY
• How to choose an exchanger for the air handling unit: ▶ https://youtu.be/PQYRlMa0cU4
• How to select and make intakes and launchers: ▶ https://youtu.be/JaYdZvX_Jl0
• How to choose a recuperator, ventilation units: ▶ https://youtu.be/T4-kbpZCiRg
• Great anemostat theory for ventilation recuperation: ▶ https://youtu.be/hmj_Zri58Wo
• Linear diffuser mezzanine how to do: ▶ https://youtu.be/zW6ewKM40F4
• Great theory of ventilation recuperation: ▶ https://youtu.be/TUGCt0jLmsk
• Theory of anemostat distribution: ▶ https://youtu.be/2DrL7inP8xA
• Anemostat distributions according to PN-83: ▶ https://youtu.be/tT88G79NqjE
• Connecting distribution boxes: ▶ https://youtu.be/Uq1FjNinR7U
• Anemostat placements according to FASHION FACEBOOK: ▶ https://youtu.be/qKcPhyyynKM
• Distribution of anemostats Paruszewski's ideas: ▶ https://youtu.be/TzhaNNL84hU

See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...
