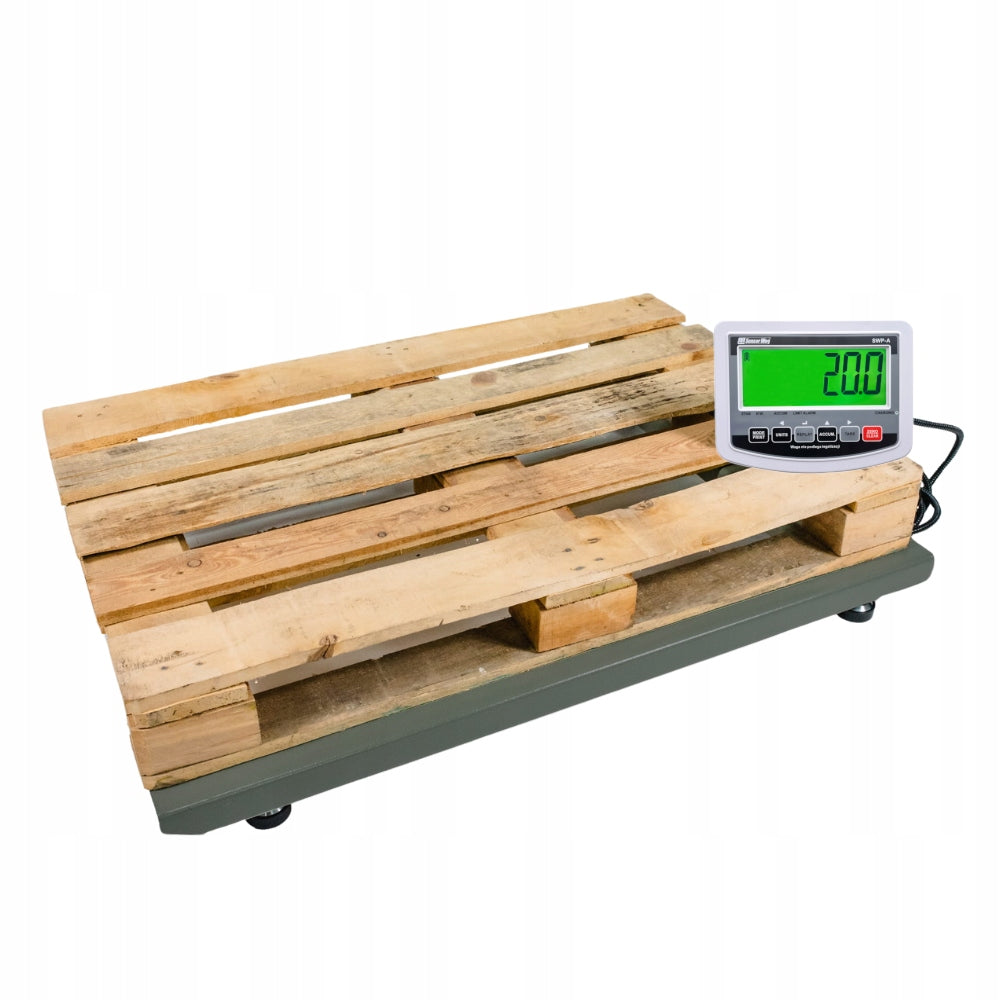

Padėklų svarstyklės su LCD ekranu, iki 1500 kg, sandėliui

Trumpai apie prekę

Prekė: Padėklų svarstyklės su LCD ekranu, iki 1500 kg, sandėliui. Kategorija: Svarstyklės.

• Gamintojas: Sensorwag
• Modelis: PAL 1,5t/200g SWP-A

✅ General information

🔵 Polish SERVICE

🔵 SPARE PARTS

🔵 The weight before shipment is checked and calibrated with mass standards holding the Calibration Certificate issued by the District Office of Measures.

🔵 In the set you will receive a complete scale with a meter, built-in battery and power supply, instruction support in Polish.

🔵 The scale has no legalization. At another auction you will find pallet scales with legalization.

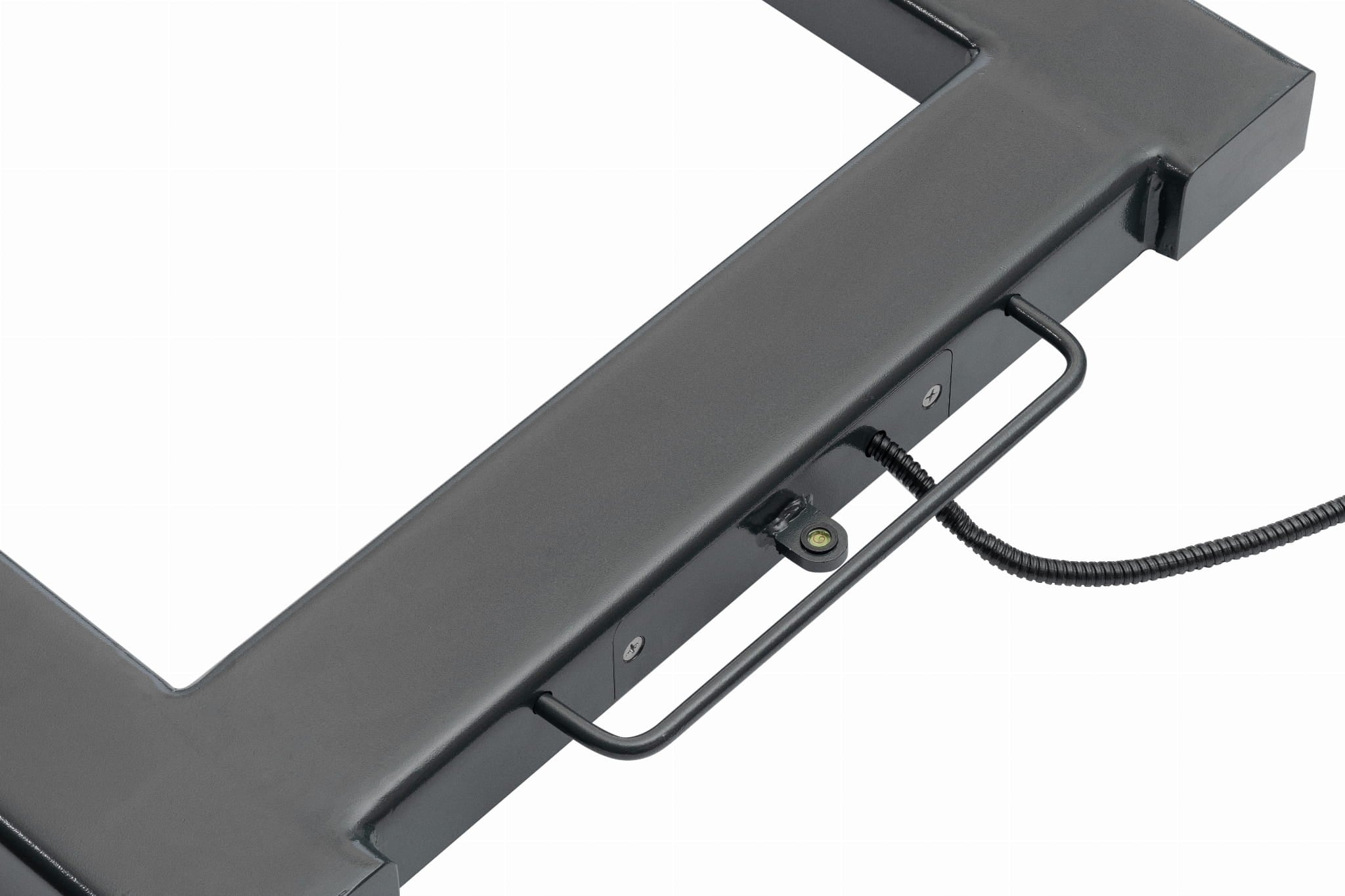

🔵 Handle for convenient weight transfer and level do correct leveling of the platform.

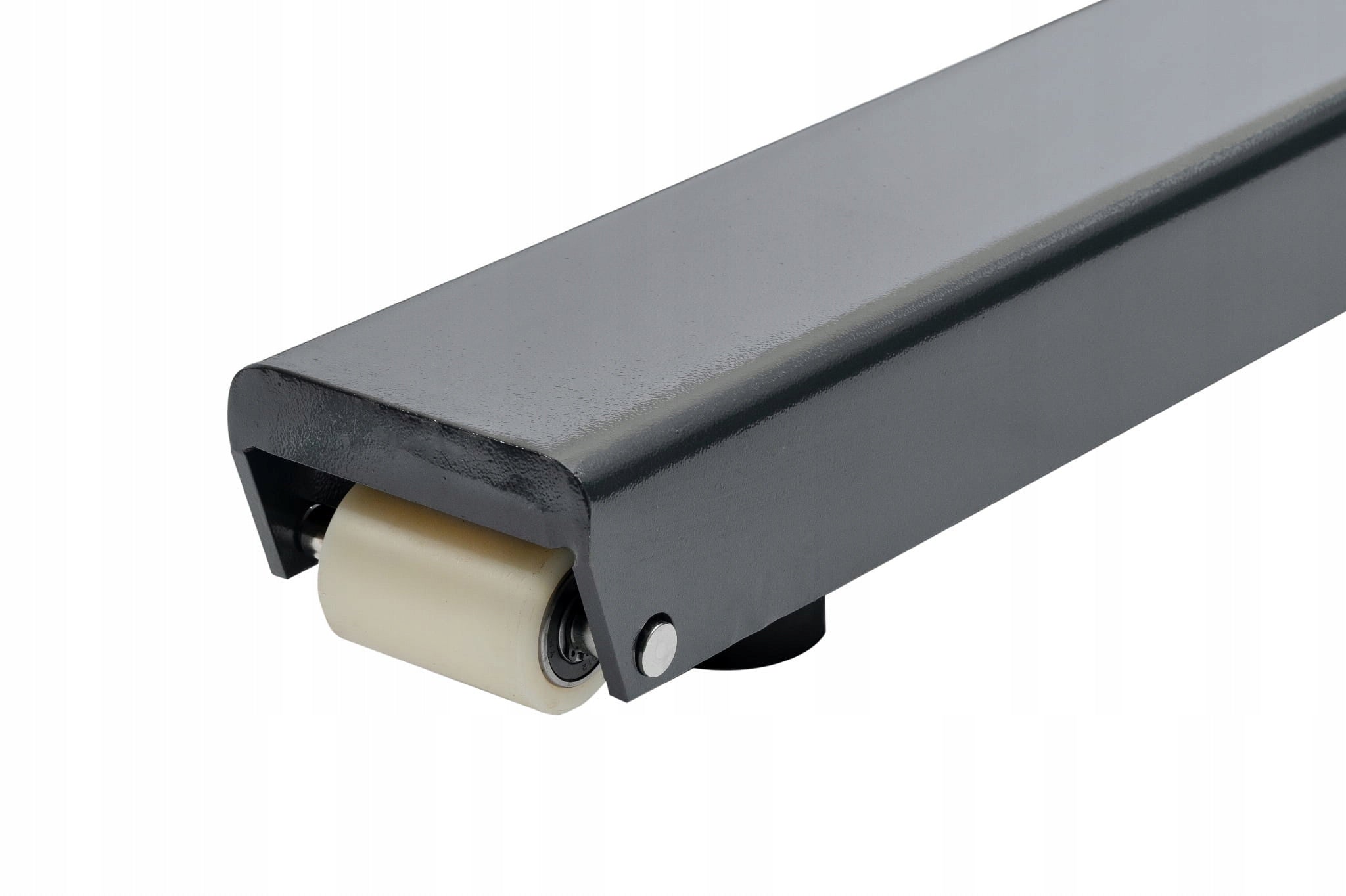

🔵 Wheel for easy manual handling of weights.

✅ Key features

✔ Plastic Overlay

• The set also includes a plastic, transparent overlay, which serves as an additional cover for the front display panel.

✔ High quality KELI sensors

• The scale is equipped with very sensitive, analog, beam strain gauges made of alloy steel, from KELI. Their use largely confirms the belief in the accuracy of weight measurements.

✔ Full calibration

• The scale goes from us to the customer fully calibrated by our service team. By purchasing a scale at our auction, you can be sure that you will receive a scale ready to use.

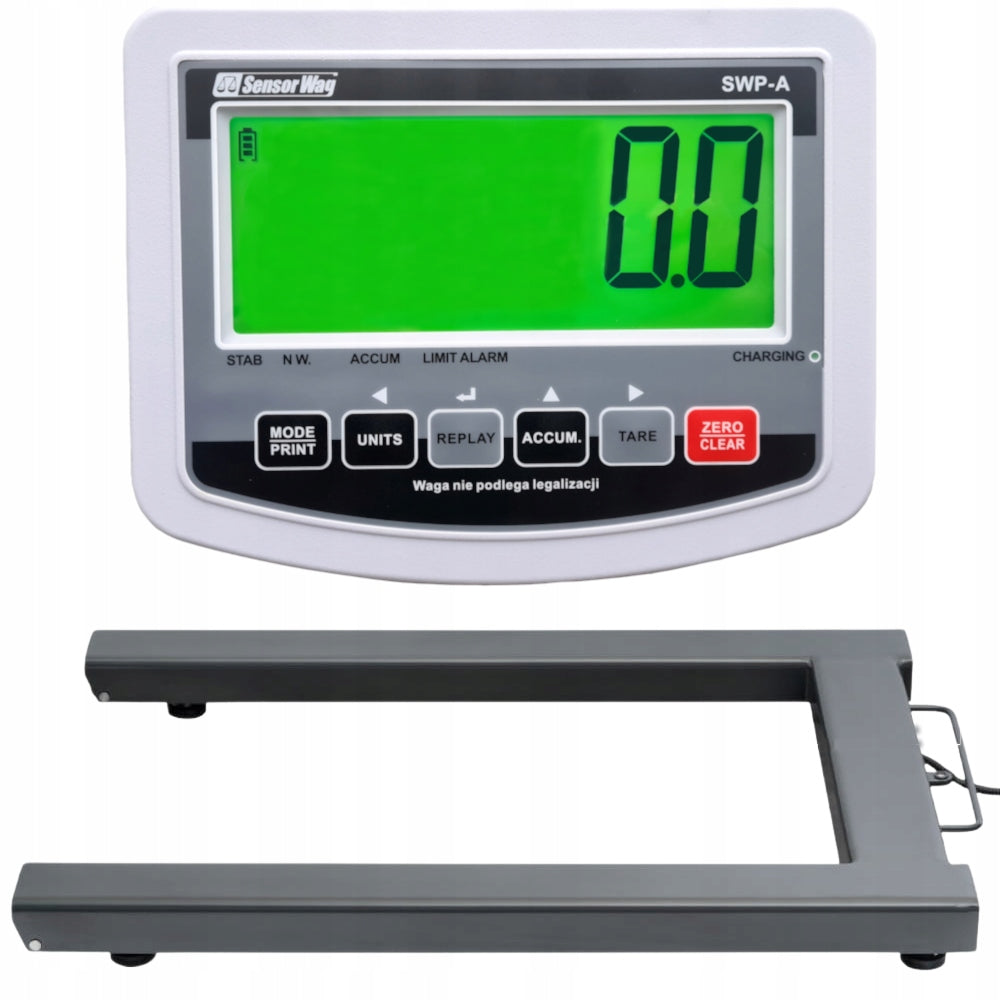

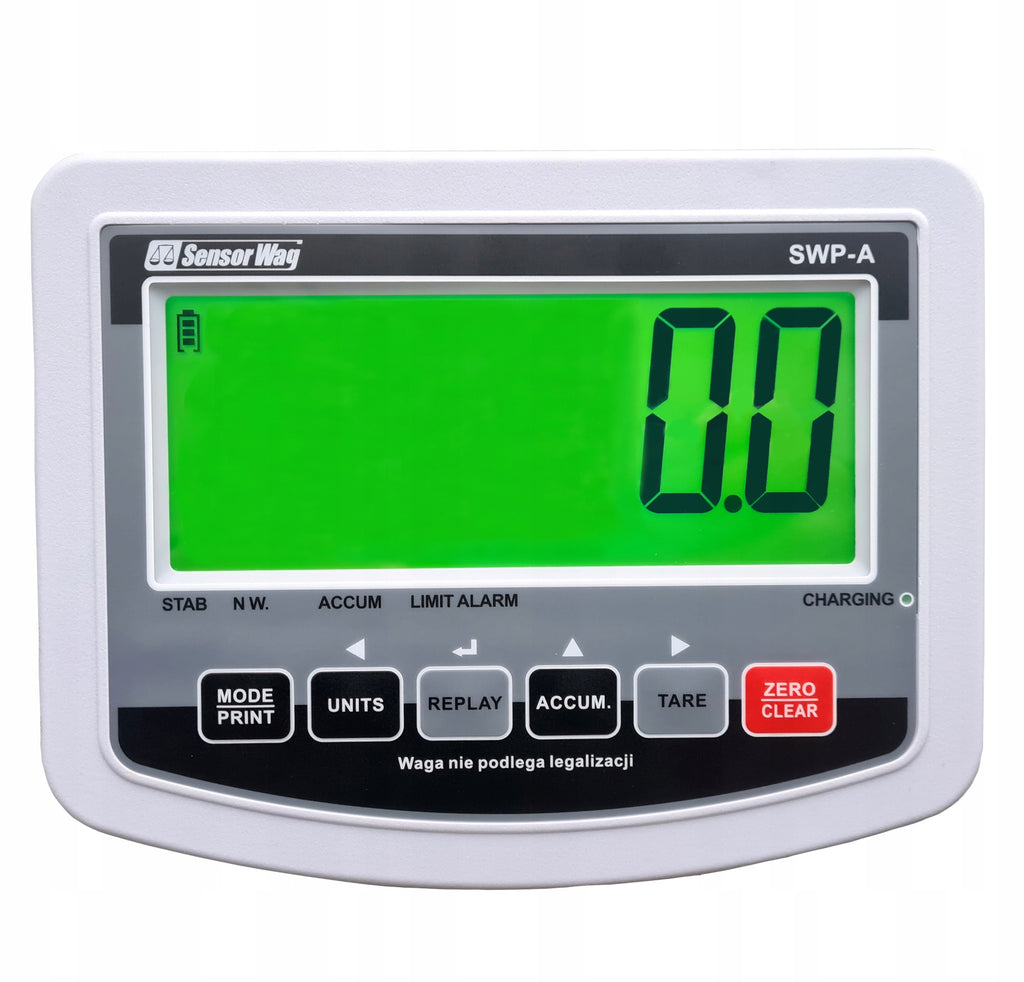

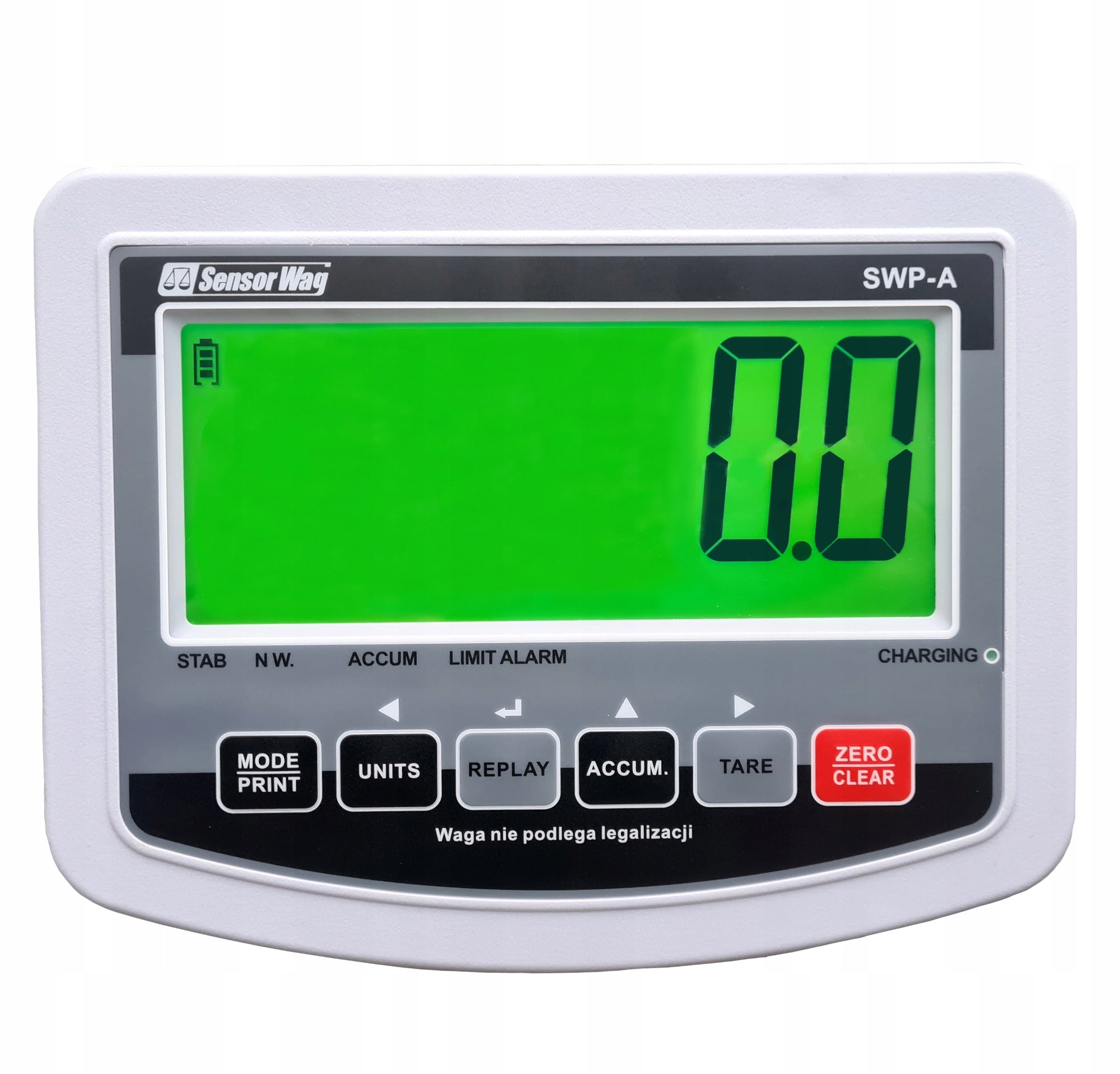

✅ VERY LARGE DISPLAY:

• digit size: 5cm
• visible in difficult conditions,
• perfectly visible from a long distance,
• RS232 - possibility of connection to printer, cash register
• on and only backlight,
• backlight will automatically turn off saving battery.
• plastic housing
• removable cable (possibility of disconnecting the display from the platform without the need for recalibration)
• 22,9cm x 17,8cm - housing,
• 16,5cm x 6,5cm - display
• battery: 6V/4Ah

✅ FUNCTIONS:

• counting pieces
• threshold functions with audible signalling
• summary of weighings
• change of weighing units
• weighing of animals
• targeting
• zeroing

✅ VERSATILE APPLICATION:

• will work in halls, warehouses, shops
• Possibility of mounting the meter to the wall
• MORE THAN 100 HOURS OF OPERATION ON A SINGLE CHARGE

✅ Application:

• in magazines,
• production halls,
• in terrain as a mobile weighing system,
• for in-stock delivery control,
• for weighing bags on pallets,

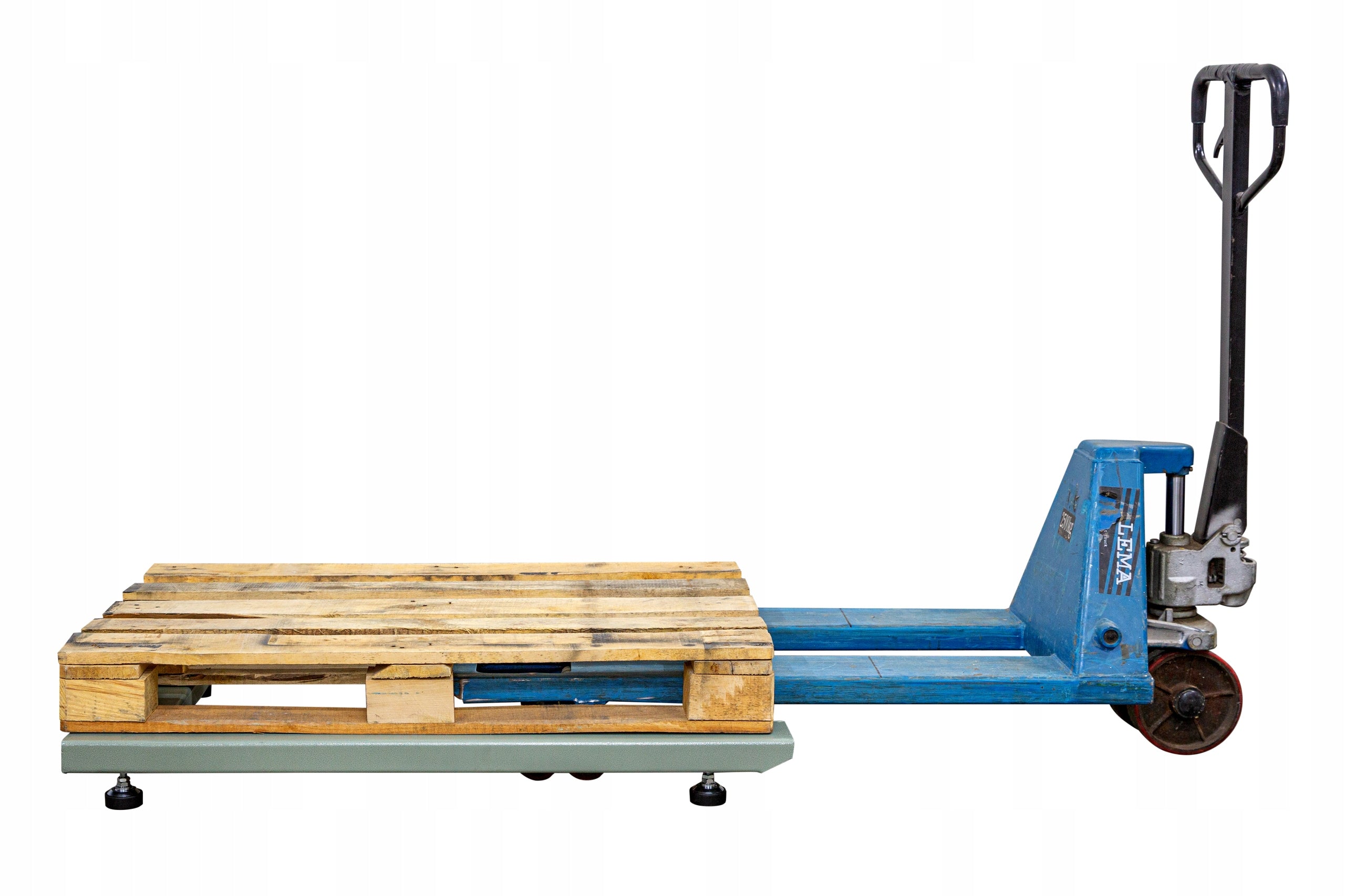

• for weighing pallets, pallet boxes,

✅ Spacious battery

🔹 The display is equipped with a capable gel battery with increased resistance to any shocks, impacts or high or low temperatures.

🔹 Due to the innovative liquid in the form of a gel, does not require electrolyte replenishment, and the method of construction allows use in any positions.

*Photo Review*

✅ Summary box

✔ The device is equipped with a tight stainless steel summation can, whose task is to "catch" all signals from sensors built into the platform.

✔ These signals are summarized and sent directly to the meter, which converts the data into weight and shows it on the display.

✅ Cable protection

🔹 The cables have been secured with thick peszle, which protects the wires from pests and any adverse environmental conditions.

🔹 The cable length is 5m. At the individual request of the customer, it is possible to extend the cable.

🔹 The cable has the ability to be removed from the platform - the user can, if necessary, detach the display from the platform without the need for recalibration.

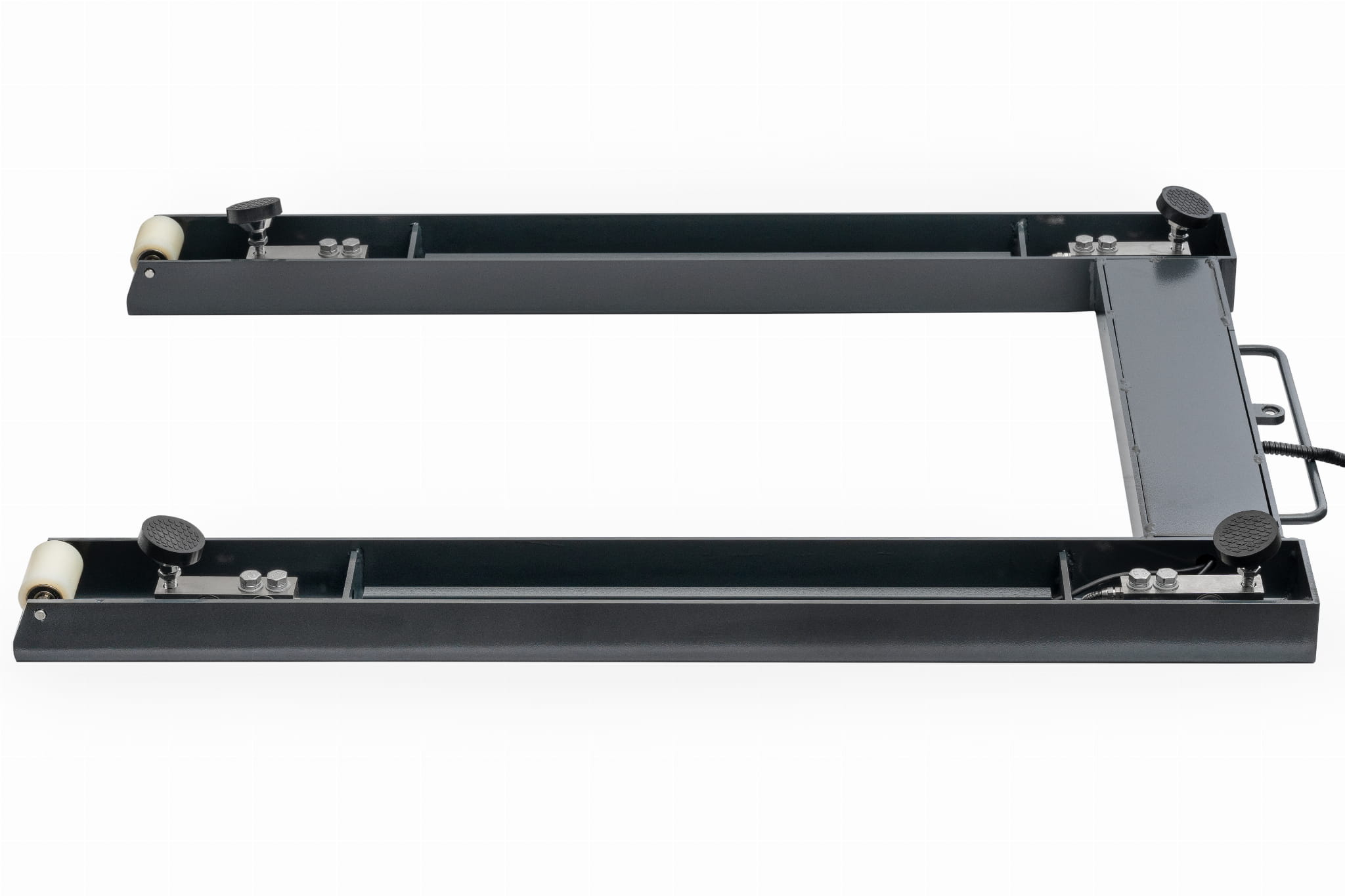

✅ Construction:

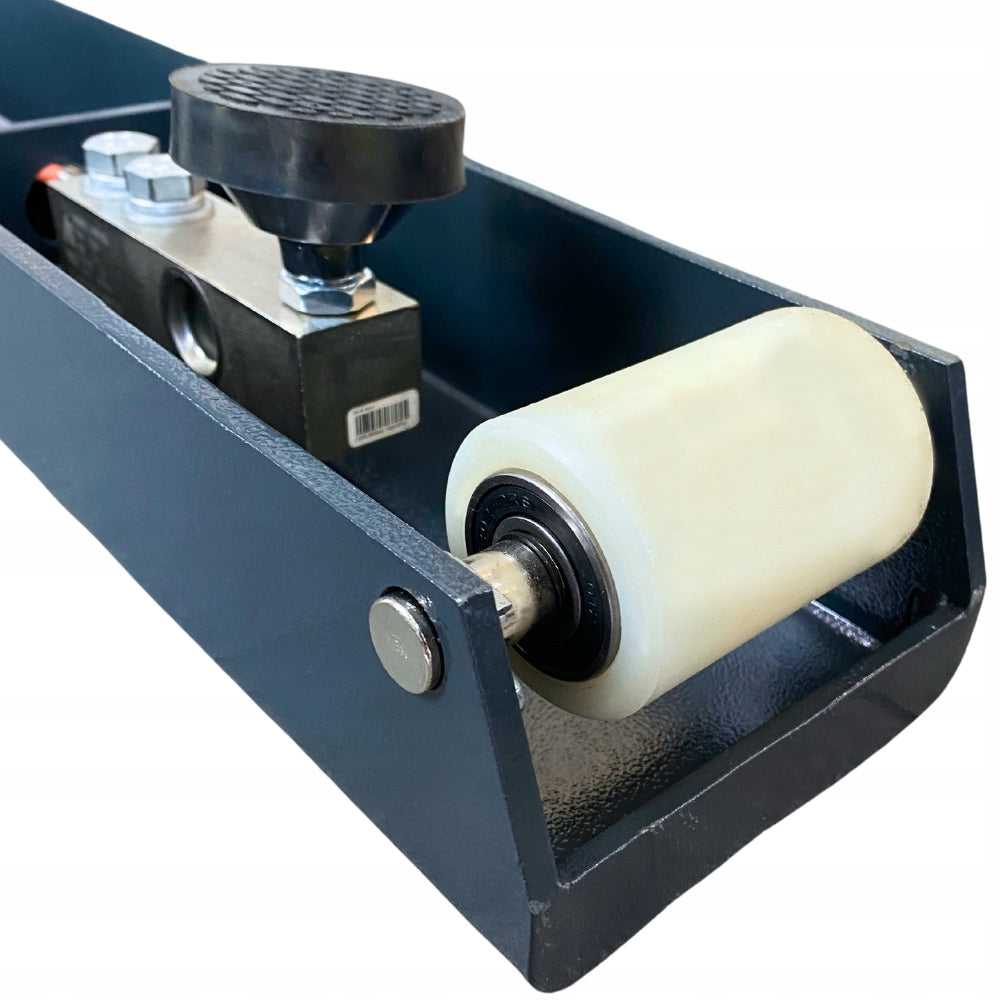

• platform is based on 4 strain gauges
• precise measurement of mass at any load location on the platform
• reinforced construction and 4 leveling feet
• adjustable height from 10 to 11cm
• work in a large temperature range

✅ Advantages of the product:

• High quality
• Multifunctionality
• Easy, intuitive operation
• Long battery life
• Battery charge indicator
• Polish service and user manual
• Mobile, can be stored in position. vertical

✅ Weight parameters

• Maximum load: 1500kg
• Reading accuracy: 200g
• Weight: 50kg
• Working temperature: -10°C to +40°C
• Dimensions: 126 x 84 x 10 cm
• Power supply: battery + power supply, battery socket (batteries not included)
• Display type: LED
• Solid construction
• Meter housing: made of plastic
• Cable in protective armor 4,5m
• Platform design: Powder coated steel
• Tensometers: 4xIP68 (alloy steel)
