Aprašymas
Trumpai apie prekę

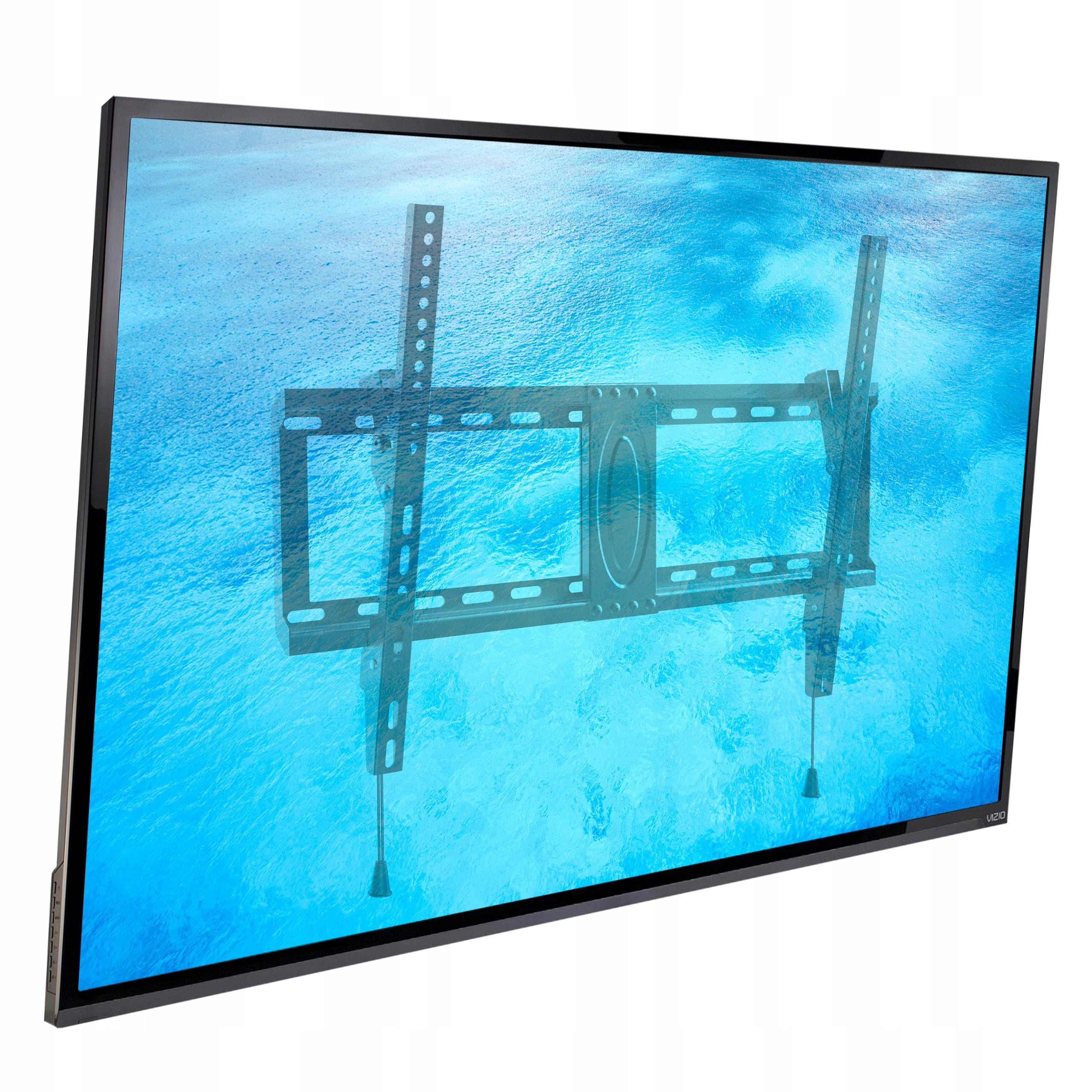

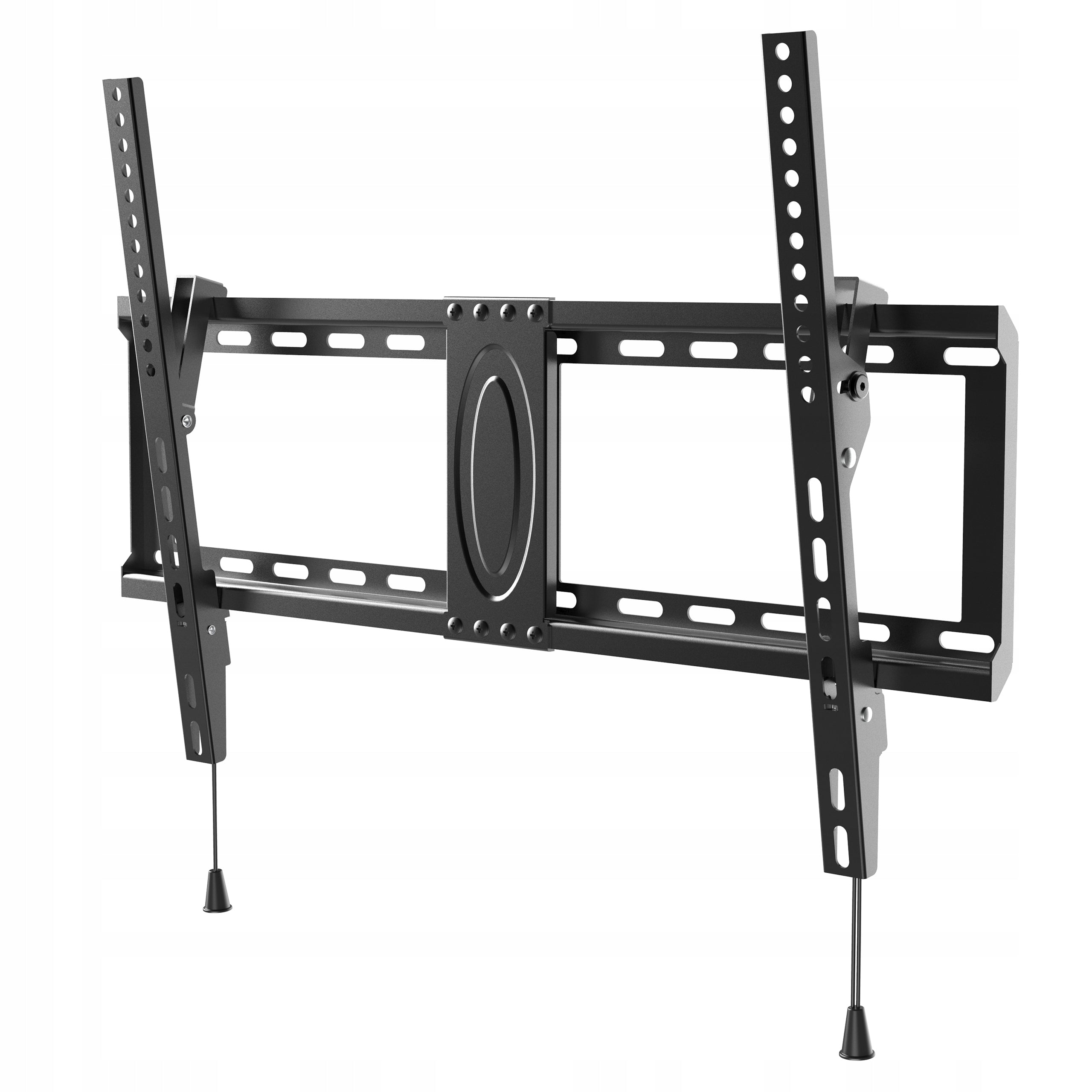

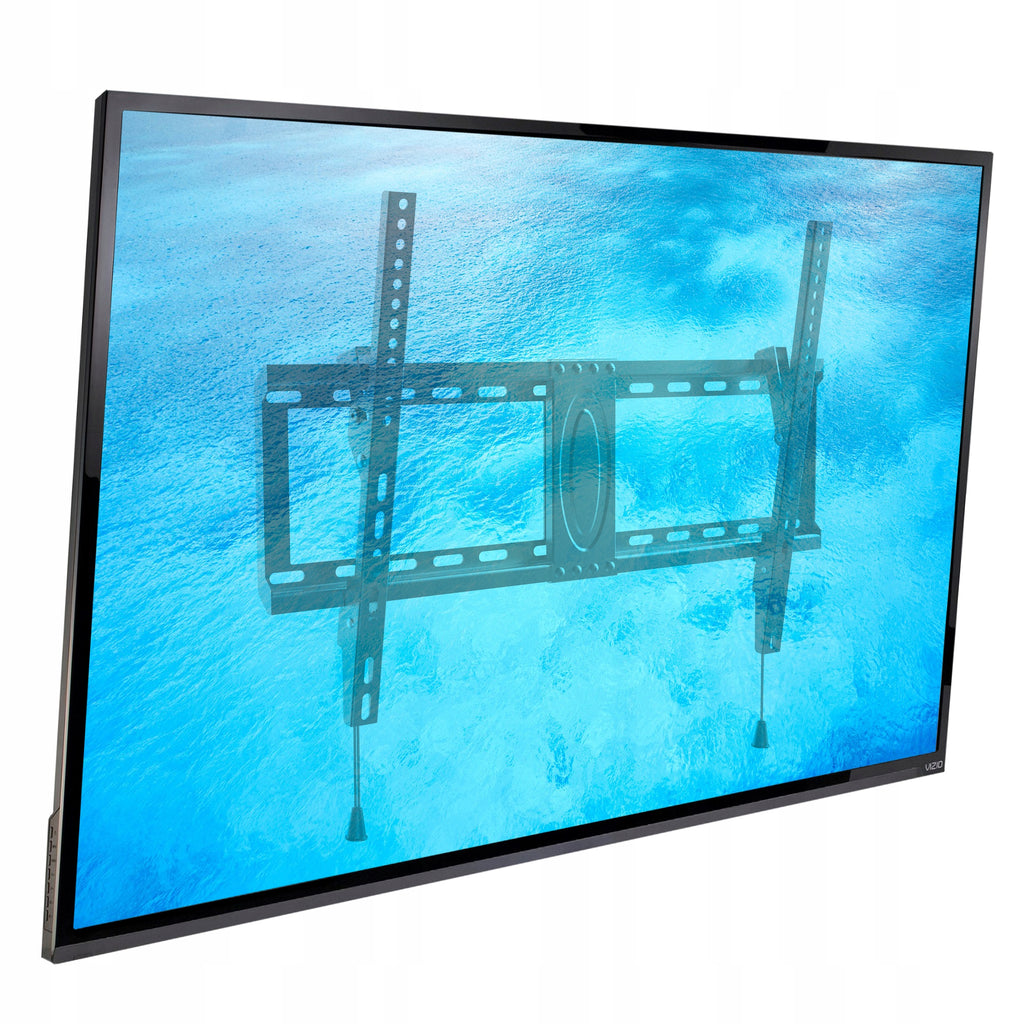

Prekė: Pakreipiamas televizoriaus laikiklis 32–80" VESA. Kategorija: Rankenos.
- Gamintojas: Ergosolid
- Modelis: SATT-2
- TV size: 32"- 80"
- maximum TV weight: 45 kg
- VESA: 200x100 ~ 600x400 mm
- tilt adjustment: 0° / -10°
- distance from wall 38 mm
- Brand: Ergosolid
Original product from the official Polish distribution:
Product of a reputable brand, new, originally packed.
CHARACTERISTIC:
- designed for 32"- 80" Plasma LED LCD TVs
- universal adjustable flat TV mount weighing up to 45 kg
- high quality workmanship with attention to detail
- unique design
- tilt adjustment
- short distance from the wall
- VESA compliant
- Automatic TV lock against accidental photo
- included level
- very solid workmanship
- available in black
TECHNICAL PARAMETERS
- max. lifting capacity 45 kg
- for TVs 32"- 80"
- tilt adjustment in the range of 0° / -10°
- distance from the wall 38 mm
- VESA compatible (mounting hole spacing) standard:
- VESA 200x100 (200 x 100 mm hole spacing)
- VESA 200 (200 x 200 mm hole spacing)
- VESA 300x200 (300 x 200 mm hole spacing)
- VESA 300 (300 x 300 mm hole spacing)
- VESA 400x200 (400 x 200 mm hole spacing)
- VESA 400 (400 x 400 mm hole spacing)
- VESA 600x400 (600 x 400 mm hole spacing)
- and others in the range from 200x100 to 600x400 mm.
MOUNTING KIT
- Screw M4×12 mm – 4 pcs.
- Screw M4×30 mm – 4 pcs.
- Screw M6×15 mm – 4 pcs.
- Screw M6×30 mm – 4 pcs.
- Screw M8×20 mm – 4 pcs.
- Screw M8×50 mm – 4 pcs.
- Washer Ø 4mm – 4 pcs.
- Washer Ø 6mm – 4 pcs.
- Washer Ø 8mm – 4 pcs.
- Distance 5 mm – 8 pcs.
- Distance 10 mm – 8 pcs.
- Screw ST6.3×55 – 6 pcs.
- Washer Ø 6mm – 6 pcs.
- Expansion pin 10×50 – 6 pcs.
- Imbus 4 mm – 1 pc.
- Mini level – 1 pc.
SET COMPOSITION
- handle
- set of screws*
- installation instructions
* standard/universal screws are included to fit most TVs, if they don't fit, then you should buy the right screws on your own!
AUTOMATIC SAFETY LOCK
mechanism with straps at the bottom allows tool-free installation and disassembly of the TV

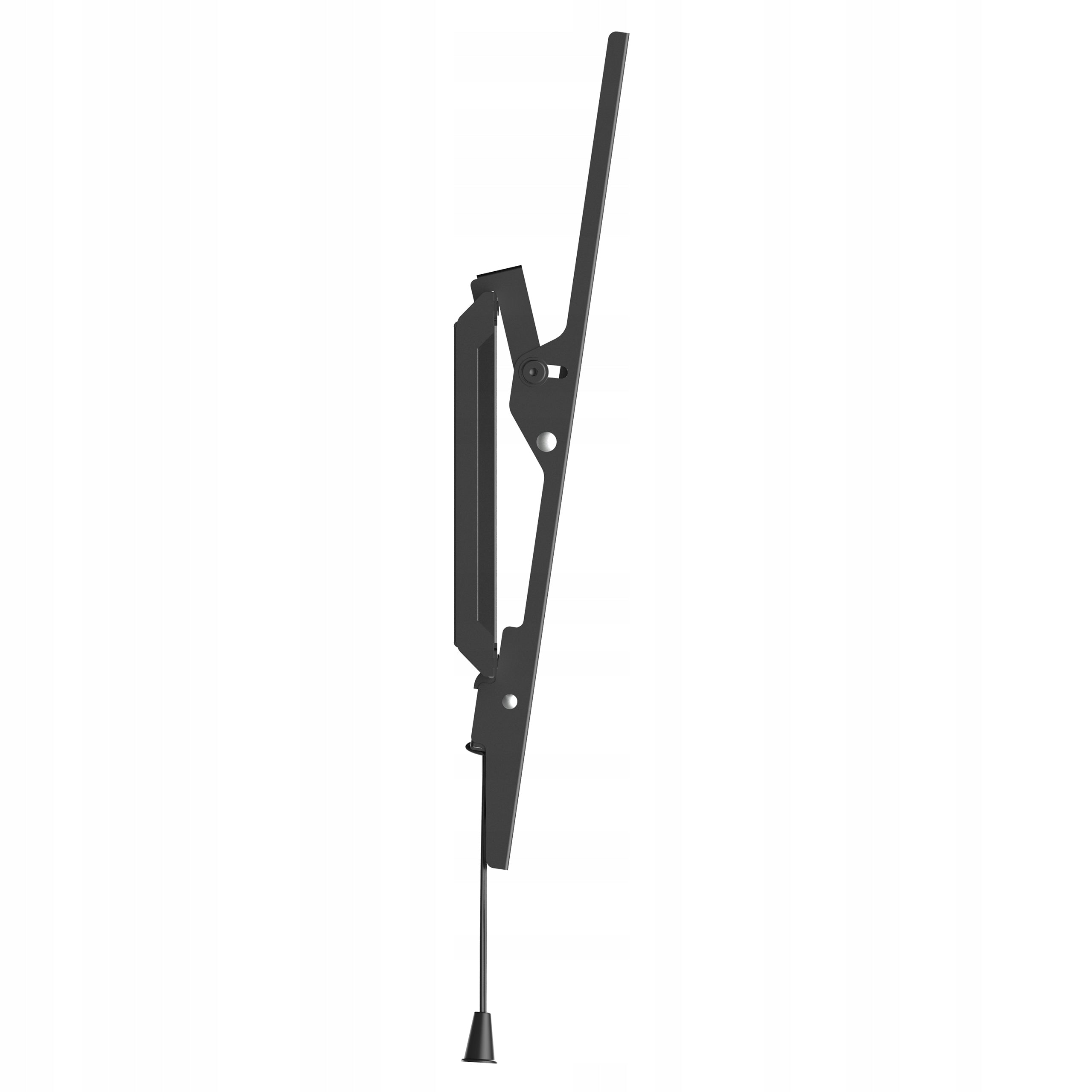

SCREEN TILT ADJUSTMENT
up to 10° down
When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.
The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).
EXAMPLE
To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a VESA 400x200 hole spacing. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.
Series and Product No.: ERGOSOLIDSATT2BLK CHLN
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | SATT-2 |
| Parametry | Model | SATT-2 |
| Parametry | Maximum TV size | 80" |
| Parametry | Brand | Ergosolid |
| Parametry | Maximum load | 45 kg |
| Parametry | Kind | retractable |
| Parametry | Product weight with unit packaging | 3 kg |
| Parametry | EAN (GTIN) | 3760280392222 |
| Parametry | Packaging status | original |
| Parametry | VESA Standard | 200 x 100,200 x 150,200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400,600 x 300,600 x 400,400 x 300 |
