Palydovinė antena CANOPY SAT LTC 110 TWIN

Trumpai apie prekę

Prekė: Palydovinė antena CANOPY SAT LTC 110 TWIN. Kategorija: Rinkiniai.

• Gamintojas: LTC
• Modelis: LTC 110cm

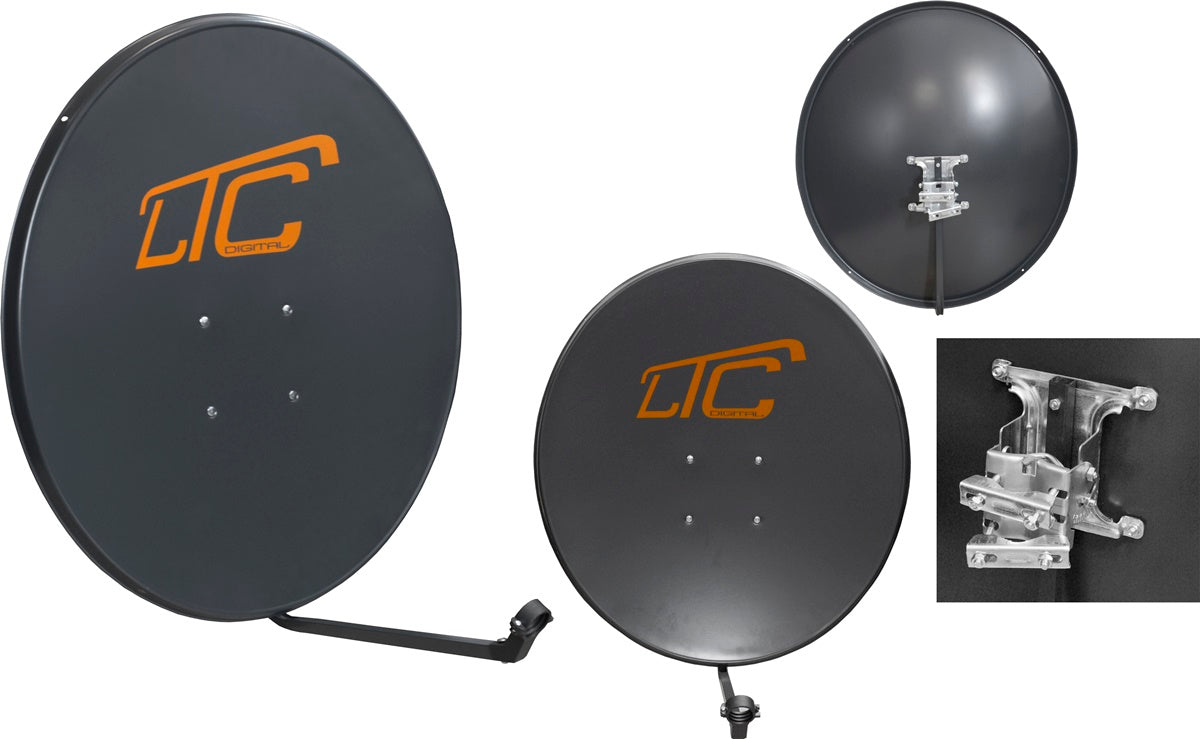

Satellite antennas available in white or graphite.

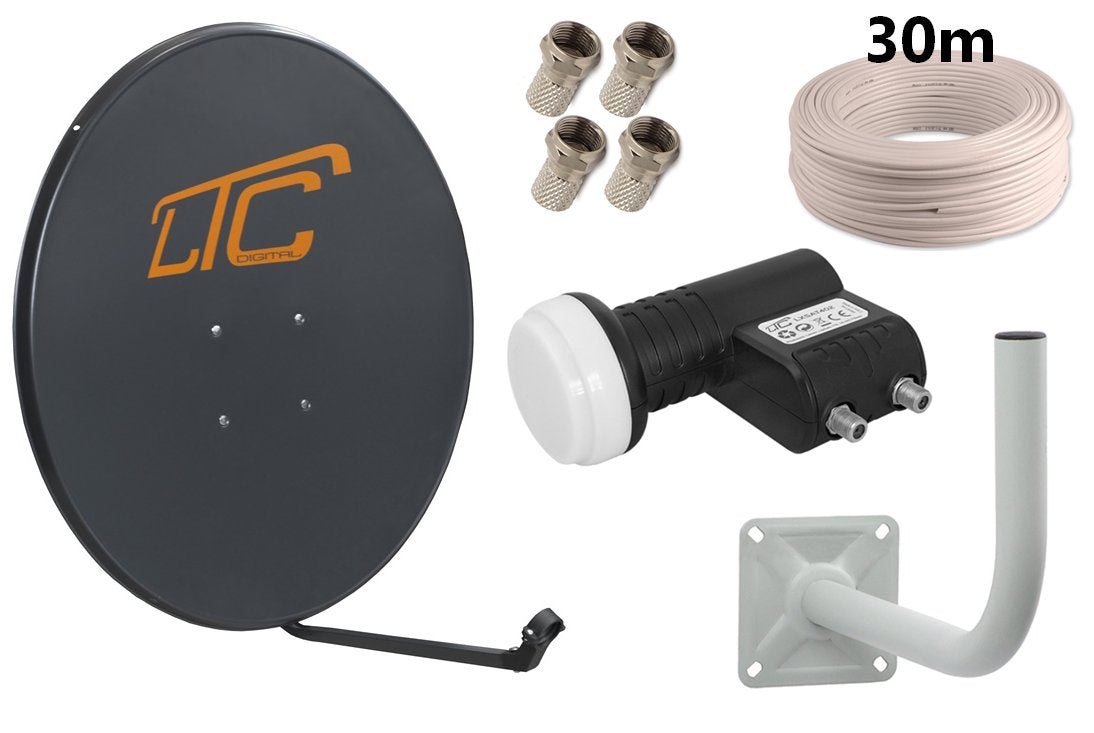

• Satellite canopy SAT LTC 110cm,
• TWIN LTC SKYSAT converter

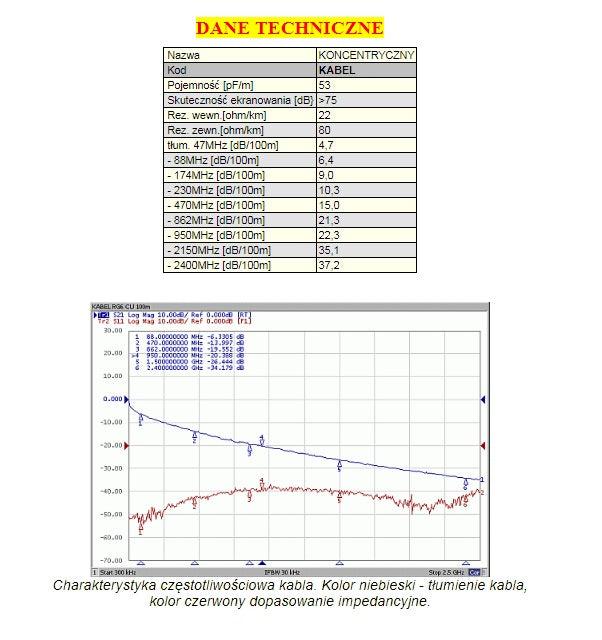

• 30m SAT FULL HD cable
• CORAB Antenna Holder
• 4 plugs type "F"
• Instructions PL

• A high-quality antenna is the basis for proper reception of satellite programs - without interference and interruptions. You can have the highest quality satellite receiver, but if the antenna will have a small diameter and low build quality, then the appearance of interference, especially on rainy, windy or snowy days, is almost certain. To address these problems, LTC satellite antennas were created.
• This antenna is characterized by very high resistance to mechanical factors, resistance to strong and gusty wind, excellent quality of the signal coming from the antenna, ease of installation and incredibly good mechanical protection (galvanized steel antenna, powder coated).
• This antenna is recommended for use in installations on one or two satellites, including the use of twin, quad and quattro converters for multiswitches. The canopy is ideal for receiving signals from Astra, Hotbird, Amos, Eutelsat satellites, etc. The standard converter holder (diameter 4 cm) makes it possible to mount any modern converter. Universal antenna that works with any tuner and decoder.
• The highest quality of materials and high precision guarantee a long product life, safety and user satisfaction. An additional advantage is a reasonable value for money, which makes this antenna a product worth attention and recommendable to even the most demanding user.

• Dimensions: 114 x 104 cm
• Cat offset: 27,77 deg
• Focal length (f): 393 mm
• F/D ratio: 0,49
• Energy Gain for 10,70 GHz: -
• Energy Gain for 11,70 GHz: 39.1dB
• Energy Gain for 12,75 GHz: -
• Azimuth kata adjustment range: 0-180 deg
• Facade kata adjustment range: 5-80 deg
• Mast diameter: 32-60 mm
• Headlight sheet thickness: 0,6mm
• Converter Mount: 40mm
• Operating speed of wind: 119km/h
• Maximum wind speed: 206 km/h

Full HDTV support

Input Frequency: 10.7 - 12.75 Ghz

Noise Ratio: 0.1 dB

Output Frequency: 950 - 1950 MHz, 1100 - 2150 MHz

Oscillator Frequency: 9.75 GHz, 10.6 Ghz

Temperature range: -40 to 60 degrees C.

• The product is certified by the German TÜV Rheinland required by the EU.
• This certification guarantees a top-notch product that combines quality, durability, and reliability.
• It confirms compliance with all standards in terms of safety, stability and mechanical strength.
