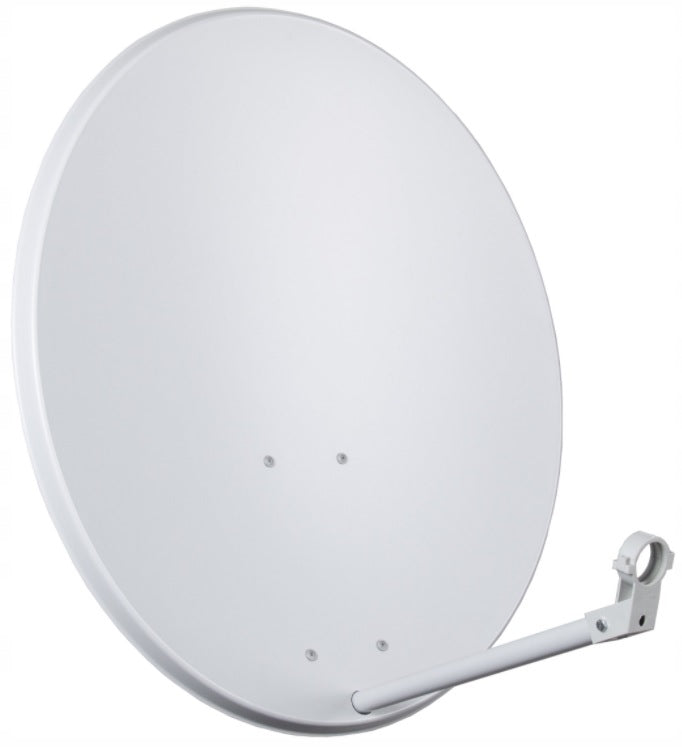

Palydovinė antena CORAB 80 cm, balta, HD/4K

Trumpai apie prekę

Prekė: Palydovinė antena CORAB 80 cm, balta, HD/4K. Kategorija: Antenos.

• Gamintojas: Corab
• Modelis: 800SAE-J

SATELLITE ANTENNA CANOPY CORAB 80CM WHITE HD 4K

Model ASC-800M-J

• Satellite antenna Corab model 80cm
• The best satellite antenna at the SAT Kurier Awards for the Olsztyn company Corab.
• The only satellite antennas produced in Poland
• External dimensions of the headlamp: 750x820 mm
• Full cast antenna mount made of ABS
• Suitable for receiving channels in 4K quality
• Dedicated to receiving channels in HD quality
• Antenna works with all converters
• The canopy works with all satellite platforms
• Painted Powder
• Antenna canopy made of steel hot galvanized 1,2mm.
• Energy gain for 11,70 GHz: 37,4 dB
• Net weight: 5,6 kg
• Operating speed of wind [km/h] 98
• Maximum wind speed [km/h] 123
• Color: White

• H.D
• Full HD
• 4K

Corab brand satellite antennas guarantee hassle-free reception of channels in HD and 4K

The only Satellite Antennas manufactured in Poland, thanks to which they are perfectly adapted to the conditions of our market

Antenna canopy made of hot galvanized steel 1,2mm. Resistant to deformation

Wind blast resistant (Maximum wind speed [km/h] 123)

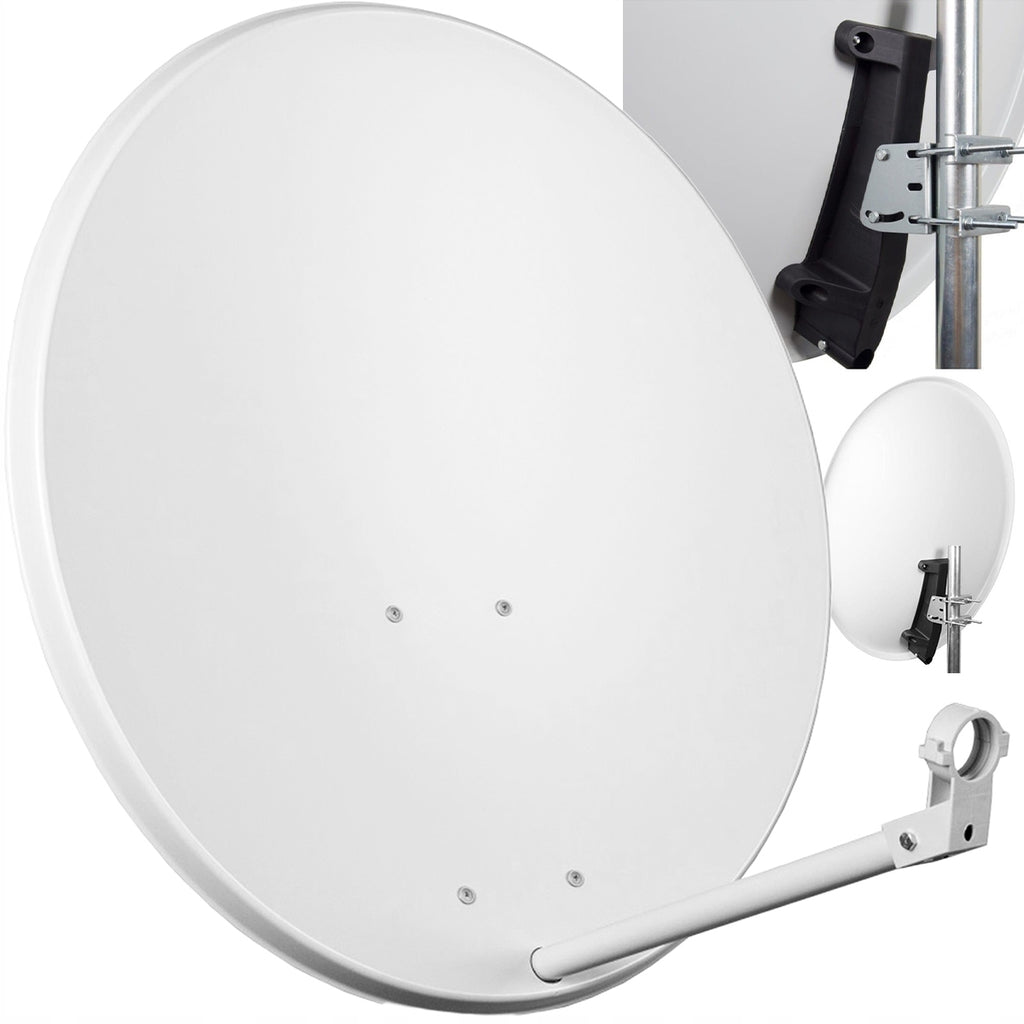

Antenna CORAB 80 cm designed for satellite TV reception. Antenna canopy painted with polyester powder paint in light OR graphite color characterized by very good mechanical properties and high resistance to external factors. Antenna with a bent arm. Antenna arm made of hot galvanized steel, head made of abs. Antenna canopy made of hot galvanized steel 1,2mm.

Corab approaches the customer very individually, trying to meet all his needs and requirements, which is why satellite antennas manufactured by Corab are made in accordance with the customer's specifications. The first stage of antenna production is pressing with opening, which takes place on automatic presses. Then the embossed antennas are subjected to a fully automated cycle painting process. The whole process is supervised by the German company NABU, while the technical supervision was entrusted to the Swiss company GEMA. Thanks to this, the whole process is carried out in a safe way and gives a very high quality effect. Polish Product

• The latest model of Polish, 80 cm antennas with rigid suspension in white or graphite (after purchase, please enter the selected color in the form for the seller otherwise a random color is selected). The best satellite antenna at the SAT Kurier Awards for the Olsztyn company Corab.
• Antenna works with converters: Single, Twin, Quad, Quattro, Octo, Monoblock, Monoblock twin, Monoblock Quad, Unicable
• The canopy works with all satellite platforms (nc+, Cyfrowy Polsat, Card TV, Smart HD+, Orange and others) and uncoded free channels.

Casting made of ABS adheres entirely to the antenna stabilizing the entire structure

• Operating speed of wind [km/h] 98
• Maximum wind speed [km/h] 123

Before the antenna is subjected to the process, the varnished must pass the quality control of the input material (galvanized sheet of appropriate thickness), and then prepare the metal surface before powder coating. This stage involves degreasing, phosphating iron and rinsing with water. The bath is based on chemical preparations from NABU where parameters such as concentration, pH, temperature are strictly controlled. The iron phosphate coating provides additional corrosion protection and increases the adhesion of the paint to the substrate, making the paint coverage very precise and accurate. Another important step is drying the phosphate coating.

Then the antenna is subjected to the application of a powder coating in an automatic paint booth. This stage is completely supervised by the Swiss company GEMA. The paint used is facade polyester, which in addition to resistance to atmospheric factors, maintaining a permanent color and gloss degree also causes less absorption of sunlight.

After the application stage of the paint, the hardening stage of the powder coating takes place, which takes place in the firing furnace. The final stage of the varnishing process is the quality control of the final coating: measurement of thickness, adhesion, degree of polymerization and visual evaluation of the coating.

1. Antenna canopy
2. Antenna dorsal holder
3. Arm
4. Converter clamp
5. Screw M6x55, nut M6 - 2 sets, washer M6 - 4 pcs.
6. Vertical adjustment handle (AZ-EL)
7. Nut M6, washer M6 - 4 sets.
8. Fastening pressure - 2 pcs.
9. Fastening buckle - 2pcs.
10. Screw M6x14, nut M6 - 4 sets.
11. Screw M4x16, nut M4
12. Screw M6x45, nut M6 - 2 sets.

• Material of canopy: Steel sheet
• Converter carrier material: Steel
• Dimensions: 750x820 mm
• Mass with equipment: 3,82 kg
• Energy gain for 10,7GHz: 37,0 dB
• Energy gain for 11,7GHz: 37,4 dB
• Energy gain for 12,75GHz: 38,5 dB
• Scope of regulation of the facade account: 20-45o
• Azimuth angle adjustment range: 0-180o
• Half power angle: 2,5o
• Efficiency: 0,82

Specifications
