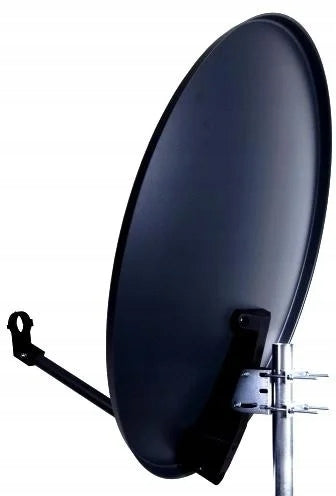

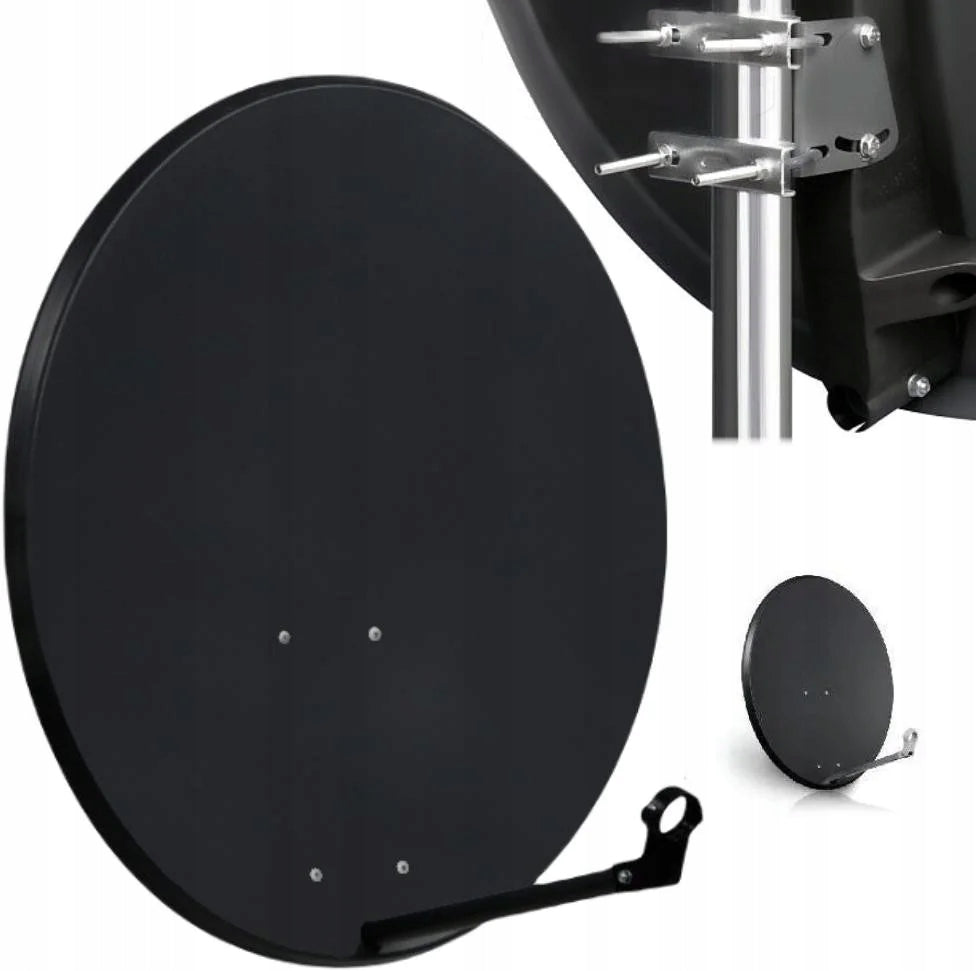

Palydovinė antena CORAB 80 cm, grafito spalvos, HD/4K

Trumpai apie prekę

Prekė: Palydovinė antena CORAB 80 cm, grafito spalvos, HD/4K. Kategorija: Antenos.

• Gamintojas: Corab
• Modelis: Standard

SATELLITE ANTENNA CORAB 80CM OFFSET, GRAPHITE

Satellite antenna graphite offset canopy Corab ASC-800-C 80cm - the most important features:

• Corab ASC-800-C 80cm graphite offset satellite antenna ideal for receiving signals in SD, HD and 3D resolution.
• Satellite antenna graphite offset canopy Corab ASC-800-C 80 cm is an excellent reception of channels in 4K and HD quality.
• Equipment dedicated to those who want to receive satellite TV.
• The antenna canopy is made very aesthetically. It is covered with polyester paint of graphite color. This type of coating is characterized by excellent mechanical properties and high resistance to external factors.
• The satellite antenna graphite offset canopy Corab ASC-800-C 80 cm is also durable and robust construction.
• The arm of the device is made of galvanized steel with fire technology, and the antenna head is made of ABS.
• Gain: 37,65dB @ 11,5GHz; 38,55dB @ 12,75GHz
• Maximum mast diameter: 60 mm
• Converter Mount: 40 mm

​

Purpose of offset satellite dish 80cm Corab ASC-800-C:

• The 80cm Corab ASC-800-C satellite canopy is designed for a wide range of users who want to receive TV programs from various satellite sources, regardless of the transmission platform, while maintaining flexibility of installation and the ability to adapt to their individual needs.
• Satellite canopy 80cm Corab ASC-800-C is designed to receive TV programs from various platforms, such as Cyfra+, Polsat Cyfrowy, n-Television, Card TV and many others.
• Thanks to its versatility, can be used with any tuner and decoder, which makes suitable for various TV systems and broadcast platforms.
• The ability to be mounted on a handle or turntable with a diameter of up to 60 mm makes it suitable for various installation configurations.

​

Satellite antenna Corab ASC-800-C 80cm - choose an offset antenna and bet on a satellite signal without interference!

The 80cm Corab ASC-800-C satellite antenna is an offset antenna, which means that the is equipped with a parabolic canopy with an offset signal source, which helps to receive satellite signals efficiently and precisely, eliminating potential interference.

• The quality of the graphite satellite canopy Corab ASC-800-C 80cm is another advantage. During production, the Corab ASC-800-C 80cm antenna undergoes quality control, which includes checking the starting material, sheet thickness and thorough preparation of the metal surface before painting.
• Corrosion protection: antenna Corab ASC-800-C 80cm during productionis subjected to the process of degreasing, phosphorizing and rinsing with special chemical preparations, which ensures its corrosion protection and excellent paint adhesion.
• Powder painting: on the antenna Corab ASC-800-C 80cm a powder coating resistant to atmospheric factors and sunlight is applied. The powder coating is then cured in a firing furnace, which ensures its durability and resistance.

Corab ASC-800-C 80cm offset canopy - satellite antenna compatible with all converters and satellite platforms

• Satellite antenna 80cm graphite offset canopy Corab ASC-800-C works with Single, Twin, Quad, Quattro, Octo, Monoblock, Monoblock twin, Monoblock Quad converters.
• The Corab ASC-800-C canopy also cooperates with all (nc+, Cyfrowy Polsat, Card-based TV, Smart HD+, Orange and others) satellite platforms and uncoded free channels.

Corab ASC-800-C 80cm offset canopy - specification:

• Name: ASC-800-C
• Type: offset
• Size [cm]: 80
• Color: graphite
• Manufacturer: CORAB
• Reflector [material]: steel
• thickness [mm]: 0,6
• dimensions [mm]: 799x720
• Efficiency [%]: 0,82
• Profit for 11,7 GHz [dBi]: 37,4
• Profit for 12,7 GHz [dBi]: 38,5
• Focal [mm]: 412,5
• Azimuth adjustment range [°]: 0...180
• The ratio of f/D [-]: 0,57
• Converter mounting diameter [mm]: 40
• Dimensions [mm]: 831x752
• Mass [kg]: 3,82
• Set contents: 80cm graphite galvanized steel canopy powder coated, mounting accessories

​

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	ASC-800M-C
Parametry	Model	Standard
Parametry	Brand	Corab
Parametry	Product weight with unit packaging	4 kg
Parametry	Converter	no
Parametry	Dish size	80 cm
Parametry	EAN (GTIN)	5907724515078
Parametry	Certificates of conformity	CE
