Palydovinė antena CORAB 90 cm, balta

Trumpai apie prekę

Prekė: Palydovinė antena CORAB 90 cm, balta. Kategorija: Antenos.

• Gamintojas: Corab
• Modelis: COR-900SAE-J

At this auction we offer:

The antenna is designed to receive satellite signals, including the possibility of using a Monoblock converter for 2 satellites. Due to its size and technical parameters, the antenna is perfect for the correct reception of HD channels from satellites (including HotBird and Astra) across all of Poland including the eastern regions where the signal from the HotBird satellite is slightly weaker.

operational and technical parameters of the antenna:

• offset satellite antenna polish production by CORAB , awarded many times at various industry fairs, antenna model COR-900SAE,
• the dish of this antenna (reflector) is made of steel, powder coated in light gray (RAL 7035),
• The antenna is also available in graphite color (RAL 7016) in our other auctions
• converter arm made of a bent, galvanized steel profile, terminated with a 40 mm diameter converter mount made of durable light gray plastic,
• the rear antenna mount is galvanized, made of 1.5 - 2 mm sheet metal, profiled and adjusted to the shape of the antenna,
• a holder for mounting the antenna to the mast with a double clamp for mounting the whole assembly to the mast or stand (with the possibility of using an additional third set), the mounting clamps are made of a 6 mm threaded rod,
• it is possible to mount the antenna on a vertical pipe with a diameter of 32 to 60 mm,
• external dimensions of the reflector (canopy): (height x width) 948 x 844 mm, reflector sheet thickness: 0.6 mm,
• antenna gain for 11.70 GHz: 39.10 dB, converter operating frequency: 10.7-12.75 GHz,
• azimuth angle adjustment range (horizontal): 0-180 deg, elevation angle adjustment range (vertical): 5-80 deg,
• antenna net weight: 4.5 kg, total package weight approx. 6-7 kg,

• it is possible to install a system of 2 or 4 converters (for 4 satellites) on the antenna using a special holder for 2 or 4 converters, which is a separate accessory for this antenna model (available in our other auction),
• We pack the antennas for shipping in a specially made cardboard box that protects the antenna from damage during transport... the shipping cost of this antenna includes the price of the box, approximately PLN 10.

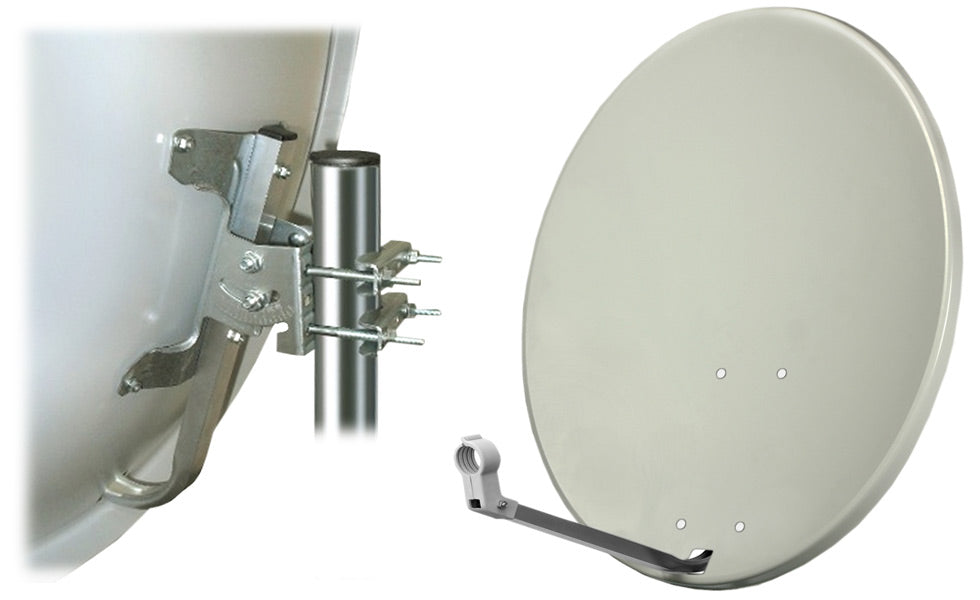

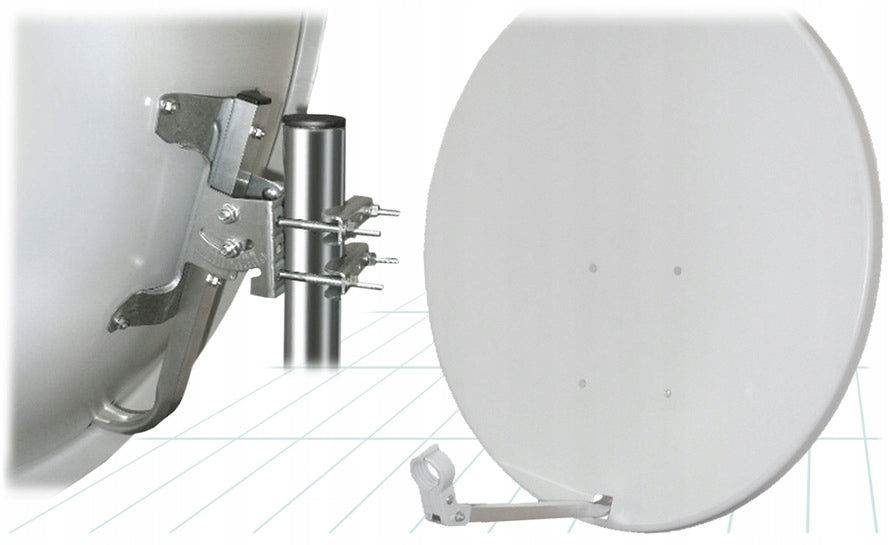

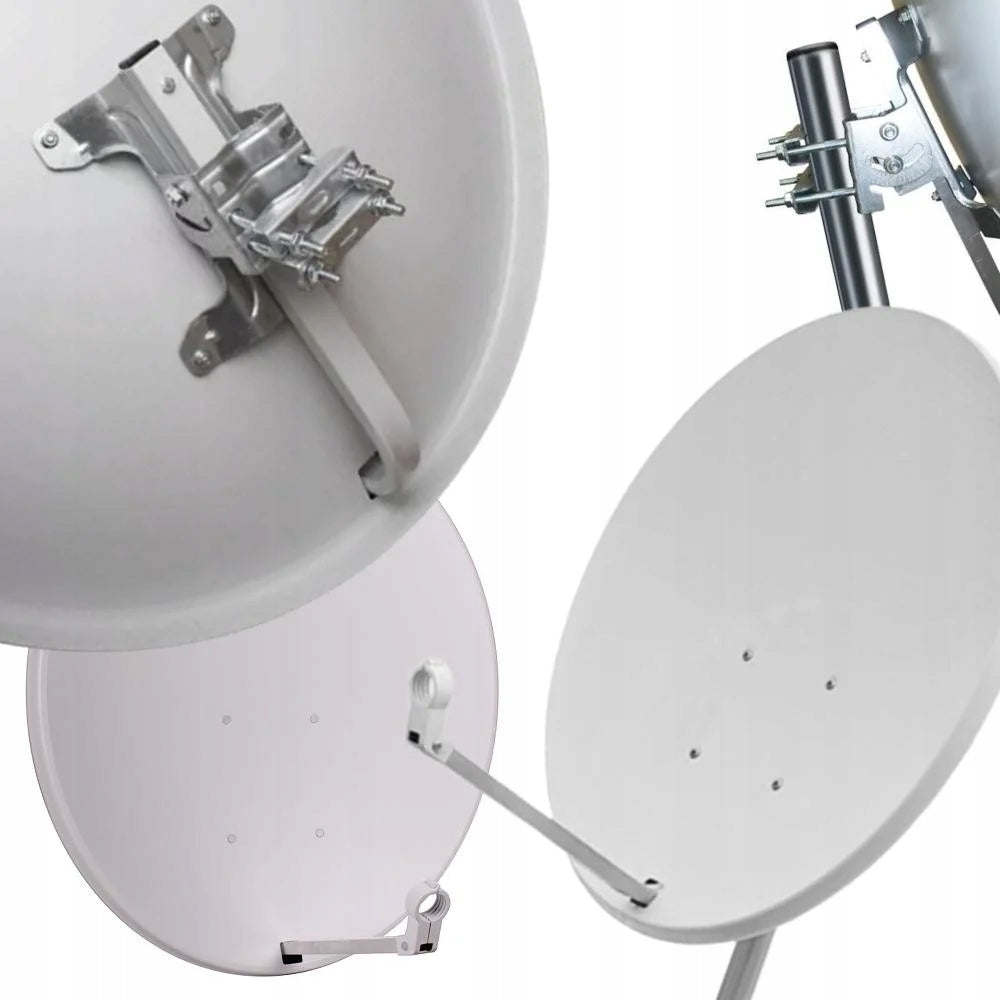

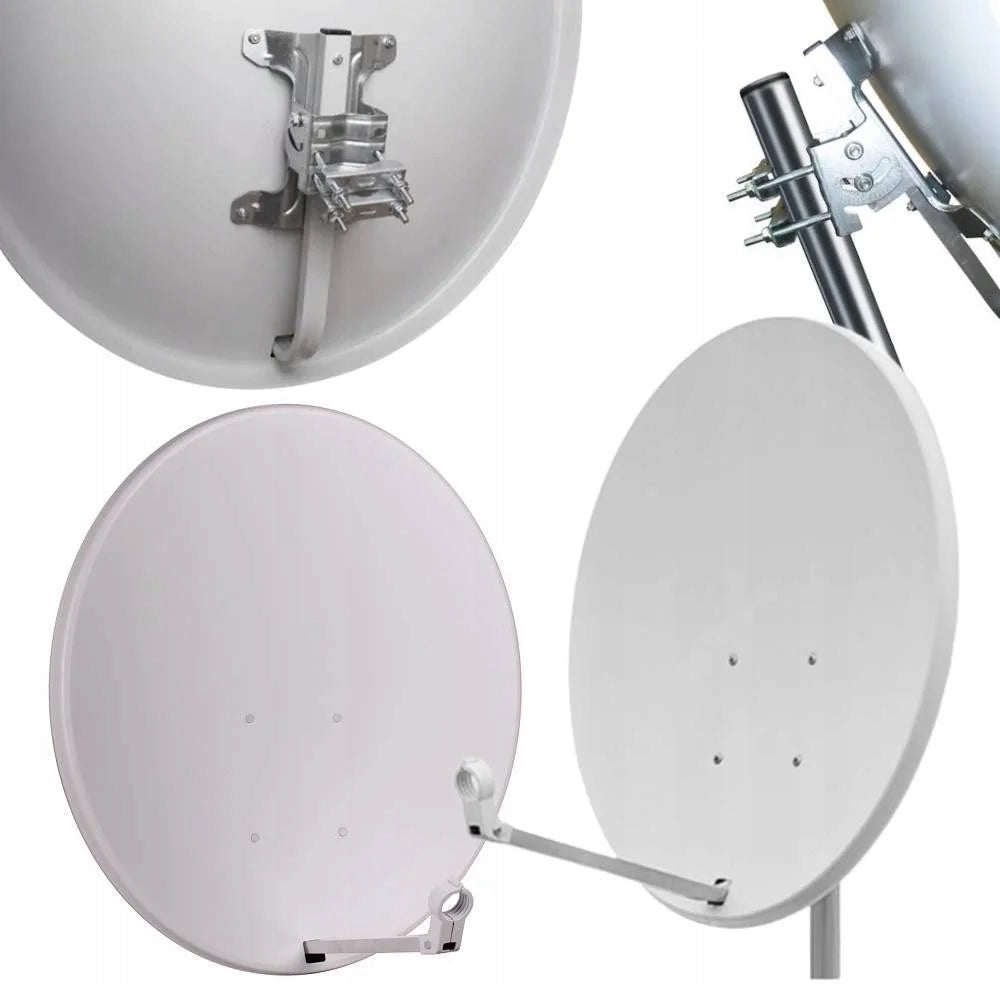

Below are photos of items from this auction :

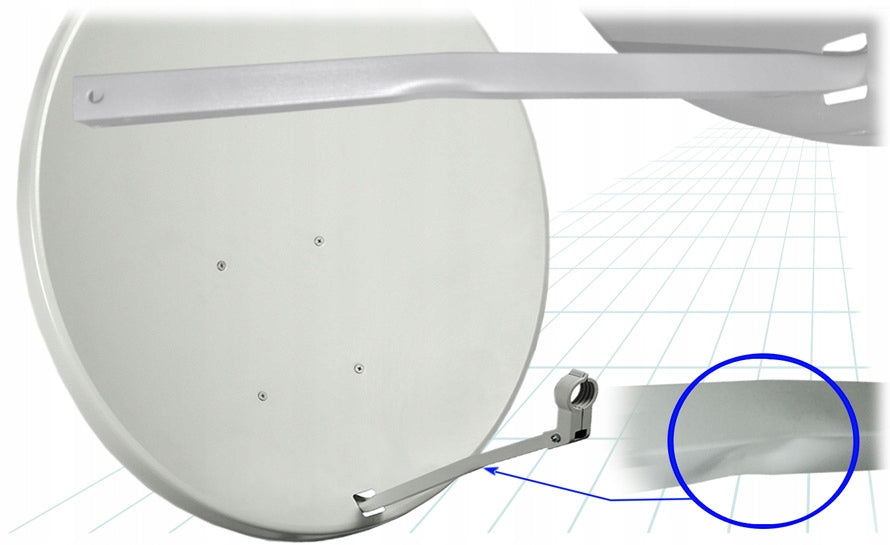

Attention! . The boom for the converter has a factory / technological inflection which is not a defect but the correct shape.
