Palydovinė antena CORAB 90 cm, balta, aliuminė

Trumpai apie prekę

Prekė: Palydovinė antena CORAB 90 cm, balta, aliuminė. Kategorija: Antenos.

• Gamintojas: Corab
• Modelis: AS-90/ALU

At this auction we propose:

The antenna is designed to receive a satellite signal,including the possibility of using a Monoblock converter for 2 satellites due to its size and technical parameters, the antenna is perfect for the correct reception of HD channels from satellites (including HotBird and Astra) across all of Poland including in the eastern regions where a slightly weaker signal from the HotBird satellite reaches.

Usage and technical parameters of the antenna :

• offset satellite antenna polish production, a company CORAB awarded many times at various trade fairs, antenna model COR-900/ALU,
• the part of this antenna (reflector) made of ALUMINUM, powder coated in light grey (RAL 7035),
• converter boom made of steel profile, painted in canopy color, bent, finished with 40 mm diameter converter mount, made of durable plastic in light gray color,
• rear mount of galvanized antenna, is made of sheet metal 1,5 - 2 mm profiled and adapted to the shape of the antenna,

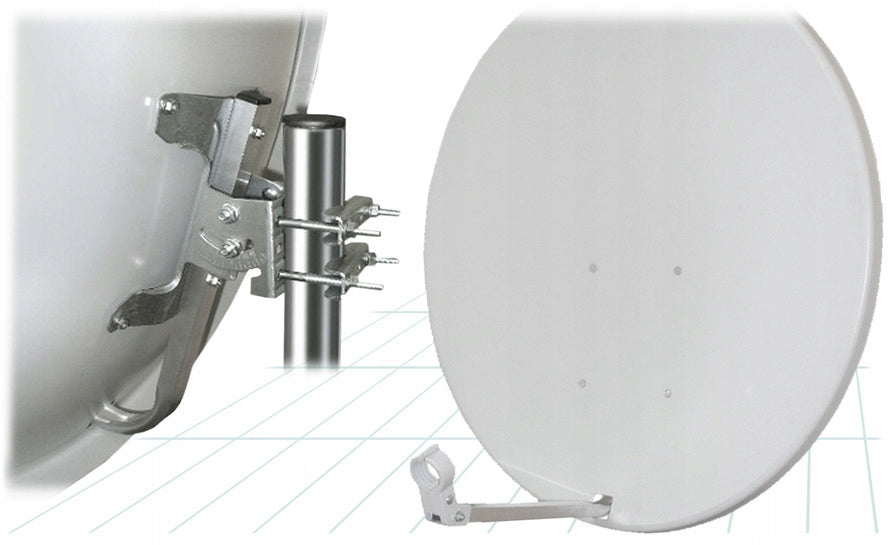

• mounting bracket for the mast antenna with a double buckle fixing the whole to the mast or stand (with the possibility of using an additional third set), fastening buckles are made of a threaded 6 mm rod,
• it is possible to mount the antenna on a vertical pipe with a diameter of 32 to 60 mm,
• external dimensions of the headlamp (chassis) : (H x W) 948 x 844 mm, thickness of the aluminium sheet of the headlamp: 0,9 mm,
• antenna energy gain for 11,70 GHz: 39,10 dB , converter operating frequency: 10,7-12,75 GHz,
• azimuth angle adjustment range (level) : 0-180 deg , facade angle adjustment range (vertical) : 5-80 deg,
• net weight of the antenna: 4,5 kg, all in a package approx. 6-7 kg,

• it is possible to install 2, 3 or 4 converters on the antenna using a special holder for 2,3 or 4 converters, which is separately an accessory for this antenna model (available at our other auction),
• antennas for shipping are packed by us in a specially made carton, which protects the antenna from damage in transport ... the price of shipping costs of this antenna includes the price of the carton.

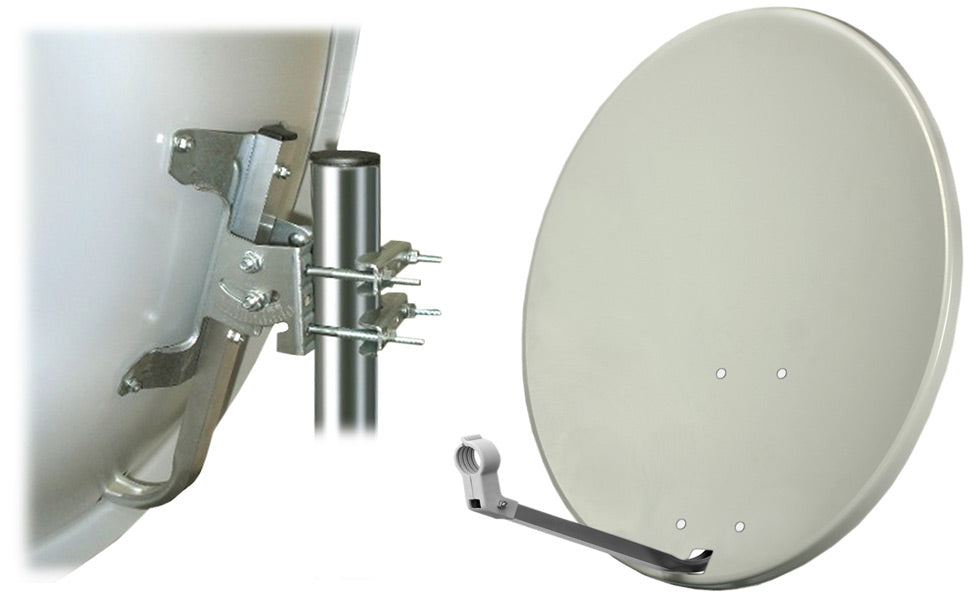

Below are photos of the items in this listing :

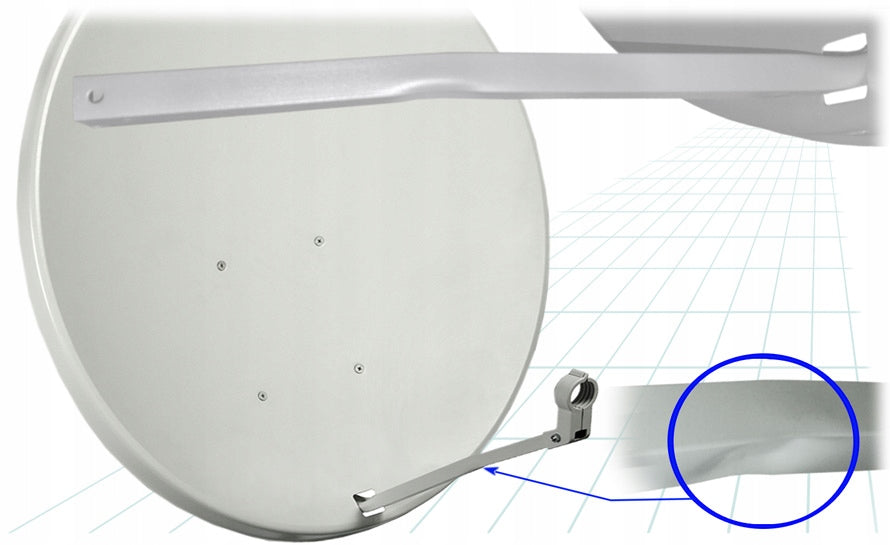

Attention! . The boom for the converter has a factory / technological inflection which is not a defect but the correct shape.

Specifications
