Palydovinė antena CORAB 90 cm, grafito spalvos

Trumpai apie prekę

Prekė: Palydovinė antena CORAB 90 cm, grafito spalvos. Kategorija: Antenos.

• Gamintojas: Corab
• Modelis: COR-900SAE-C
• Spalva: gray

At this auction we propose:

The antenna is designed to receive a satellite signal,including the possibility of using a Monoblock converter for 2 satellites due to its size and technical parameters, the antenna is perfect for the correct reception of HD channels from satellites (including HotBird and Astra) across all of Poland including in the eastern regions where a slightly weaker signal from the HotBird satellite reaches.

Usage and technical parameters of the antenna :

• offset satellite antenna polish production, a company CORAB awarded many times at various trade fairs, antenna model COR-900SAE,
• canopy of this antenna (reflector) made of steel, powder coated in graphite (RAL 7016),
• An antenna in light grey (RAL 7035) is also available,
• ATTENTION! ... after making a purchase in the notes, in the delivery options please specify the color of the antenna,

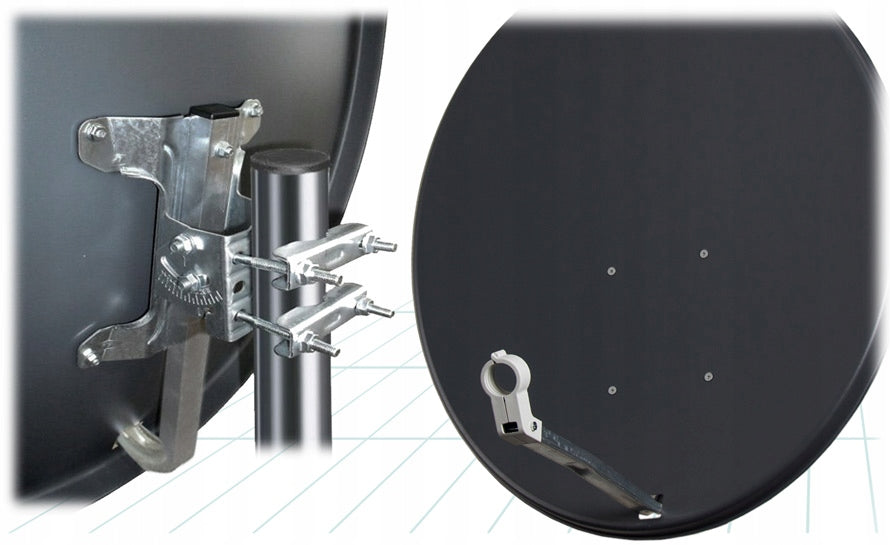

• converter boom made of steel profile, galvanized bent, finished with a 40 mm diameter converter mount, made of durable plastic in light gray,
• rear mount of galvanized antenna, is made of sheet metal 1,5 - 2 mm profiled and adapted to the shape of the antenna,

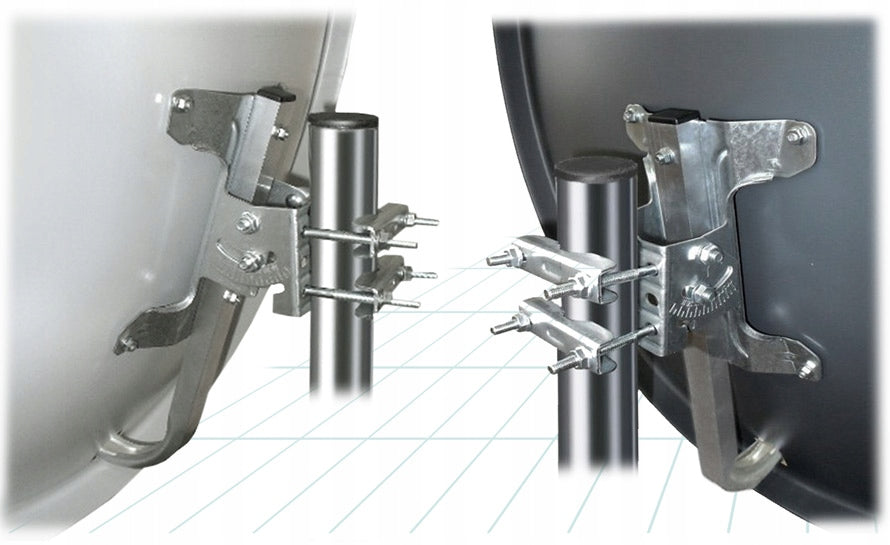

• mounting bracket for the mast antenna with a double buckle fixing the whole to the mast or stand (with the possibility of using an additional third set), fastening buckles are made of a threaded 6 mm rod,
• it is possible to mount the antenna on a vertical pipe with a diameter of 32 to 60 mm,
• external dimensions of the headlamp (chassis) : (H x W) 948 x 844 mm, thickness of the headlamp plate: 0,6 mm,
• antenna energy gain for 11,70 GHz: 39,10 dB , converter operating frequency: 10,7-12,75 GHz,
• azimuth angle adjustment range (level) : 0-180 deg , facade angle adjustment range (vertical) : 5-80 deg,
• net weight of the antenna: 4,5 kg, all in a package approx. 6-7 kg,

• it is possible to install 2 or 4 converters (for 4 satellites) on the antenna using a special holder for 2 or 4 converters, which is separately an accessory for this antenna model (available at our other auction),
• antennas for shipping are packed by us in a specially made carton, which protects the antenna from damage in transport ... the price of shipping costs of this antenna includes the price of the carton.

.

Below are photos of the items in this listing :

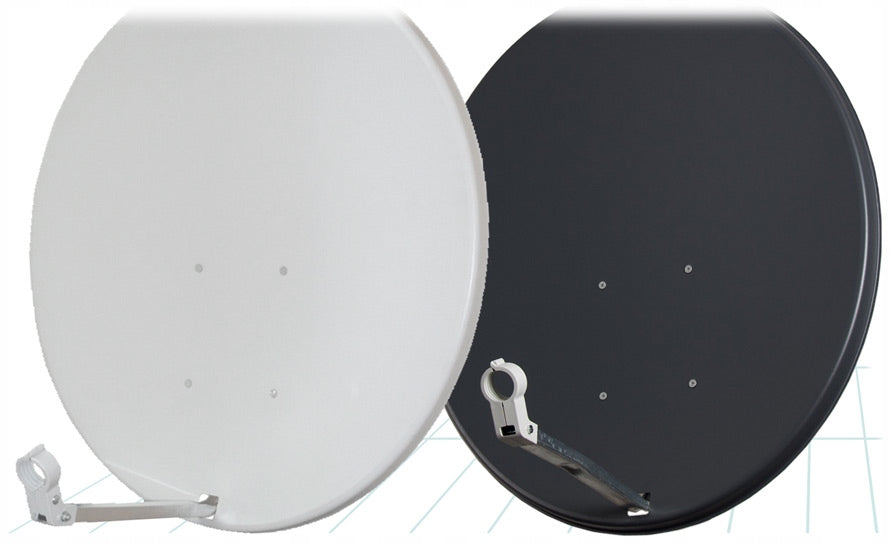

In our offer on Allegro there is also an antenna Corab 90 cm in light gray (RAL 7035). After making a purchase, in the comments of the shipping option please specify the color of the antenna to be sent.

Antennas for shipping are packed by us in a specially made carton, which protects the antenna from damage in transport ... the price of shipping costs of this antenna includes the price of the carton.

Attention! - in this antenna model (Corab 90 cm), the converter boom has a factory embossing to match the converter to the antenna focus, it is not only technological damage, factory embossing.
