Palydovinė antena SAT LTC, 80 cm, su Twin galvute + dovana

Trumpai apie prekę

Prekė: Palydovinė antena SAT LTC, 80 cm, su Twin galvute + dovana. Kategorija: Antenos.

• Gamintojas: LTC
• Modelis: zestaw SAT

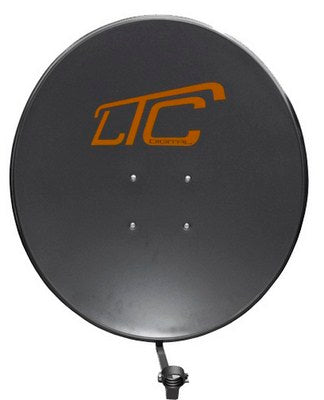

SATELLITE LTC 80 CM

A high-quality antenna is the basis for proper reception of satellite programs - without interference and interruptions. You can have the highest quality satellite receiver, but if the antenna will have a small diameter and low build quality, then the appearance of interference, especially on rainy, windy or snowy days, is almost certain. To address these problems, LTC satellite antennas were created.

This antenna is characterized by very high resistance to mechanical factors, resistance to strong and gusty wind, excellent quality of the signal coming from the antenna, ease of installation and incredibly good mechanical protection (galvanized steel antenna, powder coated).

This antenna is recommended for use in installations on one or two satellites, including the use of twin, quad and quattro converters for multiswitches. The canopy is ideal for receiving signals from Astra, Hotbird, Amos, Eutelsat satellites, etc. The standard converter holder (diameter 4 cm) makes it possible to mount any modern converter. Universal antenna that works with any tuner and decoder.

The highest quality of materials and high precision guarantee a long product life, safety and user satisfaction. An additional advantage is a reasonable value for money, which makes this antenna a product worth attention and recommendable to even the most demanding user.

Technical specification:

• Dimensions: 80 x 75 cm
• Cat offset: 27,77 deg
• Focal length (f): 393 mm
• F/D ratio: 0,49
• Energy Gain for 10,70 GHz: -
• Energy Gain for 11,70 GHz: 39.1dB
• Energy Gain for 12,75 GHz: -
• Azimuth kata adjustment range: 0-180 deg
• Facade kata adjustment range: 5-80 deg
• Mast diameter: 32-60 mm
• Headlight sheet thickness: 0,6mm
• Converter Mount: 40mm
• Operating speed of wind: 119km/h
• Maximum wind speed: 206 km/h

SATEL CONVERTER LTC TWIN SKYSAT

Technical specification:

• Full HDTV support
• Input Frequency: 10.7 - 12.75 Ghz
• Noise Ratio: 0.1 dB
• Output Frequency: 950 - 1950 MHz, 1100 - 2150 MHz
• Oscillator Frequency: 9.75 GHz, 10.6 Ghz
• Temperature range: -40 to 60 degrees C.

SAT FULL HD CABLE - 30m

Frequency characteristics of the cable. Blue color - cable damping, red color impedance fit.

ANTENNA HOLDER

The product is certified by the German TÜV Rheinland required by the EU.

This certification guarantees a top-notch product that combines quality, durability, and reliability.

It confirms compliance with all standards in terms of safety, stability and mechanical strength.

PLUG "F" - 4 pcs.

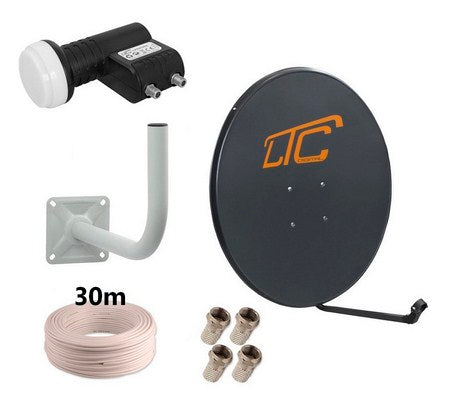

Contents of the set:

• Satellite canopy SAT LTC 80cm
• TWIN LTC SKYSAT converter
• 30m SAT FULL HD cable
• CORAB Antenna Holder
• 4 "F" plugs
• Instructions PL
