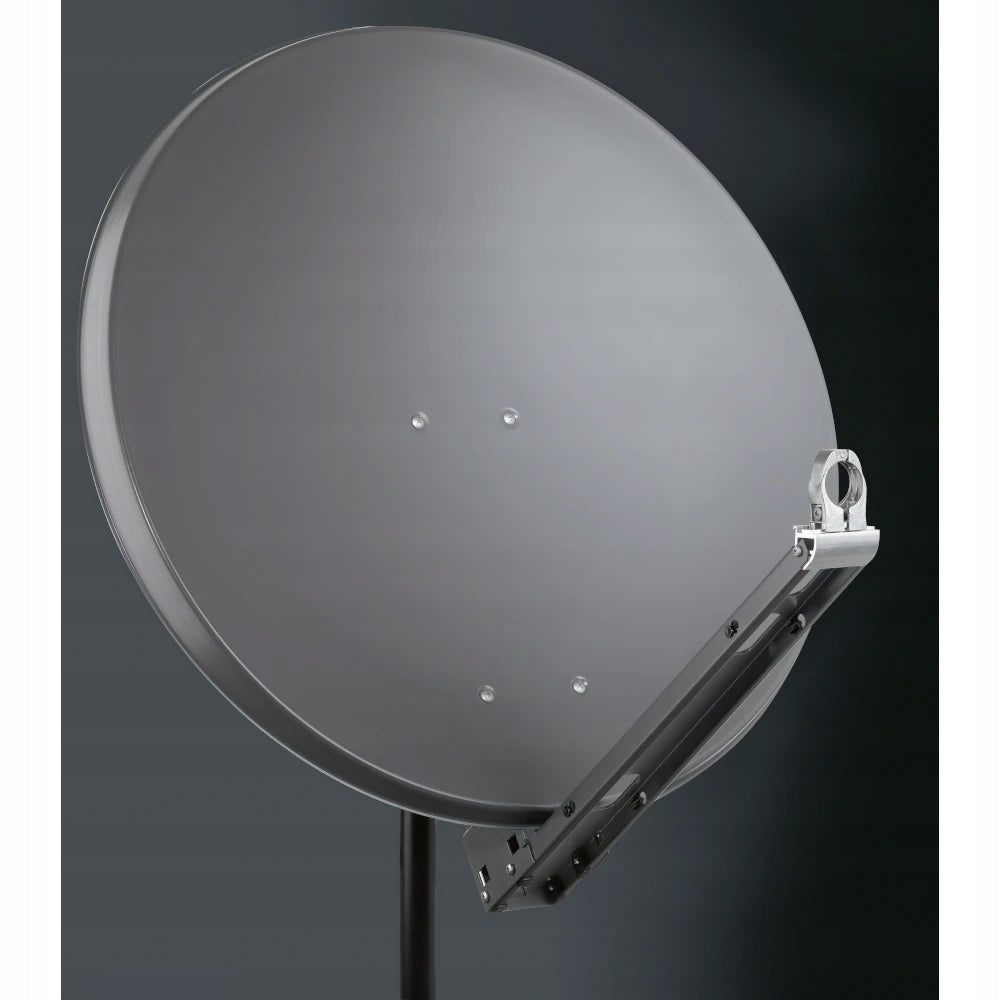

Palydovinė antena TELE System STAR LINE 85, aliuminė, antracito spalvos

Trumpai apie prekę

Prekė: Palydovinė antena TELE System STAR LINE 85, aliuminė, antracito spalvos. Kategorija: Antenos.

• Gamintojas: Fuba
• Modelis: DAA850

Antenna 85 STARLINE TELE System

Are you looking for a high-quality satellite dish that can provide reliable and stable reception even in the most demanding climatic conditions?

The PROFI 85 STARLINE TELE System antenna is the right choice. This antenna from the Italian manufacturer TELE System is a guarantee of long life, durability and trouble-free operation. Made from the highest quality materials, it will not only provide you with high-quality satellite reception but also excellent resistance to wind, snow, and chemicals.

High quality and robust construction

The main feature of the PROFI 85 antenna is its durability. The antenna body is made of lightweight yet durable aluminum, which guarantees stability of mechanical properties for a long time. The rear support and converter arm are made of galvanized steel, which ensures high resistance to weather conditions. Thanks to these materials, the antenna is protected against corrosion, which significantly extends its service life.

Ideal for harsh weather conditions

This antenna is designed for extreme weather conditions. Its design ensures stability even in winds up to 216 km/h, and the antenna can withstand loads up to 192 kg. This makes it ideal for areas with frequent storms, snowfall, or chemical contaminants, such as areas with road salt or acid rain.

Excellent signal reception

With a size of 88 x 88 cm, the antenna provides a high signal gain of up to 39,5 dB at a frequency of 12,75 GHz. This guarantees excellent reception quality even in areas with poor satellite signal. In addition, precise manufacturing processes ensure that each antenna meets high quality standards and ensures maximum customer satisfaction.

Easy installation and flexible installation

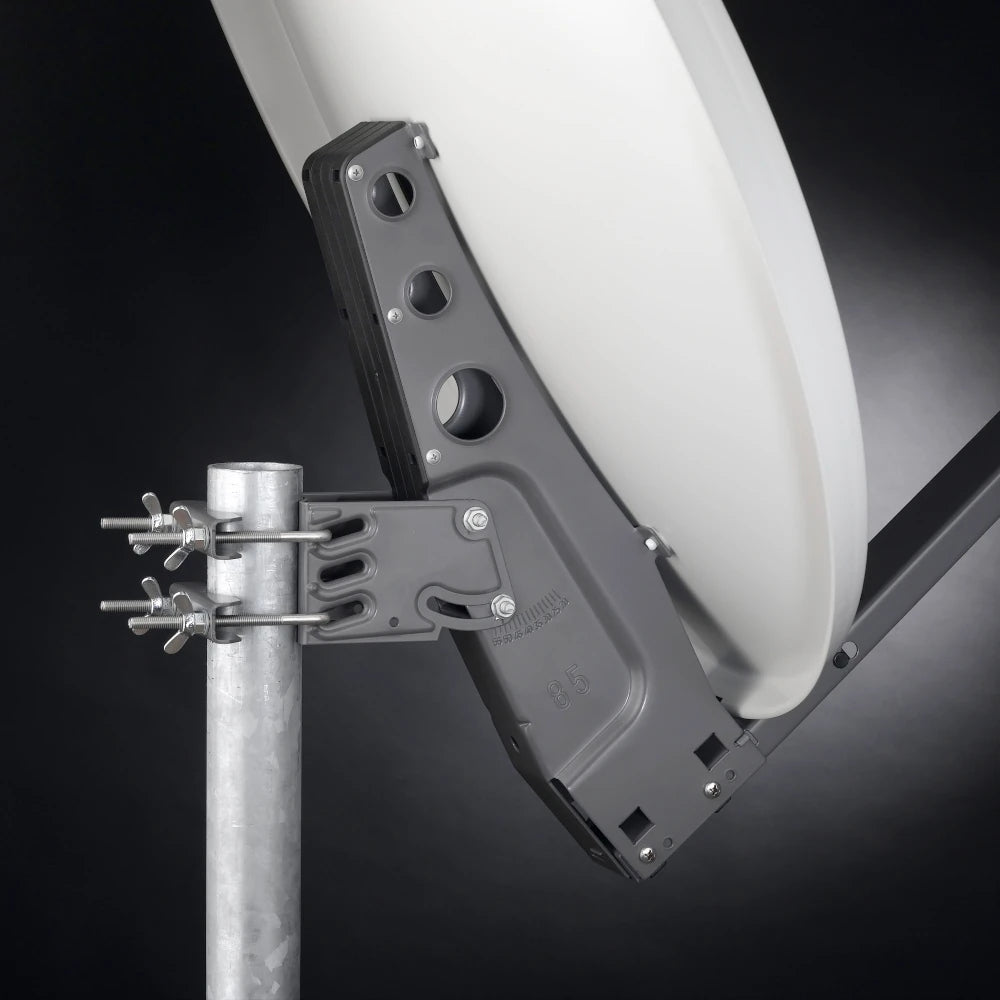

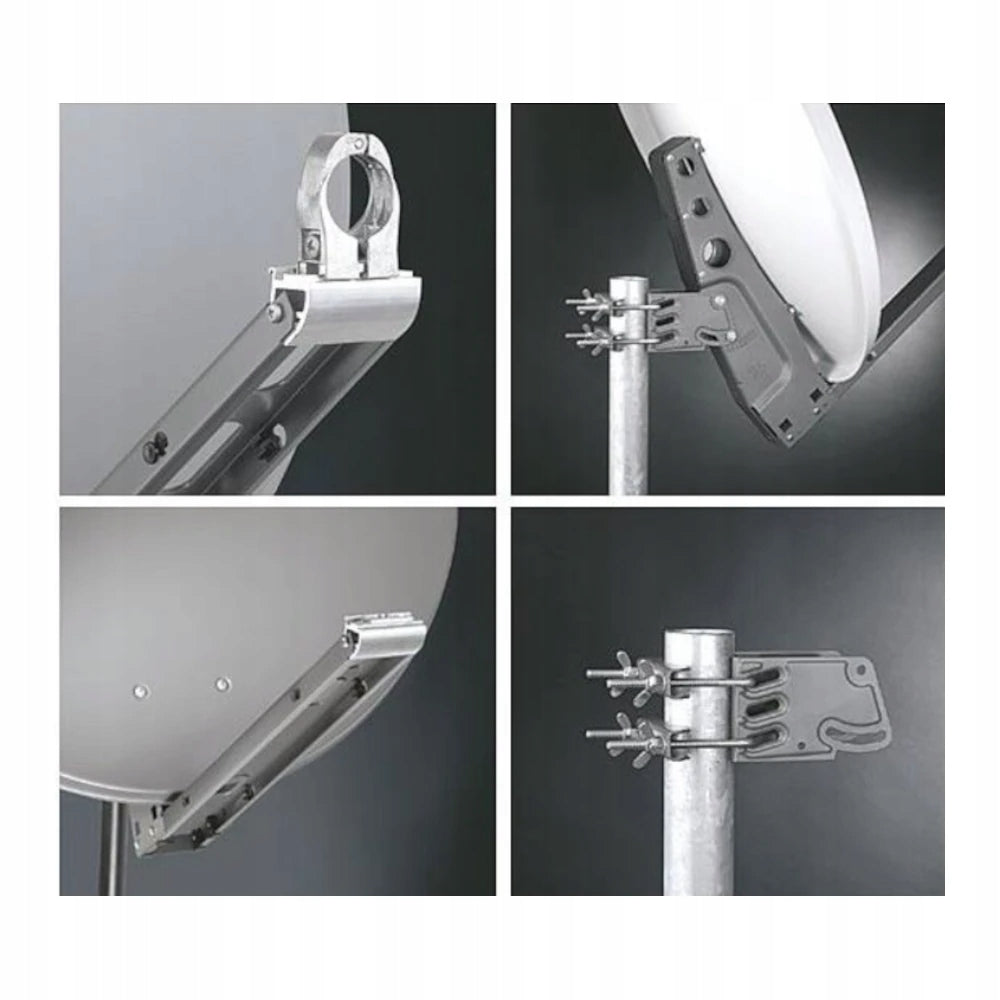

The PROFI 85 antenna is equipped with a 40 mm LNB converter holder, which is standard in most satellite systems. It also includes an AZ/EL handle and bracket, which allow for easy and precise adjustment of the facade angle and azimuth to optimize signal reception. The possibility of mounting on a mast with a diameter of 32 to 76 mm provides flexibility when mounting on various types of structures.

Technical data

• Antenna dimensions: 88 x 88 cm
• Color: anthracite (dark grey)
• Antenna Material: Aluminum
• Rear Handle Design: Galvanized Steel
• AZ/EL handle and bracket: galvanized steel
• LNB Converter Carrier: Galvanized Steel
• LNB Converter Holder: Aluminum
• Frequency Range: 10,75 - 12,75 GHz
• Gain at 10,75 GHz: 38,1 dB
• Gain at 11,75 GHz: 38,7 dB
• Gain at 12,75 GHz: 39,5 dB
• Facade Range: 5° - 48°
• Angle of displacement: 21,5°
• Beam width at 12,75 GHz: < 2,1°
• F/D ratio: 0,6
• Wind load at 72 km/h: 21 kg
• Wind load 144 km/h: 85 kg
• Wind load 216 km/h: 192 kg
• Mast handle: Up to 32 to 76 mm in diameter

With the PROFI 85 STARLINE TELE System antenna, you get reliability, durability and excellent signal reception in one package. It is designed to meet the highest demands on satellite reception, even in the most demanding conditions.
