Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę

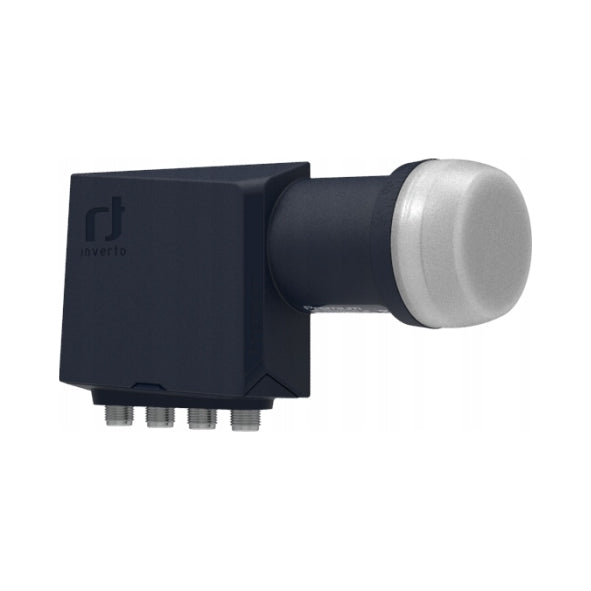

Prekė: Palydovinė galvutė INVERTO Premium LNB QUAD, 4 išėjimai, 4K. Kategorija: Keitikliai.
- Gamintojas: Inverto
- Modelis: Konwerter quad IDLP-QDL413-PREMU-OPN
LNB QUAD 4-output 4K satellite converter INVERTO Premium
- Support SD and HD resolution
- Support 4k resolution
- Support stereoscopic 3D
- ULTRA LOW NOISETECHNOLOGY
- own noise0.2dB
- New model
- 4G
- HDTV,DVB-S2
QUAD PREMIUM converter is produced by the Luxembourg company INVERTO, a leader among suppliers of converters for the Polish market The product comes from a limited series, characterized by low own noise. The QUAD converter provides a satellite signal for four single-head DVB-S/S2 tuners or two PVR tuners (two heads) e.g. NC+, Cyfrowy Polsat and nbox recorder. Converter tested in all weather conditions and carefully selected from converters branded by the Luxembourg company INVERTO.
Attention! In the case of receiving DVB-S2 programs (8PSK modulation with eight symbols), phase noise is a particularly important parameter. BLACK PREMIUM converters are characterized by particularly low phase noise - 80dBc/Hz.
LNB supports HD and UHD transmissions and has excellent RF values, very low power consumption and optimal interference suppression of 4G/LTE signals.
Technical data:
- Product Name: INVERTO QUAD PREMIUM Converter
- Manufacturer's product symbol: OPN-PREMU413-QDL-IDLP
- Lower band - input: 10,7-11,7GHz
- Lower band - output: 950-1950MHz
- Lower oscillator: 9,75GHz
- Upper band –input: 11,7-12,75GHz
- Upper band – output: 1100-2150MHz
- Upper Oscillator: 10,6GHz
- Own noise:0,2dB (0,7dB max)
- Oscillator temperature drift: +/-3MHzmax
- Phase noise:-85dBc/Hz max
- Gain:55dB min
- Wave gain characteristics: +/-0,75dB/27MHz
- Polarity control V: 11.0~14.0V
- H polarity control: 16.0~20.0V
- Lower band control: 0kHz
- Upper band control: 22kHz +/-4kHz, 0,4~0,8 Vpp
- VSWR:2.5:1
- Separation between polarities: 22dBmin
- Current consumption:200mA max @11~20V
- Output Impedance: 75Ohm
- Operating temperature: -30...+60C
- Neck Diameter: 40mm
- Neck Length:50mm
- Connector: F
- Weight:243g
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Konwerter quad IDLP-QDL413-PREMU-OPN |
| Parametry | Product weight with unit packaging | 0.212 kg |
| Parametry | Type | Quad |
| Parametry | Brand | Inverto |
| Parametry | Model | Konwerter quad IDLP-QDL413-PREMU-OPN |
| Parametry | Noise factor | 0.2 dB |
| Parametry | Input frequency range | 10.7–12.75 GHz |
| Parametry | Output frequency range | 950–2150 MHz |
| Parametry | Energy consumption | 200 mA |
| Parametry | Handle diameter | 40 mm |
| Parametry | Product width | 14.2 cm |
| Parametry | Product height | 7.8 cm |
| Parametry | Product depth | 4.9 cm |
| Parametry | Product weight | 177 g |
| Parametry | EAN (GTIN) | 5453002616819 |
| Parametry | Packaging status | original |
| Parametry | Customs tariff code | 85369010 |
| Parametry | Certificates of conformity | CE,WEEE |
