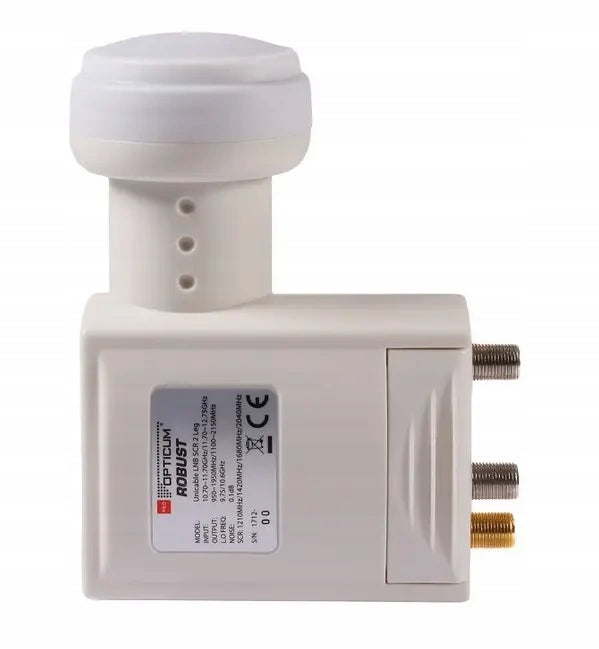

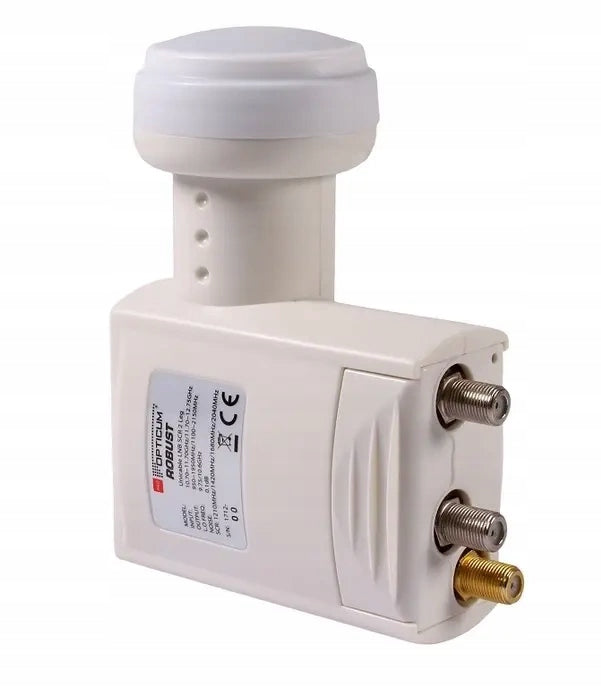

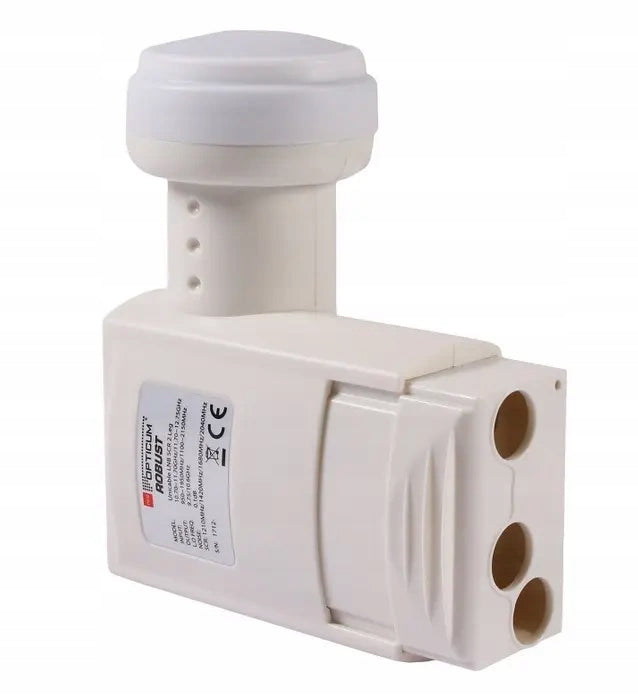

Palydovinė galvutė Opticum Robust Unicable SCR su TWIN Legacy

Trumpai apie prekę

Prekė: Palydovinė galvutė Opticum Robust Unicable SCR su TWIN Legacy. Kategorija: Keitikliai.

• Gamintojas: Opticum
• Modelis: LNB unicable + twin

SKU: LNBU-OPT-SCR2LEG

UNICABLE converter for receiving satellite TV programs

One converter output and one cable provides a signal for four digital receivers.

Converter for single-wire signal transmission up to four receivers from UNICABLE.

The receivers work completely independently.

The condition is that they have a UNICABLE function, which consists in using

for 4 frequency signal transmission:

• Receiver 1 - 1680 MHz
• Receiver 2 - 1420 MHz
• Receiver 3 - 2040 MHz
• Receiver 4 - 1210 MHz.

One UNICABLE converter output (SCR) in gold allows you to route the signal with one cable to up to 4 digital receivers with SCR or UNICABLE signal.

Two converter outputs (TWIN) so-called. full band in silver allows you to connect two traditional digital receivers.

Technical parameters:

• Lower Input Band: 10,7-11,7 GHz
• Lower oscillator: 9,75 GHz
• Upper Input Band; 11,7-12,75 GHz
• Upper oscillator: 10,6 GHz
• IF Channel 1 (SCR) Output: 1210 MHz
• IF Channel 2 (SCR) Output: 1420 MHz
• IF Channel 3 (SCR) Output: 1680 MHz
• IF Channel 4 (SCR) Output: 2040 MHz
• Reinforcement: pow. 57 dB
• Number of full band outputs: 2
• Noise Ratio: 0,1 dB
• Current Consumption: 300 mA
• Handle diameter: 40 mm
• Operating temperature: - 40˚C + 65˚C
