Aprašymas
Trumpai apie prekę

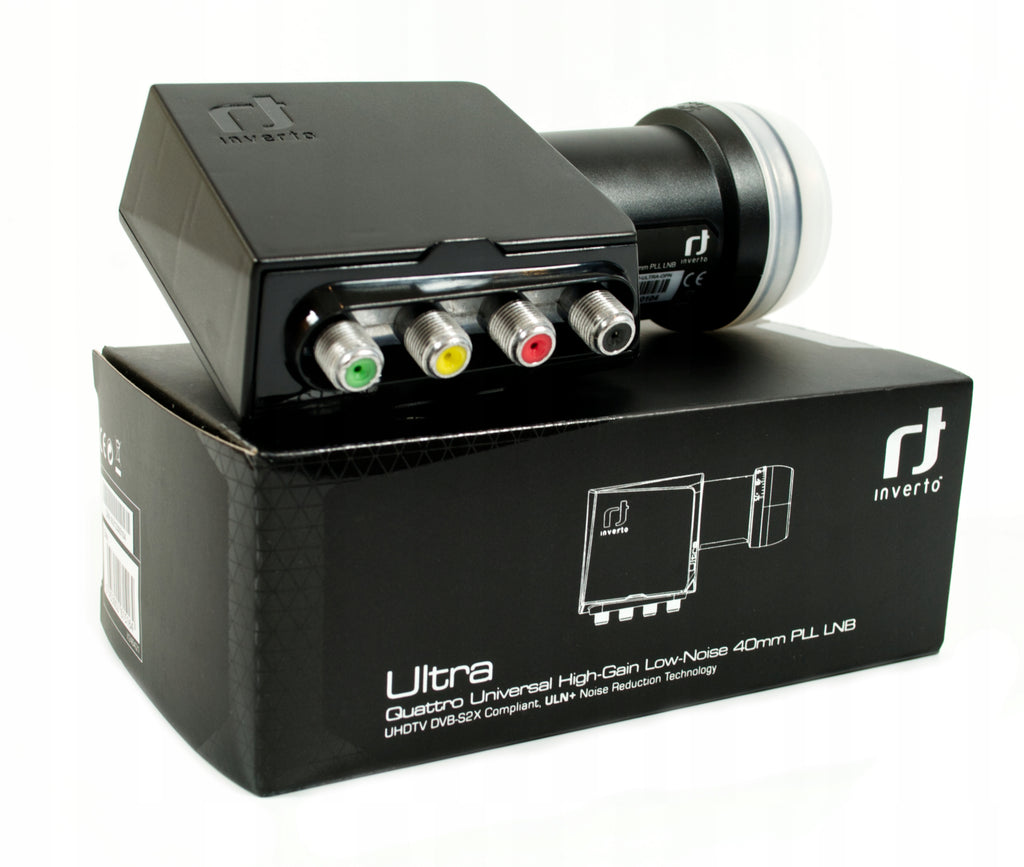

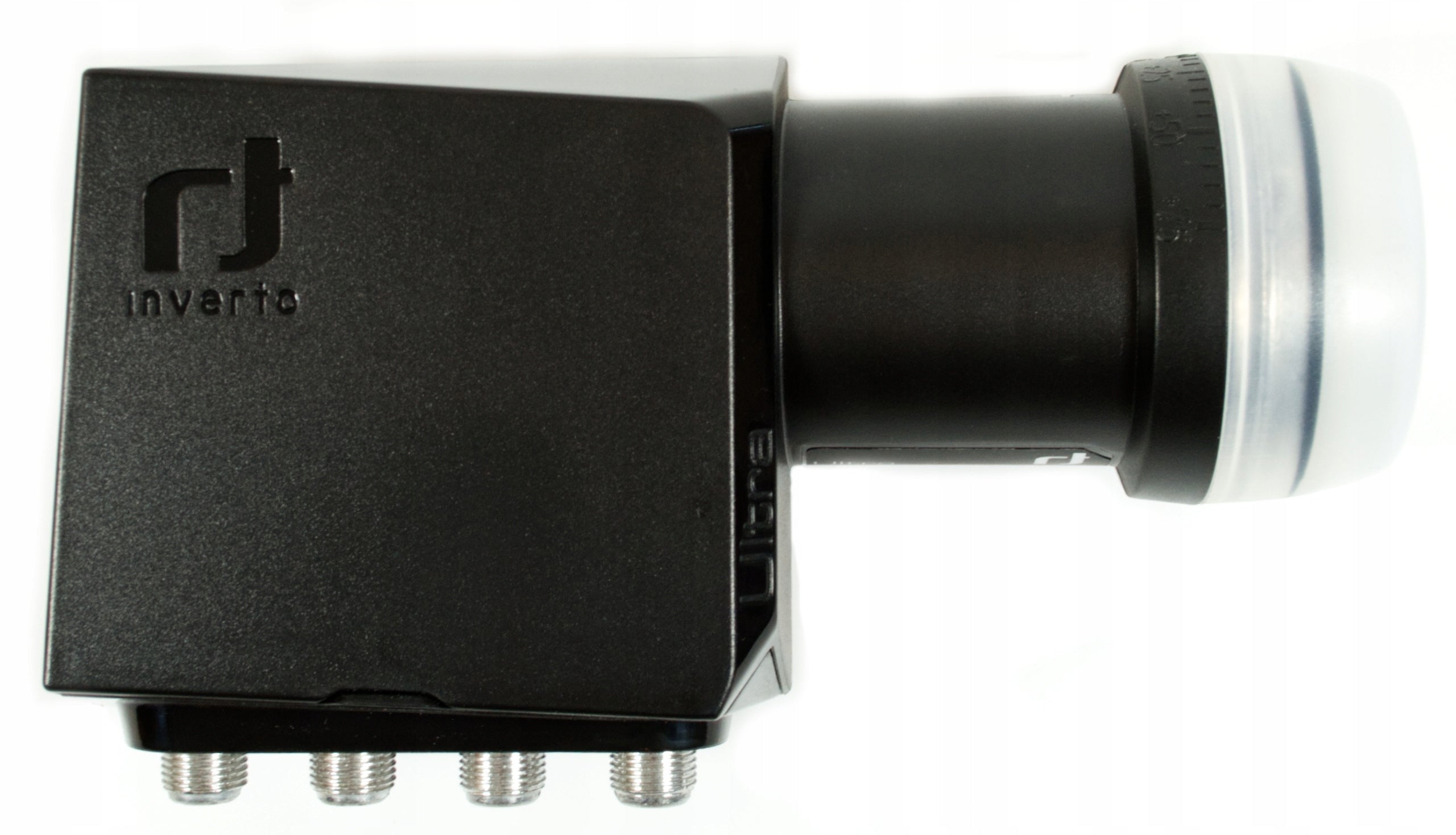

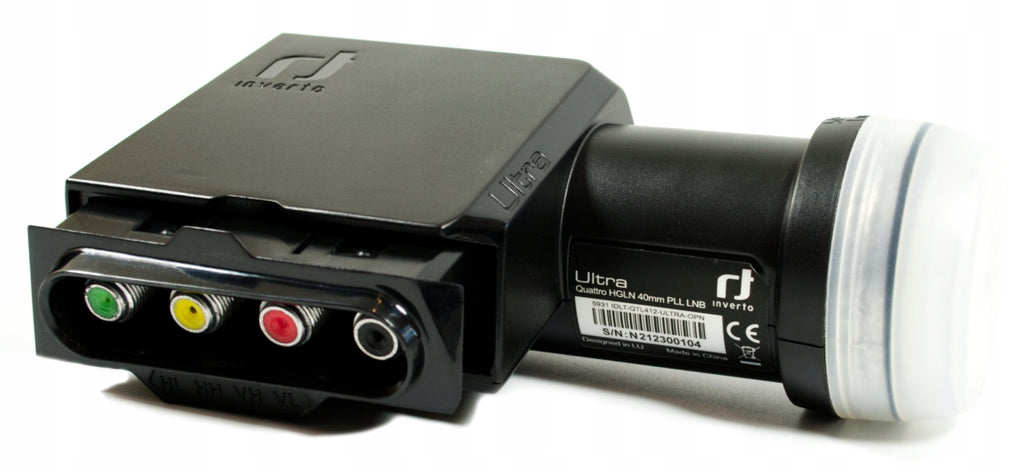

Prekė: Palydovinė galvutė QUATTRO Inverto Black ULTRA Quatro multiswitch'ui 5/8, 5/6, 9/8. Kategorija: Keitikliai.
- Gamintojas: Inverto
- Modelis: IDLT-QTL412-ULTRA-OPN
High quality Quattro converter from Luxembourg brand Inverto from the new limited Ultra Black series. The Quattro type converter has been designed to work with a multiswitch. The appropriate multiswitch system, using one antenna and one Quattro converter, can provide independent reception of satellite signals to up to several hundred recipients simultaneously. It has a rain cover.
The Inverto Premium converter supports HD and UHD transmissions and has excellent RF values, very low power consumption and optimal interference suppression of 5G / LTE signals.
Attention! Converters type QUATTRO are used to connect only with multiswitch, it is not used for direct connection with decoder. The converter to which 4 tuners can be connected independently is QUAD (available in other offers of our store).
- Low noise, DVB-S2 (HD and UHD) compatibility - Low noise
- Low power consumption
- Suitable for 4K and HD channel reception
- High degree of cross polarity damping
- High frequency stability
- Resistant to 4G/5G interference
- High separation between polarities
The Quatro Inverto Black Ultra converter allows you to receive digital and analogue TV and radio programs via satellite in HD and 4K i Ultra HD quality. It is characterized by four outputs, where each contains a component of the full satellite band (polarization-band combination).
- V/Lo - vertical polarization, lower band
- V/Hi - vertical polarization, upper band
- H/Lo - horizontal polarization, lower band
- H/Hi - horizontal polarization, upper band
- Product Name: Quattro INVERTO Ultra Black Converter
- Manufacturer symbol: IDLT-QTL412-ULTRA-OPN
- Lower band - input: 10,7-11,7GHz
- Lower band - output: 950-1950MHz
- Upper band –input: 11,7-12,75GHz
- Upper band – output: 1100-2150MHz
- Own noise: 0,2dB (0,7dB)
- Gain: 60~70dB
- Separation between polarities: 22dB min
- Current consumption: 230mA max @11~20V
- Output Impedance: 75 Ohms
- Operating temperature: -30°...+60°C
- Neck Diameter: 40mm
- Connector: F
- Weight: 177g
- Quattro Inverto Ultra Black Converter
- Packaging
KONQT0109
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | IDLT-QTL412-ULTRA-OPN |
| Parametry | Product weight with unit packaging | 0.5 kg |
| Parametry | Type | Multiswitch (Quatro) |
| Parametry | Brand | Inverto |
| Parametry | Model | IDLT-QTL412-ULTRA-OPN |
| Parametry | Noise factor | 0.2 dB |
| Parametry | Input frequency range | 10.7–12.75 GHz |
| Parametry | Output frequency range | 950–1950 MHz |
| Parametry | Energy consumption | 230 mA |
| Parametry | Handle diameter | 40 mm |
| Parametry | Product width | 14.2 cm |
| Parametry | Product height | 7.9 cm |
| Parametry | Product depth | 4.8 cm |
| Parametry | Product weight | 177 g |
| Parametry | EAN (GTIN) | 5453002615164 |
| Parametry | Packaging status | original |
