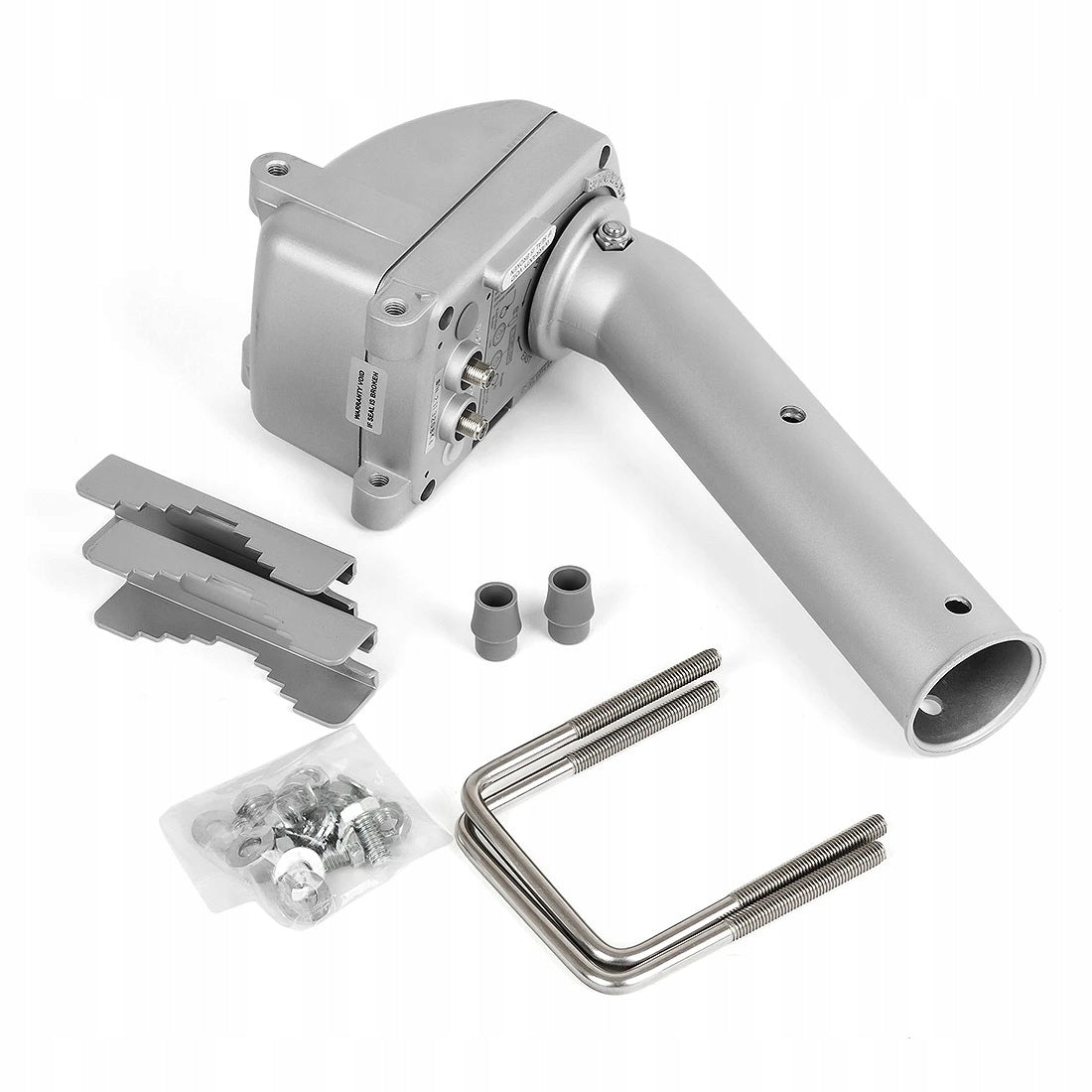

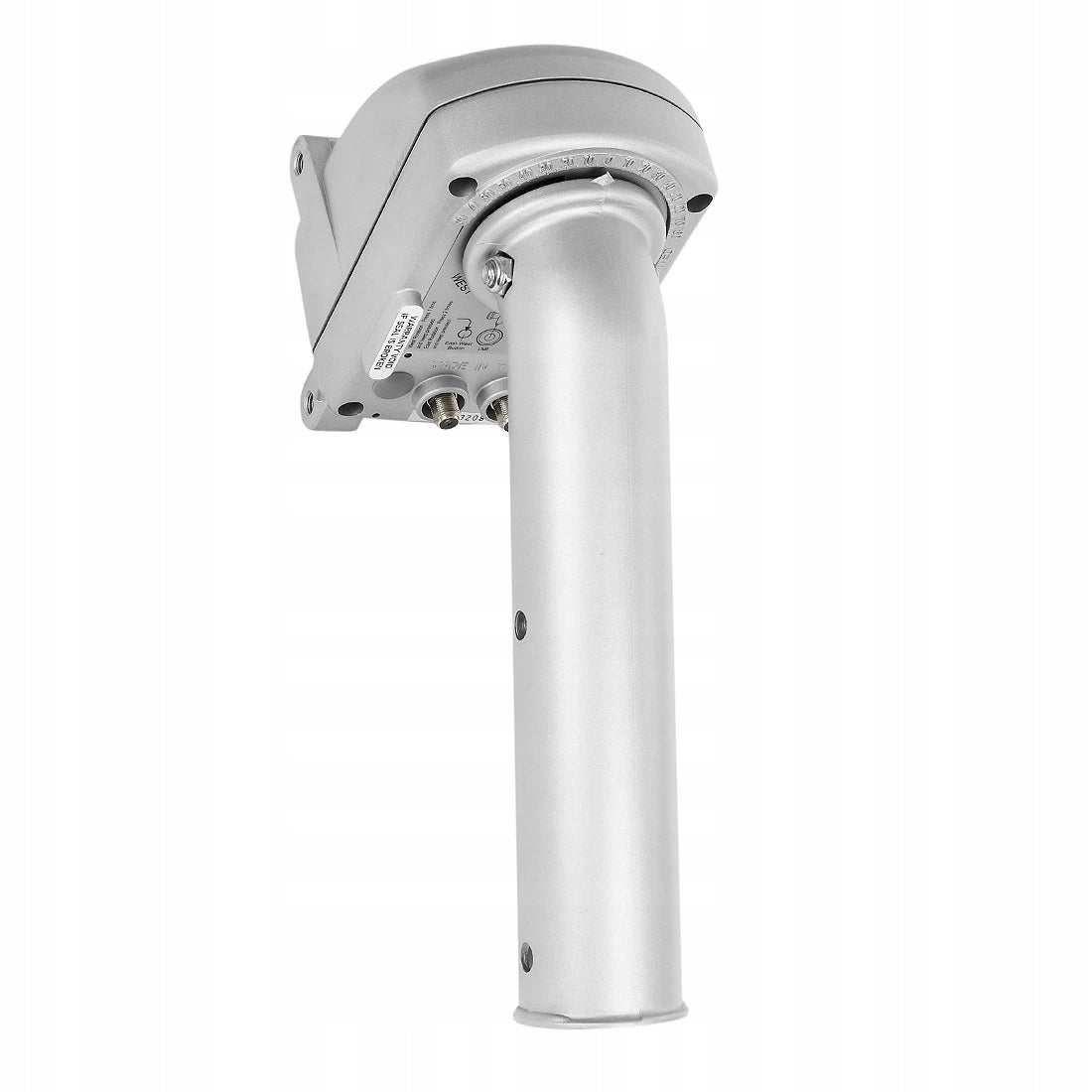

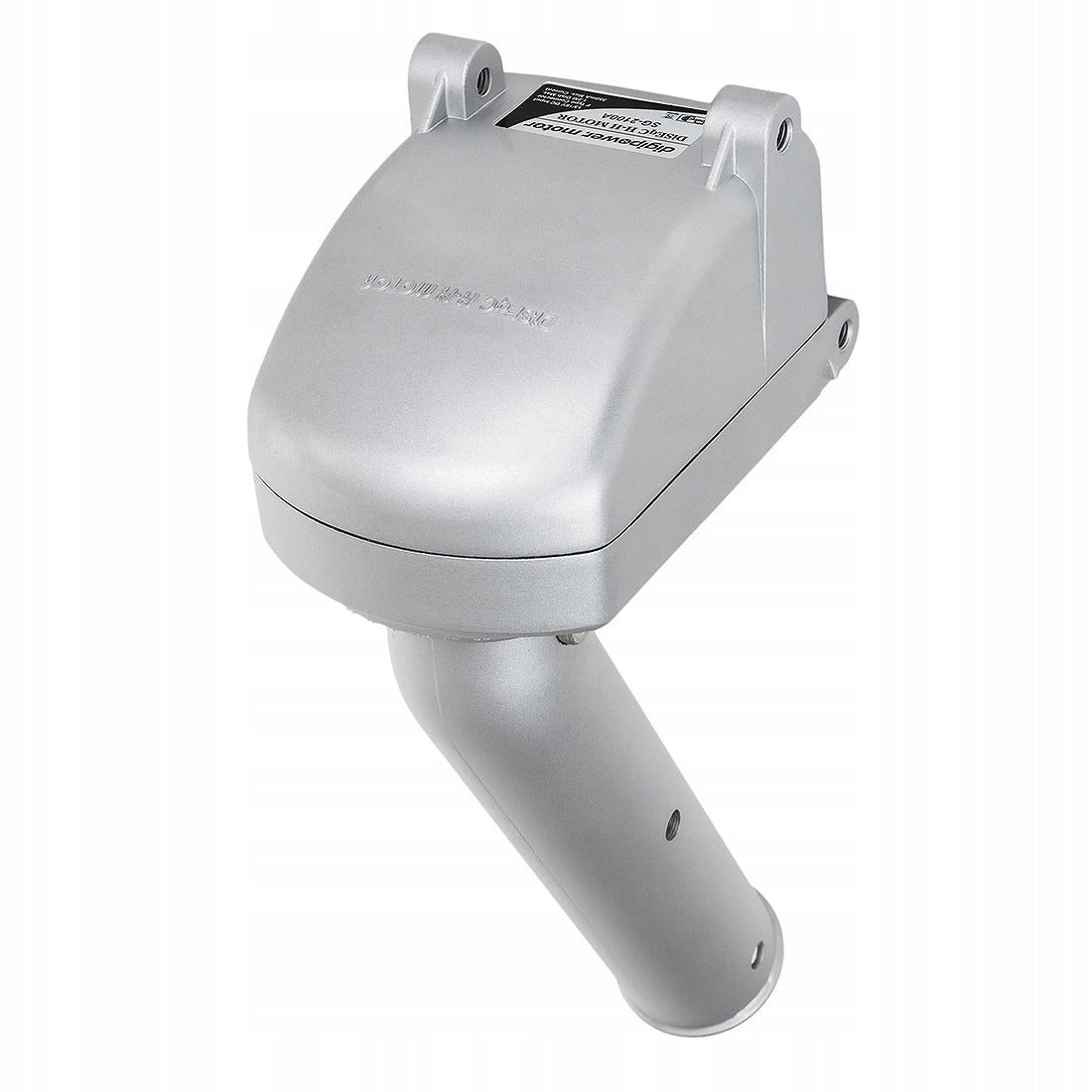

Palydovinė lėkštė SG-2100, DiseqC 1.2, tinka iki 1,2 m lėkštėms, 60 atminties pozicijų

Trumpai apie prekę

Prekė: Palydovinė lėkštė SG-2100, DiseqC 1.2, tinka iki 1,2 m lėkštėms, 60 atminties pozicijų. Kategorija: Dalys ir komponentai.

• Gamintojas: no brand
• Modelis: SG-2100

DISEqC 1.2 control, does not require the use of a positioner, memory 60 positions, rotation range 140 degrees, maximum canopy size 1.20 m, function ? GO IS X?

• Cooperation with TV SAT tuners equipped with DISEqC 1.2 system
• Power supply and control of one coaxial cable (the same as the LNB convention)
• Compact contraction
• Low noise
• Adjustable mechanical stops
• Recommended antenna diameter max. 1.2 m
• Function "Goto X"

Product Description

• DiSEqC1.2 signal control
• does not require an additional positioner
• powered by converter power supply voltage
• key for manual setting during installation
• possibility of installing antennas with cross-section up to 1,2m
• Angular speed 1,9-2,5 degrees/sec - facade angle 25-75 degrees
• Handle diameter for antenna 55mm
• handle length for antenna 160mm
• possibility of mounting on a mast with a cross section of 35-65mm
• button for manual rotation to the right or left
• very quiet and precise

Technical data

• Antenna diameter: max. 1.2 m
• Rotation angle: 70 degrees east< -> 70 degrees west (140 degrees) adjustable
• Facade angle: 25 degrees < -> 75 degrees
• Input/Output Voltage: 13/18 V DC
• Current consumption: 50 mA (standby), 200 mA (normal mode), 350 mA (max)
• Rotation speed: 1.9 degrees/sec. (at 13 V); 2.5 degrees/sec. (at 18 V)
• Number of satellite positions: 60- Sockets: type F
• Control protocol: DISEqC 1.2
• Sync function: yes- Goto position 0 function: yes
• "Goto X" function: yes
• Position sensor: Hall effect
• Eastern/Western limiter: mechanically and programmatically adjustable
• Buttons: east/west/reset
• Net weight: 2.83 kg
