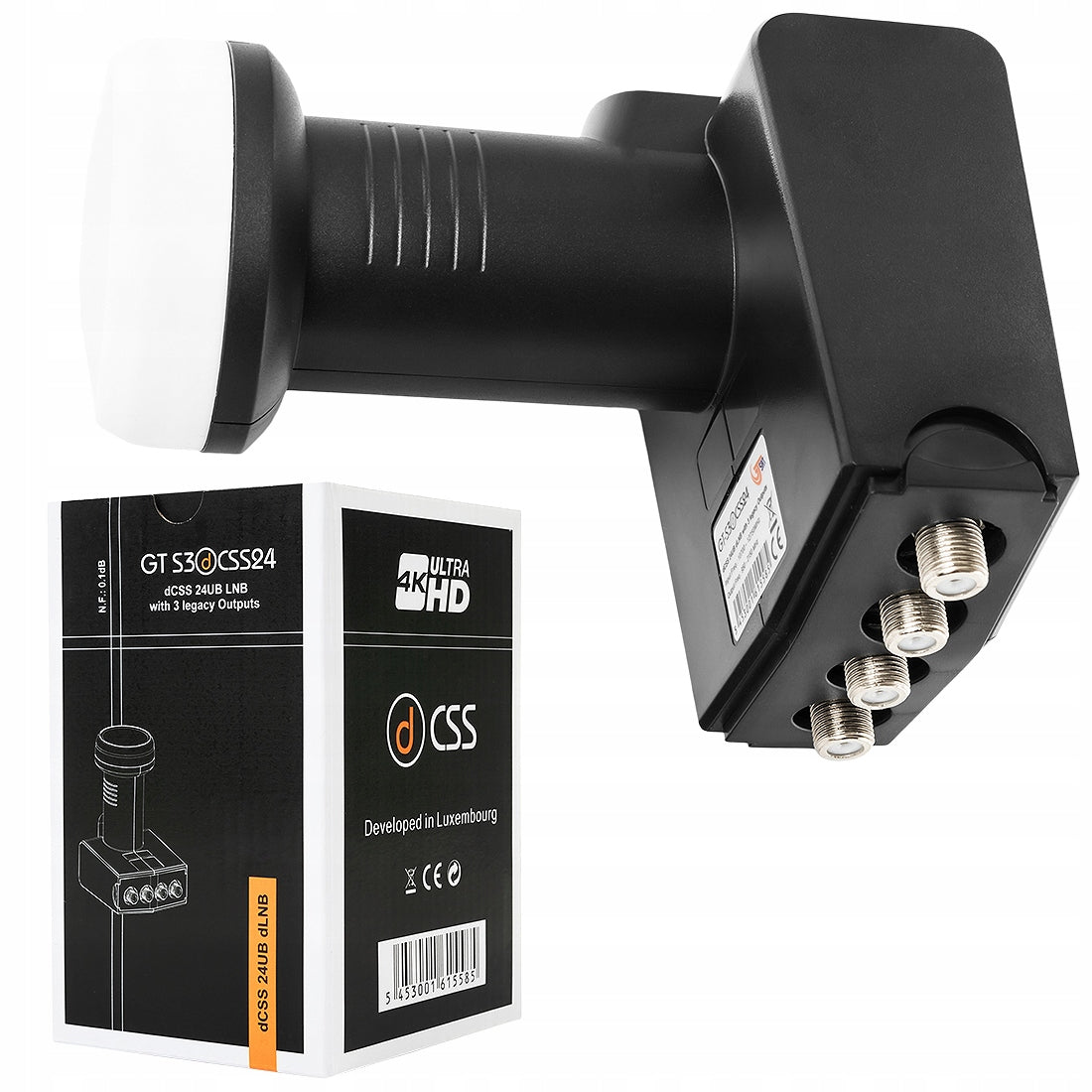

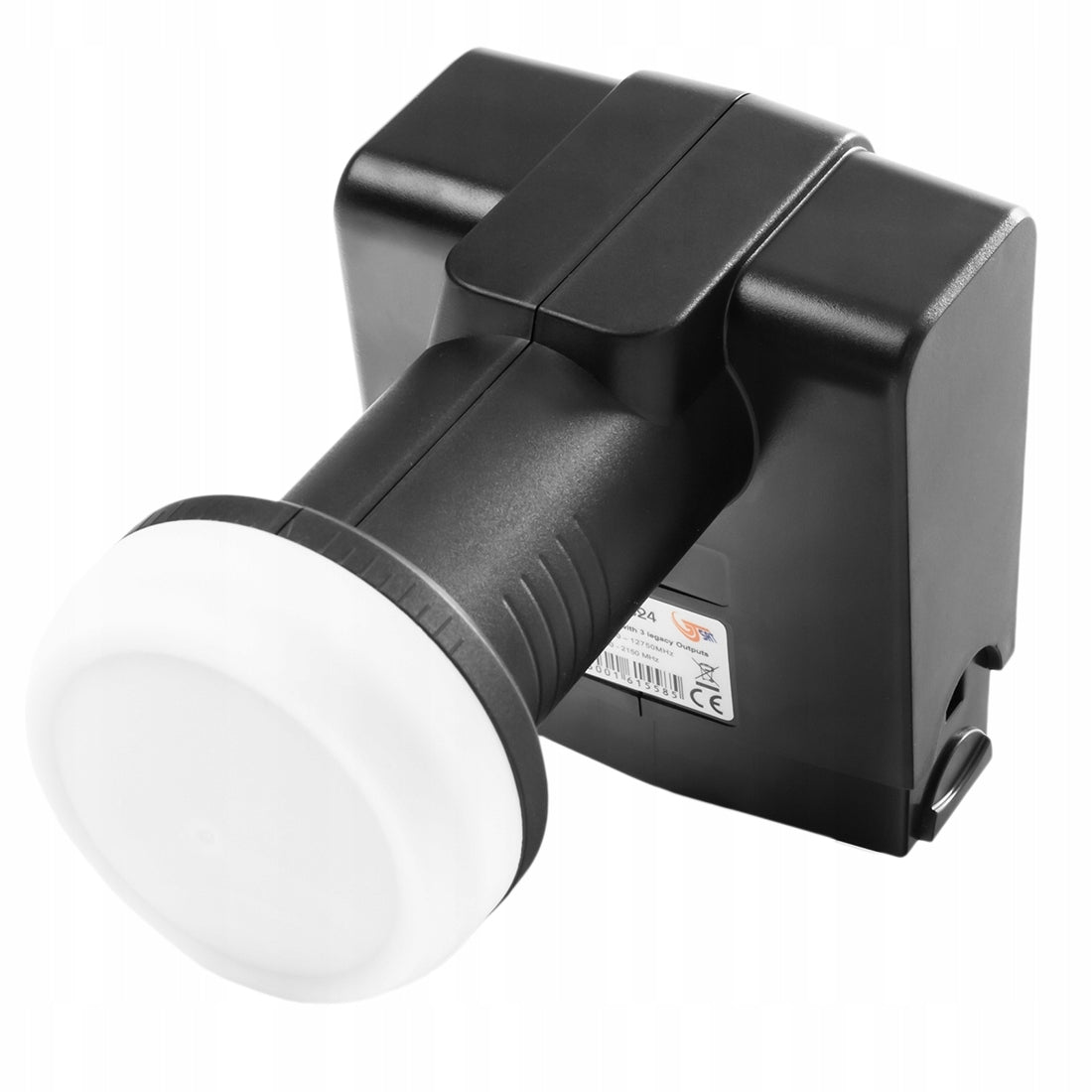

Palydovinė LNB galvutė GT-SAT GT-S3dCSS24, SCR Unicable II, tinkama Evobox PVR ir 3x Multiroom sistemos

Trumpai apie prekę

Prekė: Palydovinė LNB galvutė GT-SAT GT-S3dCSS24, SCR Unicable II, tinkama Evobox PVR ir 3x Multiroom sistemos. Kategorija: Keitikliai.

• Gamintojas: GT-SAT
• Modelis: GT-S3dCSS24

LNB SCR Unicable II POLAT BOX Evobox PVR / Canal+ 24x User Band + 3x MULTIROOM GT-SAT GT-S3dCSS24

LNBU-GTS-S3DCSS24

UNICABLE II converter programmed for Polish platforms: Canal+ and Polsat Box

Programmed for the following receivers:

Polsat Box:

- Unicable I/II technology (EN50494 + EN50607): Evobox PVR

- Tedchnology I Unicable I (EN50494): Mini HD 2000, HD 3000, HD 5000, HD 5500s, HD 6000, HD 7000 PVR

Canal+:

- Unicable I/II technology (EN50494 + EN50607): 4K UltraBOX

- Technology I Unicable I (EN50494): mediaBOX+ (ADB ITI-3740SX), turboBOX+ (ADB ITI-5720SX), wifi PremiumBOX+ (ADB NCP-4740SF), BOX+ ADB ITI-2849/2850/2851S), PVR BOX+ (ITI-5800SX)

Settings in receivers:

- In the Polsat Evobox PVR receiver we can choose 3 rigid unmanaged operating modes, the first is the traditional Unicable settings and then we occupy channels 1-4, the second setting is Evobox 1 we occupy channels 5 to 12, the third setting is Evobox 2 then we occupy channels 13 to 20. We must remember that in one single cable installation so that the work channels do not overlap! Multiroom example: two Evobox PVRs one in settings 1 and the other in 2! + e.g. set-top boxes 4 HD 6000 multirooms in total

- In the Canal+ 4K UltraBOX receiver there is no problem because the receiver allows full management of work channels and their frequencies that we can easily edit, so we really choose the frequencies we want or any free to install up to 8 channels per decoder.

The other receiver models support Unicable I technology, so we can install 4 decoders or one with four channels of work for PVR!

- In one installation, of course, there may be Polsat and Canal+ decoders, e.g. 4 ordinary multiroom in Unicable I, Evobox PVR + 4K UltraBOX standard thanks to Unicable I/II technology!!!

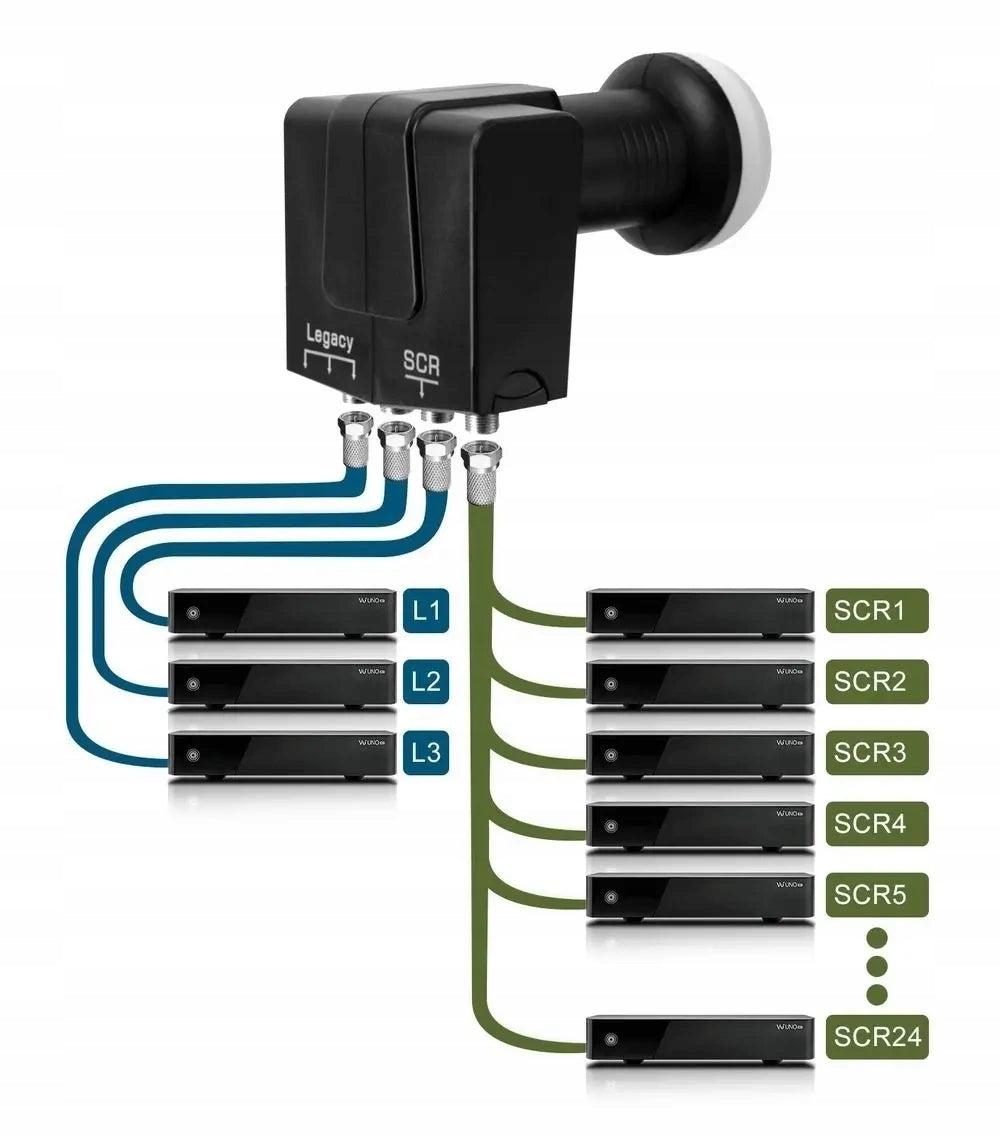

LNB Unicable SCR GT-SAT GT-S3dCSS24 convention for single-wire (serial) signal transmission up to a maximum of 24 receivers with the Unicable II designation in the menu,

lnb also has three outputs of the standard satellite signal for the other three satellite receivers.

UNICABLE technology consists in rigidly reserving part of the IF band for each of the connected satellite tuners.

The tuner sends requests to the transponder access converter and receives a signal at the reserved frequency.

A prerequisite for the use of UNICABLE technology is its implementation in the tuner.

List of programmed 24 Unicable frequencies:

1. 1210MHz 2. 1420MHz 3. 1680MHz 4. 2040MHz 5. 978MHz 6. 1028MHz 7. 1072MHz 8. 1116MHz 9. 1160MHz 10. 1271MHz 11. 1315MHz 12. 1359MHz 13. 1484MHz 14. 1528MHz 15. 1572MHz 16. 1616MHz 17. 2084MHz 18. 2128MHz 19. 1816MHz 20. 1860MHz 21. 1904MHz 22. 1948MHz 23. 1992MHz 24. 1728MHz

Product Features:

- GT-S3dCSS24 model

- 1x SCR output for up to 24 receivers on a single coaxial cable

- 3x output for 3 standard SAT receivers

- Attenuation: 0,1 dB (type)

- Legacy Port Gain: 57 - 61dB

- SAT-SCR port gain: 42 - 62 dB

- Interwire insulation: > 22dB

- Control: DiSEqC 1.0

- Temperature range: -40 C to +65 C

- Legacy port power consumption: 100mA

- Power consumption of SAT-SCR port: 300mA

- Diameter: 40mm

- Compatible with HDTV and DVB-S2

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	GT-S3dCSS24
Parametry	Product weight with unit packaging	0.4 kg
Parametry	Type	unicable
Parametry	Brand	GT-SAT
Parametry	Model	GT-S3dCSS24
Parametry	Noise factor	0.1 dB
Parametry	Handle diameter	40 mm
Parametry	Product weight	1 g
Parametry	EAN (GTIN)	5453001615585
