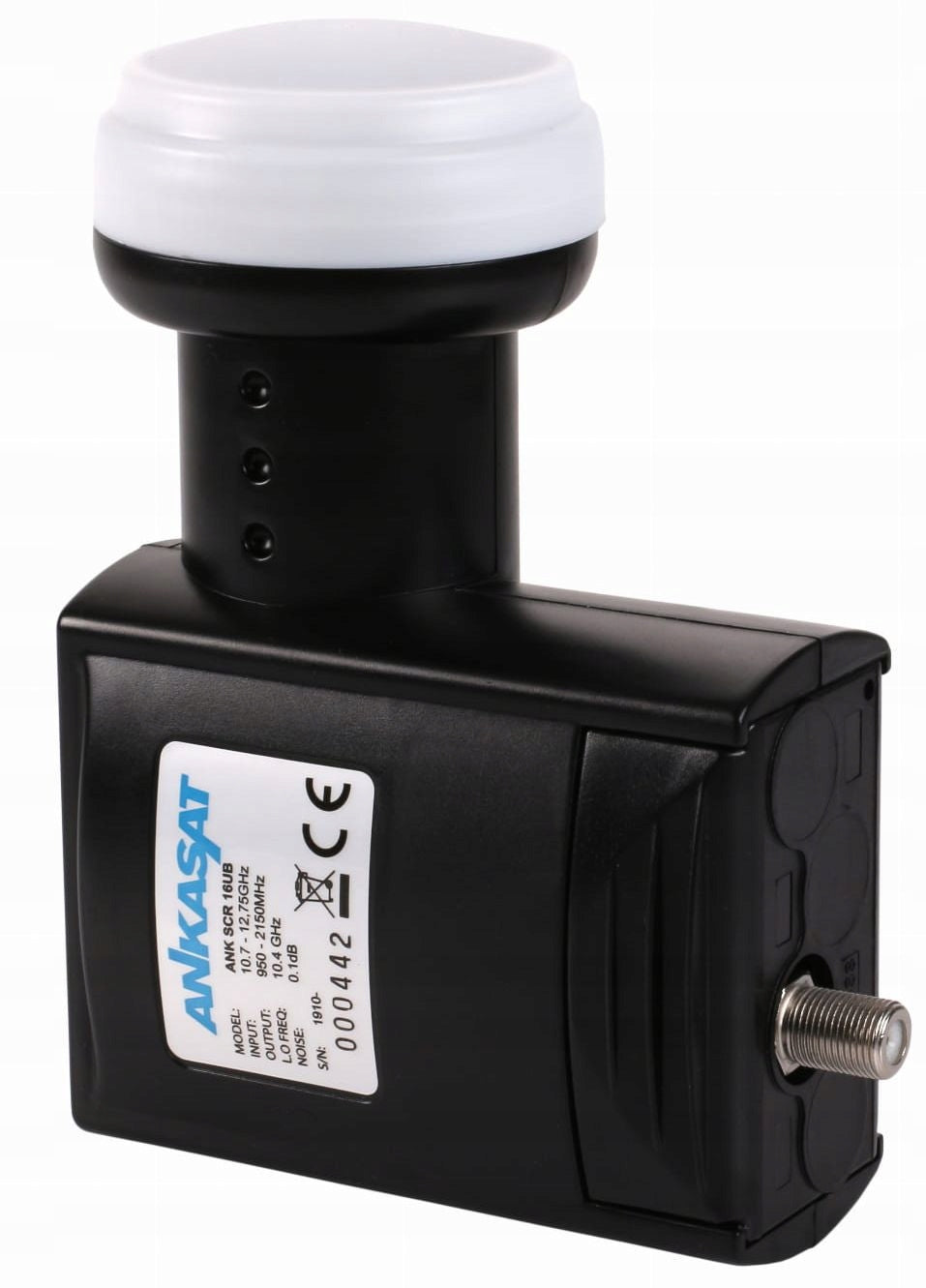

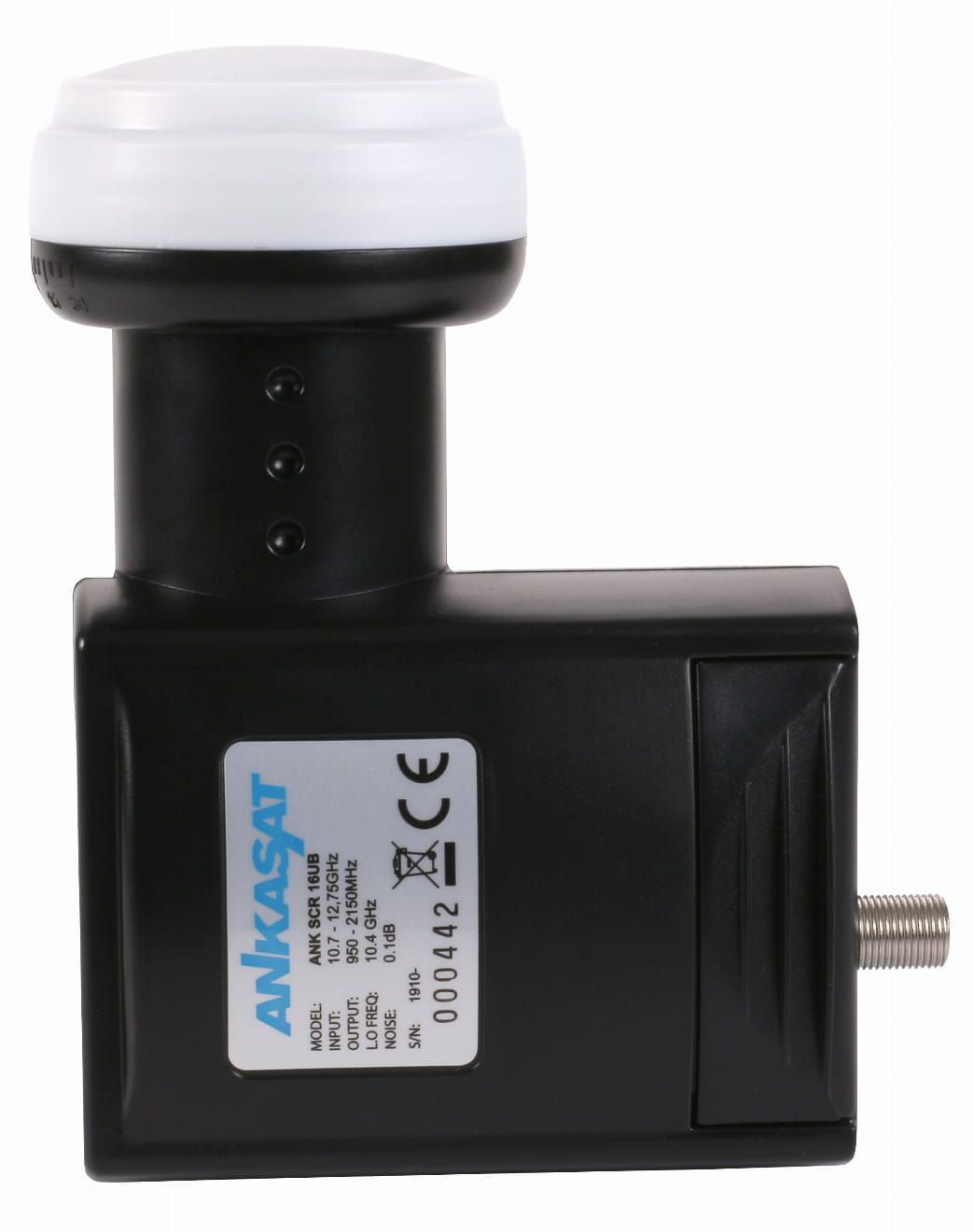

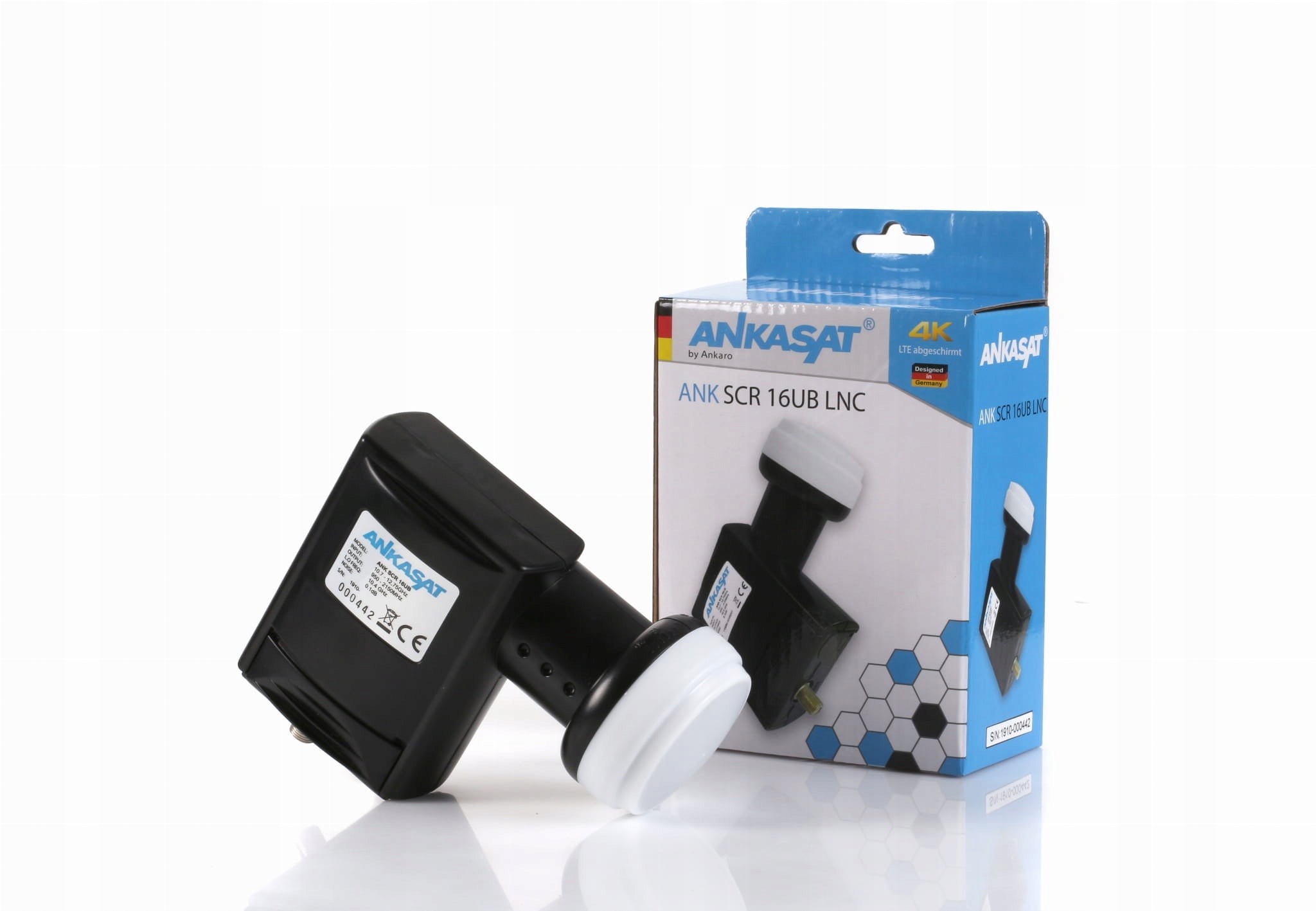

Palydovinė Unicable galvutė Ankasat ANK SCR 16UB

Trumpai apie prekę

Prekė: Palydovinė Unicable galvutė Ankasat ANK SCR 16UB. Kategorija: Keitikliai.

• Gamintojas: Opticum
• Modelis: Unicable II SCR 16UB Opticum

The LNB Unicable Ankasat converter has one output, allows for single-wire (serial) signal transmission up to 16 receivers.

The Unicable converter provides optimized HD and 4K transmission reception capabilities. Manufactured to the highest quality standards, with excellent reception parameters. The converter works perfectly with UniCable digital tuners of encoded platforms such as: Canal+ platform, Polsat BOX, and other tuners supporting the Unicable standard.

• Input bandwidth: 10,70 - 12,75 GHz
• Output bandwidth: 950 - 2150 MHz
• LO frequency: 10,40 GHz
• IF Channel 1 (SCR) Output: 1210 MHz
• IF Channel 2 (SCR) Output: 1420 MHz
• IF Channel 3 (SCR) Output: 1680 MHz
• IF Channel 4 (SCR) Output: 2040 MHz
• IF Channel 5 (SCR) Output: 985 MHz
• IF Channel 6 (SCR) Output: 1050 MHz
• IF Channel 7 (SCR) Output: 1115 MHz
• IF Channel 8 (SCR) Output: 1275 MHz
• IF Channel 9 (SCR) Output: 1340 MHz
• IF Channel 10 (SCR) Output: 1485 MHz
• IF Channel 11 (SCR) Output: 1550 MHz
• IF Channel 12 (SCR) Output: 1615 MHz
• IF Channel 13 (SCR) Output: 1745 MHz
• IF Channel 14 (SCR) Output: 1810 MHz
• IF Channel 15 (SCR) Output: 1875 MHz
• IF Channel 16 (SCR) Output: 1940 MHz
• Gain: 55 dB
• Noise Ratio: 0,1 dB
• Current Consumption: 300 mA
• Handle diameter: 40 mm
• Operating temperature: - 30˚C + 70˚C

• Unicable SCR 16UB Converter
• Packaging

KONUN4005A

Specifications
