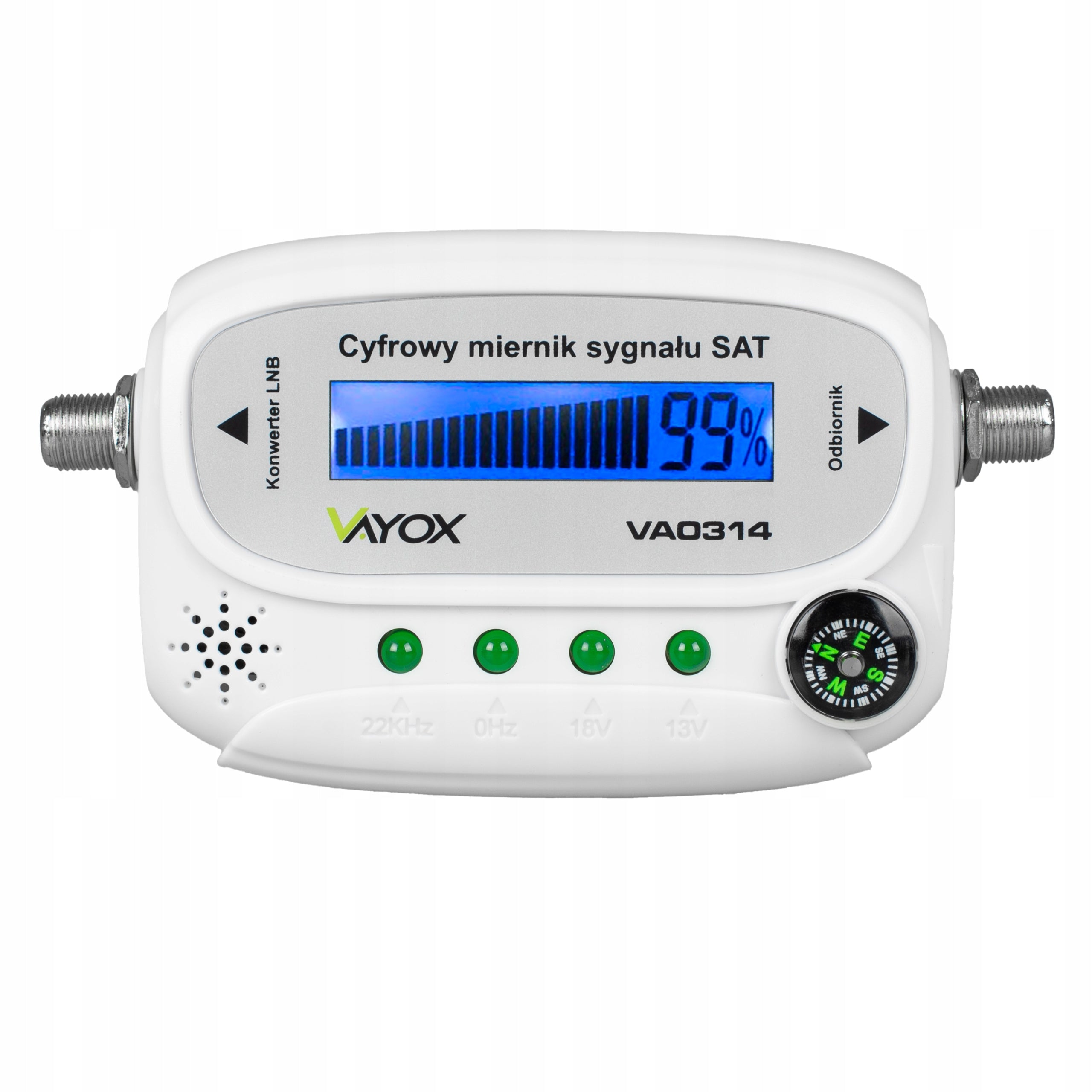

Palydovinės antenos signalo matuoklis VAYOX su LCD ekranu ir F tipo kabeliu

Trumpai apie prekę

Prekė: Palydovinės antenos signalo matuoklis VAYOX su LCD ekranu ir F tipo kabeliu. Kategorija: Matuokliai, signalo stiprintuvai.

• Gamintojas: Vayox
• Modelis: Miernik cyfrowy sygnału satelitarnego finder

• Clear LCD display with adjustable backlight
• Adjustable sound signaling
• Processor adapted to measure 4K and HD signal
• Compass for antenna pre-setting
• Simplicity and convenience of use
• Frequency Range: 950-2150 MHz
• Minimum level at input: -40dBm
• Maximum Input Level: -10dBm
• 75 Ohm, Connector F
• Dimensions: 12 x 6,5 x 2.5 cm
• 13-18 V power supply from tuner (no batteries required)

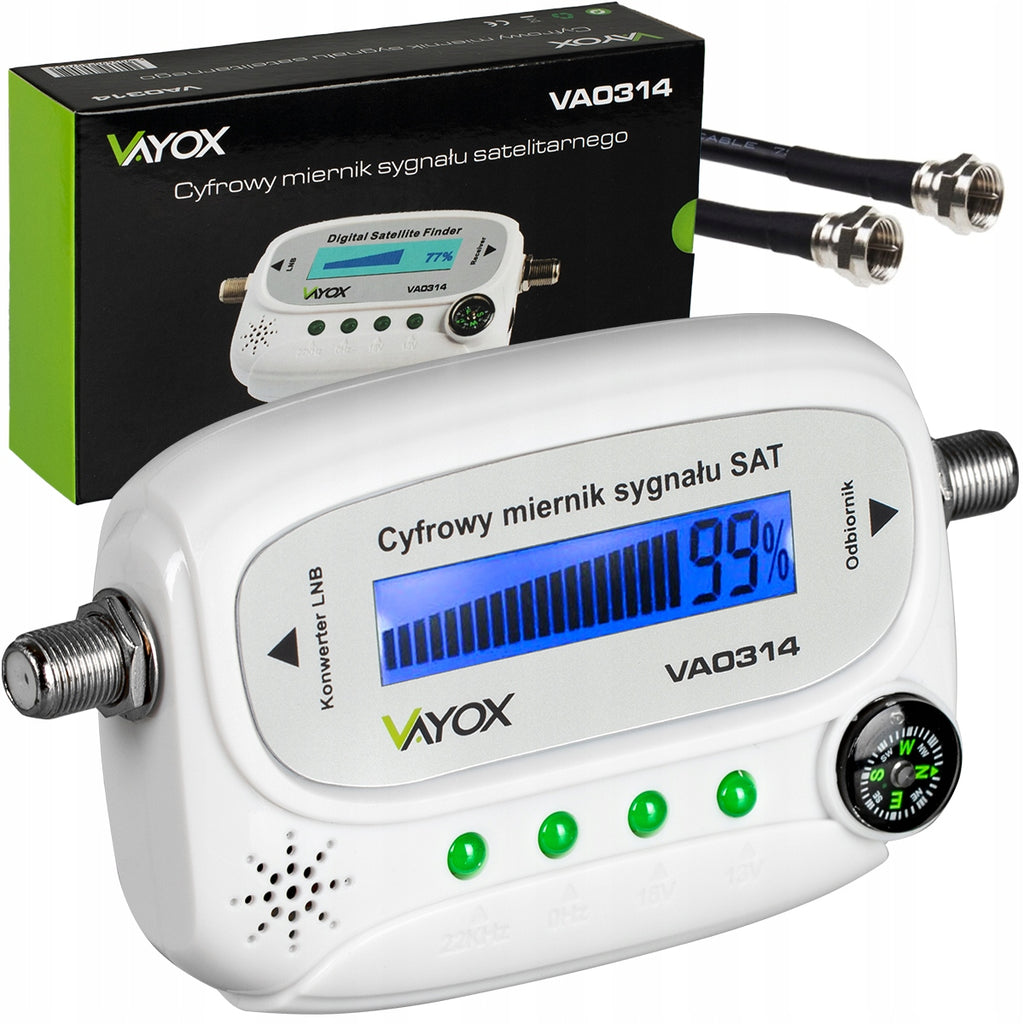

Comes with

• Meter VA0314 Vayox
• Cable plug F - plug F 1,8m

The times of “analog” satfinders with a clue are slowly fading into oblivion. For some time now, their counterparts have been showing on the market displaying percentage indications using an LCD display. The representative of this product group is the VAYOX BRAND FINDER.

The digital signal meter is controlled by a microprocessor, which makes it very accurate and reliable. The signal strength is graphically represented on the LCD display by numbers (0-99)

• Backlit display LCD
• Compass
• Acoustic beacon
• signal level adjustment knob
• Three-stage silencer for precise positioning of satellite dishes, which is extremely important when receiving full HD and 4K programs

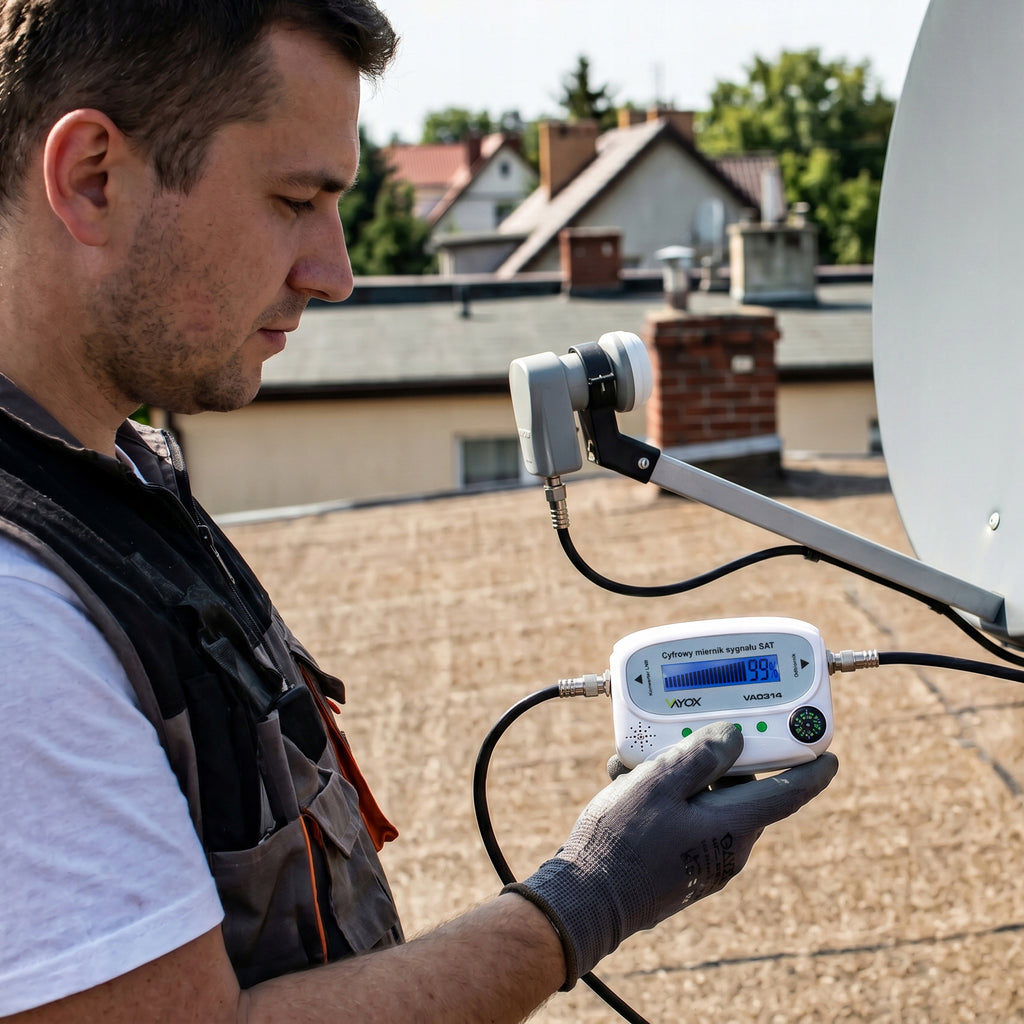

Set the reading on the Lcd display to 10%-20% by adjusting the signal level using the potentiometer on the side of the meter. Turning the knob clockwise will increase the reading.

By slowly rearranging the azimuth and the position of the antenna in the horizontal axis, reach the maximum indication miernika.Po to achieve the maximum reading, turn the signal sensitivity knob counterclockwise so as to receive a reading of about 50%.

Re-set the antenna to reach the maximum meter indication. Repeat the above until you get the maximum reading.

DO NOT use the meter directly under the antenna. When using a converter with a gain of more than 60 dB, install a 5 dB silencer between the LNB converter and the signal meter.

Comes with a ready-to-connect coaxial cable.

• Clear LCD display with adjustable backlighting
• Adjustable sound signaling
• Compass for antenna pre-setting
• Simplicity and convenience of use
• Frequency Range: 950-2150 MHz
• Minimum level at input: -40dBm
• Maximum Input Level: -10dBm
• 75 Ohm, Connector F
• Dimensions: 12 x 6,5 x 2.5 cm
• 13-18 V power supply from tuner (no batteries required)

• Satellite signal meter Sat Finder VA0314 Vayox
• Antenna cable F-F 1,8m

If you are using a meter to install C-band antennas, you cannot place the meter opposite the antenna to avoid indicating the full scale that occurs. If you are using a high gain converter (gain), higher than 60dB, use a 5dB silencer between the converter and the meter, or replace the cable between the meter and the converter with a 20ft (about 6 meters) RG -59U converter. If the reading indicator jumps between different values, it means that there is too much sensitivity. Disagree sensitivity with the ATT controller located on the front panel of the device.
