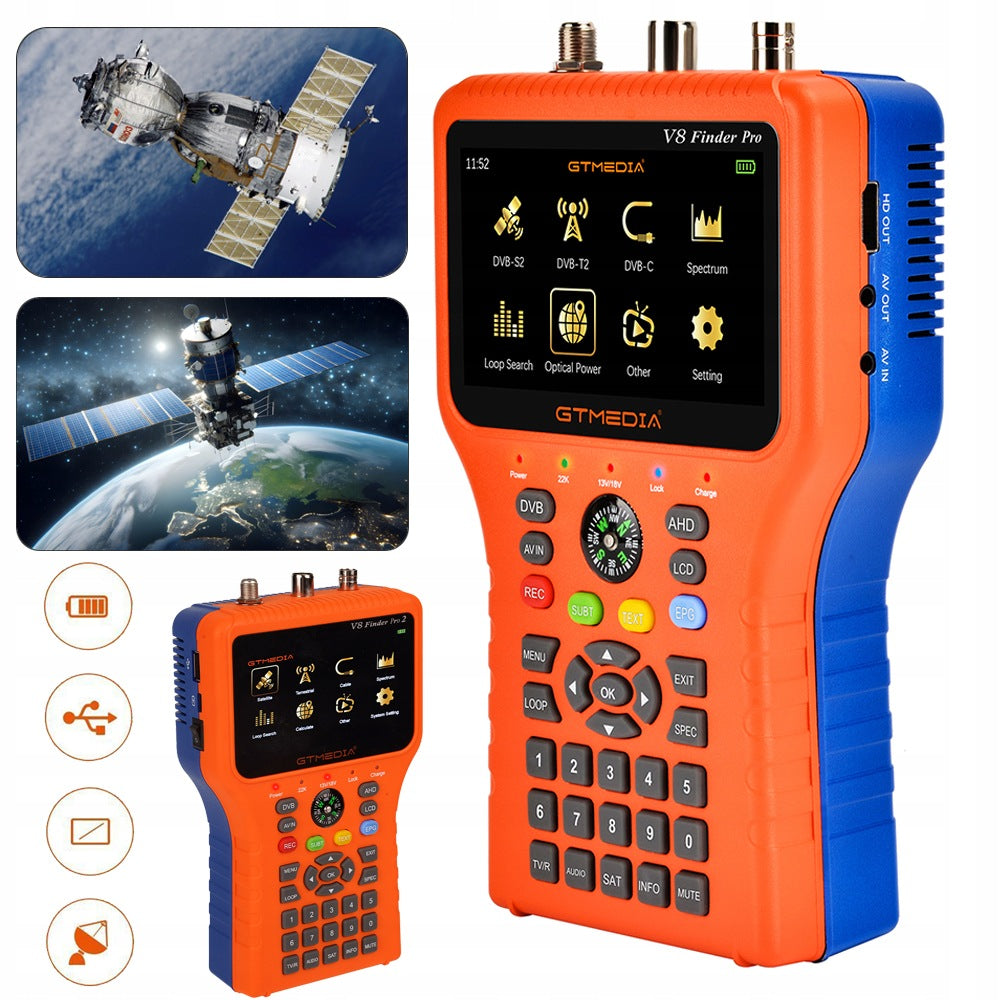

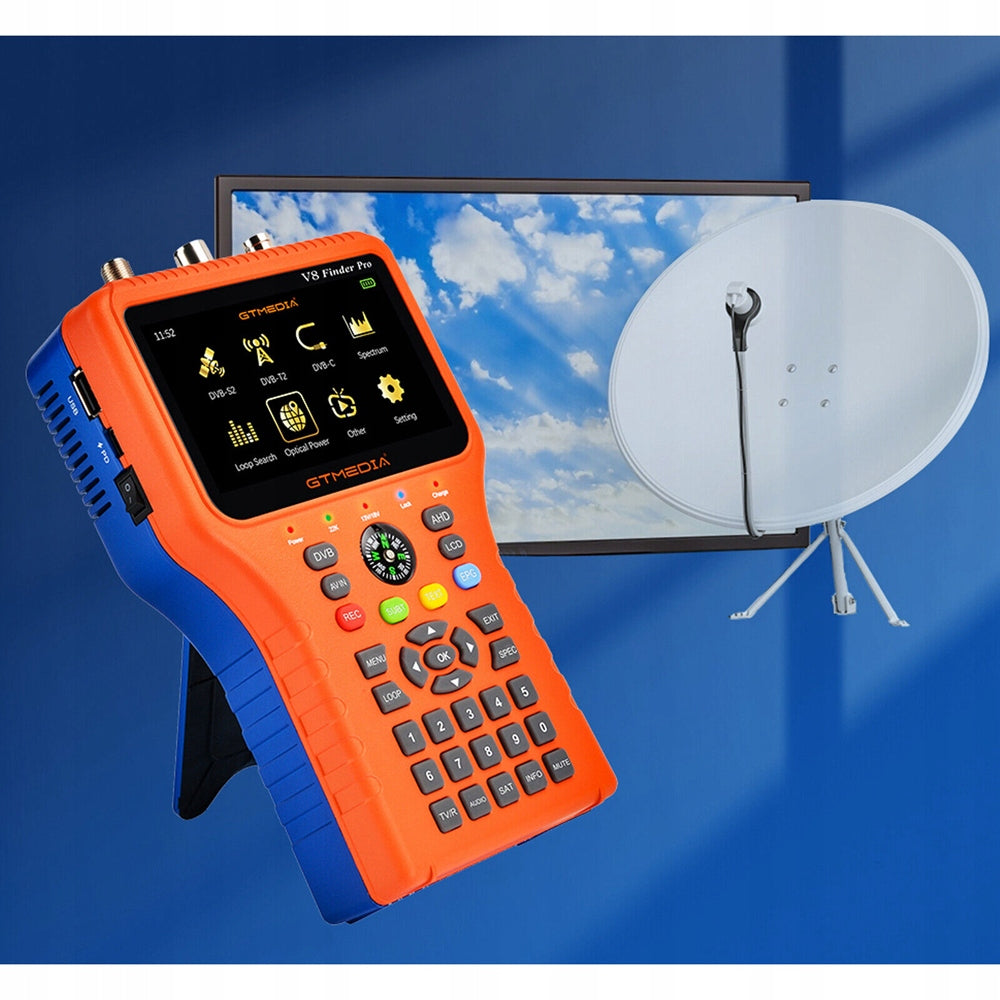

Palydovinės televizijos ieškiklis GTMEDIA V8 HD

Trumpai apie prekę

Prekė: Palydovinės televizijos ieškiklis GTMEDIA V8 HD. Kategorija: Matuokliai, signalo stiprintuvai.

• Gamintojas: no brand
• Modelis: MIERNIK

➡ ➡ ➡ About this product:

- 4,3 inch TFT LCD screen with high resolution.

- Full compliance with DVB-S2X/S2/S/T2/T/C/ATSC-C and MPEG-2/MPEG-4 standards.

- Support hardware decoding H.264/H.265 (10 bits). Digital meter of signal strength and quality. Support programming all information about satellites. Support Loop Search and scanning in automatic, blind, manual or NIT mode. Support DISEQC 1.0/1.1/1.2, Unicable, 0/22 kHz tone signal.

- Automatic calculation of AZ and EL angles.

- Support AV output and input, both HD outputs, AHD camera input, compass function, real-time power display and low power reminders.

- Short circuit protection LNB.

- Software update via USB port.

📝📝📝 Specification:

- Transmission standards

DVB-S2X/S2/S, DVB-T2/T, DVB-C/ATSC-C, MPEG-2, MPEG-4, H.264/H.265 (10 bits)

Softcam support: BISS automatic switching, PowerVu automatic switching, TNT (19,2E)

Support VCM, ACM, multi-stream, T2MI, Multi-PLP

IKS support: CCCAM, NEWCAM, MGCAM

-Satellite input/demodulation

Connector Type: Type F

Input frequency: 950 to 2150 MHz

Input signal level: -65 to -25 dBm

Bandwidth switching control: 22 kHz

LNB power supply: 13 V/18 V, max. 350 mA

Demodulation type: DVB-S2 QPSK, DVB-S2 QPSK/8PSK/16APSK/32APSK,

DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK

Symbol speed: 2 < Rs < 45 Mbps (SCPC/MCPC)

DVB-T2/T/cable input/demodulation

Connector Type: Female

Input frequency: 48 to 862 MHz

Input signal level: –80 dBm (max. )

Antenna power supply: 5 V DC at max. 120 mA

Demodulation type: QPSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM

-LCD display parameters

LCD Display Type: TFT Transmission

Number of points: 800 RGB (H) × 480 (V)

Active area (width. × H. ): 95,04 × 53,86 mm

-AV output interface

Connector Type: 3,5mm Socket

Video Output: CVBS

Audio Output: L/R Stereo Output

HD Output Interface

Format: HD 1.3a

-AV input interface

Connector Type: 3,5mm Socket

Video input: CVBS

Audio Input: L/R Stereo Input

-HDD input interface

Connector Type: BNC Socket

Impedance: 75 Ω

Frequency Range: DC–2 GHz

Supported video input formats: NTSC/PAL, 720P/1080P

-Audio/video processing

Video decompression: MPEG-2 MP@HL, MPEG-1 decoding, MPEG-4 ASP@l5 HD

resolution, H.264 / H.265 MP&HP@L4, hardware JPEG decoder

Refresh Rate: PAL – 25 frames/s at 7200×576 resolution, NTSC – 30 frames/s at 220×480 resolution

Signal Compatibility: Supports conversion of various video formats

Video format: 4:3, 16:9, Pan & Scan and Letter Box conversion

Audio decompression: MPEG-1 layer I/II, MPEG-2 layer I/II

Audio Output Mode: Stereo, Mono, R/L

-Port of data services

Connector: USB

Data protocol: USB 2.0 interface

File management system: NTFS, FAT32, FAT16

File formats:

Multimedia: TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp

Sound: wma, mp3

Images: jpg, jpeg, bmp, img

PVR option: Support TS file recording

Wi-Fi Option: Support network via USB Wi-Fi

-Power supply

Lithium-ion battery: 7,4 V/4000 mAh (the data on the device label is decisive)

-Power supply

Input Voltage: DC 9 V/2 A

Type C input: QC/PD 9 V

Battery: 7,4 V/4000 mAh

Software update via USB

(depending on the actual configuration)

Power consumption: max. 10 IN

-Physical parameters

Product Dimensions (W) × D. × H. ): 123 × 204 × 45 (mm)

Temperature: operation 0 – +45 °C; storage -10 – +60 °C

Humidity: 20 to 90%, non-condensing

Color: Orange

📦📦📦 Package Contents:

1x GTMEDIA V8 Finder

1x AV cable

2x Quick Connect adapters

1x storage bag

1x leash

1x European charger

1x User Manual

1x pack
