Aprašymas
Trumpai apie prekę

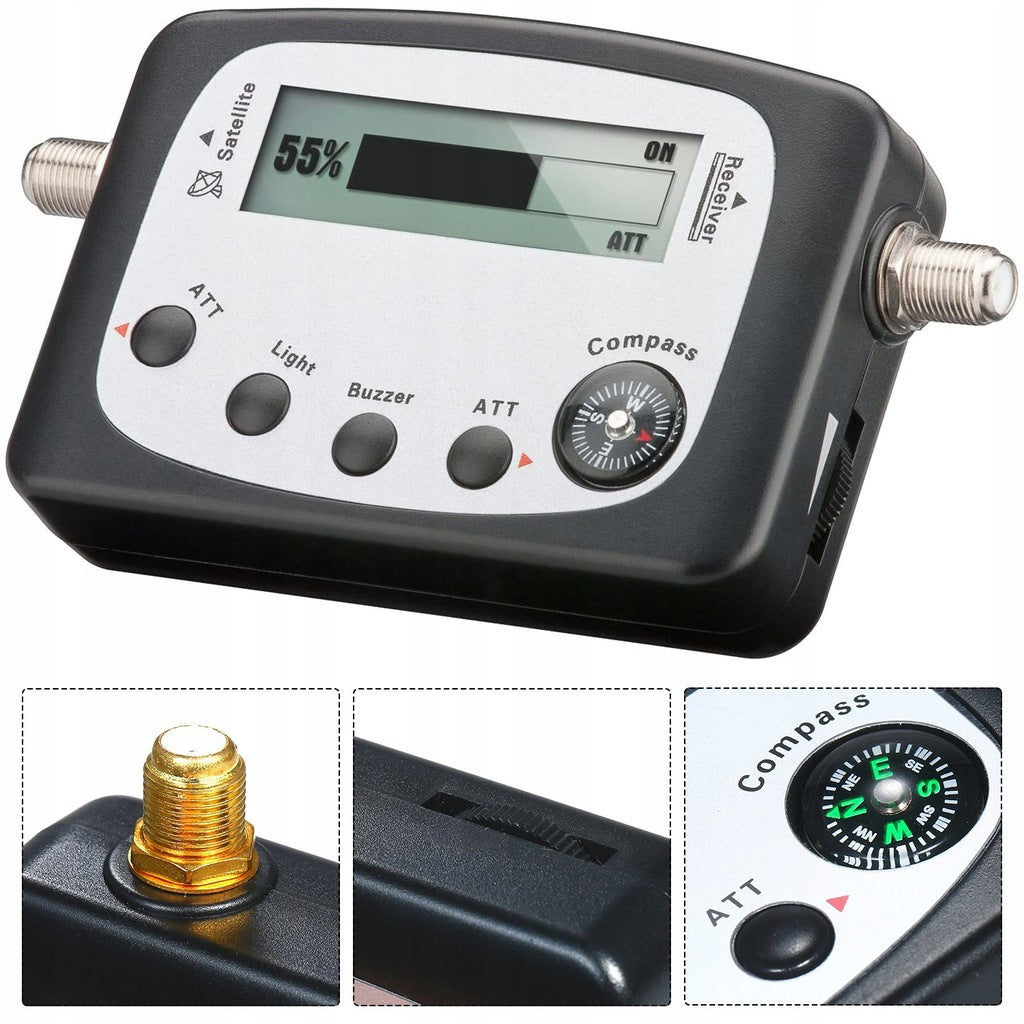

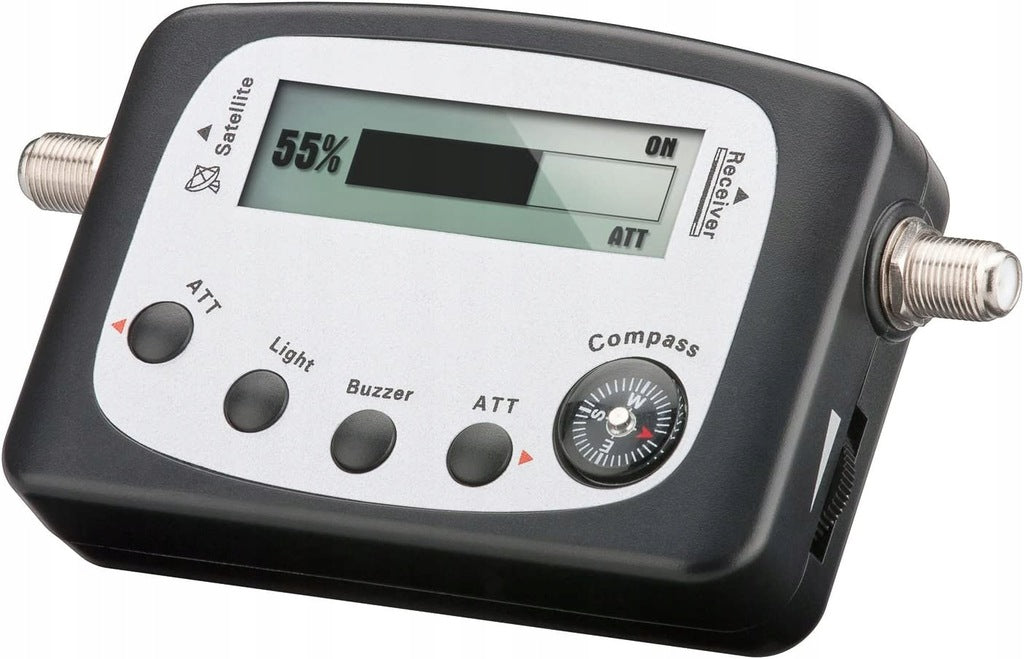

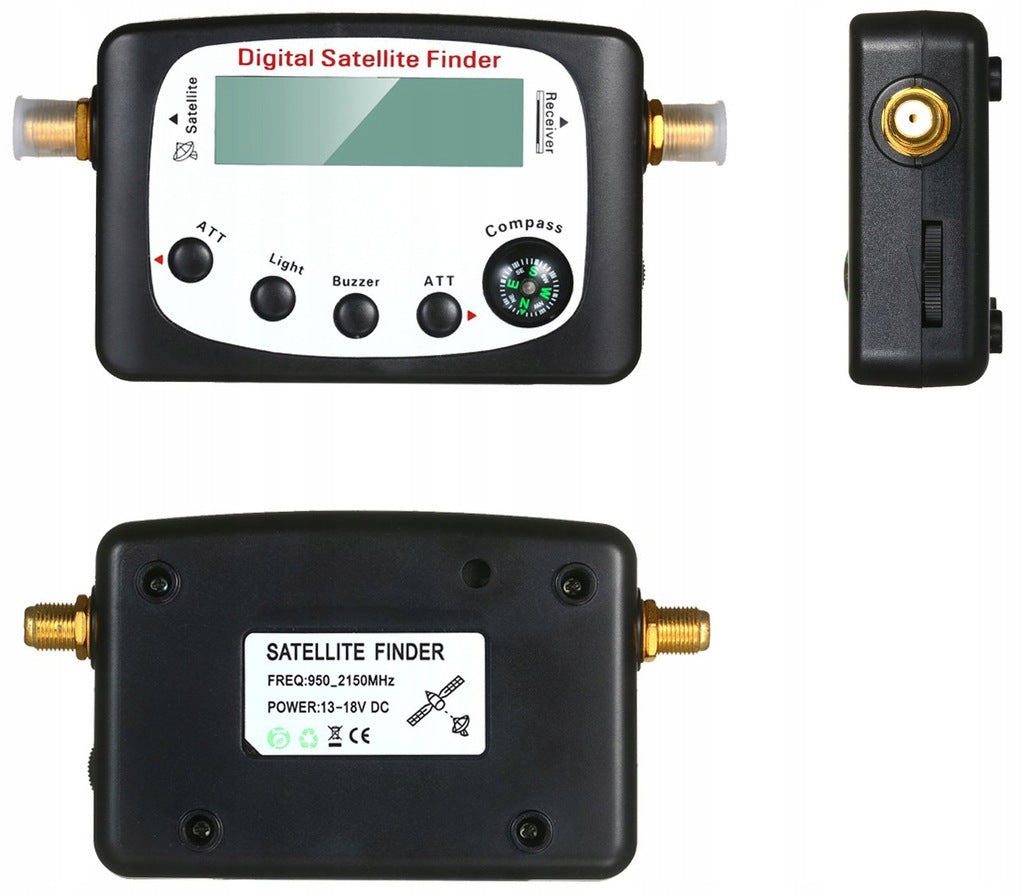

Prekė: Palydovinės televizijos signalo matuoklis, Full HD/4K, LCD, tikslus. Kategorija: Matuokliai, signalo stiprintuvai.
- Gamintojas: no brand
- Modelis: LXU92
- Readable display with adjustable backlight
- Adjustable sound signaling
- Processor adapted to measure 4K and HD signal
- Compass for field orientation and antenna pre-setting
- Easy operation of the device
- Precise measurement of satellite signal
- Three-stage silencer (valid when receiving Full HD/4K)
- Frequency Range: 950-2150 MHz
- Minimum level at input: -33dBm
- Maximum Input Level: -10dBm
- Input/Output Impedance: 75 Ohm
- No batteries required
The meter is equipped with an LCD display and a speaker, thanks to which it signals the user about the level of the measured signal in a simple and transparent way. Built-in sensitivity adjustment helps determine the appropriate range of the signal you are looking for.
The device does not need battery power or external power supplies to work. The meter is powered by a connected satellite receiver, so it is always ready for use.
- Set the signal on the display to 10%-20% by adjusting its level with the help of a cover which is located in the side of the meter housing. Adjusting the knob will increase the reading.
- By slowly rearranging the azimuth and the position of the antenna in the horizontal axis, reach the maximum indication of the meter. After reaching the maximum reading, turn the sensitivity knob to receive a signal reading of about 50%.
- Re-set the antenna to reach the maximum meter indication. The action should be repeated until the maximum reading is obtained.
- This antenna will guarantee perfect reading of the image in Full HD and 4K quality.
TECHNICAL PARAMETERS
- Brand: SKYSAT
- Model: U92
- Power supply voltage: DC 13-18 V
- Frequency range: 950-2150 MHz
- Working range (LNB reinforcement): 52-60 dB
- Maximum input port signal level: -10 dBm
- Minimum input port signal level: -33 dBm
- Input/output impedance: 75 Ohm
- Connection type: F
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | LXU92 |
| Parametry | Brand | no brand |
| Parametry | Model | LXU92 |
| Parametry | Product weight with unit packaging | 1 kg |
| Parametry | EAN (GTIN) | 5902270766011 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE,WEEE |
