Aprašymas
Trumpai apie prekę

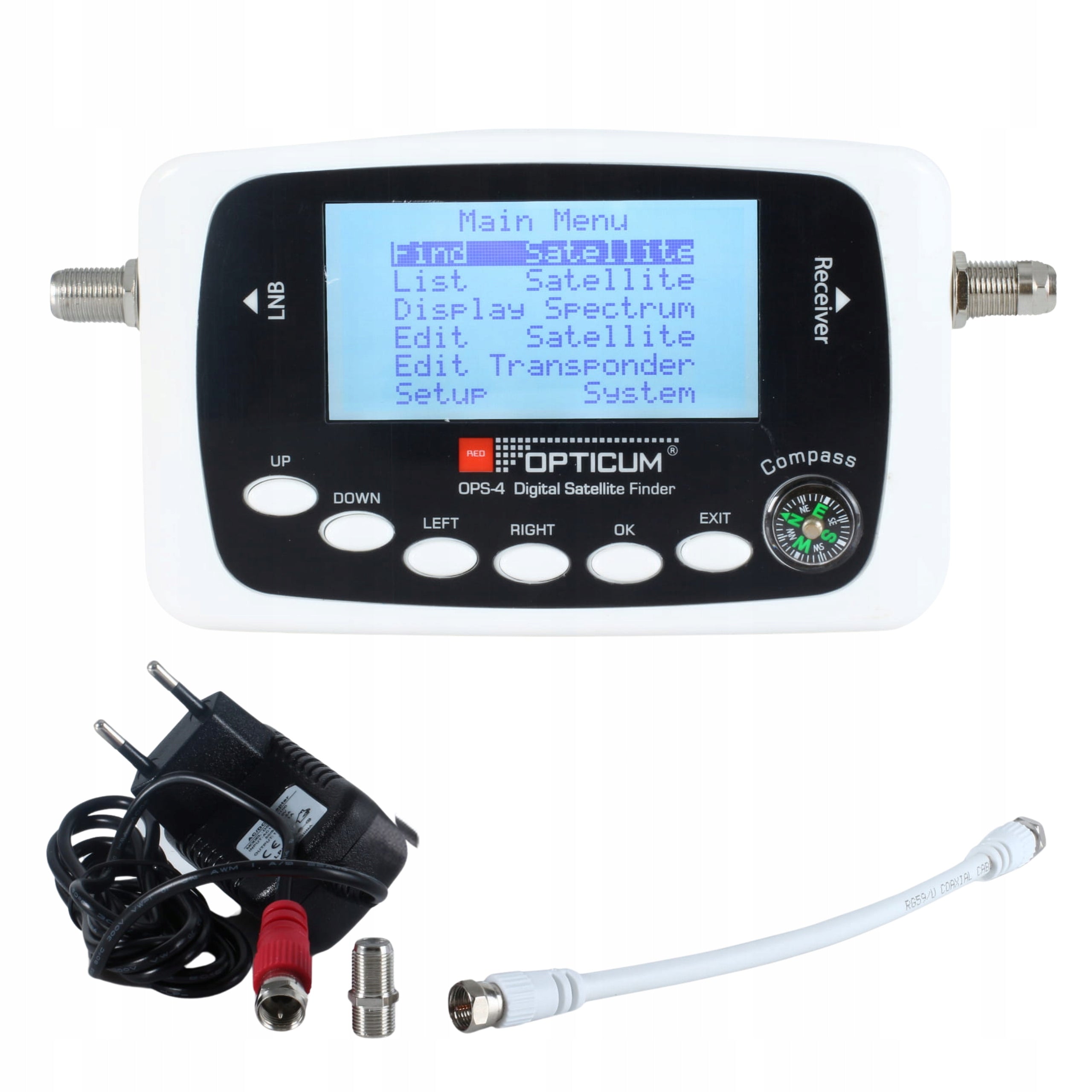

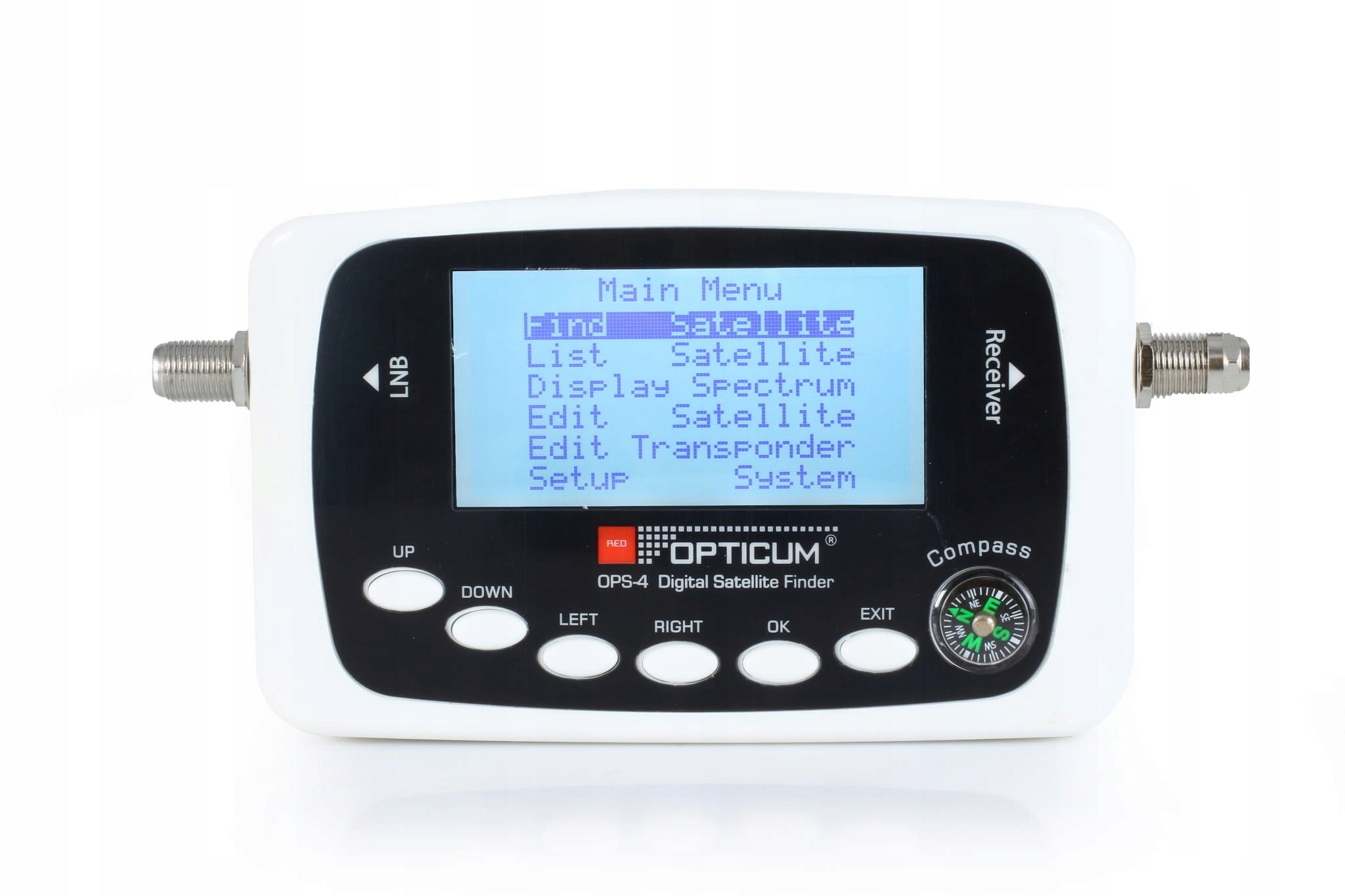

Prekė: Palydovinės televizijos signalo matuoklis Opticum OPS-4 su LCD ekranu, DiSEqC ir kompasu. Kategorija: Matuokliai, signalo stiprintuvai.
- Gamintojas: AX TECHNOLOGY
- Modelis: OPS-4
Advantages:
✅ Full compatibility with DVB-S and DVB-S2 standards enables precise antenna setting for HD and 4K channels.
✅ Advanced measurement of strength (S) and signal quality (Q) allows for perfect canopy calibration even in difficult conditions.
✅ Built-in sound beacon allows you to set the antenna without having to constantly look at the screen of the device.
✅ The possibility of editing parameters of satellites and transponders ensures that the meter remains always up-to-date and universal.
✅ The integrated compass on the housing makes it much easier to pre-determine the direction of the satellite dish.
Technical Specifications:
➡ Support for wide frequency band 950MHz – 2150MHz guarantees cooperation with any LNB converter.
➡ Support for advanced demodulations of QPSK, 8PSK, 16APSK and 32APSK for modern transmission systems.
➡ Possibility to control the installation using 22KHz signals and DiSEqC 1.0 protocol for complex antenna systems.
➡ Stable operation in a wide temperature range from -10°C to +50°C ensures reliability during installation on the roof.
Precise DVB-S2 Technology
✅ The device is designed to support the latest satellite TV standards, including DVB-S2 transmission. This enables effective detection of high-density data signals, which are the standard for modern digital platforms. Thanks to the input impedance of 75Ω, the measurements are stable and free from unwanted electromagnetic interference.
Intuitive DiSEqC support
✅ The meter allows full diagnostics of switches thanks to support for control 0/22KHz and DiSEqC 1.0. This is a necessary function for zz installations or when using several satellites at the same time (e.g. Hotbird and Astra). The device automatically sends the appropriate voltage 13V/18V to LNB, providing full control over polarity.
High-end LCD Display
✅ The high-contrast display guarantees excellent visibility of parameters even in strong sunlight on the roof. The user has a constant view of the key data, which allows maximum signal tightening and avoiding "pixelose" during rainy weather. The clear menu makes the operation of the device extremely simple.
Universal Partner Installer
✅ With support for Symbol Rate from 1 Msps to 45 Msps, the meter is ready to handle virtually any transponder in orbit. Whether you are setting up a set for Canal+, Polsat Box or free foreign channels, OPS-4 will provide you with the necessary data. This is an investment that returns after the first of self-installation.
Frequently Asked Questions (FAQ)
Will the meter support the latest 4K decoders?
✅ Yes, the DVB-S2 standard supported by this meter is fully compliant with the requirements of modern transmissions in high HD and 4K resolution.
Do I need to buy batteries for this device?
✅ The meter is powered directly from a coaxial cable connected to the tuner (13-18V DC), which eliminates the need for additional batteries.
Does the device have a polish menu or manual?
✅ The device has a very simple, pictorial interface, and the set comes with a manual that explains the measurement process step by step.
Is the compass on the case accurate enough?
✅ Compass is used for antenna pre-orientation (e.g. south for Hotbird). Precise setting is already based on percentage indications on the LCD screen.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | MIE0003 |
| Parametry | Brand | AX TECHNOLOGY |
| Parametry | Model | OPS-4 |
| Parametry | Product weight with unit packaging | 0.5 kg |
| Parametry | EAN (GTIN) | 5901912286009 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE,WEEE |
