Palydovinės televizijos signalo matuoklis Red Eagle SF-500 DVB-S2

Trumpai apie prekę

Prekė: Palydovinės televizijos signalo matuoklis Red Eagle SF-500 DVB-S2. Kategorija: Matuokliai, signalo stiprintuvai.

• Gamintojas: Red Eagle
• Modelis: SF-500

Precise antenna setting in a few moments

Looking for a reliable and easy-to-use device to help you position your satellite dish perfectly? The Red Eagle SF-500 digital meter is a professional equipment that supports the latest DVB-S and DVB-S2 standards. Thanks to it, without having to call the installer, you can precisely direct the canopy to the selected satellite, gaining the perfect picture and sound quality on the TV screen. The device works seamlessly with Ku and C band converters, providing great mounting versatility in both home and more advanced installations.

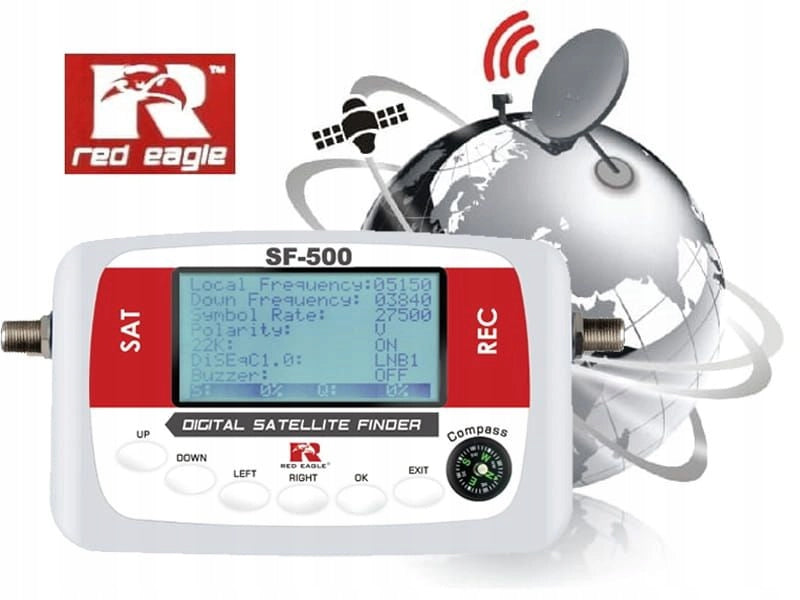

Clear display and built-in audible alarm

The SF-500 has a very intuitive interface. Measurements of signal strength and quality are presented on a clear display, which allows for precise micro-corrections of the canopy and converter position in real time. In addition, the meter is equipped with a built-in audible alarm, which greatly facilitates work in difficult conditions (e.g. on the roof or ladder), clearly indicating the "catch" of the appropriate signal without having to constantly stare at the screen. The device also supports DiSEqC 1.0 protocol and 22 kHz signal, which enables seamless testing of multi-converter circuits.

Technical data

• Manufacturer: Red Eagle
• Model: SF-500
• Supported standards: DVB-S, DVB-S2 (demodulations: QPSK, 8PSK, 16APSK, 32APSK)
• Frequency range: 950 MHz - 2150 MHz
• Input signal level range: -25 dBm to -65 dBm
• Input Impedance: 75 Ω
• Symbol Rate: 2 Msps - 45 Msps
• Additional features: Support 0/22 kHz, DiSEqC 1.0, built-in audible alarm
• Connections: Type F (female)
• LNB power supply: 13 V / 18 V (>500 mA)
• Power supply: 13 V DC 1000 mA (AC 110 - 220 V power supply)
• Working temperature: 10°C to +50°C

Frequently Asked Questions (FAQ)

1. Will the meter support modern channels in HD and 4K? Yes, thanks to full support for the DVB-S2 standard and advanced demodulations (such as 8PSK or 16APSK), the meter easily works with transponders broadcasting channels in the highest HD and 4K resolutions.

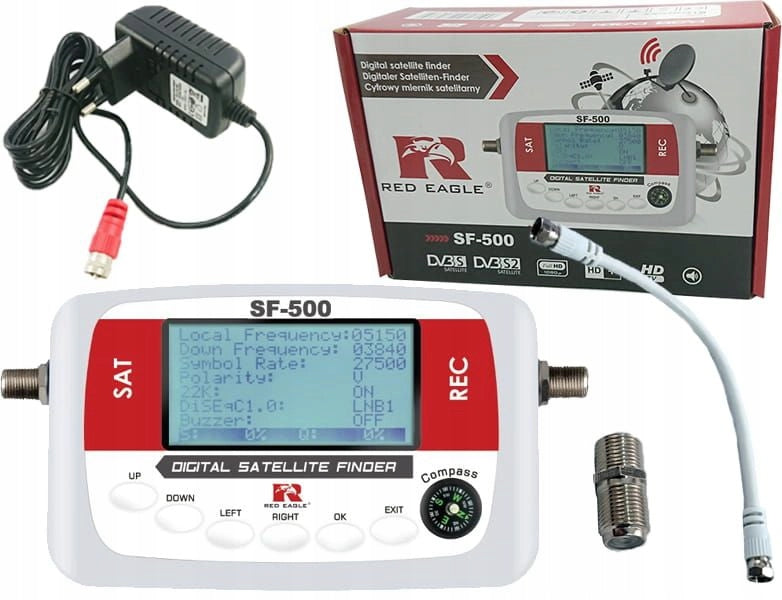

2. How to power a device working on a roof where there is no outlet? The meter can be powered directly from your home satellite tuner (decoder) using a coaxial cable guided to the roof. The AC adapter included in the kit serves as a convenient, stationary alternative.

3. Is the operation of this meter complicated? The device is designed with simplicity in mind. When you enter the appropriate satellite transponder into the parameter meter (frequency and Rate Symbol), on which you want to point the antenna, screen and sound will precisely guide you to the strongest signal.

4. What is DiSEqC 1.0 support for? The DiSEqC 1.0 protocol allows the meter to communicate with satellite switches. This is necessary if your installation has more than one converter on one antenna (e.g. The popular "zez" chip for Hotbird and Astra satellites, allowing you to switch and measure the signal from each of them separately.
