Palydovinės TV antenos stiprintuvas TELMOR WSS 120

Trumpai apie prekę

Prekė: Palydovinės TV antenos stiprintuvas TELMOR WSS 120. Kategorija: Matuokliai, signalo stiprintuvai.

• Gamintojas: Telkom-Telmor
• Modelis: WSS 120 SAT

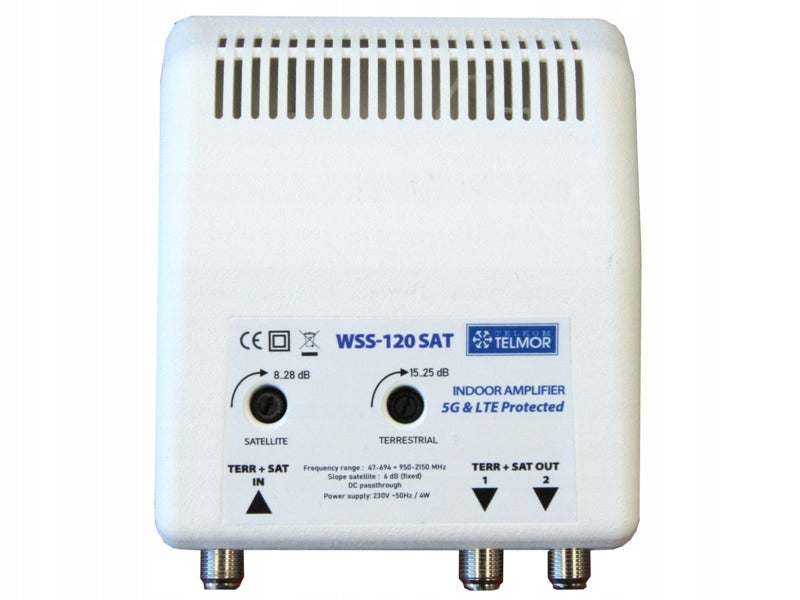

TELMOR WSS 120 SAT antenna amplifier

• Handle diameter [mm]: Not applicable
• Noise factor [dB]: Not applicable
• Type: Antenna Amplifier

• Index: 2061814

The WSS 120 SAT is the ideal solution for a home installation where the DVB-T2 signal is too weak to be able to distribute it effectively. The device has one input for cumulative signals from the TERR bands (UHF+ VHF+FM 47-694MHz) and SAT (950-2150MHz) while allowing you to adjust the gain independently for these bands. Gain adjustment is possible in the range of 15-25dB for TERR and 8-28dB for SAT. The amplified signal is transferred to 2 symmetrical RF outputs. The signal prepared in this way can be distributed to 2 or more TV sockets or receivers. The whole is powered by a built-in power supply and the power consumption is lower than 4W! The device allows you to transfer voltage from the SAT receiver to the LNB (converter). The amplifier itself does not power LNB or active terrestrial antennas. The SAT signal can come from a single or monoblock single converter. Note the signal from LNB single divided for 2 or more receivers allows for correct reception only in one receiver at a time. The optimal solution for such an installation is the use of SCR or dCSS LNB, the signal of which can be divided into several satellite receivers while guaranteeing independent reception. The signal for more receivers can be separated using RS series RTV/SAT splitters.

Product Features:

- compact amplifier for terrestrial TV and SAT (also dCSS SCR)

- independent regulation of TERR and SAT gain

- ideal for DVB-T2 + SAT installations

- TERR gain up to 25dB with smooth adjustment in the range of 10dB

- SAT gain up to 28dB with smooth adjustment in the range of 20dB

- aesthetic housing with the possibility of installation to vertical surfaces

- Built-in power supply

- 2 outputs for easier connection

• Handle diameter [mm]: Not applicable
• Noise factor [dB]: Not applicable
• Signal amplification [dB]: 25, 28
• Type: Antenna Amplifier
• Model: WSS 120 SAT
