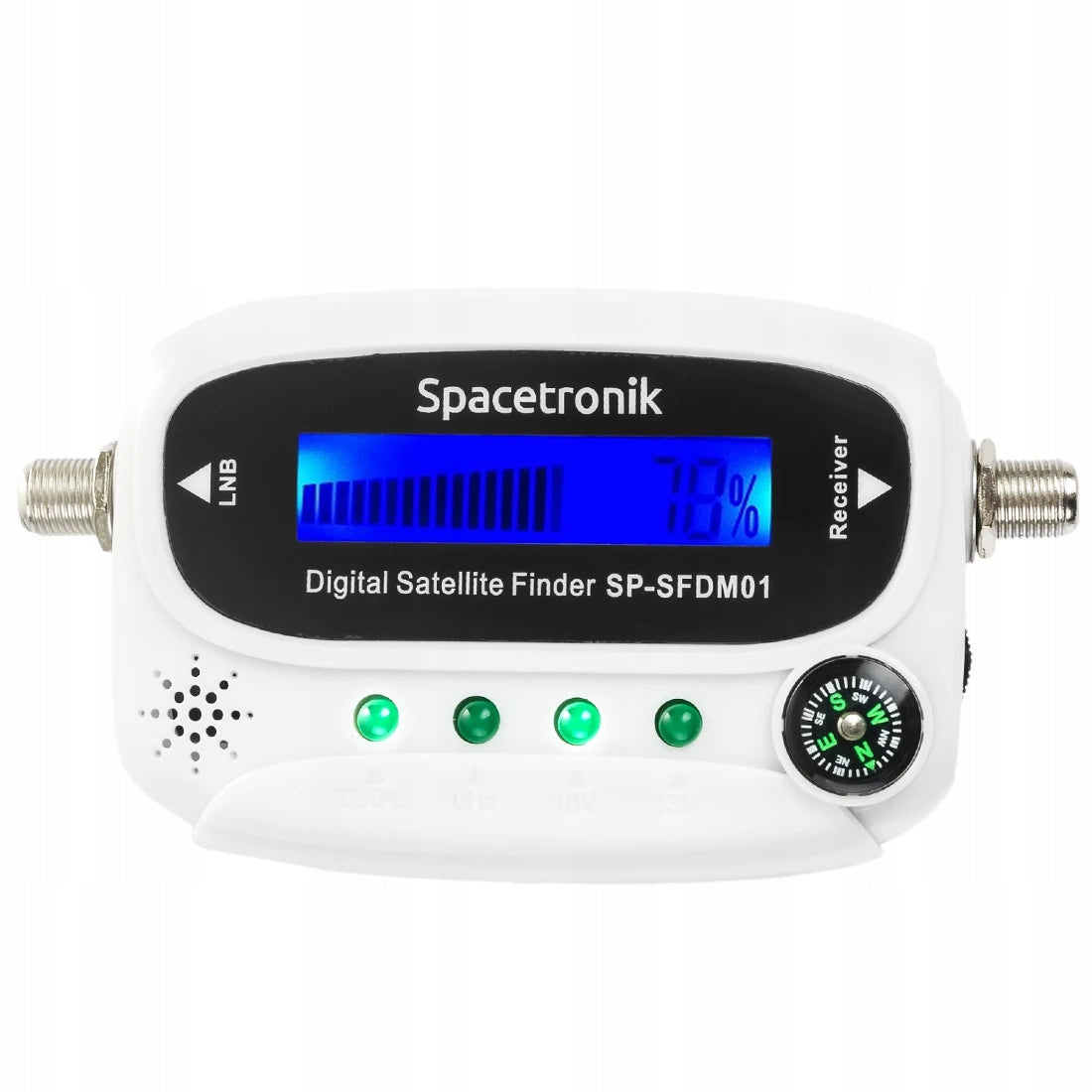

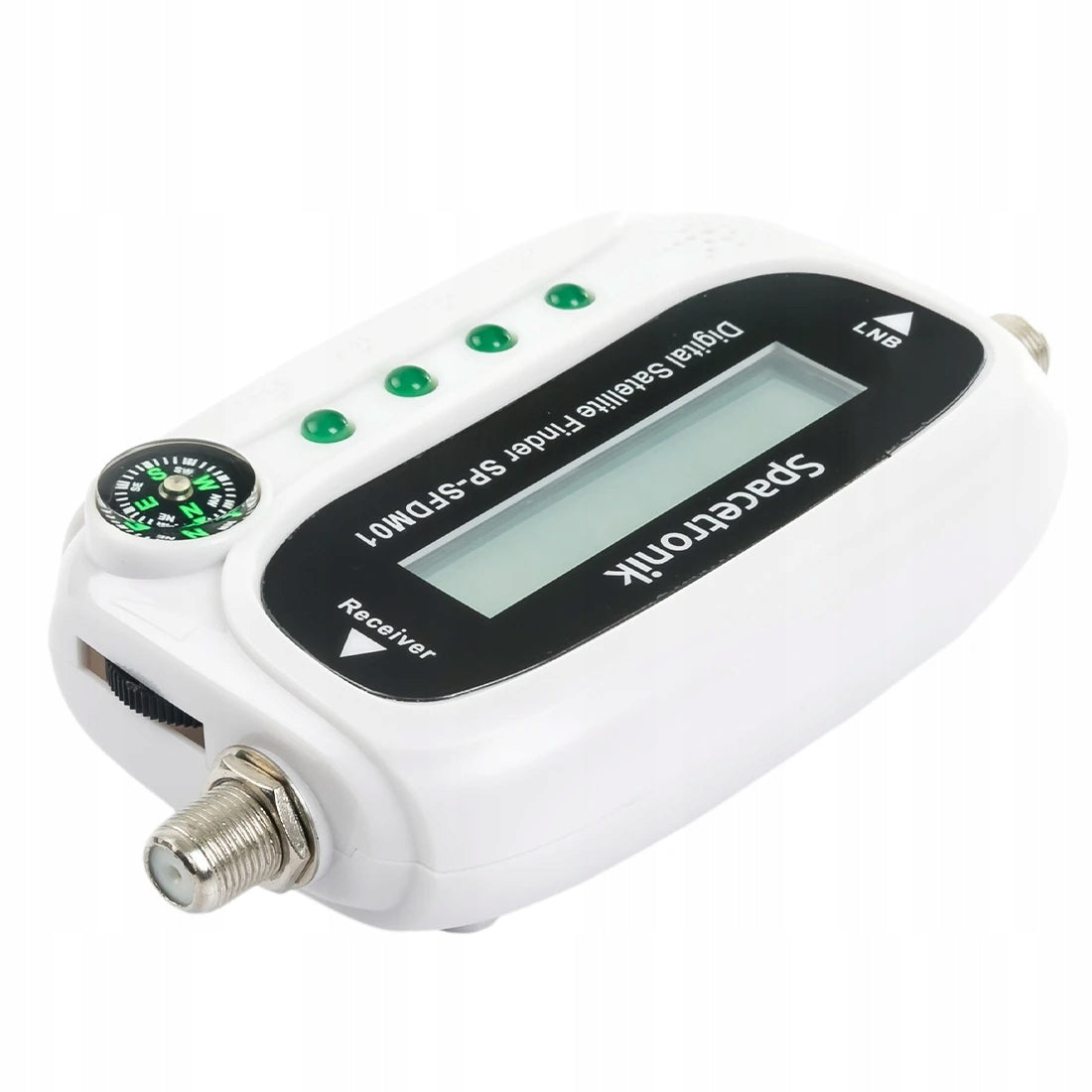

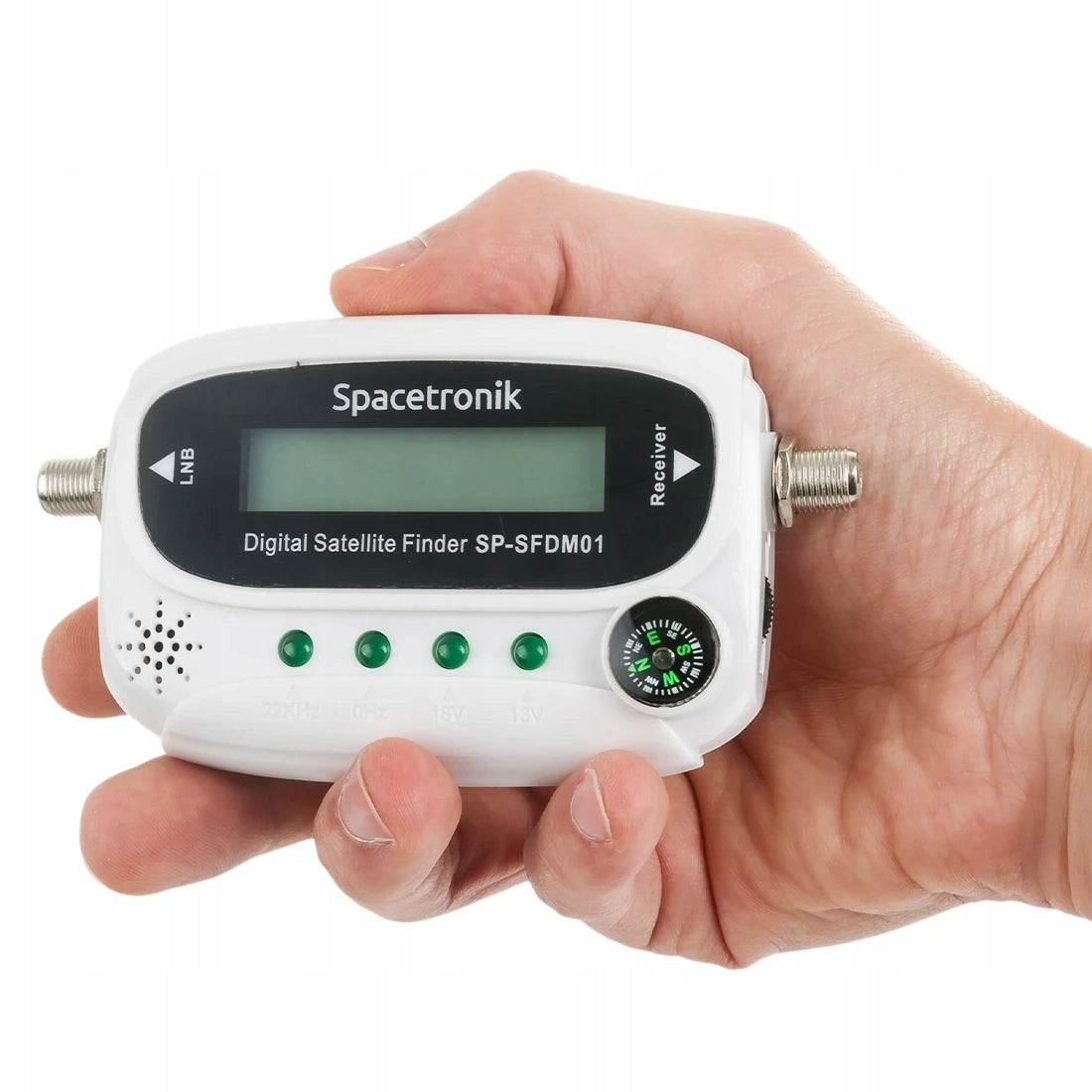

Palydovinės TV signalo matuoklis Spacetronik DVB-S/DVB-S2 su LCD

Trumpai apie prekę

Prekė: Palydovinės TV signalo matuoklis Spacetronik DVB-S/DVB-S2 su LCD. Kategorija: Matuokliai, signalo stiprintuvai.

• Gamintojas: Spacetronik
• Modelis: SP-SFDM01

Advantages of the Spacetronik Signal Meter

• Accurate LCD display with backlight: allows you to use the device in any lighting conditions.
• Sound beacon: informs about the signal level, facilitating precise antenna positioning.
• Built-in compass: helps to pre-position the antenna in the right direction.
• Control by microprocessor: provides highly accurate measurements of DVB-S and DVB-S2 SAT signals.
• 4 LEDs: indicate important information: 0 Hz, 22kHz, 13V, 18V.
• Sensitivity setting: adjust the sensitivity of the meter using the knob
• Simplicity and ease of use: intuitive interface and easy operation.
• Frequency range 950-2150 MHz: covers all the most commonly used satellite frequencies.
• Power supply from tuner (13-18 V): does not require batteries, which increases the convenience of use.

Ideal for Antenna Settings

Our digital satellite meter with LCD display is an indispensable tool for precise positioning of the satellite dish.

Thanks to the built-in compass and backlit LCD display, the antenna setting is quick and easy, regardless of lighting conditions.

Why Choose the Spacetronik Satellite Meter?

● modern technology: the only helper when setting the antenna

● ease of use: connect the meter, and this one will help you when setting up the antenna

● guarantee of accurate measurement: this is extremely important when setting the antenna to DVB-S and DVB-S2 satellites

● information about the best signal: the beacon and the LED will let you know when you reach the best signal

● without batteries: power is supplied directly from the tuner, which increases convenience and reliability

Reliable Measurement Accuracy

➡ Control by microprocessor

The device offers exceptional precision that is unattainable for traditional tilt finders.

➡ Readable LCD display with backlight and sounder

They allow for instant and precise antenna positioning, which translates into the highest quality of satellite signal reception.

Specification

• Signal measurement: SAT DVB-S and DVB-S2
• frequency range: 950-2150 MHz
• display: LCD with blue backlight
• Additional Features: Antenna Preset Compass
• antenna socket type: F (x2)
• sensitivity 7dB
• power supply: 13-18 V with tuner (no batteries required)
• dimensions (width. x D. height ): 125x65x30 mm
• Weight: 98 g
