Aprašymas
Trumpai apie prekę

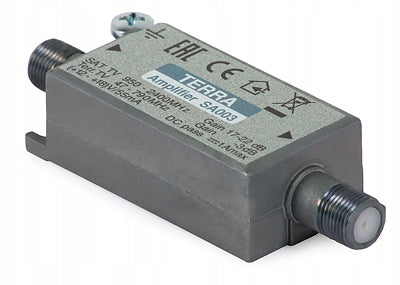

Prekė: Palydovinės TV signalo stiprintuvas Terra SA003, 22 dB. Kategorija: Matuokliai, signalo stiprintuvai.
- Gamintojas: Terra
- Modelis: SA003
Satellite signal amplification
The SA003 amplifier is designed to amplify satellite TV signals in the 950 MHz - 2400 MHz band in the RTV/SAT installation. Model SA003 is recommended to amplify the signal from the satellite converter to a single receiver as well as in multiswitch installations where too long distances cause the signal to fall below the tuner sensitivity threshold.
Highest quality
The device of the well-known Terra company, which specializes in the production of professional amplifiers, for the needs of collective installations. Excellent workmanship, stability of parameters, very low failure rate make TERRA amplifiers a guarantee of the highest quality.
Technical data:
Signal: FM / DVB-T / SAT
Frequency range [MHz]: 47-790 / 950-2400
Reinforcement [dB]:
- FM/ DVB-T : -3
- SAT: 17...22
Noise factor [dB]:
- FM/DVD-T : -
- SAT: ≤ 8
Max. level output. MD3=35dB (EN60728-3) [dBuV]
- FM/DVD-T : -
- SAT: 118
DC transition [V/mA]: max. 18/500
Power supply [V]/power consumption[mA]: +12 ...+18/55
Dimensions [mm]/Weight [kg]: 80x27x19/0.085
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | R82317 |
| Parametry | Brand | Terra |
| Parametry | Model | SA003 |
| Parametry | Product weight with unit packaging | 0.085 kg |
| Parametry | EAN (GTIN) | 5907634519845 |
| Parametry | Certificates of conformity | CE |
