Palydovinės TV signalų matuoklis Spacetronik S-22 su DVB-S2 palaikymu, LED žibintuvėlis, TV kanalų peržiūra

Trumpai apie prekę

Prekė: Palydovinės TV signalų matuoklis Spacetronik S-22 su DVB-S2 palaikymu, LED žibintuvėlis, TV kanalų peržiūra. Kategorija: Matuokliai, signalo stiprintuvai.

• Gamintojas: Spacetronik
• Modelis: S-22

The subject of sale is:

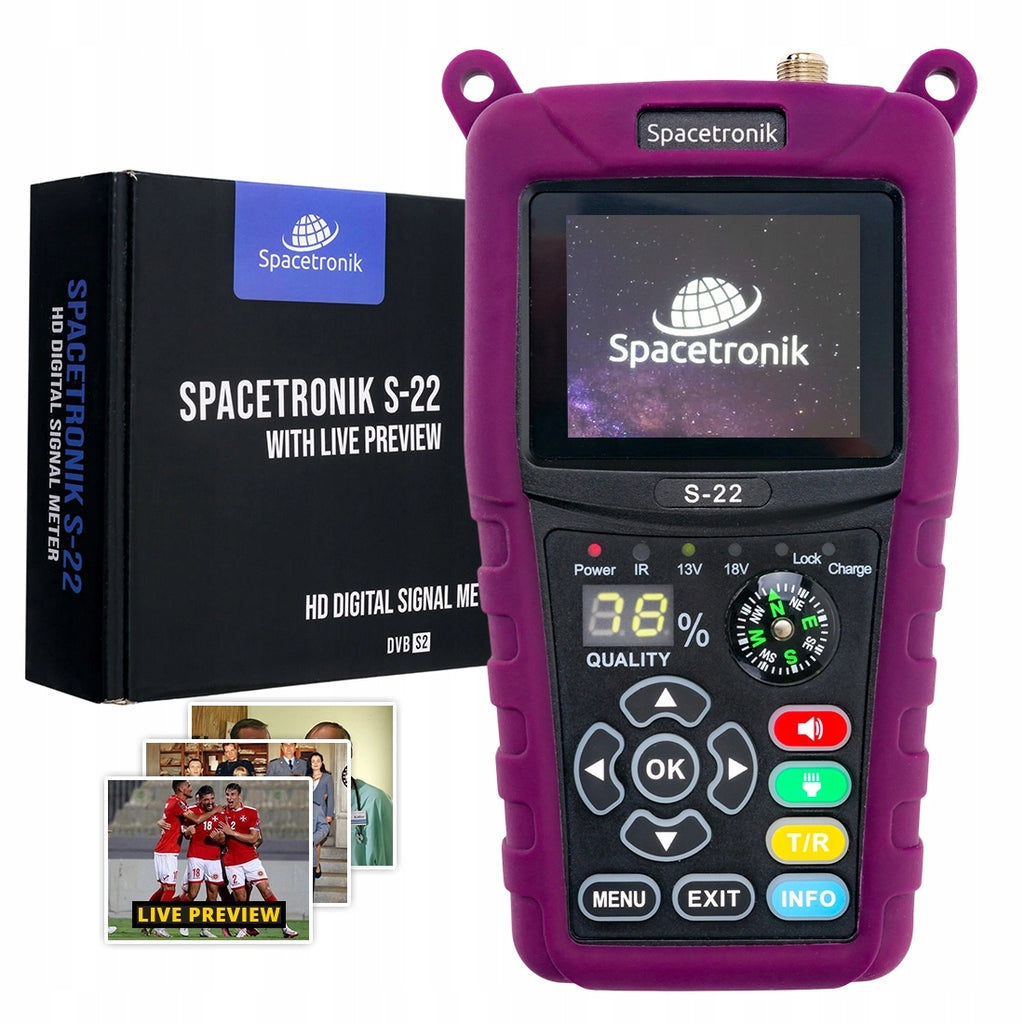

SPS22; Spacetronik S-22 DVB-S/S2 sat signal meter

SAT Finder Spacetronik S-22 DVB-S2 H.265 signal meter with IPTV m3u and softcam: cccam, oscam, newcamd

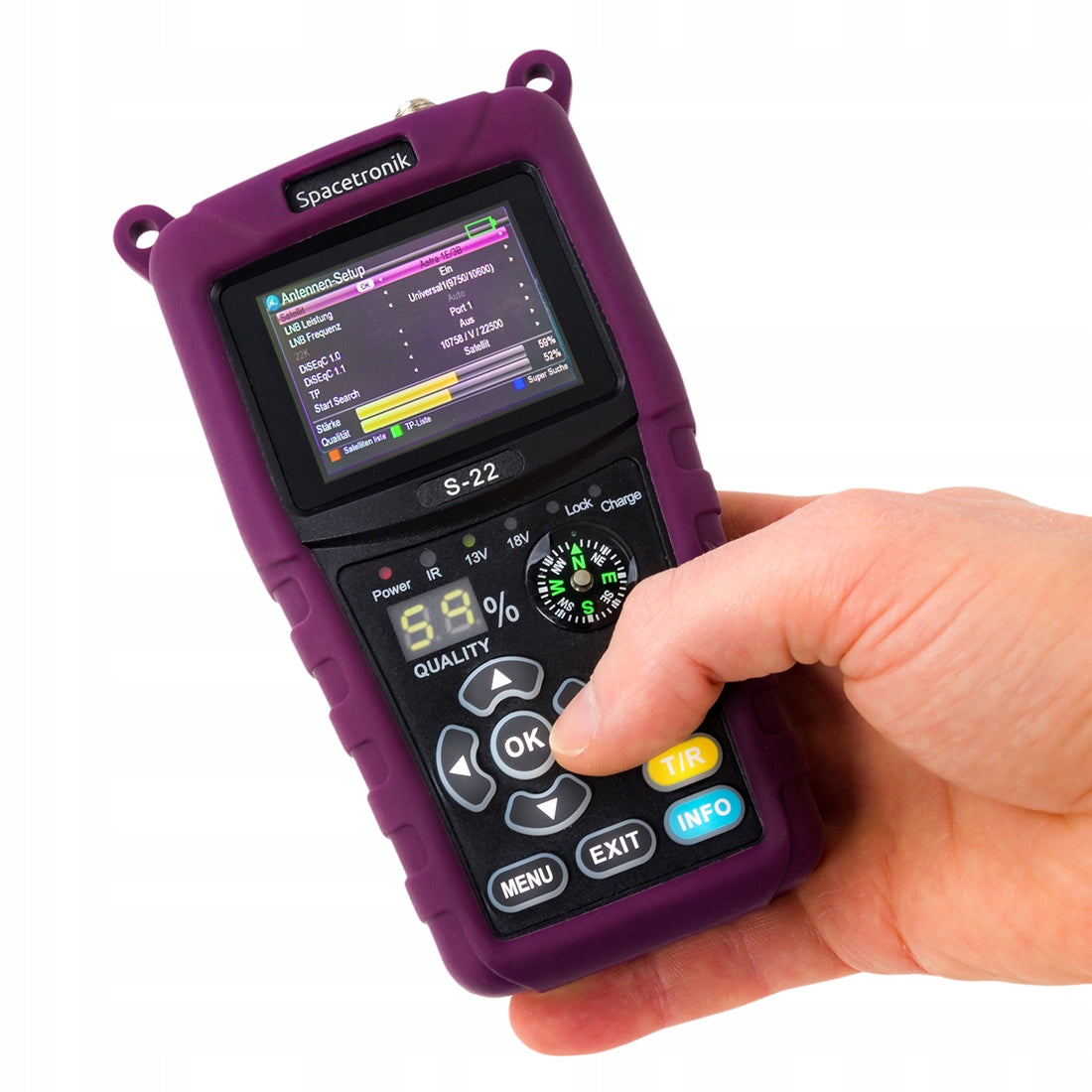

Easy to use SAT H.265 satellite meter with TFT 2.4'' color display. It is used in setting satellite antennas for proper signal reception. Basic measurement functions such as force and signal quality measurement are displayed in %. In addition, it has the functions of indicating BER, PWR, SNR error. Built-in spectrum analyzer. The meter supports all traditional SAT LNB and UNICABLE I/II SCR/DCSS converters. The SAT meter has a built-in gyroscope for angle adjustment and compass. The biggest advantages of the meter include the preview of LIVE channels!

The S-22 satellite meter has an installed base of over 70 satellites with transponders, including the most popular: Hotbiord 13.0°E, Astra 19.2°E, Eutelsat 10.0°E, Eutelsat 21.5°E and many others.

Measuring functions of the meter:

- Selection of the satellite with frequency (satellite transponder) with DiSEqC port settings. Support for Unicable I converters with the possibility of entering up to 8 SCR and Unicable II parameters with the possibility of introducing up to 32 SCR parameters

- Search for satellite signal after selecting satellite and frequency in %, PWR dBuV, dB, BER.

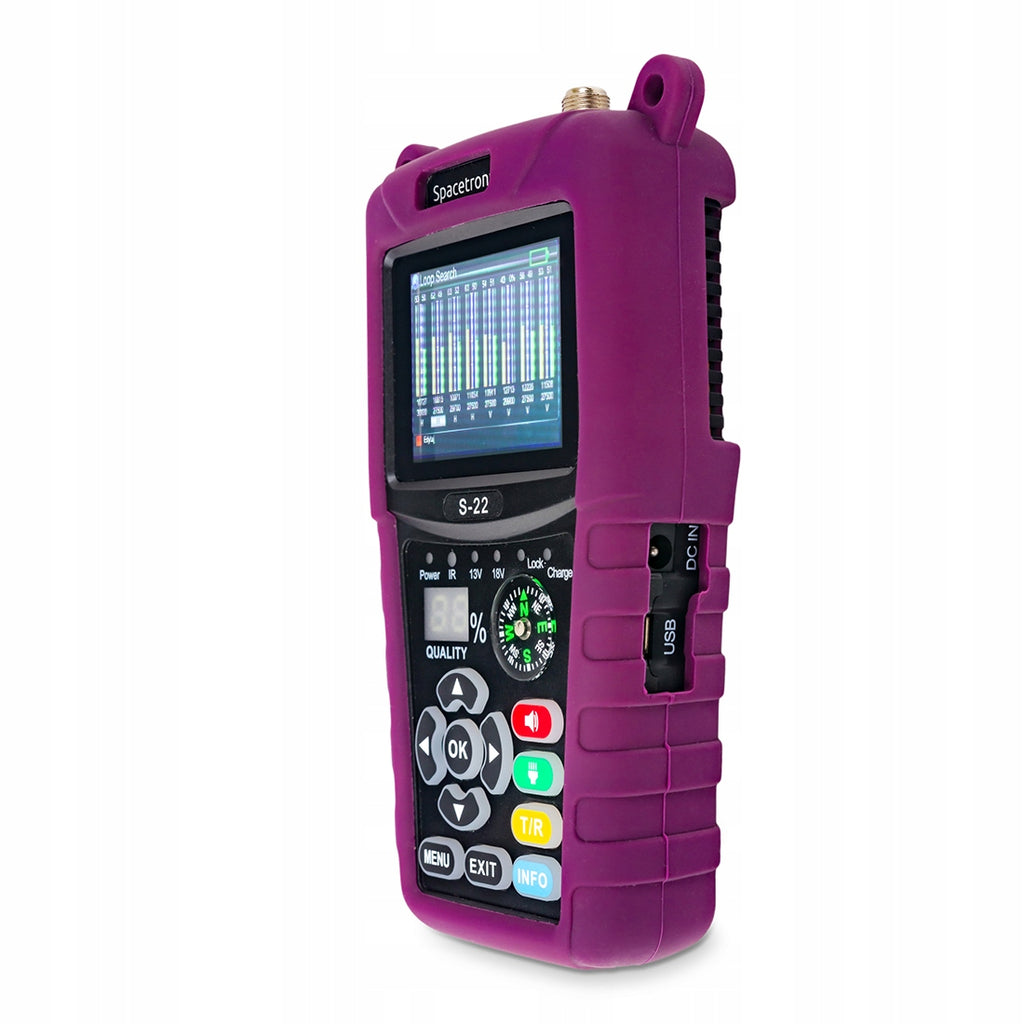

- Loop search - the ability to preview the signal at 8 frequencies at the same time.

- Spectrum analyzer: 13V, 22K 13V, 18V, 22K 18V. Facade angle indicator.

The meter supports WiFi when connecting an external USB WiFi antenna with RT5370 chipset, which allows you to access additional functions:

- Settings and preview of Internet TV IPTV m3u

- Cam Share support softcam settings: support for entering CCCAM, NEWCAMD, OSCAM settings.

Technical specification

• Model S-22
• 2.4-inch TFT LCD Display
• Full support for SAT systems: DVB-S / DVB-S2 / H.265
• Input Frequency: 950~2150MHz
• Measurement of signal quality strength in %
• Measurement functions BER, PWR, SNR
• Spectrum Analyzer (18V / 22K)
• Support loop search function (signal preview simultaneously at 8 frequencies)
• Support for LNB SCR/DCSS UNICABLE I/II converters
• Support DISEQC 1.0 / 1.1 / 1.2,0 / USALS 22khz
• Possibility to choose the style of the main menu
• High Brightness LED Lighting
• Backlit keys
• Built-in LED flashlight
• Input resistance 75Ω
• Output Power: 13/18V,350mA
• Signal Level (-25 dbm ~ -65dbm)
• LNB power supply 12/18V,350mA
• LNB control switch 22KHz
• Min. Level in:-35dBuV
• Max. Level in: ~ 90dBuV
• Demodulation of M88DS3103B
• 8 bit MCU processor
• Power Supply: 12V 100mA
• Lithium-ion battery: 7.4V/2500 mAh
• Gyroscope inside for angle and compass adjustment
• Software update via USB port

Contents of the set

• Meter S-22
• Charger 230V - 12V 1000mA
• Neck strap
• USB MICRO / USB adapter
