Palydovinis imtuvas AB PULSe 4K MINI SE, DVB-S2X, Linux Enigma2, OpenATV, CI/CI+

Trumpai apie prekę

Prekė: Palydovinis imtuvas AB PULSe 4K MINI SE, DVB-S2X, Linux Enigma2, OpenATV, CI/CI+. Kategorija: Tiuneriai.

• Gamintojas: AB-COM
• Modelis: PULSE 4K Mini

TPULSE4KMINISE

PULSe 4K MINI SE satellite tuner - 1x DVB-S2X Linux Enigma2 OpenATV tuner

PULSe 4K MINI SE (version: 1x DVB-S2X tuner) is a receiver with UHD 4K resolution and ENIGMA 2 operating system and minimalist design. The beautiful 4K picture is breathtaking, as are the HDR/HDR10 and HLG picture standards. The performance and speed of image transfer will be ensured by a quad-core processor with 15 000 DMIPS, 8GB of FLASH memory and 1GB of DDR4 RAM. The receiver includes a built-in DVB-S2X tuner. The set includes a new programmable remote control AB ALL TV.

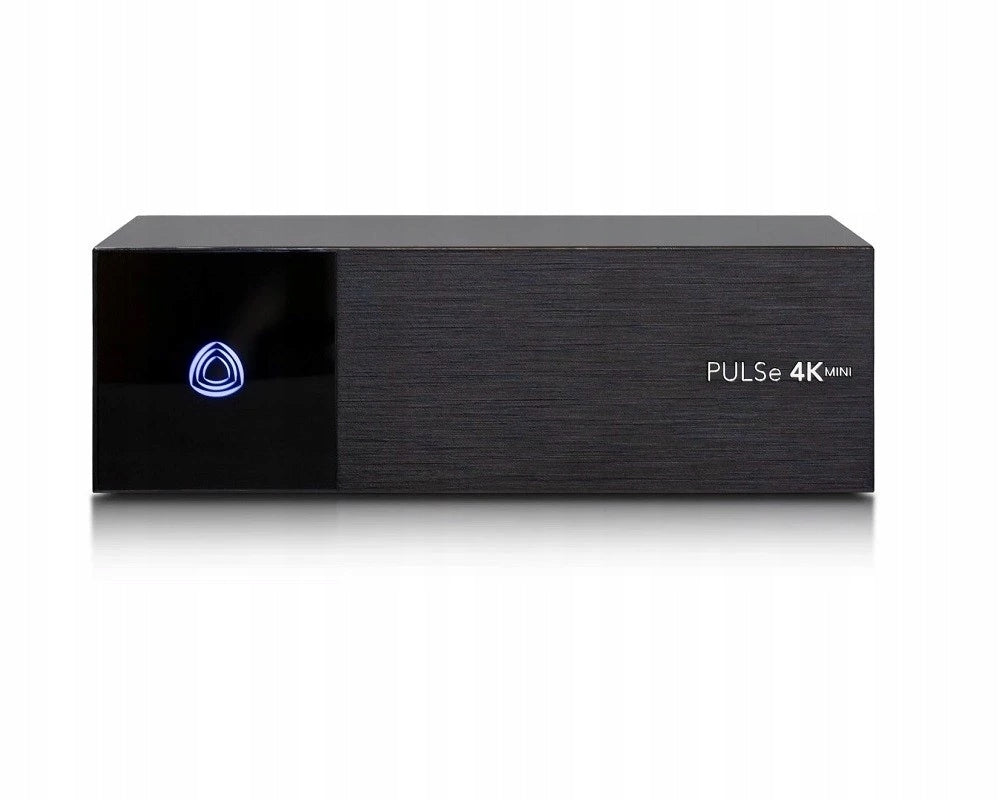

The elegant and minimalist design of the receiver will fit into any living room.

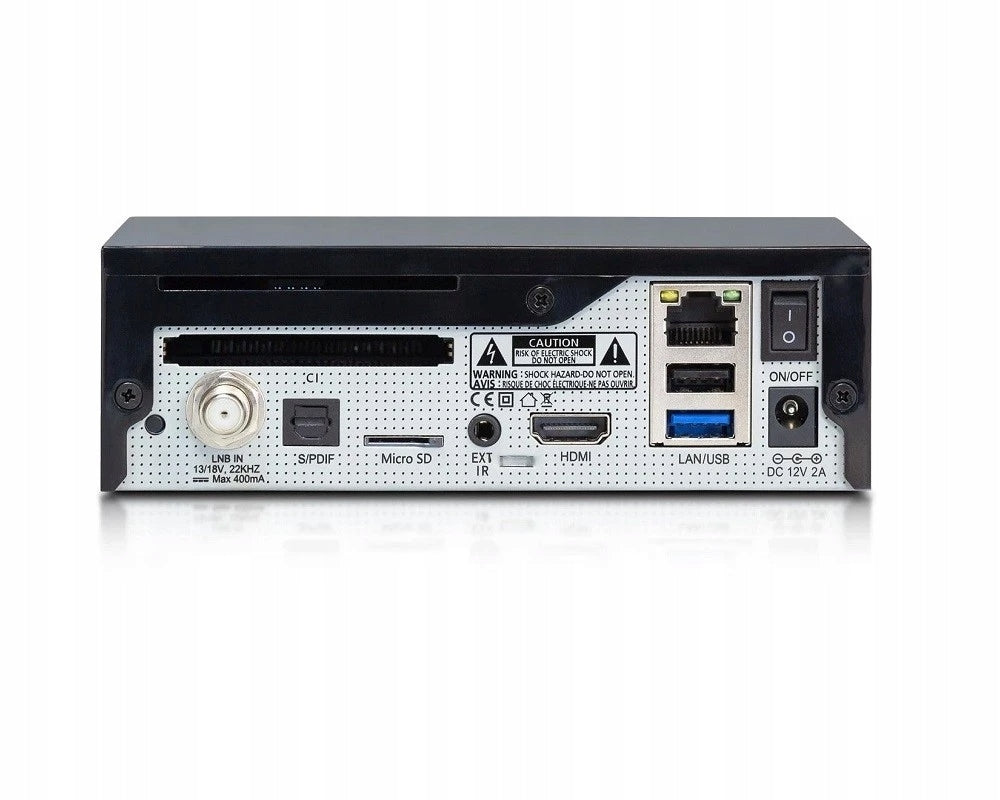

There is an LED on the front panel that indicates whether the receiver is on, off or in standby mode. If necessary, you can completely turn off the LED lighting. On the rear panel built-in DVB-S2X satellite tuner, 1x card reader slot, 1x CI/CI+ slot, 1x microSD card slot, 1x USB 3.0, 1x USB 2.0. The connector also includes an optical digital audio output S/PDIF, Ethernet RJ45, infrared sensor (Infrared sensor not included / can be purchased as an optional accessory) and an input for an external DC 12V-2A source.

Why PULSE 4K MINI SE?

What is true about the PULSe 4K receiver is also true in this case. The PULSe 4K MINI SE delivers beautiful UHD picture quality with the popular Enigma 2 graphical interface you know from other high-end receivers.

Take advantage of the possibilities offered by this operating system with plug-ins, providing a better TV viewing experience.

Adjust the environment of your device to your preferences, and watching TV will take on a new dimension. A huge advantage of this receiver is the simultaneous decoding of two programs from the CI/CI+ module in real time, which will be appreciated by everyone watching a live broadcast and recording another program at the same time. One PULSe 4K MINI SE device can of course ensure the distribution of content to the TV. But in addition, you can watch other real-time TV broadcasts on the other two mobile devices and one computer.2 x mobile device (multiple transcoding)1 x personal computer (internet interface)1 x TV (HDMI)

Socket for microSD cardIn addition to storing recordings on an internal 2,5" hard drive, you can also choose a more elegant solution, which is a microSD card.

The microSD card fully replaces the functions of the internal hard drive and, above all, eliminates the unwanted sounds of a standard 2,5" hard drive. Calculation of microSD card capacity:

- about 13 hours of recordings can be stored on a 32 GB microSD card

- about 25 hours of recordings can be stored on a 64 GB microSD card

- about 50 hours of recordings can be stored on a microSD card with a capacity of 128 GB

The data is approximate depending on the bit rate you recorded. Each program has a different bitrate.

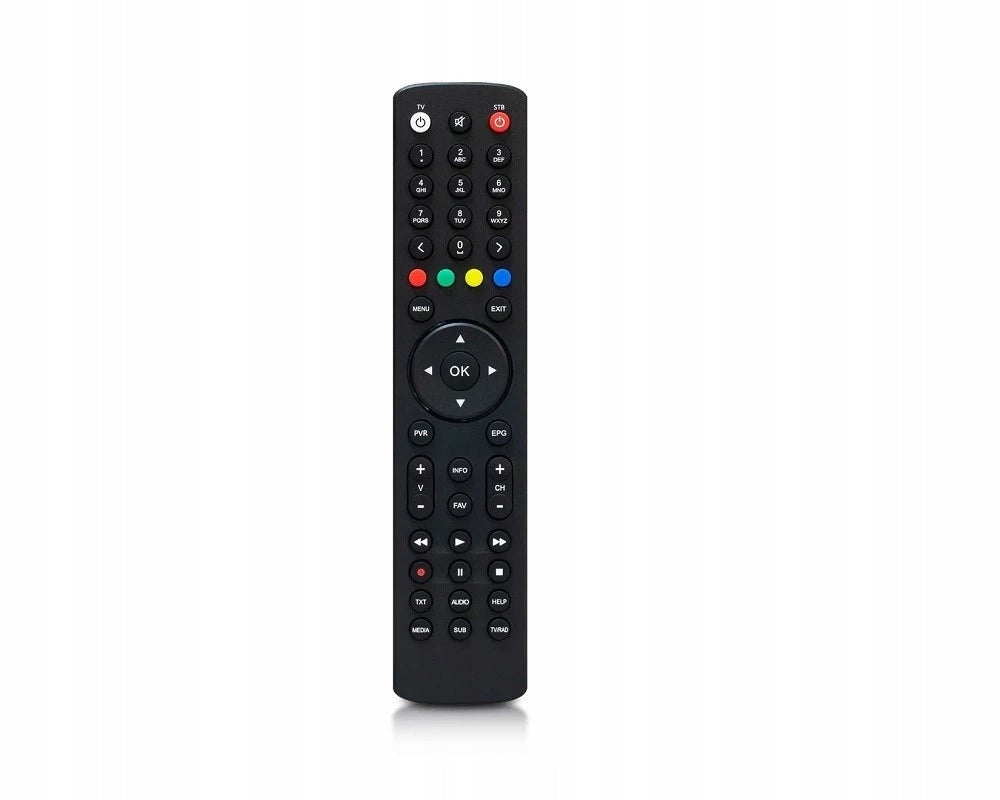

Remote controlThe AB PULSE 4K MINI SE package includes a new programmable control element.

With this control element, you can turn on the TV and control the volume on the TV in addition to the receiver. Intuitive button layout in an ergonomic, slim design with a matte finish that eliminates fingerprints. Segmentation of button groups. Colorful buttons are placed near the OK button and directional buttons. More optimal button placement for orientation around the mass.

The PULS 4K MINI SE receiver can also be controlled via a mobile phone.

You can also use your mobile phone or tablet as a remote control. You can see on your phone what is currently broadcast on TV and set the recording in your PULSe. Want to record a movie or your favorite TV show? With your mobile phone you have a few clicks. All recordings will be stored on the PULS 4K MINI SE and you can watch them at any time using your mobile phone or tablet whenever you want. If you have to connect your TV to a tuner, there is nothing easier than transferring your TV broadcast to your mobile device.

We recommend the dreamDroid app for Android devices.

We recommend e2Remote Lite for Apple.Do receiver devices, you can also connect an external WiFi antenna that will provide a wireless connection to the Internet.

Technical specification

- 1x DVB-S2X tuner

- Processor: QUAD CORE, 15 000 DMIPS

- Flash: 8 GB EMMC- RAM: 1 GB DDR4

- 1x card reader- 1x CI- 1x HDMI slot

- 1x microSD card slot (storage to microSD card possible)

- 1x USB 3.0 + 1x USB 2.0

- Video decoding: 4K x 2K @ 60 10-bit decoding, 1920 x 1080, 1280 x 720, 720 x 480, 720 x 576

- HDR/HDR10 and HLG

- Transcoding: Multi transcoding and Multiroom support

- RJ45 LED-Ethernet status light: 10/100 Mbps

- S/PDIF optical digital audio output

- IR eye extension cable IR (Infrared sensor not included / can be purchased as an optional accessory)

- Video format: 4:3 Letter Box, 4:3 Pan Scan, 16:9

- Video decoding: MPEG1, MPEG2, H264, H265 HEVC, CAVS, VP8, VP9

- Audio decoding: MPEG

-1 layer I/II, downmix PCB, IEC958 SPDIF left / right / stereo / mono
