Palydovinis imtuvas GIGABLUE UHD QUAD 4K PRO, 2x DVB-S2 FBC, DVB-T2/C, WiFi, Bluetooth 5.4, OSCAM

Trumpai apie prekę

Prekė: Palydovinis imtuvas GIGABLUE UHD QUAD 4K PRO, 2x DVB-S2 FBC, DVB-T2/C, WiFi, Bluetooth 5.4, OSCAM. Kategorija: Tiuneriai.

• Gamintojas: Gigablue
• Modelis: DVB-T2/C DUAL
• Spalva: black

BUILT-IN WIFI AND BLUETOOTH 5.4

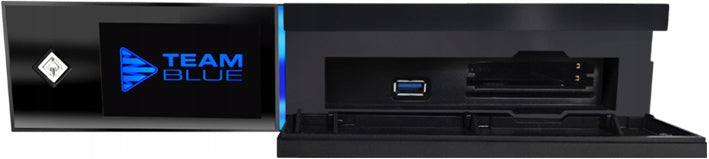

GigaBlue UHD Quad 4K looks great thanks to its extensive equipment. On the front panel there is a Power button and a 3" TFT color display, under the flap USB 3.0 port and 2 slots for CAM CI+ modules and card readers.

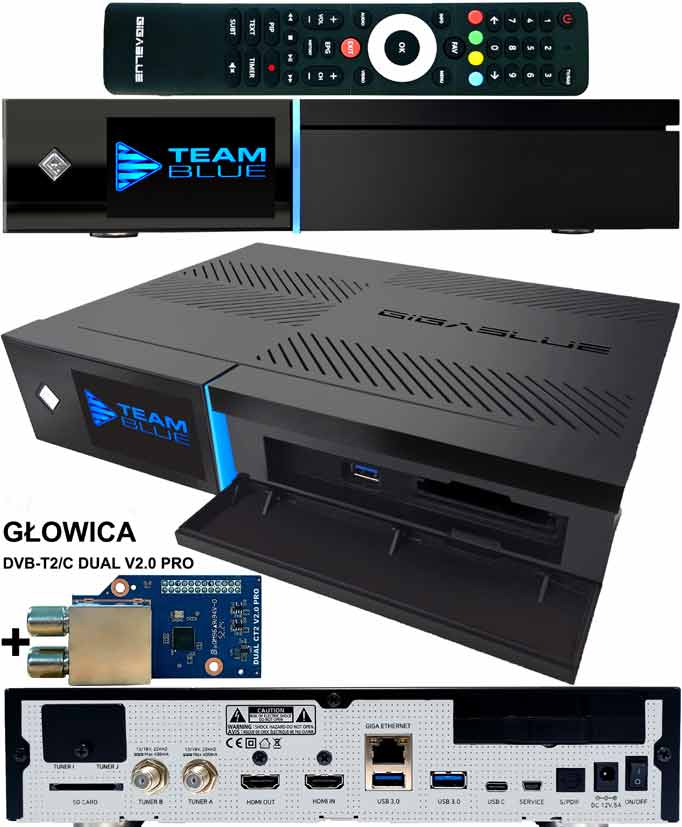

On the rear panel from the left there is space for: two LNB inputs of FBC tuners (8 demodulators in total) and a socket allowing the installation of an additional Plug & Play tuner (you can buy a single or double tuner -satellite or terrestrial cable),SD memory card reader, S/PDIF optical digital audio output,HDMI 2.0 input and output, 2 USB 3.0 ports (together with this on the front panel we have up to 3 USB available),gigabit Ethernet port, mini USB service port, USB C,pocket for internal hard drive 2,5" (height 15mm),12 V, 5 A power supply input and mechanical power switch.

- high-speed BCM7252S 12K DMIPS processor and 4GB DDR4 RAM

- 8GB eMMC Flash

- 3" TFT display

- 3 x USB (1 front + 2 rear)

- 1 x USB C

- 2 x CI+

- 1 x Card Reader

- 1 x HDMI in 2.0

- 1 x HDMI out 2.0

- Twin Tuner (Full-Band Capture front end)

- Demodalutor 8 x DVB-S2

- 2 x DVB-T2/C

- 1 x PnP tuner (DVB-S2X, DVB-C, DVB-T/T2/HEVC265)

- optical audio

- 1 x Mini USB Service,

- Ethernet Gigabit LAN (RJ-45/1000Mbps)

- 1 x SD Card 2.0 Up to 25MByte/s

- built-in WIFI module

- built-in Bluetooth 5,4

Soft with BT remote control support.

The remote on BT must be paired - menus/plugins are entered and there is a plugin for BT.

Select the plugin and press the menu+ok keys on the remote control until the LED flashes, after a dozen or so seconds the remote control will appear in the list, select Gigablue Ok or yellow key. You will see a message that the remote is paired.

The process of turning off BT reverse by pressing Ok or yellow key.

- 2 x DVB-S2 FBC head

- 2 x DVB-T2/C

- 1 x card reader

- 2 x CI+ reader

- 2 x USB 3.0 port

- 1 x USB 3.0 port

- 1 x USB C

- 1 x HDMI 2.0 output

- 1 x HDMI 2.0 input

- Ethernet port

- Mini USB service port

- SD card reader

- S/PDIF digital audio output

- Bluetooth remote control

- 2 x AAA batteries

- 12V power supply (max. 13W, deep vigil approx. 0,5W)

Dimensions: 270 mm x 190 mm x 60 mm

Specifications
