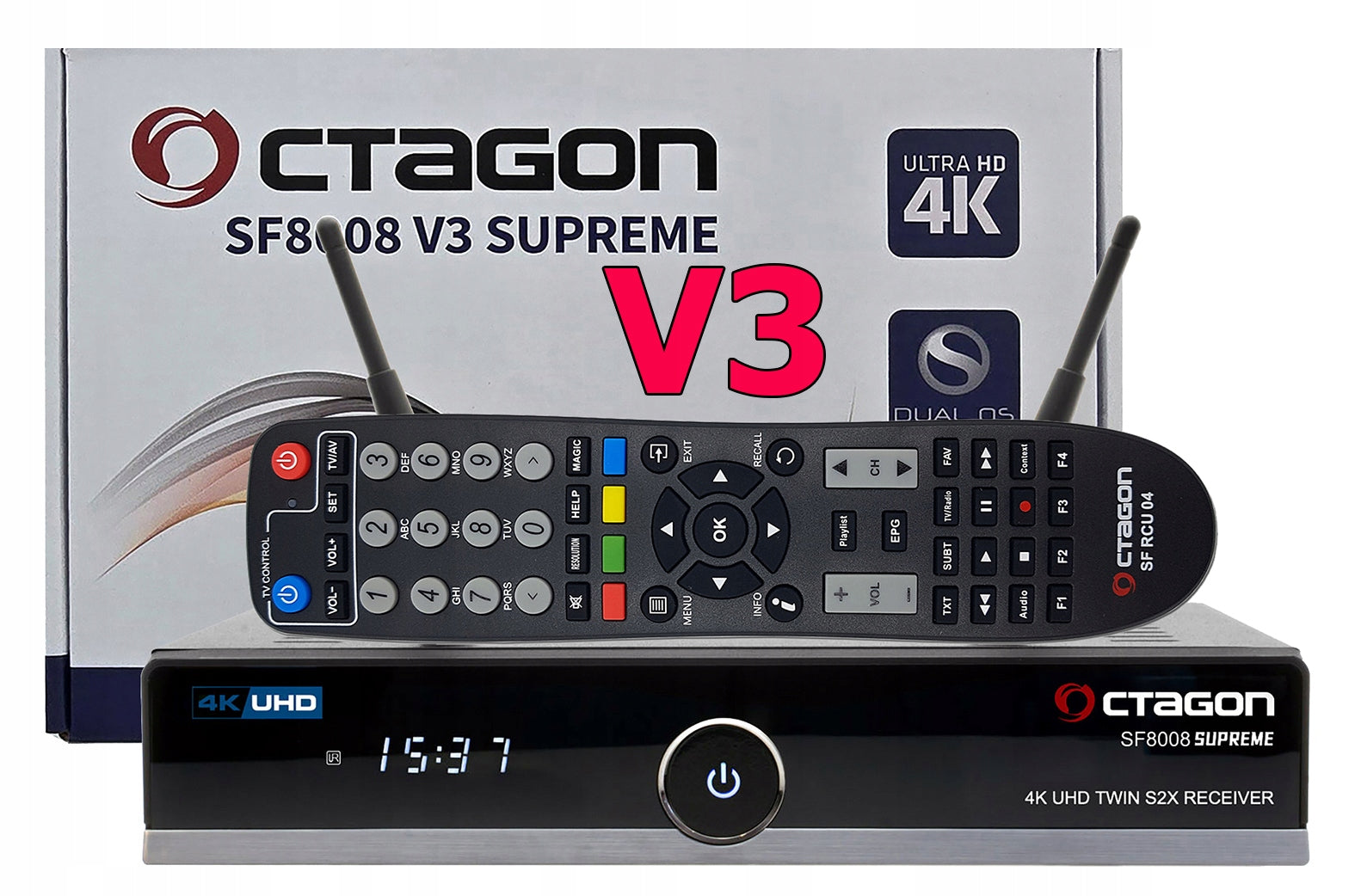

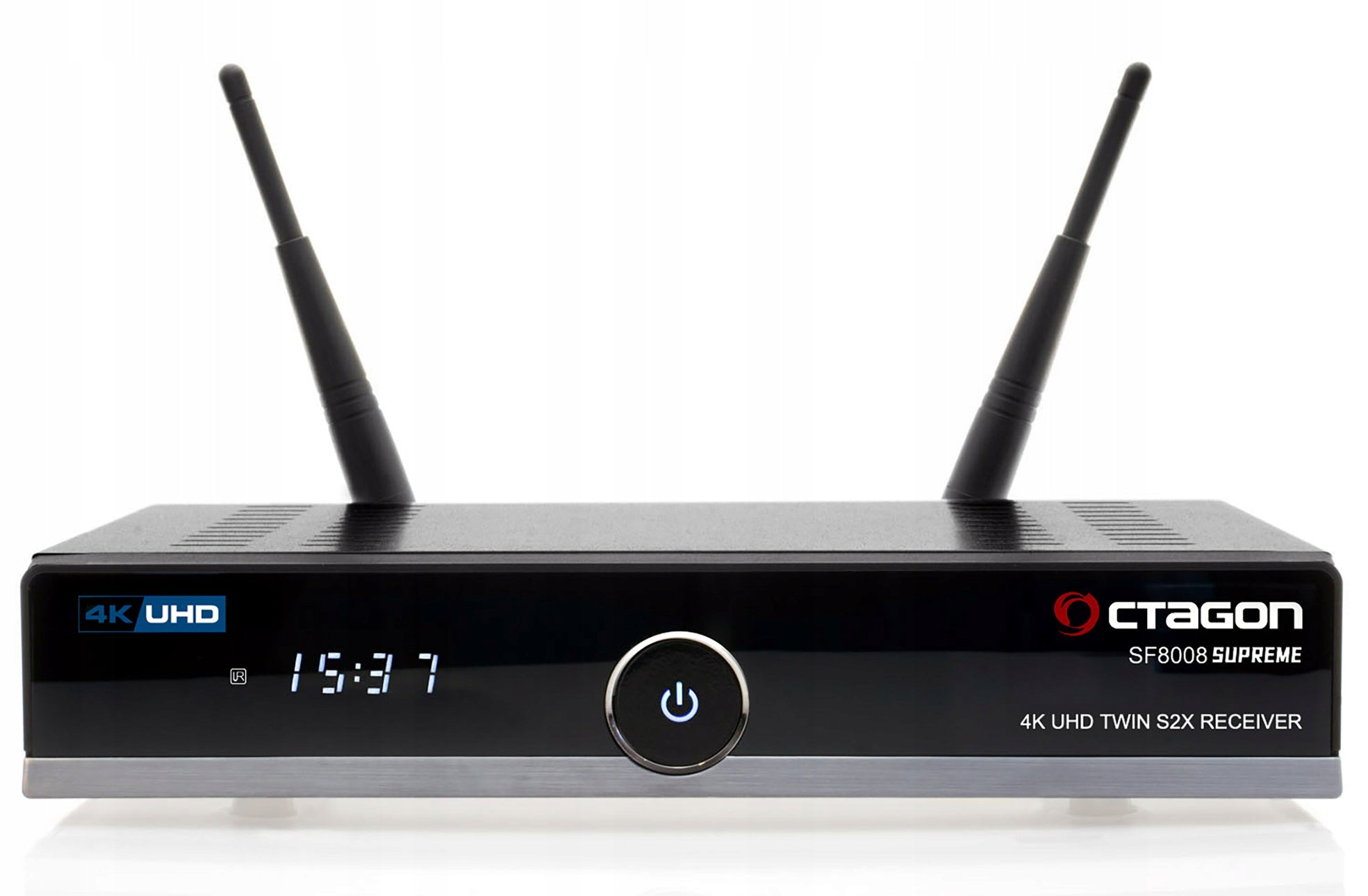

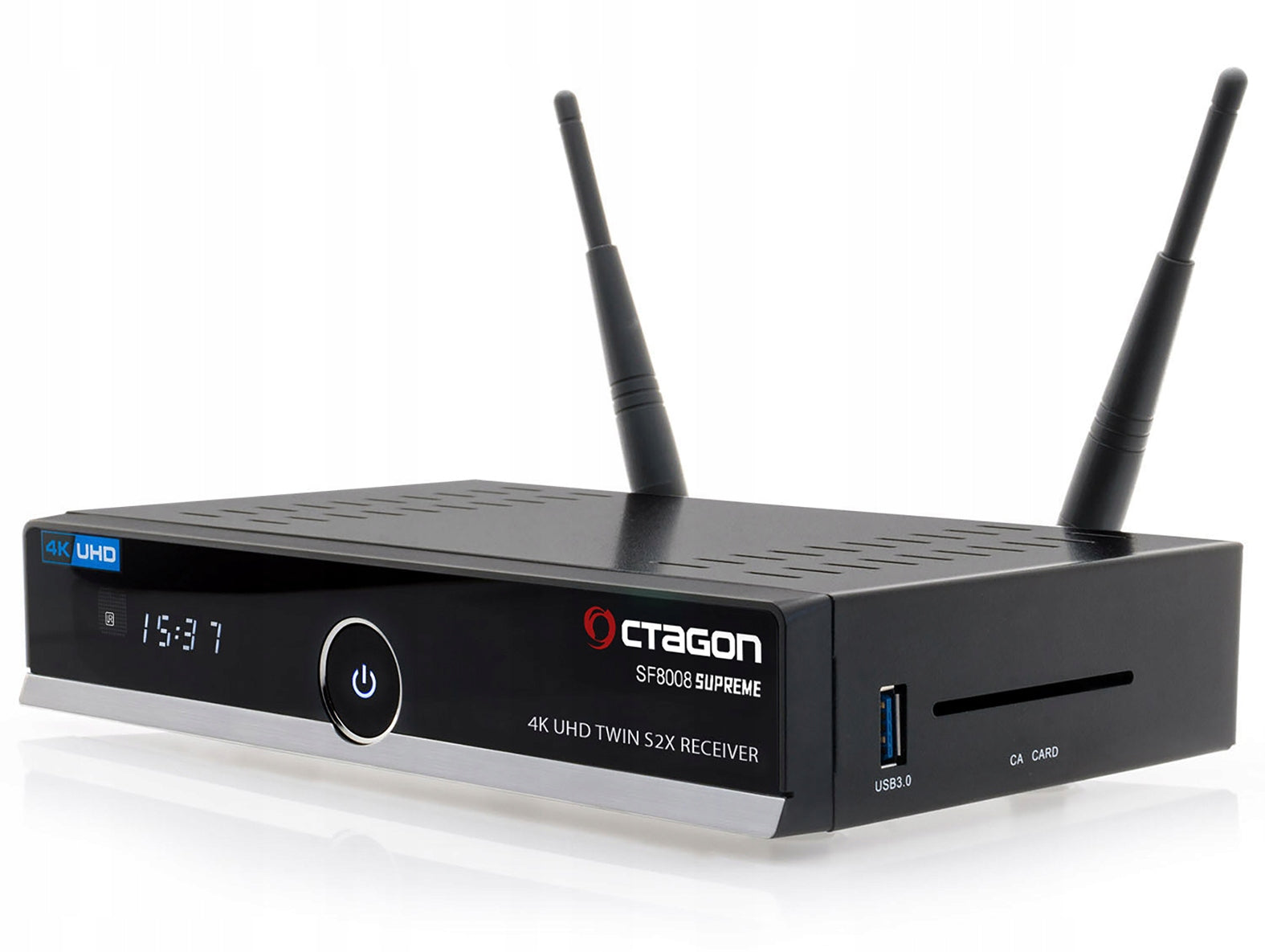

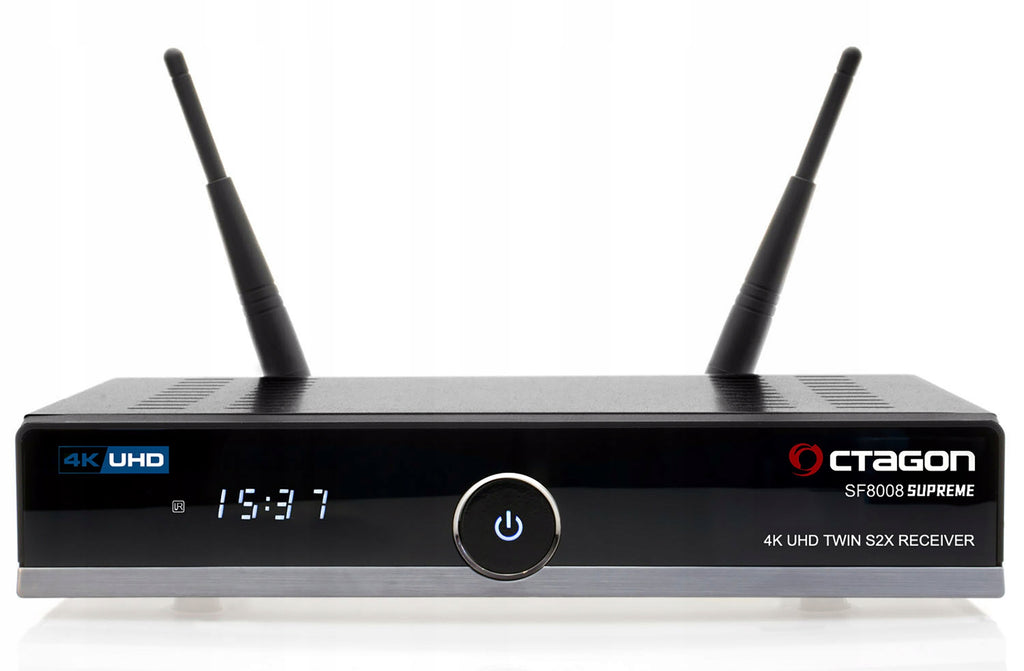

Palydovinis imtuvas OCTAGON SF8008 V3 SUPREME TWIN 4K, 2xS2X, WiFi 1200 BT, OpenATV

Trumpai apie prekę

Prekė: Palydovinis imtuvas OCTAGON SF8008 V3 SUPREME TWIN 4K, 2xS2X, WiFi 1200 BT, OpenATV. Kategorija: Tiuneriai.

• Gamintojas: Octagon
• Modelis: SF8008 V3 SUPREME TWIN

The most important changes compared to the previous version are:

• possibility of mounting inside the SSD M.2 NVMe disk on the receiver motherboard
• new head for receiving Multistream transmission
• built-in Bluetooth (can be paired with the RCU06 remote control available in our store)
• dual band Wi-Fi 2.4GHz and 5GHz 1200Mbit
• improvements on the main board (better heat sink on the processor) and higher quality components

Very popular UHD 4K receiver, based on quad-core HiSilicon processor, 15000 DMIPS providing lightning fast channel switching time. Cheap for its capabilities tuner 4K Ultra HD with dual head DVB-S/S2X, providing access to satellite TV channels. Unlimited possibilities thanks to the use of software based on the Linux Enigma2 operating system.

The 8008 SUPREME receiver supports HDR (high dynamic range) technology in HDR10 i HLG standards. Thanks to this, it is possible to display content realized in these modern image formats on the TV connected to this device.

The heart of the device is the Hisilicon Hi3798MV200 processor. The main system is the E2 OpenATV software.

Tuner is sold with fast and stable OpenATV 7.6 software, the latest channel list for HotBird and Astra divided into platforms and categories, with popular plugins installed. Latest OSCAM, CCCAM.

Most important features:

• Sturdy metal housing
• CPU: Hisilicon Hi3798MV200 Huawei
• 4 cores 64-bit 1,6 GHz, approx. 15.000 DMIPS
• Flash Memory: 8 GB eMMC
• RAM: 1 GB DDR4
• Gigabit LAN Ethernet (1000 Mbps)
• Built-in WiFi (300 Mbit, 2 antennas)
• Model Twin 2xDVB-S/S2/S2X
• Dual operating system: E2 Linux and Define OS Linux
• SAT Tuner: DVB-S2X with multistream
• Ultra HD 2160p for H.264 and H.265/HEVC
• Picture-in-picture (PiP) for HD and UHD
• HDR 10-bit and HLG for Ultra HD
• Multiroom and Sat client support on IP
• HDMI 2.0a and USB 3.0
• MicroSD socket
• Support HDMI CEC
• Ability to learn remote control for TV operation
• Blindscan hardware
• Hardware multiboot
• Ability to burn to a fast M.2 SSD
• Power consumption below 0,5W in deep standby

Front panel:

• Power button
• 4-Position LED Display (White)
• LED informing about the operating status
• Infrared sensor for remote control

Right side:

• USB 3.0 port
• Card reader (oscam support)

Background:

• 2xDVB-S2X satellite tuner input
• S/PDIF optical sound output
• 3,5 mm AV jack connector
• 3,5 mm RS-232 jack connector
• 2 WLAN antennas
• HDMI 2.0a output
• Micro SD card slot
• Additional USB 2.0 port
• Gigabit Ethernet port
• Reset/Recovery button
• External socket. 12 V, 2 A power supply
• Mechanical power switch

Contents of the set:

• Receiver Octagon SF8008 Supreme
• Remote control - new type
• Set of batteries
• Quick installation guide (English and German)
• HDMI cable
• Power supply

Technical parameters:

• Head: 2 x DVB-S/S2/S2X
• DiSEqC: 1.0/1.1/1.2(USALS), Unicable/SCR
• CI sockets: none
• Card readers: 1x
• USB/eSATA connectors: 1x USB 3.0 (side) + 1x USB 2.0 (back), SD card reader
• AV connectors: HDMI, S/PDIF (optical), analog AV (jack)
• Display: 4-position LED
• Dimensions: 220 x 45 x 150 mm
• Weight: 0,52 kg (net)
• Power Supply: 12V/2A
