Palydovinis imtuvas OCTAGON SX88 SE V2 WL HD S2+IP su Linux, IPTV, YouTube

Trumpai apie prekę

Prekė: Palydovinis imtuvas OCTAGON SX88 SE V2 WL HD S2+IP su Linux, IPTV, YouTube. Kategorija: Įrenginiai.

• Gamintojas: Octagon
• Modelis: SX88 SE WL

DVB-S/S2 RECEIVER WITH LINUX OPERATING SYSTEM WITH 1 CARD POCKET AND BUILT-IN WIFI WITH FASTSCAN NC+, OSCAM, E-AC3(DD+) SOUND - MULTIMEDIA PROPERTIES: IPTV, YOUTUBE, WEATHER AND OTHERS - 12V POWER SUPPLY.

RECEIVER PREPARED TO WORK WITH THE CURRENT LIST AND COOPERATION WITH SMART HD+ CARDS, XXX CARDS, ALSO SPLITTERS. SUPPORT FOR E2 (ENIGMA2) SETTINGS.

OCTAGON SX88 SE V2 WL S2+IP H.265 HEVC HD LINUX is characterized by a small dimension of 125 x 95 x 25mm and has the possibility of wall mounting and an external infrared receiver. The 12V power supply is also applicable for tourism. Recommended for TVSAT enthusiasts. Unlimited possibilities thanks to the use of software based on the Linux operating system.

- DVB-S/S2 head + multistream support

- support for MPEG-2, MPEG-4/H.264 and HEVC/H.265 in SD and HD resolutions

- ARM Cortex-A7 processor

- CPU: GX6613H2 GX-National

- dual-core 32-bit (2x 800MHz) 3000 DMIPS

- Flash memory: 128 MB

- RAM: 256 MB DDR3

- quick start time 15 s

- media player, IPTV support (m3u playlists)

- 2 USB 2.0 ports (possibility of recording when the drive is connected)

- 4-digit 7-segment display with channel number or time from satellite

- access to webinterface and file system after FTP

- universal card reader

- built-in WIFI

- ready to record recording and timeshift when hard drive is connected

- network access via Ethernet port 100 Mbit/s

- support Wi-Fi wireless connection via USB adapters

- HDMI 1.4b - HDCP1.4

- HDMI CEC support

- support for E2 (Enigma2) settings

- DiSEqC 1.0/1.1/1.2/USALS support

- support for Unicable/SCR

- Electronic EPG Program Guide for up to 7 days

- OSD and UI in high resolution

- has the possibility of wall mounting and external infrared receiver

- support for screen captions and teletext

- current consumption of 0,5W in deep standby mode

- miniature dimensions: 125 x 95 x 25mm

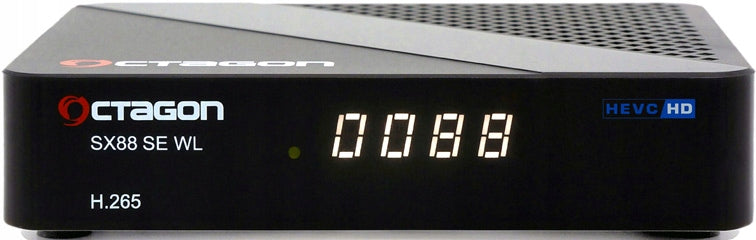

FRONT PANEL:

- 4-digit 7-segment display

- infrared receiver for remote control

LEFT SIDE PANELS:

- 2x USB ports

- socket for external infrared sensor if we want to hide the receiver

- service button RESET

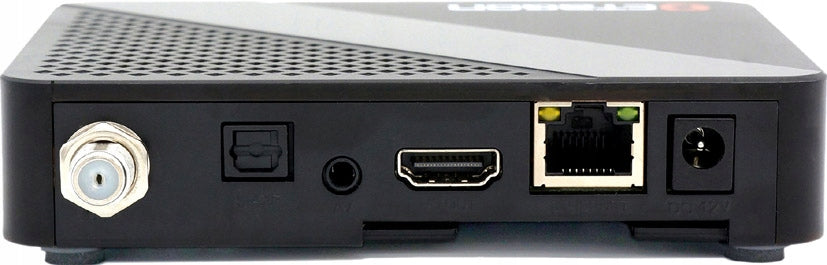

BACK PANELS:

- LNB DVB-S/S2 antenna input

- Ethernet 100 Mbit/s

- HDMI output v1.4b

- CA card reader

- optical digital audio output S/PDIF

- analog AV output in the form of a jack 3,5mm (RCA/Cinch cable included)

- power socket 12V, 1.5A

- 125x95x25mm

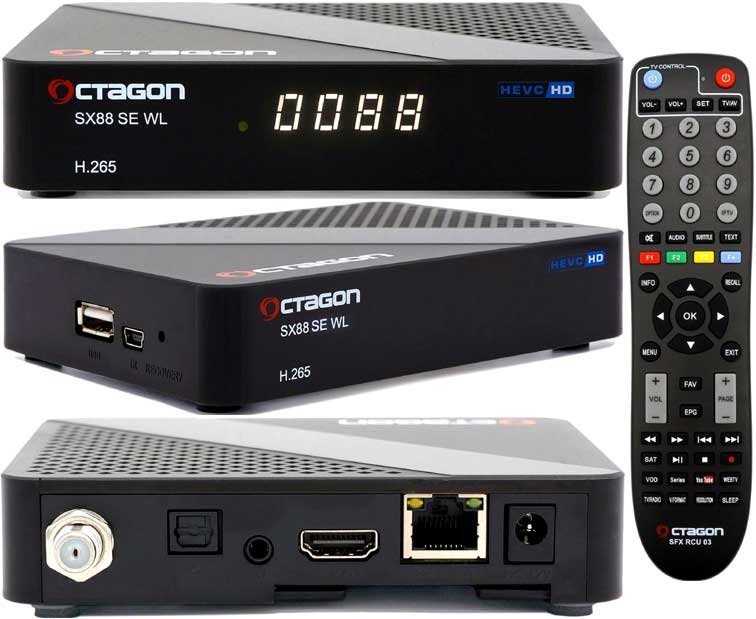

- receiver Octagon SX88 SE V2 HD

- remote control

- AAA battery pack

- Quick Installation Guide (English and German)

- HDMI cable

- external infrared sensor

- 12V/1,5A power supply
