Palydovinis imtuvas Octagon TWIN SAT, Dual OS, WiFi 1200 Mbps, M.2 SSD, 4K

Trumpai apie prekę

Prekė: Palydovinis imtuvas Octagon TWIN SAT, Dual OS, WiFi 1200 Mbps, M.2 SSD, 4K. Kategorija: Tiuneriai.

• Gamintojas: Octagon
• Modelis: SF8008 SUPREME TWIN
• Spalva: black

SKU: TOSF8008TWINSUPREME

Key features:

• Dual operating system: E2 Linux Enigma 2 and Define OS Linux
• 4K H.265 HEVC UHD Processor (3840 x 2160)
• Hisilicon Hi3798MV200 Huawei
• Quad-core 64Bit (4x 1,6 GHz) 15000 DMIPS
• Flash 8GB eMMC
• RAM 1GB DDR4
• M.2 slot (M.2 SSD: M KEY – PCIE NVME)
• Gigabit LAN Ethernet network interface (1000Mbps)
• Permanently installed dual-band 2.4/5G Wi-Fi (WLAN) up to 1200Mbps, 2x WiFi antennas
• 4-digit 7-segment display
• CA card reader
• Hardware BlindScan (blind search)
• 2 x DVB-S2X (double tuner) + multi-stream support
• Multiroom and Sat client support on IP- HDMI 2.0a and USB 3.0
• MicroSD socket
• Support HDMI CEC
• Programmable remote control

Decoder Octagon

Receiver with Dual OS meets all the requirements of a multimedia device and now opens up even more possibilities - two Linux Enigma2 + Define OS Linux

Thanks to the use of a new tuner and demodulator, the already high quality has been further improved. Supreme models set new standards with an advanced tuner and demodulator for optimal reception, M.2 interface integration for internal hard drives, built-in dual-band Wi-Fi (2,4/5 GHz) at speeds up to 1200 Mbps and Bluetooth 5.1 - a breakthrough combination of performance and connectivity.

With USB 3.0 port, Gigabit LAN interface and H.265 video decoding, it enables a versatile 4K experience. Discover a new 4K experience with the Octagon SF8008 SUPREME Twin.

The Octagon SF8008 SUPREME 4K UHD receiver has two integrated DVB-S2X satellite tuners. With its impressive performance (15 000 DMIPS) and lightning-fast switching times, it offers an exceptional user experience.

Modern entertainment and numerous functions

Octagon SF8008 4K UHD supports a variety of images, allows you to download additional plugins and offers HDR, HLG and H.265 decoding. With Gigabit LAN (1000Mbps) and a permanently mounted WIFI module, it provides fast connection to high-definition content. Two WiFi antennas are also available. With M.2, USB 3.0, USB 2.0, MicroSD slot and card reader, the receiver offers sufficient possibilities to play content from external storage media. Additional connectors include HDMI 2.0, AV (audio and video) and S/PDIF output for digital audio signals. In standby mode, the power consumption is less than 0,5 W.

Versatility

The receiver offers PVR recording function, time-shifting TV via internal M.2 HDD or external USB memory, access to YouTube, Wi-Fi, media player and library, Internet functions, download plugins.

Extensive functions

The tuner has a dual operating system with E2 Linux and Define OS, 2xDVB-S2X satellite tuners, recording function and supports a customizable user interface, as well as many free plugins (extensions and applications) within the E2 Linux operating system.

-

User-friendly

The receiver offers an intuitive, multilingual menu, an extended EPG (Electronic Program Guide), numerous images and downloadable skins, satellite TV optimization on IP and E2 Multiroom customer support.

Future-proof

The receiver is equipped with 4K H.265 HEVC UHD processor, 8GB eMMC Flash/1GB DDR DRAM, M.2 SSD slot, HDMI and USB with PVR, LAN, Wi-Fi, AV via RCA

Special Features:

• DUAL OS: E2 Linux OS and OCTAGON Define Linux OS
• 2x DVB-S2X 4K UHD and Multistream (Direct T2-MI Input)
• Symbol transmission rate from 100 – 80 000 SR- PIP HD and UHD (picture in picture)
• HDR 10bit and HLG
• Multi Transcoding and Multiroom
• Sat>IP client and USB V-tuner key
• Blindscan (search in the dark)
• Public Broadcasters Multimedia Libraries
• HW Multiboot-
• Support ffmpeq HW playback
• Media playback 2160P H.264 and H. 265
• OTA- DiSEqC 1.0/1.1/1.2, USALS, Unicable, Fast-Scan Updates
• PVR recordings (*optional)
• 12V connector (also suitable as a camping receiver for motorhomes or caravans. 12V car power adapter not included)
• In standby mode 0,5 W

Specification:

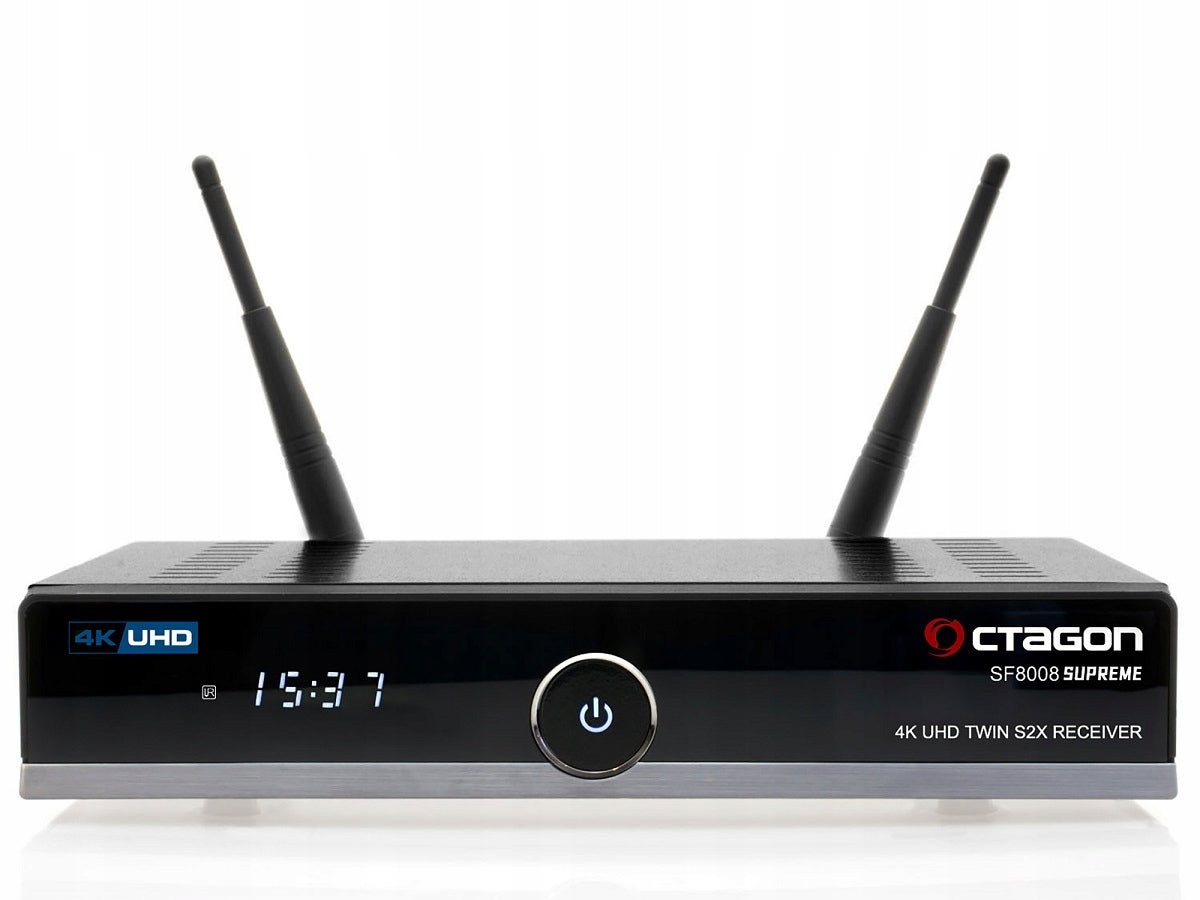

FRONT:

• Power on/off button
• 4-digit 7-segment display
• LED Display (Red/Blue)
• Infrared sensor (infrared receiver)

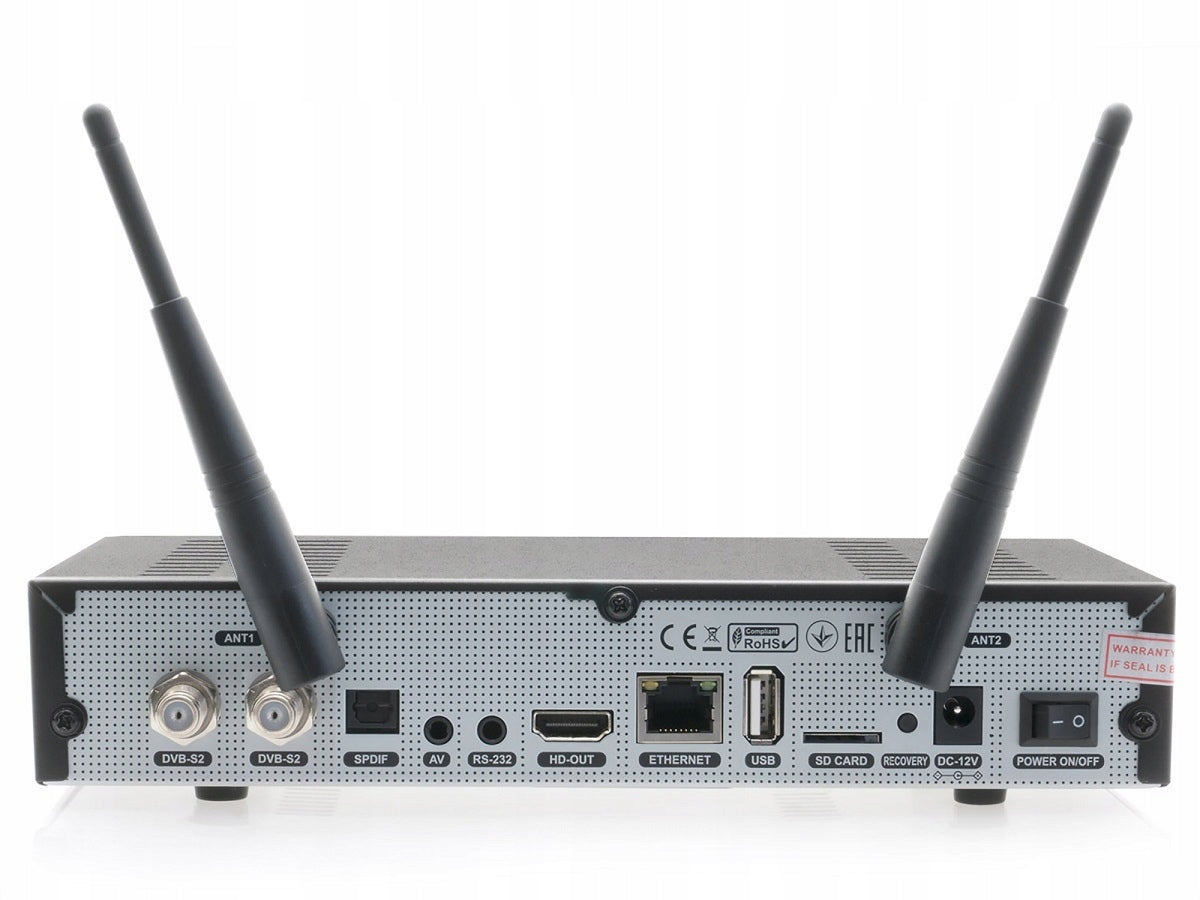

BACK PANEL:

• 2x H.265 4K UHD DVB-S2X tuner, LNB input
• Dolby S-PDIF
• AV - Audio-video jack - Jack to RCA
• RS-232 socket (maintenance and service)
• WiFi 2x WLAN Antennas
• HDMI 2.0a Output
• USB 2.0 port
• Gigabit LAN (1000Mbps)
• MicroSD socket
• Recovery button (Reset)
• DC-12V power supply
• Power on/off switch

RIGHT SIDE:

• USB 3.0 port
• Card Reader (CA CARD)

INSIDE:

• M.2 slot for internal SSD (M.2 SSD: M KEY – PCIE NVME)

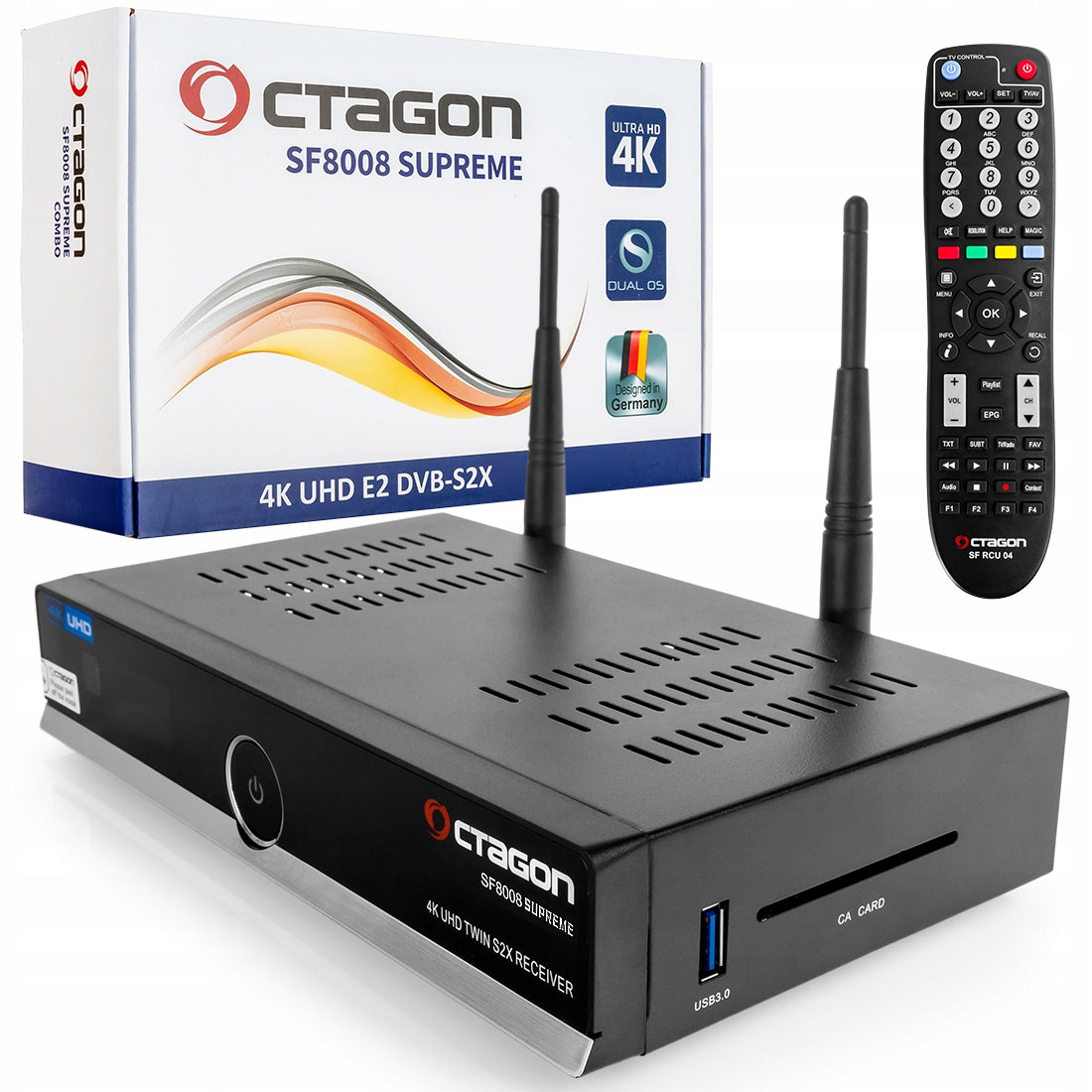

INCLUDED:

• OCTAGON SF8008 4K SUPREME TWIN Receiver
• Pilot with the possibility of learning
• 2 AAA batteries
• User manual (German and English)
• HDMI cable
• Charger

TUNER AND DEMODULATOR:

• TWIN TUNER 2x DVB-S2X: Silabs Si2166-D60 & RDA5815m

OTHER:

• Dimensions (DxGxW) 220mm x 125mm x 40mm
