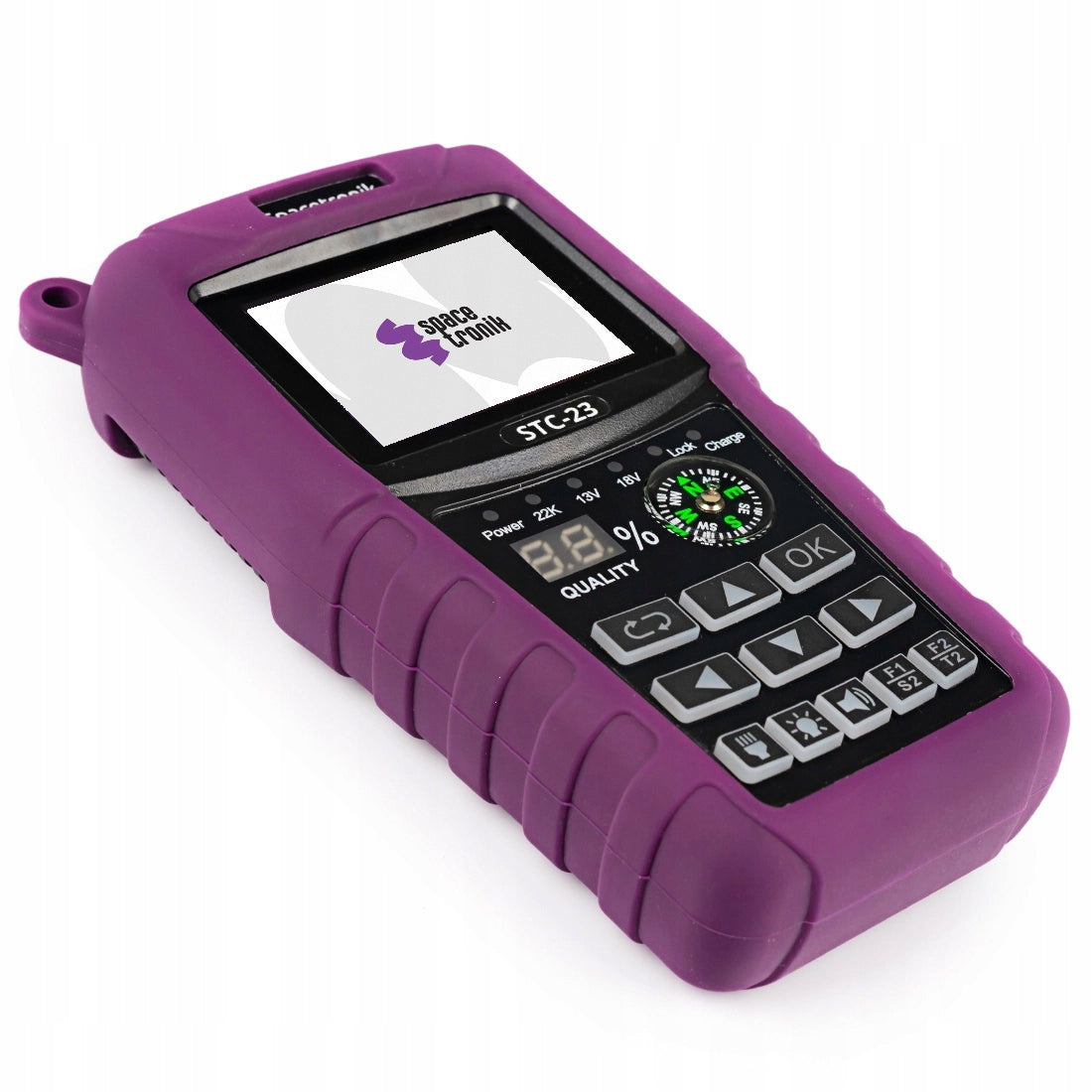

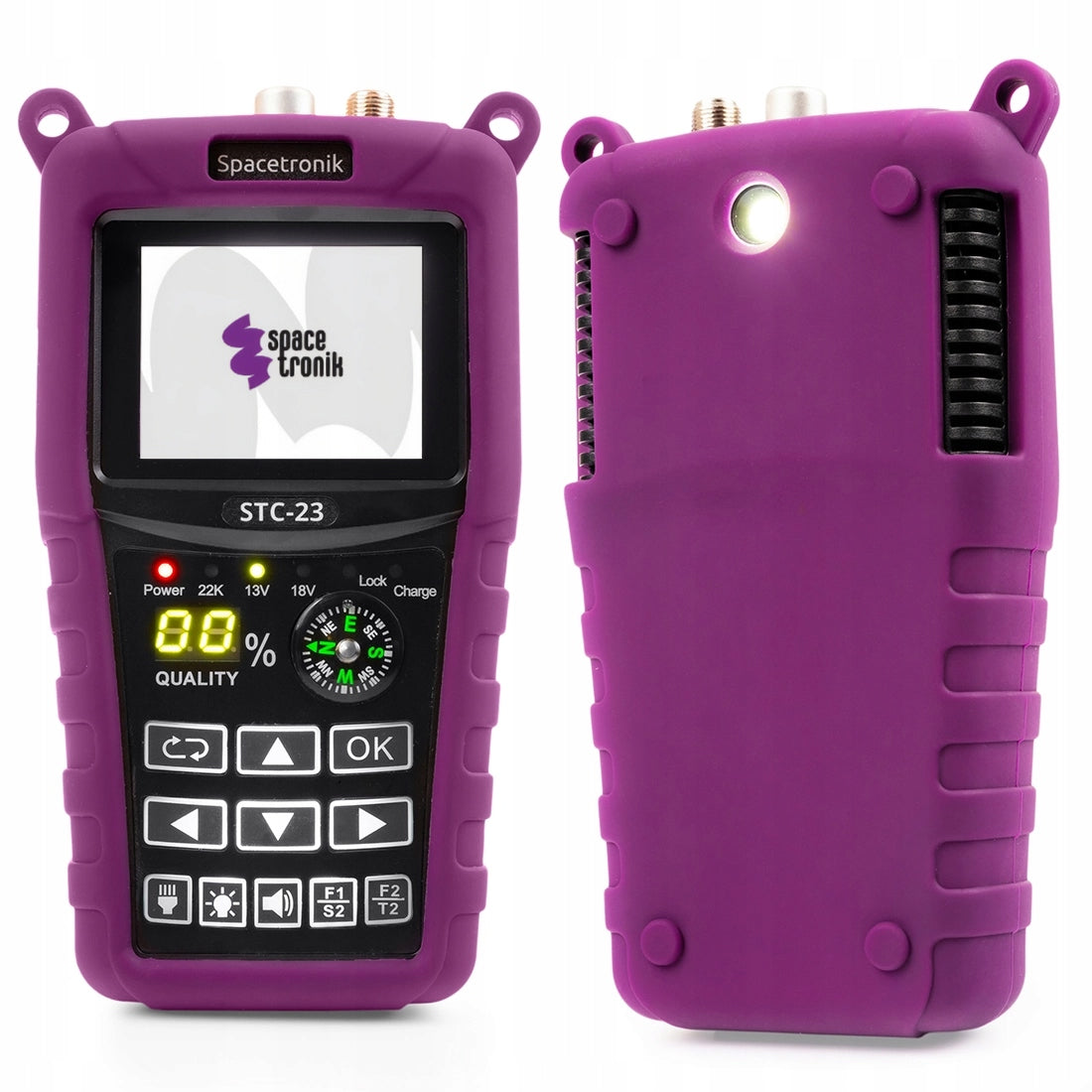

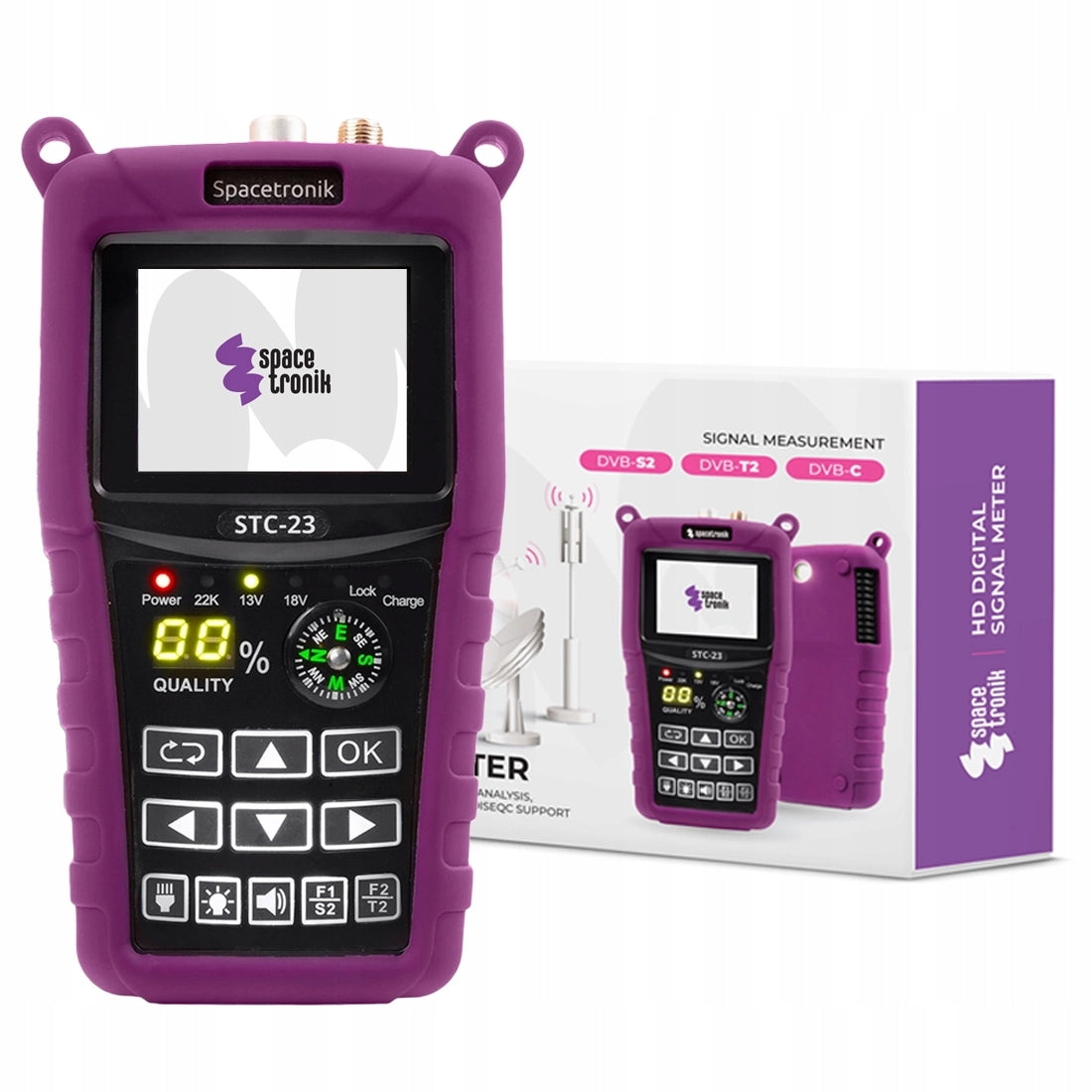

Palydovinis ir antžeminis imtuvas Spacetronik su LED kompasu

Trumpai apie prekę

Prekė: Palydovinis ir antžeminis imtuvas Spacetronik su LED kompasu. Kategorija: Matuokliai, signalo stiprintuvai.

• Gamintojas: Spacetronik
• Modelis: STC-23 Combo

SKU: SPSTC23COMBO

Key Features

☑ Universal Combo – supports DVB-S/S2, DVB-T/T2 and DVB-C standards, making it suitable for satellite, terrestrial and cable installations.

☑ Color display 2,4" TFT – easy to read screen makes it easy to read parameters even in full sun.

☑ Built-in compass – helps you quickly and precisely set the direction of the satellite dish.

☑ Additional percentage display of signal quality – allows you to instantly assess reception without having to enter the menu.

☑ Illuminated buttons – comfortable work in dark or dimly lit places.

☑ MicroUSB adapter – USB included – makes it easy to charge and update your device.

☑ Silicone, anti-shock case – protects the meter from damage during everyday work.

☑ The ability to power DVB-T/T2 antennas (5V, 12V) – increases versatility and convenience of use.

☑ Support in Polish – simple and intuitive menu, thanks to which the configuration is quick and trouble-free.

Comprehensive Measurement

Combines the capabilities of several measuring tools i allows you to measure the signal:

• Satellite television (DVB-S/S2)
• ground (DVB-T/T2)
• cable (DVB-C)

Thanks to the color display 2,4" TFT with a clear menu in Polish, the operation of the meter is intuitive and pleasant.

Quick Setting and Convenient Operation

▶ Built-in compass: makes it easy to quickly set the direction of the antenna.

▶ Additional percentage signal quality indicator: allows you to instantly check the reception parameters without having to search through the options.

▶ Illuminated buttons: work after dark or in hard-to-reach places becomes much simpler.

Antenna Power Supply and Durable Construction

The device can also power DVB-T/T2 antennas with 5V or 12V voltage, which eliminates the need for additional power supplies.

Complementing the whole is a silicone anti-shock case, which effectively protects the meter from damage in the field.

The interface you see on screens!

In real time you will read:

• S/Q in %, PWR in dBuV
• S/N with information LOCK
• transponder and satellite details (SAT, TP, LNB, FEC, BER)

In DVB-T/T2 mode, key ground parameters appear:

• channel, frequency
• bandwidth, MER
• modulation,
• FFT
• GI
• BER

Specification

• TFT+LED color display
• Support standards: DVB-S/DVB-S2, DVB-T/T2, DVB-C/C2, MPEG2/MPEG4
• Indication of BER, MER errors
• Input signal level; -80~-20dBm
• Spectrum support
• Protection against overvoltage of the converter
• Audible alarm indicates signal intensity level
• Support for Unicable
• Turntable operation
• OSD language: several languages to choose from including Polish
• Support 10 kinds of OSD interface color
• Support DISEQC 1.0 / 1.1 / 1.2 - 22khz
• Short-circuit protection and LNB indicator
• Audible notification with signal lock; On. / Off
• Battery Capacity: 2000mah
• Extremely long standby time
• Low energy consumption
• Compass- LED Flashlight

Contents of the set:

• STC-23 Combo Meter
• Strap
• USB-A to micro USB adapter
• User manual
