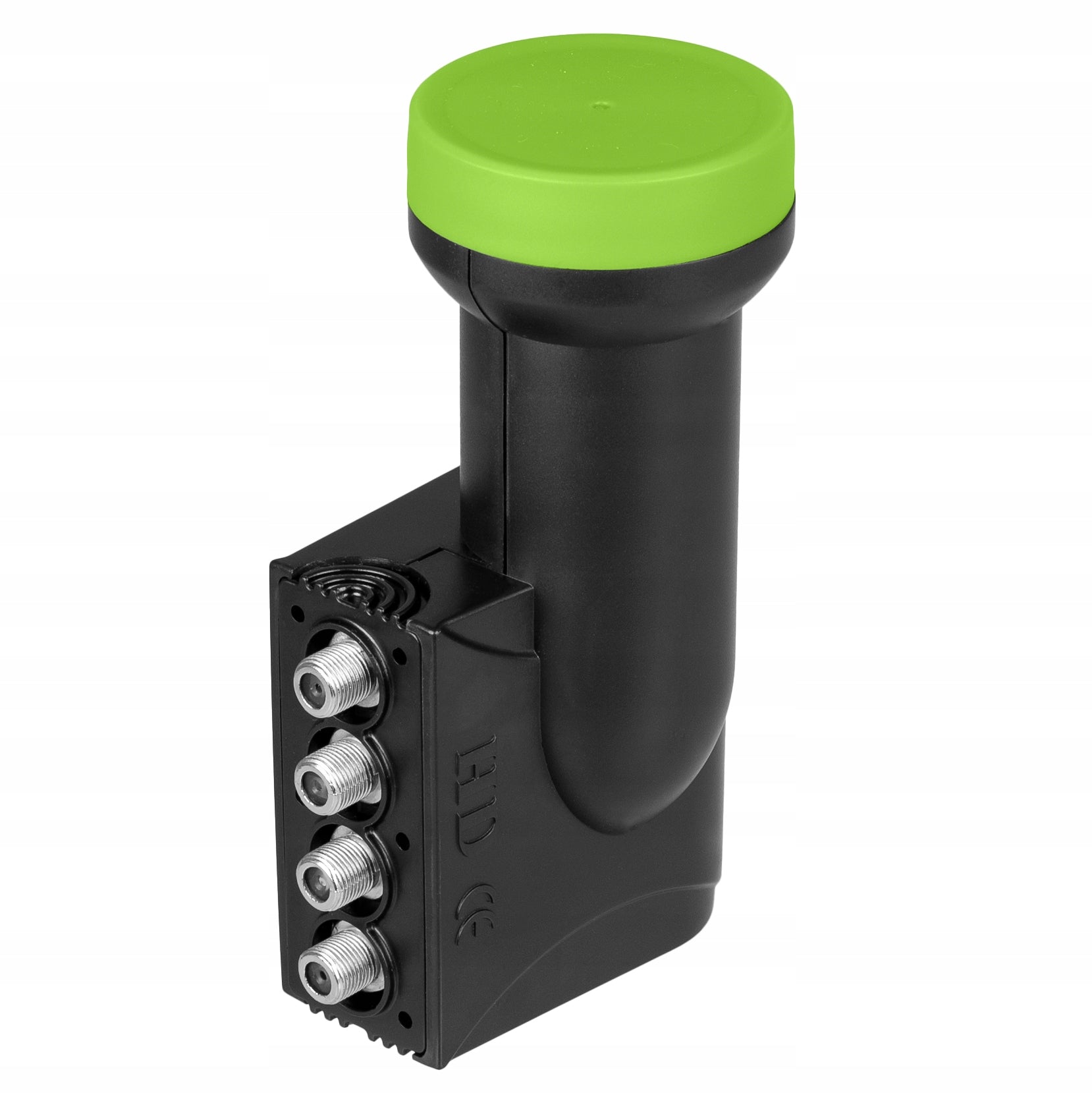

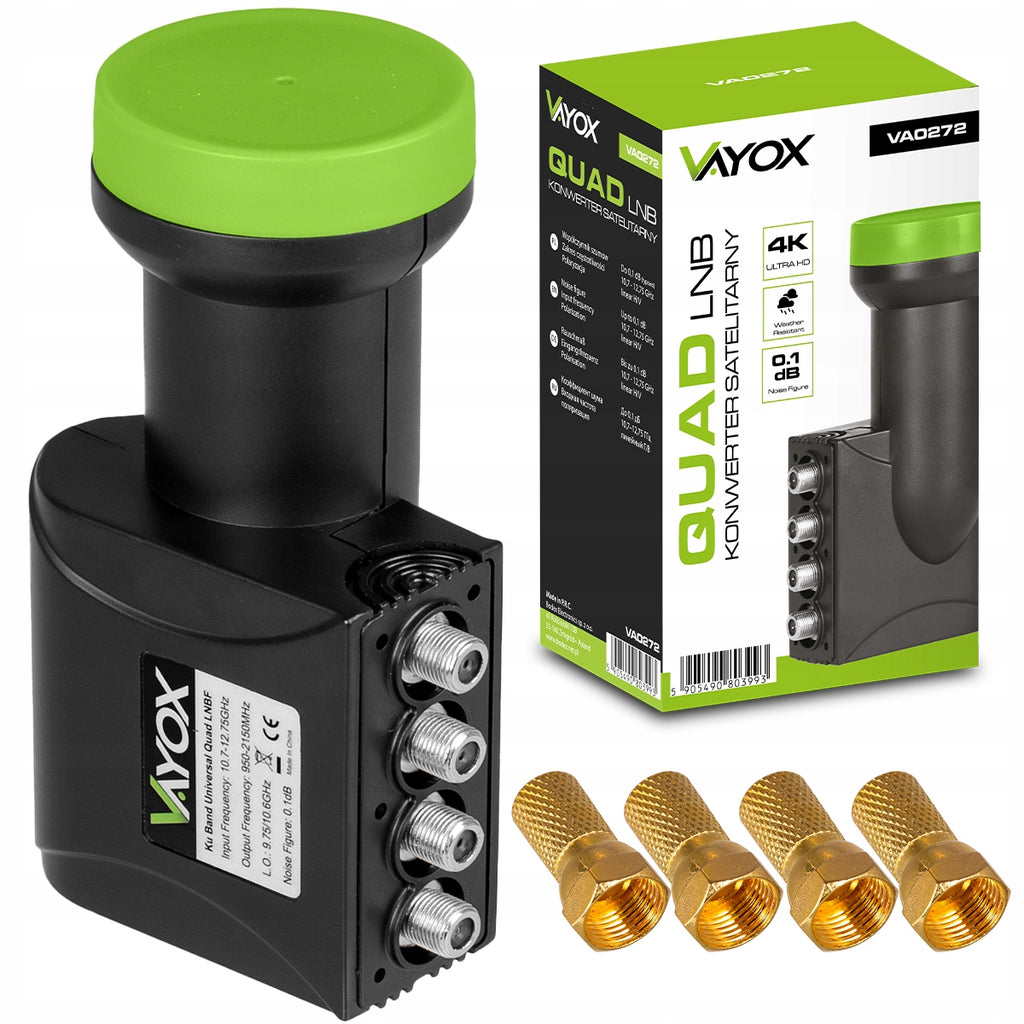

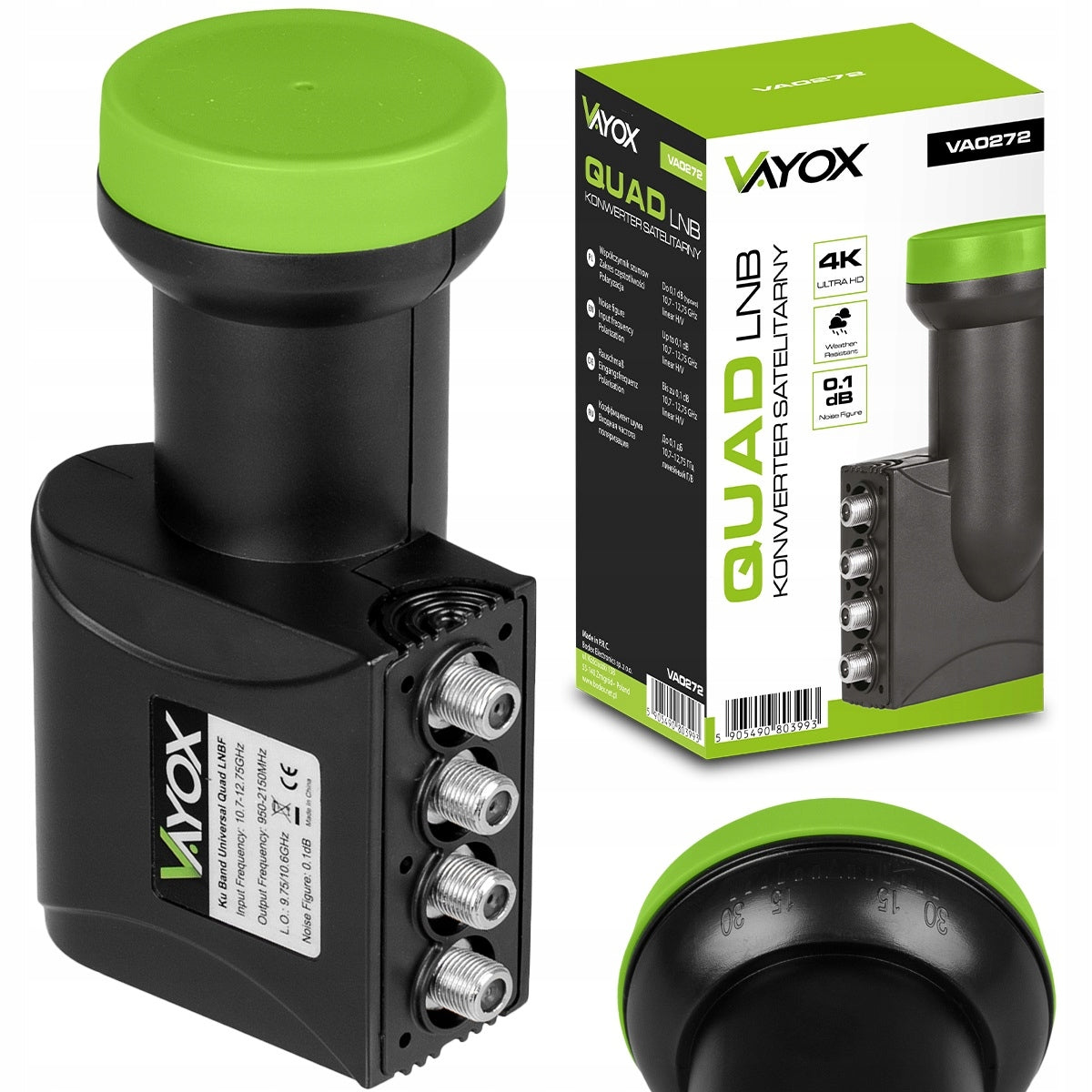

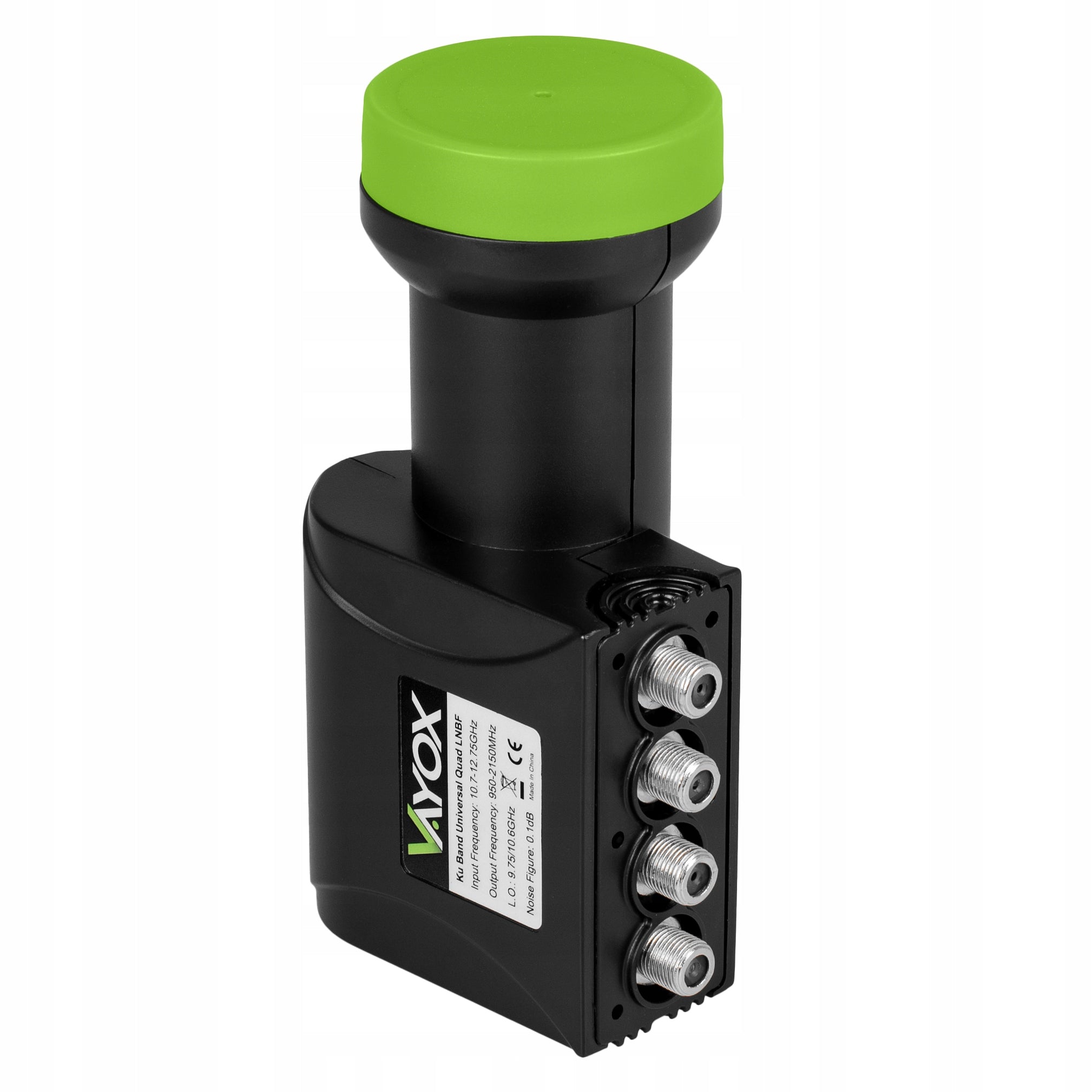

Palydovinis keturgubas konverteris VAYOX, 4 išėjimai, 4K

Trumpai apie prekę

Prekė: Palydovinis keturgubas konverteris VAYOX, 4 išėjimai, 4K. Kategorija: Keitikliai.

• Gamintojas: Vayox
• Modelis: Konwerter satelitarny quad 4 wyjścia VA0272

Vayox VA0272

• Original product of POLISH brand Vayox
• Possibility to connect to 4 tuners
• Full support for 4K channels
• Gain: 60dB
• Handle Diameter: 40mm (Standard)
• 3D Full HD
• Resistant to weather conditions
• Linear polarity H/V
• Low energy consumption
• Full HD
• Retractable plug cover

The device works perfectly with all tuners and satellite TV operators available on the market (e.g. Digital Polsat, Canal+, Orange, Astra, Hotbird, Eutelsat, Amos and others).

Four single converters in one housing. It works independently with four satellite receivers or two with a recorder. Quad converter allows simultaneous recording and viewing of different channels from different bands and polarization (V and H).

The converter has a proven protective system, which avoids damage to the connectors by water accumulating there. This allows you to significantly extend the trouble-free service life of the device.

Minimized noise factor allows you to achieve optimal signal reception, even in extreme conditions. This guarantees a smooth image, free from any interference even in harsh weather conditions.

The highest quality materials and high precision of workmanship guarantee long, trouble-free operation of the device and user satisfaction.

Housing and technologies used are resistant to weather conditions

• rain
• snow
• UV radiation
• wind

The converter has a latch-locked cover, protecting the F connector from external factors. Thus, it extends the trouble-free operation of the entire satellite system

Precise execution and high technical parameters translate into less impact of weather conditions on the quality of the received signal. The converters are used when connecting four satellite tuners or when connecting two PVR tuners and recorders.

The new, even better version of the converter is characterized by improved design, better performance and gain of up to 60dB. Reinforcement at 60dB guarantees quality comparable to converters several times more expensive.

Precise execution and high technical parameters translate into less impact of weather conditions on the quality of the received signal. Quad - four single converters in one housing. It works independently with four satellite receivers or two with a recorder. Quad converter allows simultaneous recording and viewing of different channels from different bands and polarization (V and H).

Thanks to this converter, we have two independent outputs that we can use in various configurations, e.g.:

1. two tuners with recorder
2. four independent tuners with one receiving head

• input frequency: lower band – 10.7-11.7GHz, upper band – 11.7-12.75GHz
• oscillator frequency: LOW 9.75GHz, HIGH 10.60GHz
• output frequency: lower band 950-1950MHz, upper band 1100-2150MHz
• band switching signal – 22KHz
• Noise factor – 0,1dB
• handle diameter – 40mm

Specifications
