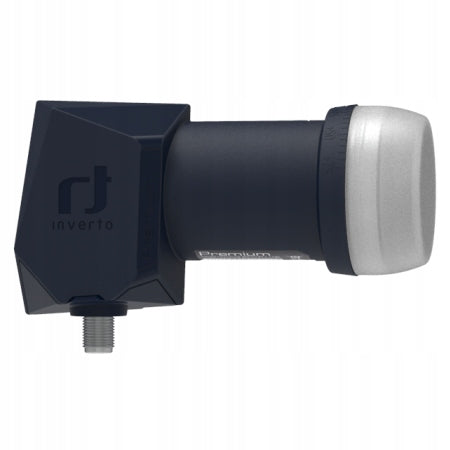

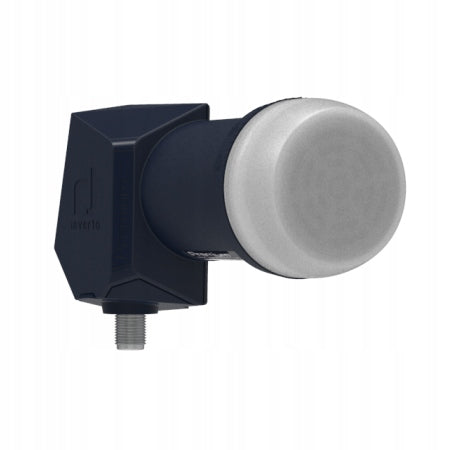

Palydovinis konverteris Inverto Single PREMIUM 4K HD

Trumpai apie prekę

Prekė: Palydovinis konverteris Inverto Single PREMIUM 4K HD. Kategorija: Keitikliai.

• Gamintojas: Inverto
• Modelis: SNL410-PREMU-OPN

High quality single converter of Luxembourg brand Inverto. The Single converter is used to receive a signal from one satellite via one tuner. It has a rain cover. It allows you to receive digital and analogue TV and radio programs via satellite in SD and HD quality (including Ultra HD 4K).

The converter works perfectly with all digital tuners, e.g.: N, Cyfra+, NC+ Cyfrowy Polsat, TP, TNK

• Frequency range 10.7 – 12.75 GHz
• Noise Ratio 0,2 dB
• Resistant to changing weather conditions
• Operating temperature -30 ~ +60°C
• Durable electronics
• Diameter 40 mm
• Very easy installation
• Retractable connector cover

• Symbol of the product: IDLP-SNL413-PREMU-OPN
• Lower band - input: 10,7-11,7GHz
• Lower band - output: 950-1950MHz
• Lower oscillator: 9,75GHz
• Upper band –input: 11,7-12,75GHz
• Upper band – output: 1100-2150MHz
• Upper Oscillator: 10,6GHz
• Own noise: 0,2dB (0,7dB)
• Oscillator temperature drift: +/-1MHz max
• Phase noise: -80dBc/Hz max
• Gain: 56dB min
• Variability of gain characteristics: +/-0,75 dB/27MHz
• Polarity control V: 11.0~14.0 V
• H polarity control: 16.0~20.0 V
• VSWR: 2.5:1
• Current consumption: 80mA max @11~20V
• Output Impedance: 75Ohm
• Operating temperature: -30...+60C
• Neck Diameter: 40mm
• Connector: F
• Retractable connector cover
• Weight: 182g
• Integrated LTE filter

• Single Inverto Premium Converter
• Packaging

KONS0291
