Palydovinis konverteris Inverto WideBand Unicable NC UltraBox 4K

Trumpai apie prekę

Prekė: Palydovinis konverteris Inverto WideBand Unicable NC UltraBox 4K. Kategorija: Keitikliai.

• Gamintojas: Inverto
• Modelis: Wideband 40mm PLL LNB PRO

Inverto Wideband Pro converter in horizontal and vertical polarization. It receives any satellite signal in the Ku band generating a signal up to two polarizations: horizontal and vertical.

The converter, designed by the Luxembourg-based brand Inverto for the European market, provides optimized HD transmission reception capabilities. Manufactured to the highest quality standards, with excellent reception parameters.

The converter works perfectly with all digital tuners, e.g. Canal+ / NC+, Cyfrowy Polsat, also 4K and other tuners supporting the Wideband standard. Recommended for the Ultrabox 4K decoder from the CANAL+ / NC+ offer - connection with two wires in Wideband technology allows you to obtain the same functions as connection in Unicable technology.

• Model: IDLP-WDB400
• Input frequency range: 10.7 - 12.75 GHz
• Wideband Output Frequency Range: 300~2350MHz
• Oscillator frequency L.O. 10.41 GHz
• Gain: 50dB~60dB
• Noise Ratio: max. 1dB
• DVB-S2 (HDTV) compatible
• Low power consumption
• High level of polarization separation
• High frequency stability
• Greater resistance to 4G interference

• LNB Inverto Wideband Pro

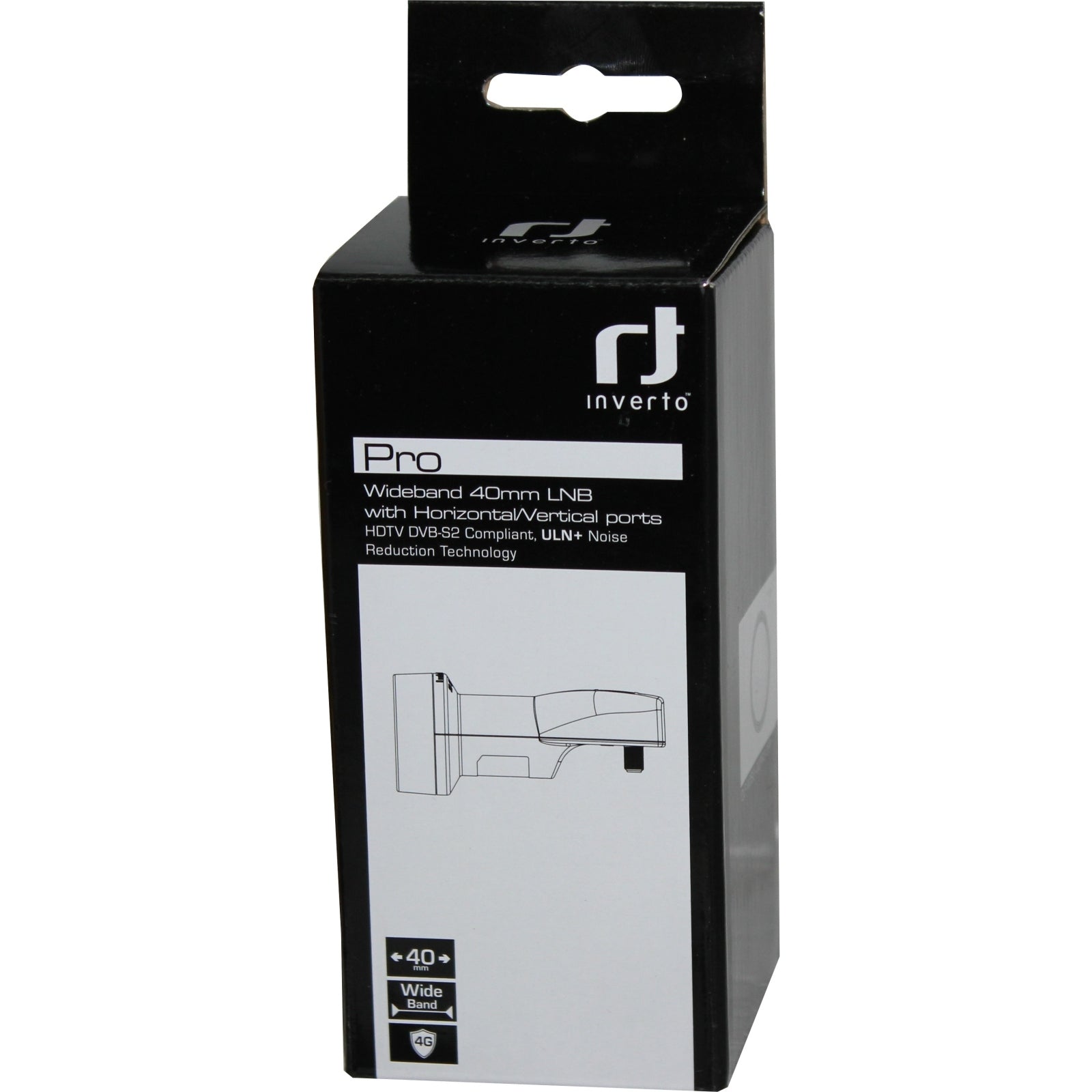

• Packaging

Inverto Wideband can also be used in installations operating in the Wideband system, based on multiswitches. It cooperates with multiswitchen Unicable brand Inverto, which are in the offer of our store.

LNB Wideband differs from standard quattro converters in that it has two H+V signal outputs instead of four, so an installation based on one satellite requires only two satellite wires from the LNB to the multiswitch.

KONUN3005

Specifications
