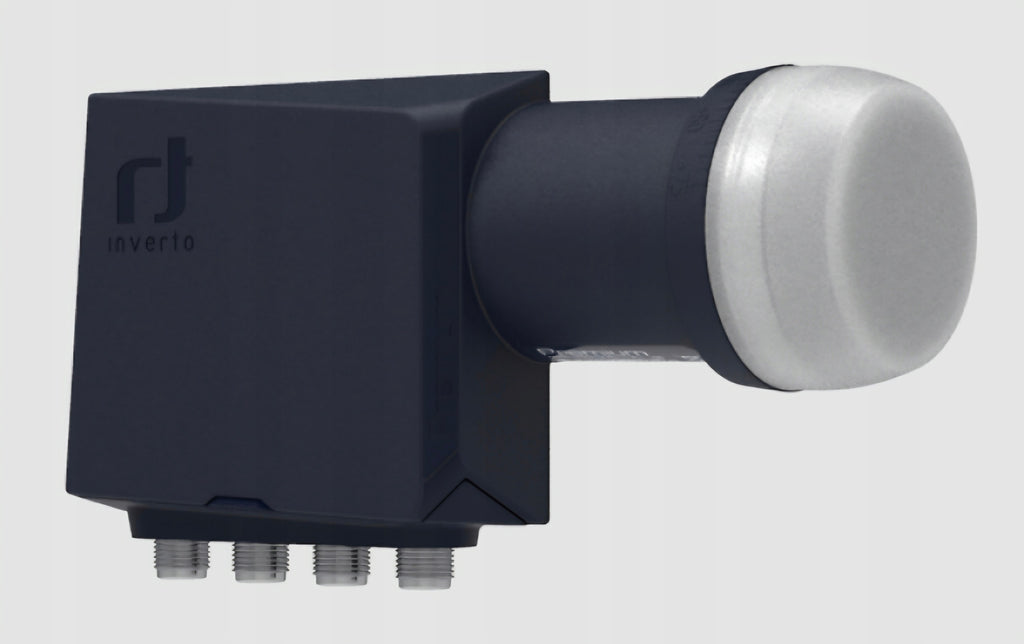

Palydovinis LNB keitiklis INVERTO Premium, QUATTRO, 4 išėjimai, multiswitch sistemoms

Trumpai apie prekę

Prekė: Palydovinis LNB keitiklis INVERTO Premium, QUATTRO, 4 išėjimai, multiswitch sistemoms. Kategorija: Keitikliai.

• Gamintojas: Inverto
• Modelis: 20242

LNB QUATTRO satellite converter for 4-output multiswitch INVERTO Premium

• small phase noise HDTV-DVBS2 compliant
• small own noise 0,2dB
• very large separation between polarities
• low power consumption
• high frequency stability

quattro premium converter is a product of the well-known Luxembourg company INVERTO, which is a leader among suppliers of converters for the Polish market.

quattro converters do not require control signals. They are designed to work with multiswitches and front stations.

quattro converter provides satellite signal divided into polarization-band combinations. At the exits we have:

• V/Lo – vertical polarization, lower band
• V/Hi – vertical polarization, upper band
• H/Lo-polarization horizontal, bottom band
• H/Hi- horizontal polarity, upper band

Technical data:

• Product Name: quattro INVERTO BLACK Premium Converter
• Symbol of the product: IDLB-QUTL40-PREMUM-OPP
• Lower band - input: 10,7-11,7GHz
• Lower band - output: 950-1950MHz
• Lower oscillator: 9,75GHz
• Upper band –input: 11,7-12,75GHz
• Upper band – output: 1100-2150MHz
• Upper Oscillator: 10,6GHz
• Own noise:0,2dB (0,7dB)
• Oscillator temperature drift: +/-3MHzmax
• Phase noise:-85dBc/Hz max
• Gain:55dB min
• Wave gain characteristics: +/-0,75dB/27MHz
• Polarity control V: 11.0~14.0V
• H polarity control: 16.0~20.0V
• Lower band control: 0kHz
• Top band control: 22kHz+/-4kHz, 0,4~0,8 Vpp
• VSWR:2.5:1
• Separation between polarities: 22dBmin
• Current consumption:200mA max @11~20V
• Output Impedance: 75Ohm
• Operating temperature: -30...+60C
• Neck Diameter: 40mm
• Neck Length:50mm
• Connector: F
• Weight:243g
