Palydovinis LNB konverteris INVERTO Black ULTRA, 1 išėjimas, 4K

Trumpai apie prekę

Prekė: Palydovinis LNB konverteris INVERTO Black ULTRA, 1 išėjimas, 4K. Kategorija: Keitikliai.

• Gamintojas: Inverto
• Modelis: Single HG LN 40mm PLL LNB

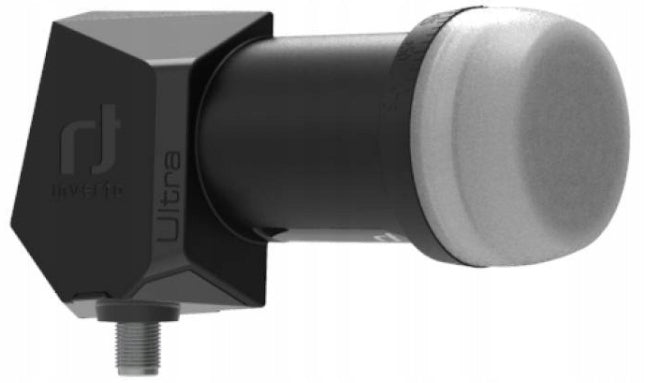

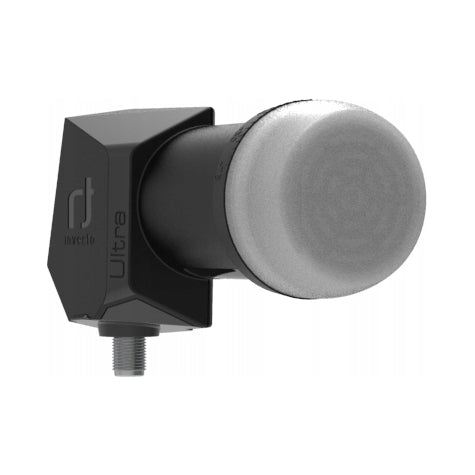

LNB Satellite Converter SINGLE 1-Output 4K INVERTO Black ULTRA

High-quality single converter from the Luxembourg brand Inverto from the new limited edition Ultra Black series. A Single type converter is used to receive a signal from one satellite via one tuner. It has a rain cover. It allows reception of digital and analog TV and radio programs via satellite in SD and HD quality (including Ultra HD 4K).

The ULTRA BLACK series is particularly recommended for receiving DVB-S2 programs, due to its very low phase noise. DVB-S2 uses more efficient 8PSK modulation. 8PSK modulation uses twice as many symbols compared to QPSK.

The converter works excellently with all digital tuners, e.g.: NC+ / Canal+, Cyfrowy Polsat, including 4K and HD.

Specification:

• Manufacturer's product symbol: N-ULTRA-SNL412-IDLT
• Lower band input: 10,7-11,7GHz
• Lower band output: 950-1950MHz
• Lower oscillator: 9,75GHz
• Upper band input: 11,7-12,75GHz
• Upper band output: 1100-2150MHz
• Upper Oscillator: 10,6GHz
• Own noise: 0,2dB (0,7dB)
• Oscillator temperature drift: +/-3MHz max
• Phase noise: -90dBc/Hz max
• Gain: 60dB min
• Wave gain characteristics: +/-0,75dB/27MHz
• Polarity control: V11.0~14.0 V
• Polarity control: H16.0~20.0 V
• Lower band control: 0kHz
• Upper band control: 22kHz +/-4kHz, 0,4~0,8 Vpp
• VSWR 2.5:1
• Separation between polarities: 22dB min
• Current consumption: 120mA max @11~20V
• Output Impedance: 75Ohm
• Operating temperature: -30...+60C
• Neck Diameter: 40mm
• Connector: F
• Item Weight: 0,151 kg

Included:

• Single Inverto Black Ultra Converter
• Packaging
