Palydovinis LNB konverteris INVERTO Home Pro, 4 išėjimai, 4K

Trumpai apie prekę

Prekė: Palydovinis LNB konverteris INVERTO Home Pro, 4 išėjimai, 4K. Kategorija: Keitikliai.

• Gamintojas: Inverto
• Modelis: Home Pro

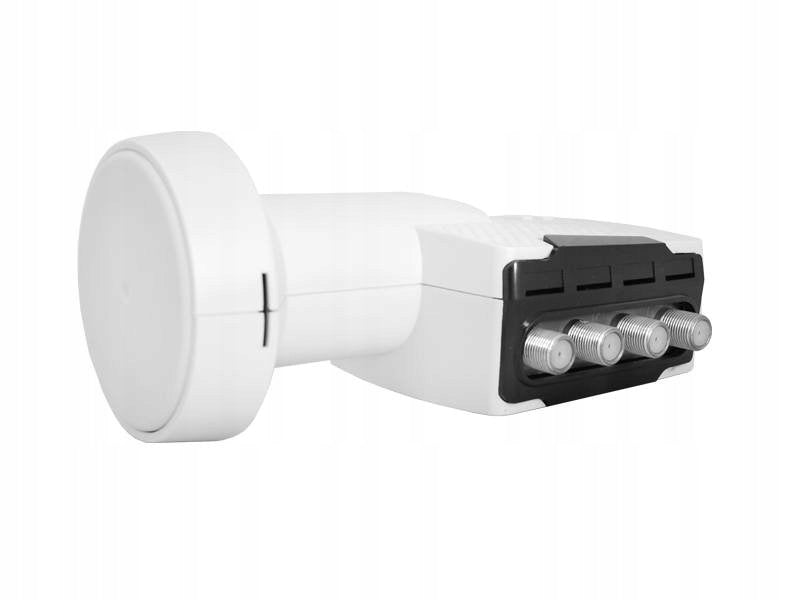

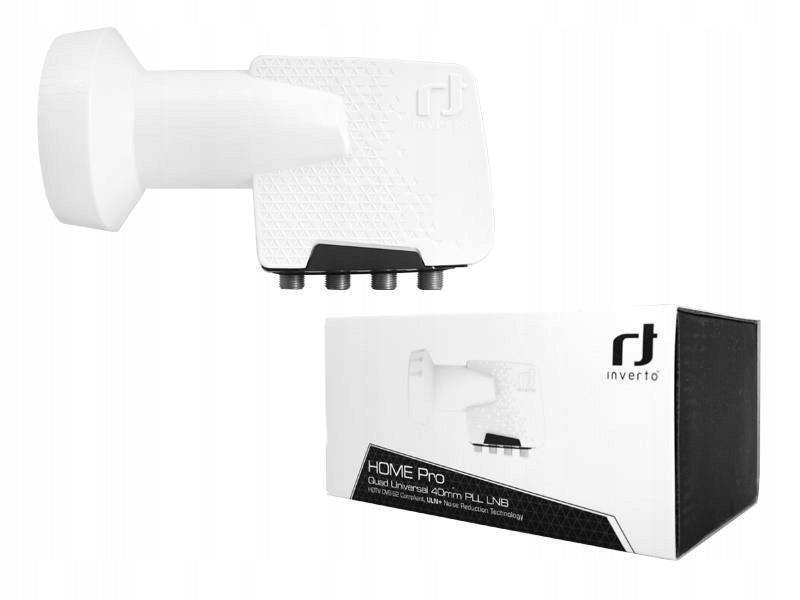

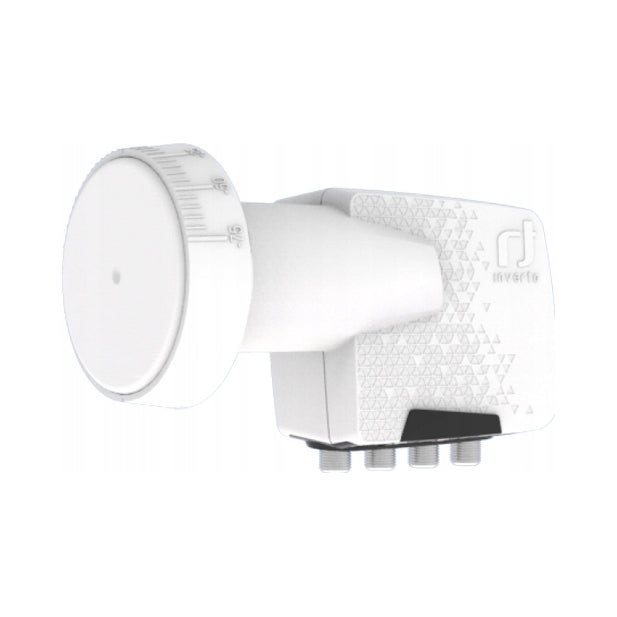

LNB QUAD 4-output 4K satellite converter INVERTO Home Pro

QUAD Home PRO converter is one of the most popular products, known Luxembourg company INVERTO.

INVERTO is a leader among suppliers of converters for the Polish market.

The QUAD converter enables independent operation of four single-head DVB-S and DVB-S2 tuners or two PVR tuners (with recording).

The converter is mounted to an antenna with a handle diameter of 40mm.

Distinguishing features:

• Small own noise (0,3dB)
• High reinforcement
• Very nice design

Technical data:

• Product Name: Home PRO Quad Converter
• Symbol of the product:QDL410-HMPRO-OPN
• Lower band - input: 10,7-11,7GHz
• Lower band - output: 950-1950MHz
• Lower oscillator: 9,75GHz
• Upper band –input: 11,7-12,75GHz
• Upper band – output: 1100-2150MHz
• Upper Oscillator: 10,6GHz
• Own noise:0,3dB (0,7dB)
• Oscillator temperature drift: +/-3MHz max
• Phase noise:-80dBc/Hz max
• Gain:55dBmin
• Variability of gain characteristics: +/-0,75 dB/27MHz
• Polarity control V: 11.0~14.0 V
• H polarity control: 16.0~20.0 V
• VSWR:2.5:1
• Current consumption:200mA max @11~20V
• Output Impedance: 75Ohm
• Operating temperature: -30...+60C
• Neck Width: 45,5mm
• Neck Length:40mm
• Connector: F
• Weight:243g
• Integrated LTE filter
