Aprašymas
Trumpai apie prekę
Prekė: Palydovinis LNB QUATTRO konverteris 4 jungčių multiswitch INVERTO Home Pro. Kategorija: Keitikliai.
- Gamintojas: Inverto
- Modelis: HOME Pro

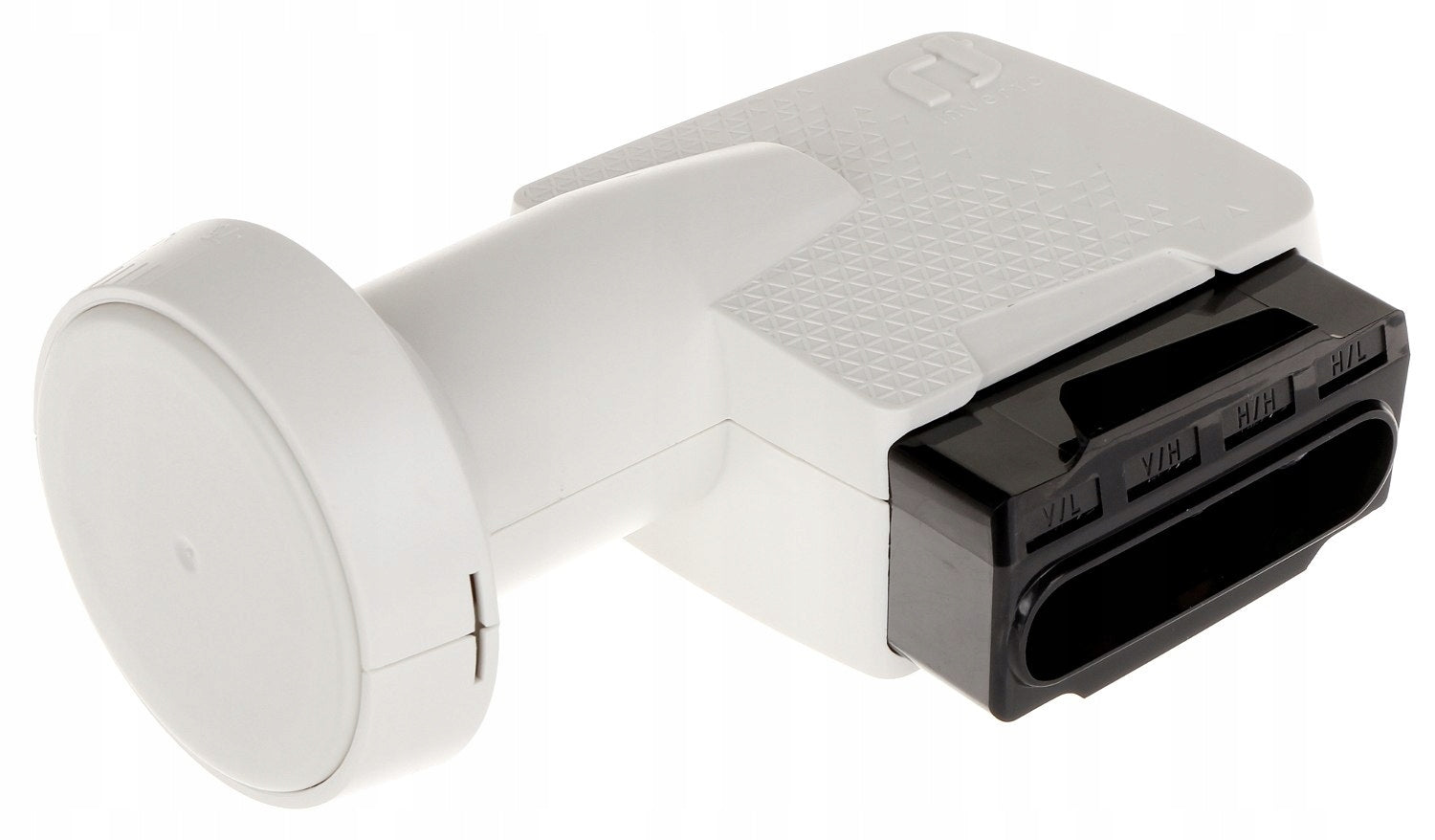

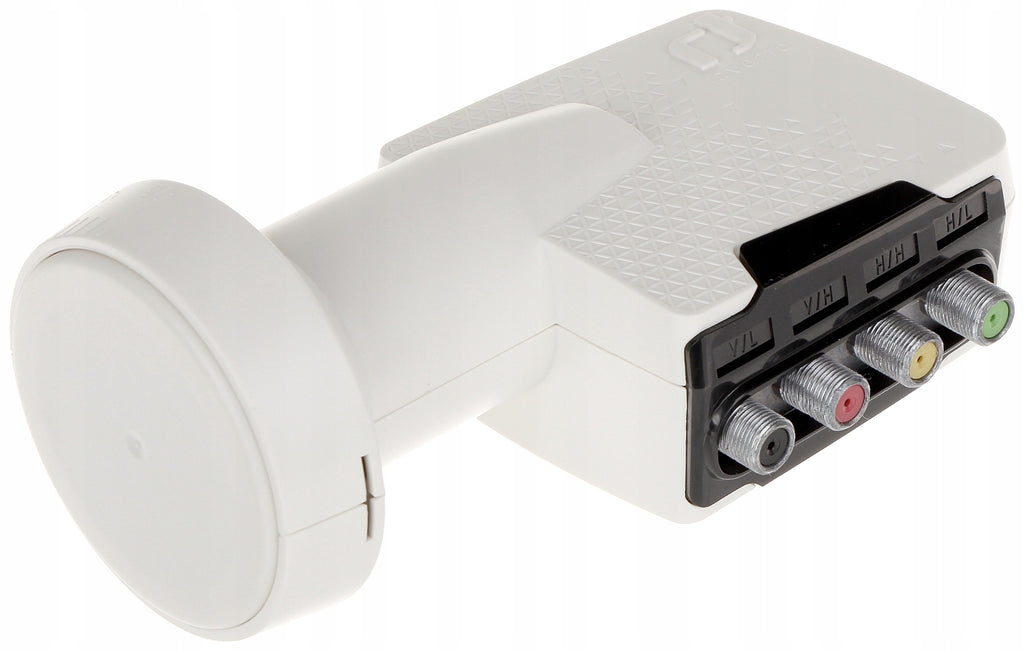

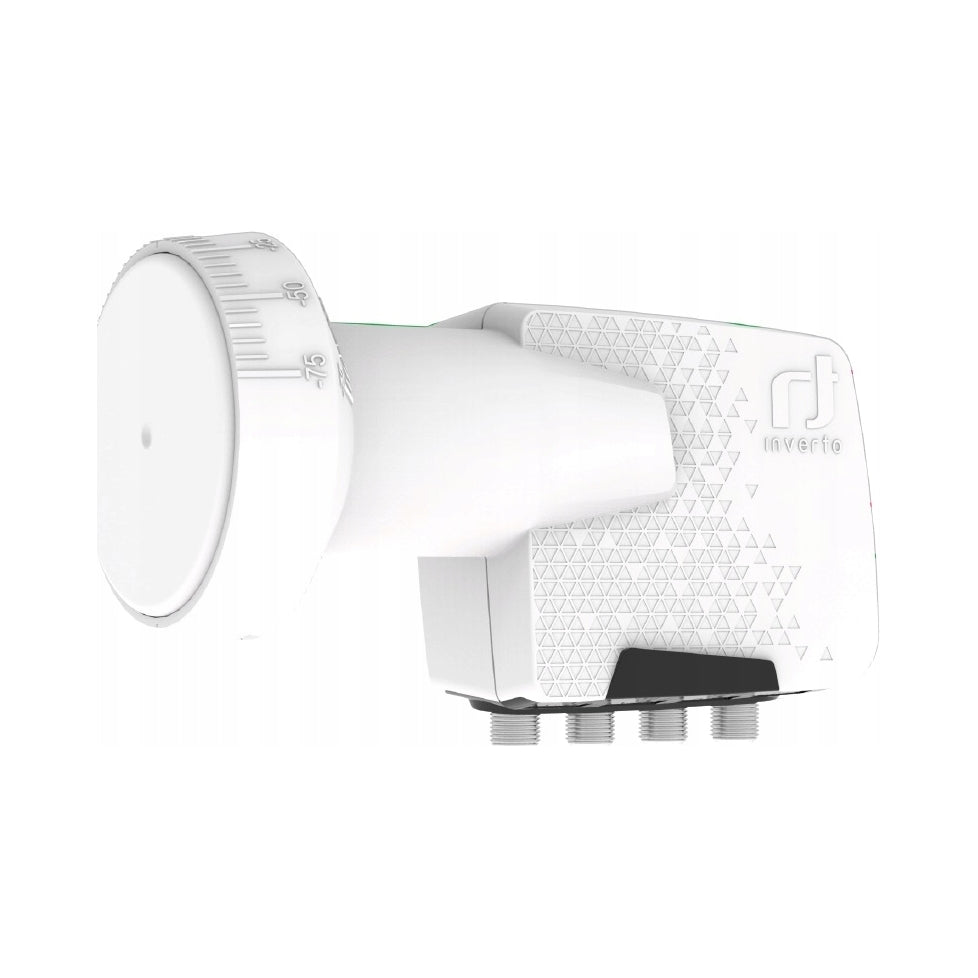

LNB QUATTRO satellite converter for 4-output multiswitch INVERTO Home Pro
The Invero Quattro Home Pro satellite converter is designed to work only with multiswitches. Each of the "quattro" converter outputs has a different frequency range and polarity. The signal from such a converter supplied to the multischwitch can be divided into several, several dozen or even several hundred satellite tuners.
The Home Pro series is the latest line of converters from the Luxembourg brand Inverto designed for demanding users
Distinguishing features :
- small own noise 0,3dB
- high reinforcement
- very nice design
- built-in LTE filter
quattro Home PRO converter is manufactured by INVERTO.
INVERTO is a Luxembourg company, a leader among companies supplying converters to the Polish market.
Many years of experience in the production of devices for the distribution of satellite signals resulted in the creation of converters based on the latest technologies and high quality of production. The Home Pro line features a high gain level (55 dB), low noise, high frequency stability and minimal attenuation (0,3-0,7 dB).
Attention is also drawn to the high quality of the materials used and modern, original design.
Technical data:
- Lower band - input: 10,7-12,75 GHz
- Lower band - output: 950-1950MHz
- Oscillatory: 9,75GHz
- Upper band -input: 11,7-12,75GHz
- Upper band -output: 1100-2150MHz
- OscillatorUpper: 10,6GHz
- Own noise: 0,3 dB (0,7 dB max)
- Oscillator drift temperature: +/-3MHz max
- Phase noise:-85dBc/Hz max
- Gain:55dB min
- Wave gain characteristics: +/-0,75dB/27MHz
- Polarity control V: 11.0~14.0 V
- H polarity control: 16.0~20.0 V
- Lower band control: 0kHz
- Upper band control: 22kHz +/-4kHz, 0,4~0,8 Vpp
- VSWR:2.5:1
- Separation between polarities: 22dB min
- Current consumption:120 mA max @11~20V
- Output Impedance: 75Ohm
- Operating temperature: -30...+60C
- Neck Diameter: 40mm
- Neck Length: 50mm
- Connector: F
- Converter weight: 224 g
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | IDLH-QTL410-HMPRO-OPN |
| Parametry | Product weight with unit packaging | 0.3 kg |
| Parametry | Type | Multiswitch (Quatro) |
| Parametry | Brand | Inverto |
| Parametry | Model | HOME Pro |
| Parametry | Noise factor | 0.3 dB |
| Parametry | Energy consumption | 240 mA |
| Parametry | Handle diameter | 40 mm |
| Parametry | Product width | 36 cm |
| Parametry | Product height | 10 cm |
| Parametry | Product depth | 12 cm |
| Parametry | Product weight | 0.3 g |
| Parametry | EAN (GTIN) | 5453002613313 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Customs tariff code | 85369010 |
