Aprašymas
Trumpai apie prekę
Prekė: Palydovinis platjuostis keturvietis 4K signalų skirstytuvas. Kategorija: Keitikliai.
- Gamintojas: Opticum
- Modelis: Wideband LNC Legacy 4

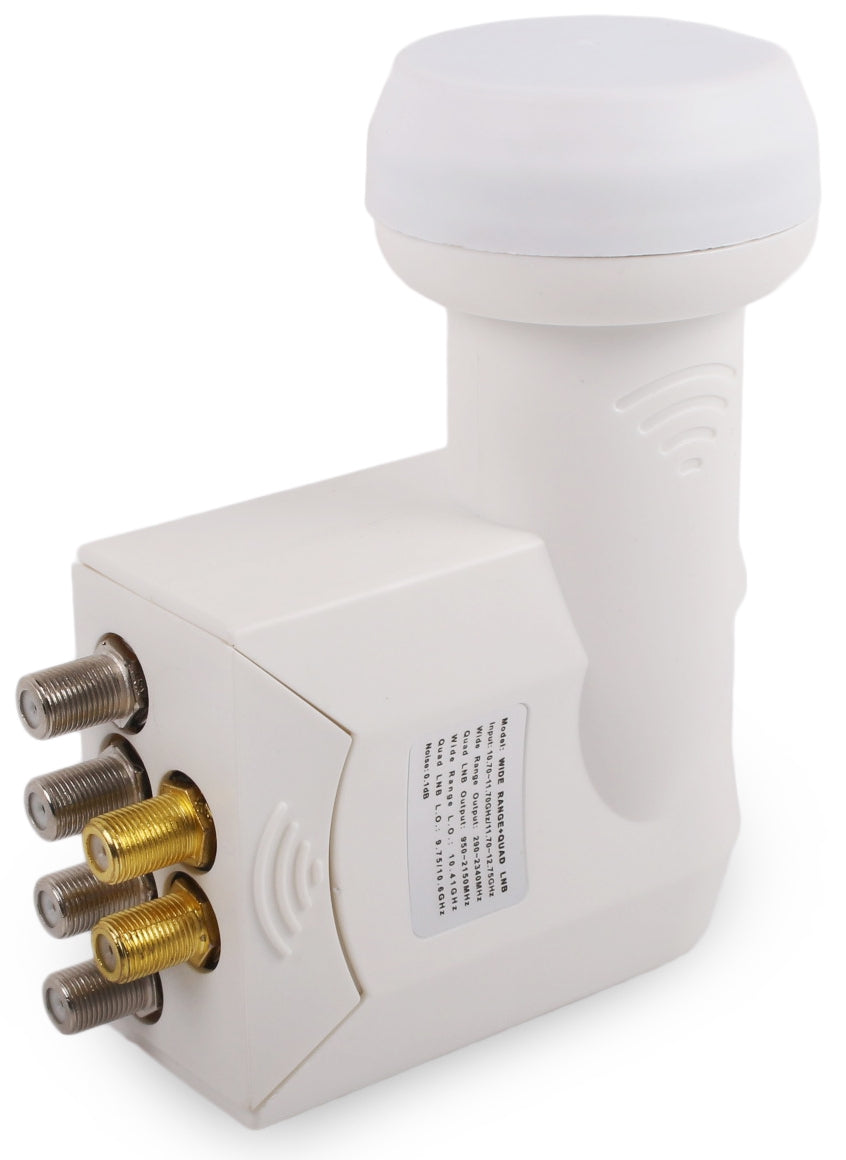

The WideBand LNC Legacy 4 converter receives any satellite signal in the Ku band, generating a signal with two polarizations: horizontal and vertical. In addition to the two H/V inputs that make this possible, it also has additional four standard Legacy inputs, i.e. those from a standard Quad type converter.
The converter allows you to connect one decoder operating in Wideband technology with two wires (gold outputs in the converter) and to four satellite decoders with single heads or to two with double PVR heads (silver outputs in the converter).
The signal from the Wideband outputs cannot be divided using a splitter, nor can it be connected to two different decoders. One golden output is responsible for the signal in polarity H, and the other gold for the signal in polarization V - both signals should be led to one decoder supporting Wideband technology.
The converter works perfectly with all digital tuners, e.g. N, Cyfra+, NC+ Cyfrowy Polsat, TP, TNK, also 4K and other tuners supporting the Wideband standard. Recommended for the Ultrabox 4K decoder from the CANAL+ / NC+ offer (in the tuner menu you need to set the oscillator frequency to 10.41 Ghz) - the connection with two wires in Wideband technology allows you to get the same functions as the connection in Unicable technology.
If you have any doubts or are not sure whether the selected converter is the optimal solution, please indicate which decoders will be connected, then we will be able to advise the best solution.
- Input frequency range: 10.7 - 12.75 GHz
- Wideband Output Frequency Range: 290~2340MHz
- Legacy Output Frequency Range: 950~2150MHz
- Noise Ratio: 0.1 dB
- Oscillator frequency L.O. 10.41 GHz
- Conversion Gain: 50~60 dB
- Operating temperature range: -40°C - +60°C

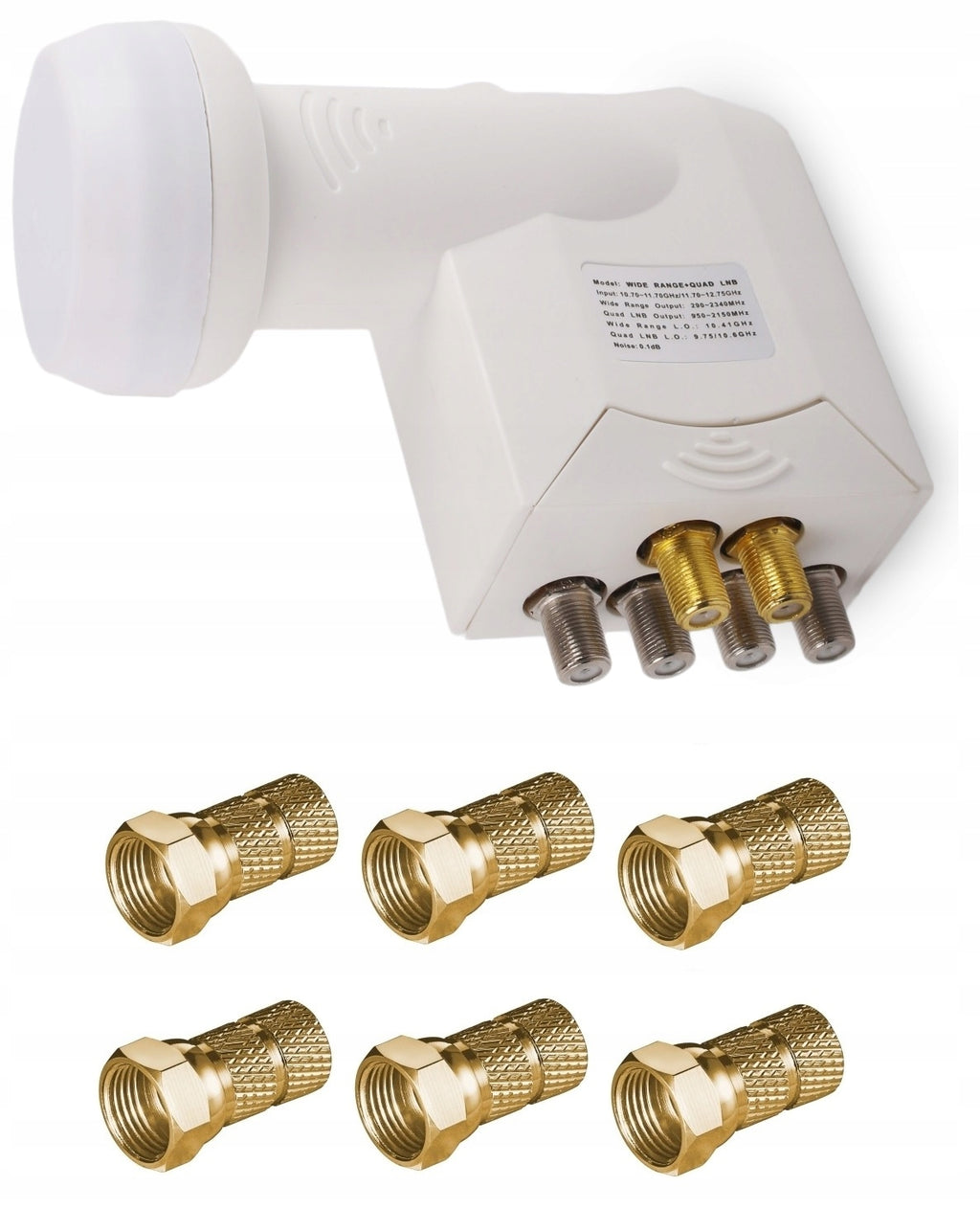

- LNB Wideband LNC Legacy 4

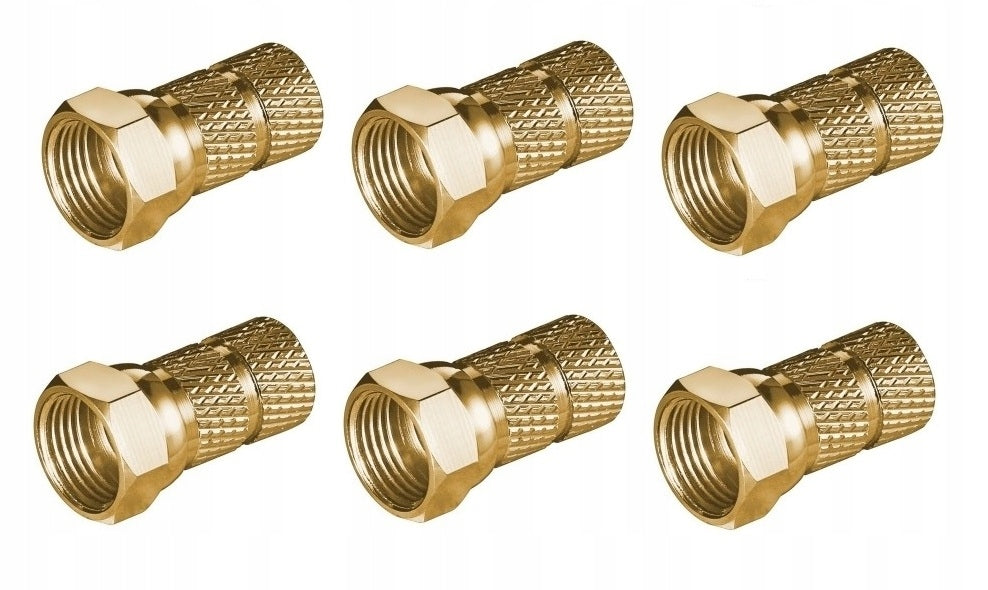

- 6szt. plug F
- Packaging
KONUN3001F
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Wideband LNC Legacy 4 |
| Parametry | Type | Quad |
| Parametry | Brand | Opticum |
| Parametry | Model | Wideband LNC Legacy 4 |
| Parametry | Noise factor | 0.1 dB |
| Parametry | Handle diameter | 40 mm |
| Parametry | Product weight | 500 g |
| Parametry | EAN (GTIN) | 5901912288492 |
| Parametry | Packaging status | original |
