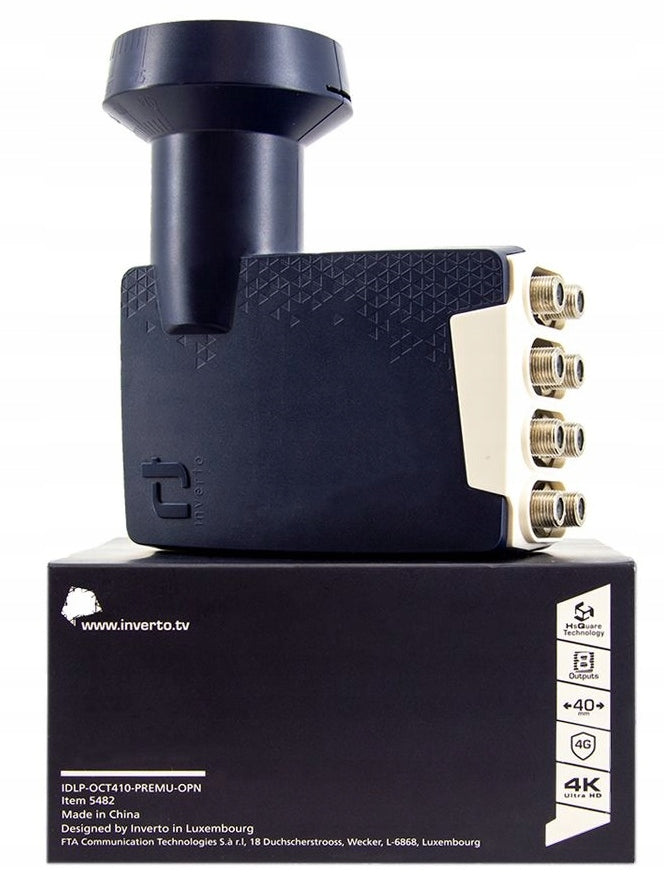

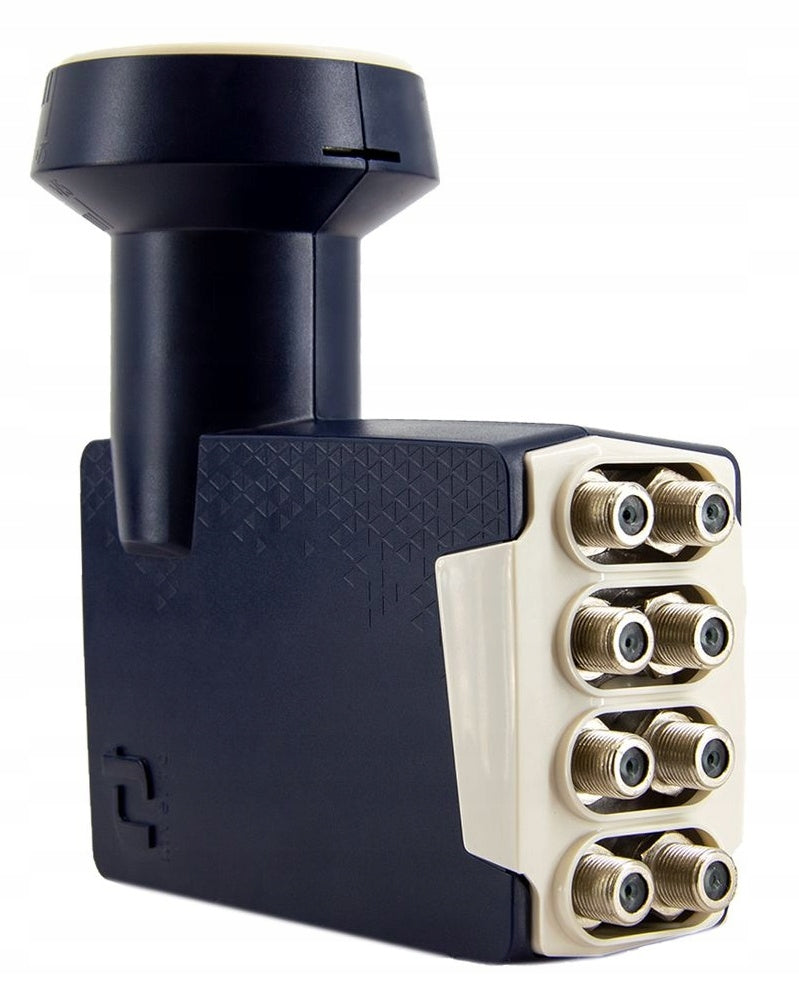

Palydovinis signalų skirstytuvas OCTO Inverto Premium, 8 išėjimai, 4K UHD

Trumpai apie prekę

Prekė: Palydovinis signalų skirstytuvas OCTO Inverto Premium, 8 išėjimai, 4K UHD. Kategorija: Keitikliai.

• Gamintojas: Inverto
• Modelis: IDLP-OCT410-PREMU-OPN

High quality converter from Luxembourg brand Inverto. The OCTO type converter is used to receive signals from one satellite, has eight independent outputs allowing you to connect eight single (single-head) tuners or four PVR double-headed tuners. Has a rain cover.

An undoubted advantage of the converter is full compatibility with 8PSK modulation, used in DVB-S2. This modulation has eight symbols (twice as many as QPSK), so the receiver needs a signal with very low phase noise for correct detection. The phase noise of the converter is -90dBc/Hz max. Thanks to its low noise factor, the converter provides the highest quality signal reception from the satellite, even in places below the edge of the satellite range area.

The Octo Inverto converter allows you to receive digital TV and radio programs via satellite in SD and HD quality. Octo is characterized by eight outputs containing full satellite band.

Thanks to the innovative design of the oscillator and the high-quality components used in its production, this converter enables higher signal amplification than before with the lowest noise coefficient and low phase noise.

The converter works perfectly with all digital tuners, e.g.: N, Cyfra+, NC+ Cyfrowy Polsat, TP, TNK

• Very low phase noise compliant with standard with HDTV/DVB-S2
• Excellent separation - high cross-polarization
• Low Noise Ratio
• High reinforcement
• High frequency stability
• Maximum reliability
• Diameter 40 mm
• Very easy installation

• Manufacturer symbol IDLP-OCT410-PREMU-OPN
• Lower band - 10,7-11,7GHz input
• Lower band - 950-1950MHz output
• Lower oscillator 9,75GHz
• Upper band -11,7-12,75GHz input
• Upper band -1100-2150MHz output
• Upper oscillator 10,6GHz
• Own noise 0,3dB (0,7dB)
• Temperature drift of oscillator +/-3MHz max
• Phase noise -90dBc/Hz max
• Gain 55dB min
• Wave gain characteristics in the range of one transponder +/-0,75 dB/27MHz
• Variability of gain characteristics over the entire operating range +/-4dB
• VSWR 2.3:1
• Control: choice of polarity V 10~14V
• Control: choice of polarity H 16~20V
• Control: top band 22kHz +/- 4kHz
• Current consumption 210mA max @11~20V
• Output Impedance 75Ohm
• Operating temperature -30...+60C
• Neck diameter 40mm
• Connector F

• Octo Inverto Premium Black converter
• packaging

KONO0102
