Panardinamasis siurblys IBO 3'' SQIBO 0,75 kW 230V su laidu

Trumpai apie prekę

Prekė: Panardinamasis siurblys IBO 3'' SQIBO 0,75 kW 230V su laidu. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: IBO
• Modelis: SQIBO 075 kW

• TROUBLE-FREE PUMP FROM IBO, HAS UP TO 115m LIFTING POWER 750W

• Displacement submersible pumps with a diameter of 75mm (SQIBO/3''SCR).
• The pumps are mainly made of stainless steel, e.g. housing, screws, stubs and rotor.
• Thanks to the capacitor in the motor, immediately after unpacking the pump is ready for installation.
• The pump is equipped with thermal protection installed in the motor winding.
• SQIBO and SCR series pumps are one of the most popular screw pumps on the Polish market.
• It has gained recognition of customers thanks to its solid construction and attractive price.

• Power supply- 230V
• Engine power - 750W
• Max. stamping height - 115m
• Max. efficiency - 40L/min
• Connection diameter - 1cal
• Pump diameter - 75mm
• Cable length - 15 m
• Weight - 11kg

• Maximum liquid temperature of 400C

• Maximum ambient temperature of 400C

• Insulation class B

• Operating mode – continuous

• Security – IP68

• Housing: AISI 304 stainless steel

• Shaft and rotor: AISI 304 stainless steel

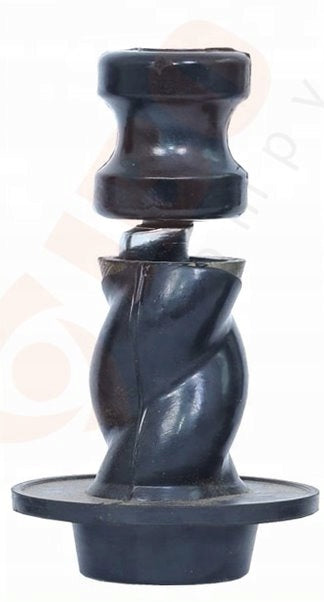

• Screw: AISI304 stainless steel

• Stator: NBR

• Engine: oil-cooled

• Mechanical angina: ceramic/Sic

• Engine speed: 2850RMP

• Pumps are ideal for water supply of single and multi-family houses, recreational plots, farms, production plants, perfect for irrigation.
• Designed for pumping water from drilled deep-sea intakes, vertebral wells, and free-standing tanks.
• Recommended due to maintenance-free and trouble-free operation, is highly valued among wellers and fitters. With low power consumption, the pump achieves very high parameters.
• Hose output diameter 1''

• Our pumps are one of the few that has a copper motor winding, in similar Chinese products such winding is made of aluminum - thanks to this our pumps are more durable.

• The pump is equipped with thermal protection mounted in the motor winding.
• Thanks to thermal protection, the pump is provided with protection against short circuit and overload.
• In a situation where the temperature rises on the motor windings, the thermal trigger will protect the motor from significant overheating.

• The whole chamber and main bearing is cooled and lubricated with oil.
• What’s more, the pump uses a non-toxic, safe oil that allows the use of the m.in pump in wells from which water is intended for food purposes.

The pump has quality and safety certificates confirmed by a declaration of conformity, which you will receive together with detailed instructions for use. This is a proof of a high-quality product that stands out from other similar products on the market.

It is also a proof of honesty and commitment to the work of the manufacturer.

Specifications
