Panardinamasis siurblys MSW MSW-SPP44-075, 95 mm, 6000 l/val.

Trumpai apie prekę

Prekė: Panardinamasis siurblys MSW MSW-SPP44-075, 95 mm, 6000 l/val.. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: MSW
• Modelis: 10060170

✅ Brand Model: MSW - MSW-SPP44-075

✅ Catalog No.: 10060170

✅ CE Certificate / Certificate: Yes

➡ Technical data:

⭐ Dimensions (LxWxH): 86 x 9 x 9 cm

⭐ Total diameter: 95 mm / 3.75''

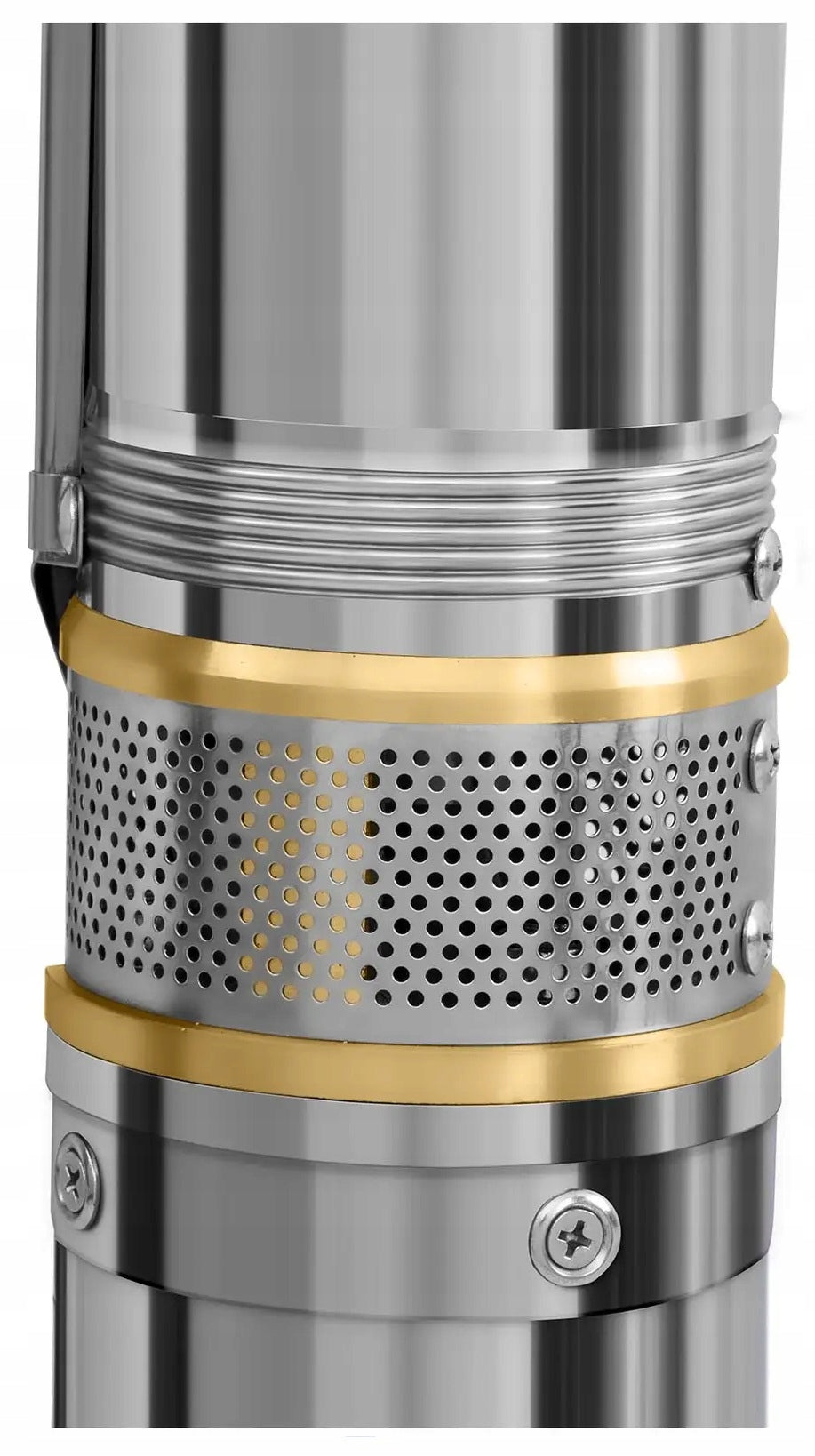

⭐ Filter: Yes

⭐ Insulation class: B

⭐ IEC Protection Class: I

⭐ Colour: Silver

⭐ Number of steps (pump rotors): 10

⭐ Max. depth of immersion under water: 20 m

⭐ Max. sand content in water [%]: 0.25

⭐ Maximum number of starts per hour: 50 h

⭐ Maximum input power: 1.5 kW

⭐ Maximum output power: 0.75 kW

⭐ Maximum water temperature: 35 °C

⭐ Maximum lifting height: 72 m

⭐ Maximum working pressure: 7.2 Bar

⭐ Maximum water flow: 6 m³/h

⭐ Maximum particle size: 1.8 mm

⭐ Material: Stainless steel

➡ Technical data:

⭐ Control methods: External starting box (750 W)

⭐ Voltage [V]: 230

⭐ Rated current: 5 A

⭐ Rated speed [rpm. /min]: 2850

⭐ Water flow: 6000 l/h

⭐ Overcurrent: Yes

⭐ Power cord: 20 m

⭐ Cable specification: H07RN-F 3G1 mm²

⭐ Degree of protection IP: IP68

⭐ Mounting hole diameter: 100 mm

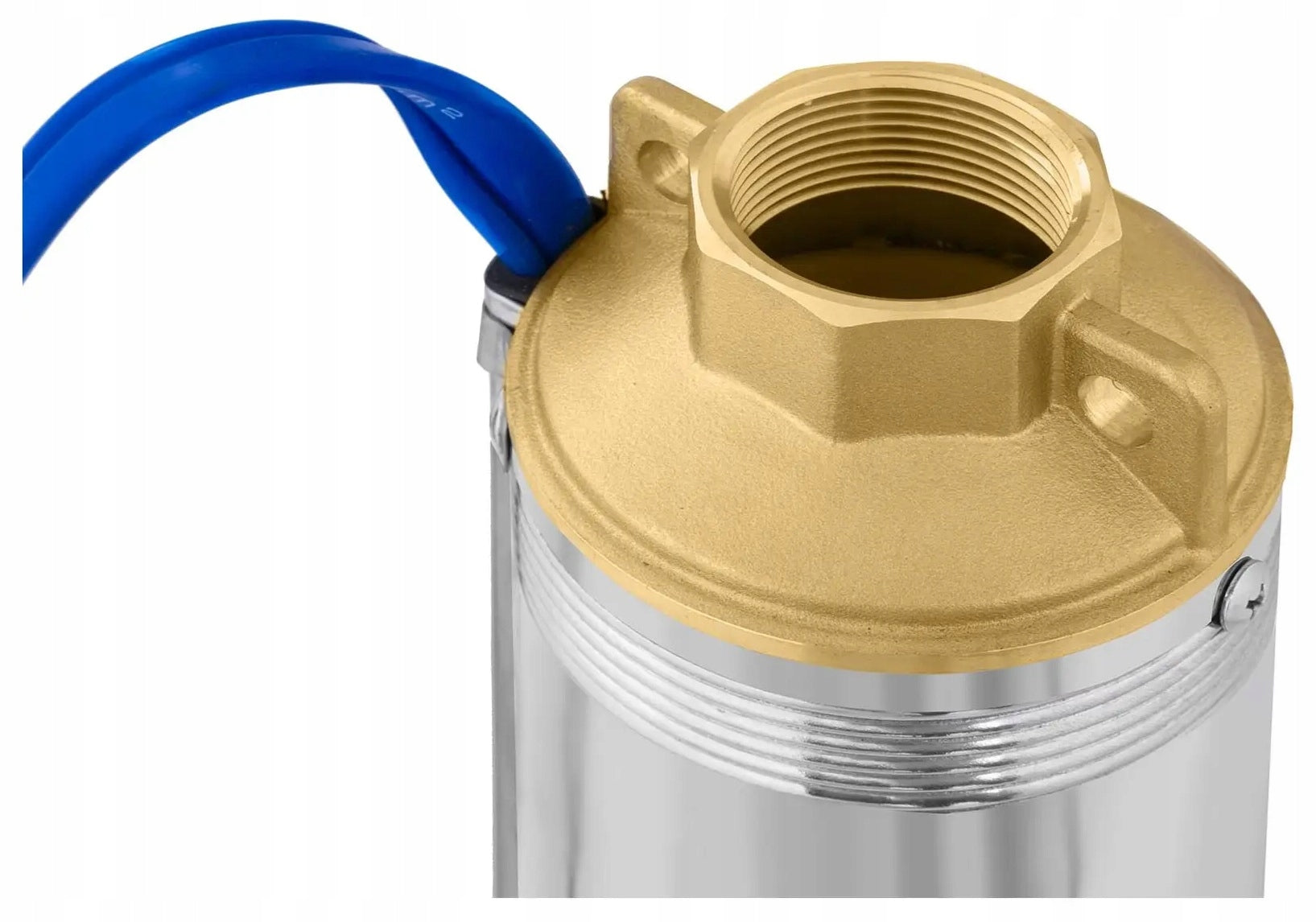

⭐ Water connection diameter: 1.25 in

⭐ Weight: 14.5 kg

⭐ Shipping weight: 16.7 kg

⭐ Shipping dimensions (LxWxH): 123 x 13 x 24 cm

⭐ Check valve: Yes

⭐ Power cord: 20 m

➡ Technical data:

⭐ Cable specification: H07RN-F 3G1 mm²

⭐ Degree of protection IP: IP68

⭐ Mounting hole diameter: 100 mm

⭐ Water connection diameter: 1.25 in

⭐ Weight: 14.5 kg

⭐ Shipping weight: 16.7 kg

⭐ Shipping dimensions (LxWxH): 123 x 13 x 24 cm

⭐ Check valve: Yes

⭐ Fast pumping: capacity of 6000 l/h thanks to the 750 W motor and 2850 rpm /min

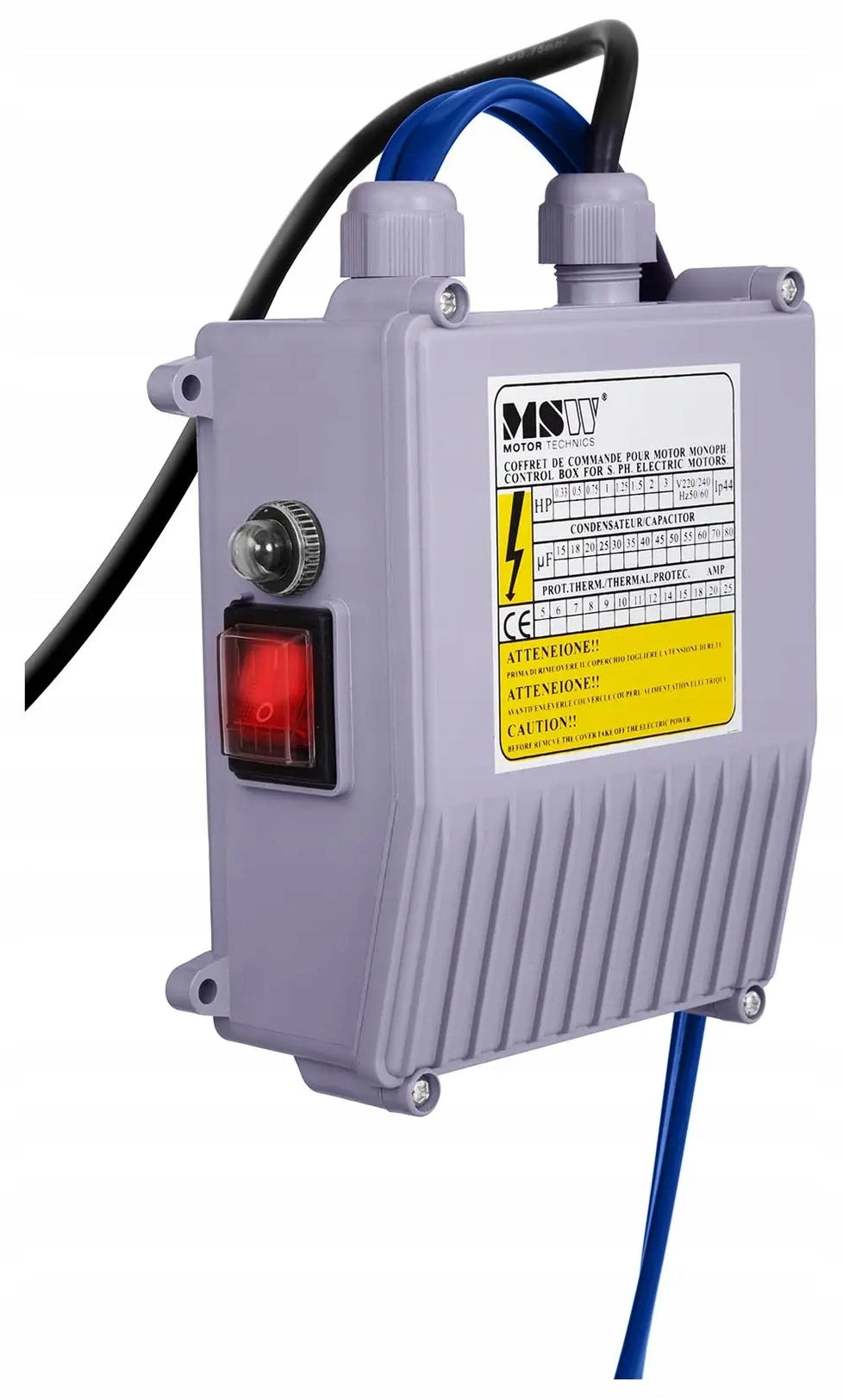

⭐ Convenient operation: control via control box with secured on/off switch

⭐ Wide application: maximum lifting height 73,5 m

⭐ You place the device flexibly: thanks to the long power cord and a maximum immersion depth of 20 m

⭐ High durability: stainless steel housing resistant to corrosion and dirt

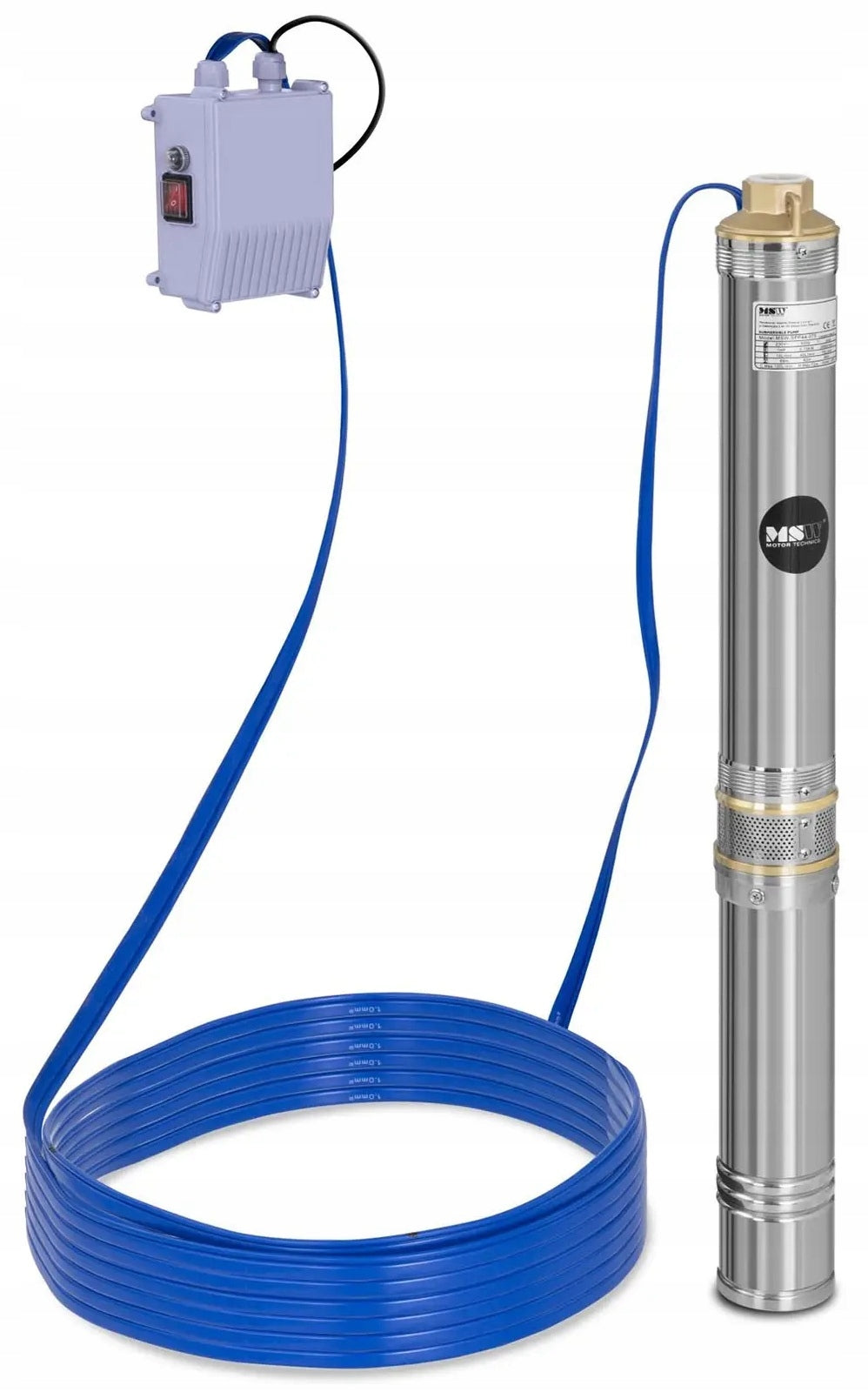

The MSW submersible pump easily pumps water from deep and narrow shafts,

wells, tanks or tanks. The stainless steel housing has a diameter of only 95 mm and is ideal for narrow wells. The 750 W motor operates at a speed of 2850 rpm. /min and provides a high flow rate of up to 6000 l/h. The device can be submerged to a depth of 20 m at maximum lifting height of 73,5 m. The well pump is suitable for clean water with a temperature of up to 35°C – just right for water supply!

Robust and safe pump for deep wells MSW

MSW focuses on durability. Therefore, the submersible pump motor is hermetically sealed and protected against pressure and water. The stainless steel housing is resistant to corrosion and dirt. In addition, it reliably withstands even the heaviest loads.

Scope of delivery:

⭐ Submersible pump

⭐ User Manual

⭐ Packaging

This product is also ideal as a gift

Specifications
