Panardinamasis siurblys šuliniui 3" 2/17, 70 l/min, 550 W, 67 m, atsparus smėliui

Trumpai apie prekę

Prekė: Panardinamasis siurblys šuliniui 3" 2/17, 70 l/min, 550 W, 67 m, atsparus smėliui. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: BG-INVEST
• Modelis: BG-00058

✅ SUBMERSIBLE PUMP 3" MODEL 2/17 WITH 20M CABLE

➡ Capacity: 4200 l/h

➡ Lifting: 67 m

⚡ Power: 550 W ⚡

Submersible pump 3" model 2/17 equipped with rotors with increased sand resistance is an advanced solution that allows effective water intake from deep wells.

The pump has a diameter of 75 mm and is designed for installation in wells with a minimum internal diameter of 85 mm. It is characterized by extraordinary efficiency up to 70 l/min and is equipped with an engine ensuring efficient and fast operation with a power of 550 W.

The pump draws water through holes in the body and feeds it under pressure (up to 67 m of water column) through a discharge port with an internal thread 1 inch.

It is used for water supply: single and multi-family houses, farms and for supplying irrigation systems (sprayers, drip lines) and in drainage.

The pump rotors have been specially designed to effectively deal with the presence of sand and other impurities in the water. This makes the pump more durable and less susceptibleto damage resulting from the action of particulate matter.

This solution is particularly useful in areas where water contains large amounts of sand, which could shorten the life of standard submersible pumps. Pumps with rotors with increased sand resistance are therefore an effective and durable solution for deep water supply systems.

The pump is equipped with a wire with a length of 20 m. Great will work in a set with a hydrophore tank.

Technical data:

➡ Max capacity (l/min): 70

➡ Max capacity (m3/h): 4,2

➡ Lifting height (m): 67

➡ Maximum pressure: 6,7 bar

➡ Pump diameter (mm): 75

➡ Min. Pipe diameter (mm): 85

➡ Engine power (W): 550

➡ Engine power (kW): 0,55

➡ Power supply (V): 230

➡ Stub size(inches): 1 1/4"

➡ Power consumption (A): 4.8

Working conditions:

➡ Maximum water temperature: 35°C

➡ Maximum immersion depth: 80m

➡ Insulation class: B

➡ Working position: vertical

➡ Degree of protection: IP 68

Materials:

➡ Pump housing: stainless steel

➡ Cable cover: stainless steel

➡ Impellers: PPO

➡ Diffuser: PC

➡ Mechanical angina: ceramic/graphite/SS304

➡ Shaft: steel

➡ Sieve: stainless steel

➡ Suction and discharge nozzle: cast iron/brass

Features of the pump

The 3" model 2/17 pump has a very solid construction made of the highest quality materials.

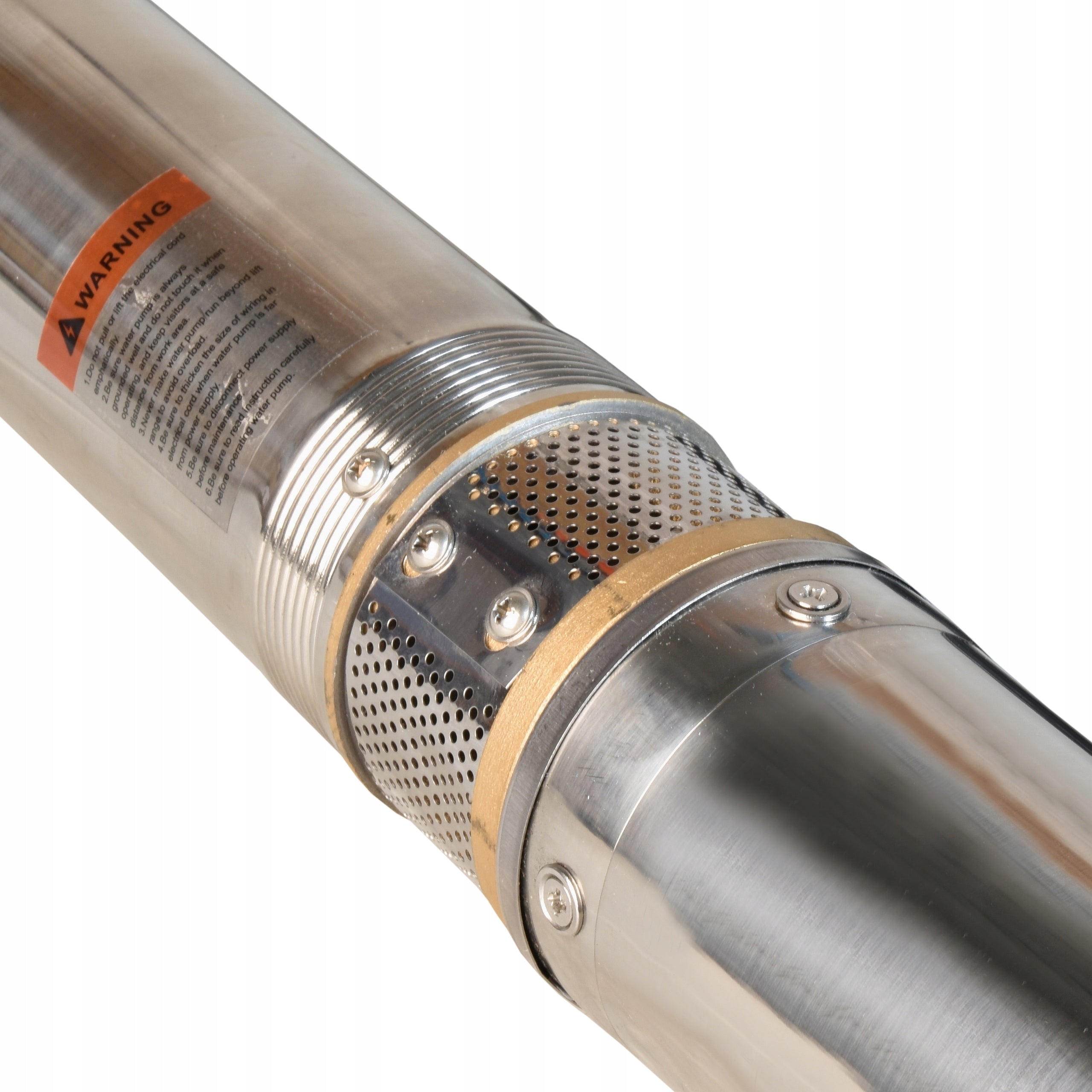

The sieve made of stainless steel is ideal for filtering impurities. In turn, the steel housing of the pump ensures its strength despite unfavorable external conditions.

Increased resistance to sand in the water affects the increase in the life of the pump. Thanks to this, the device works well even in fresh wells.

Included:

➡ Submersible pump 3" model 2/17

➡ Power cable with 20 m plug

➡ Guarantee card

➡ User manual in Polish

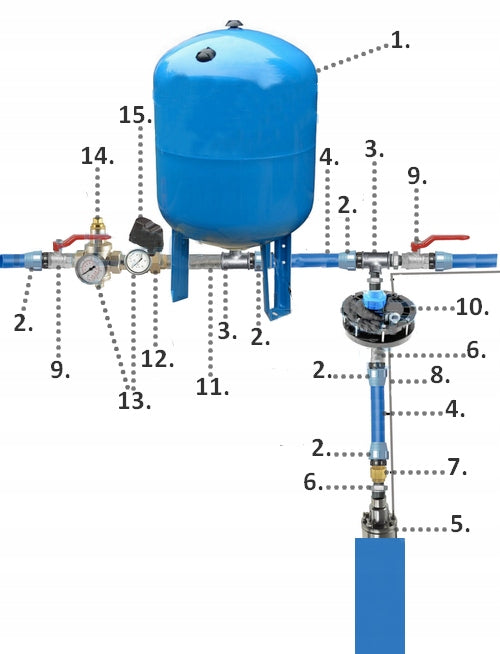

Example of a hydrophore kit connection scheme

1. Hydrophore Tank

2. PE coupling

3. Galvanized Tee

4. PE pipe

5. Submersible pump

6. Nipple

7. Check Valve

8. Electrical Cable

9. Ball Valve

10. Head

11. Galvanized Pipe

12. Five-Way Piston Output

13. Pressure gauge

14. Pressure Reducer

15. Pressure switch

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	BG-INVEST
Parametry	Pump type	well
Parametry	Engine power	550 W
Parametry	Manufacturer code	BG-00058
Parametry	EAN (GTIN)	5906438545937
Parametry	Maximum pump output	4200 l/h
Parametry	Packaging status	original
