Pasukamas televizoriaus laikiklis, 32–55", 31 kg, TUV sertifikuotas

Trumpai apie prekę

Prekė: Pasukamas televizoriaus laikiklis, 32–55", 31 kg, TUV sertifikuotas. Kategorija: Rankenos.

• Gamintojas: Ergosolid
• Modelis: P4

Sturdy Rotating Mount for LCD LED TVs

• TV size: 32"- 55"
• maximum TV weight: 31,8 kg
• VESA max: 400x400 mm
• rotation adjustment: 180°
• tilt adjustment: -8° / +5°
• adjustable distance from the wall: 55 ~ 500 mm
• cable management system
• certificate: TUV GS and ISO9001

Product from a reputable brand for 22 years on the market!

ORIGINAL PRODUCT!

• Official poland distribution
• Manufacturer's logo stamped on the product
• TUV Certificate

Beware of the mass of counterfeits, without certificates copying the original, without the manufacturer's logo NB and Ergosolid!

CHARACTERISTICS

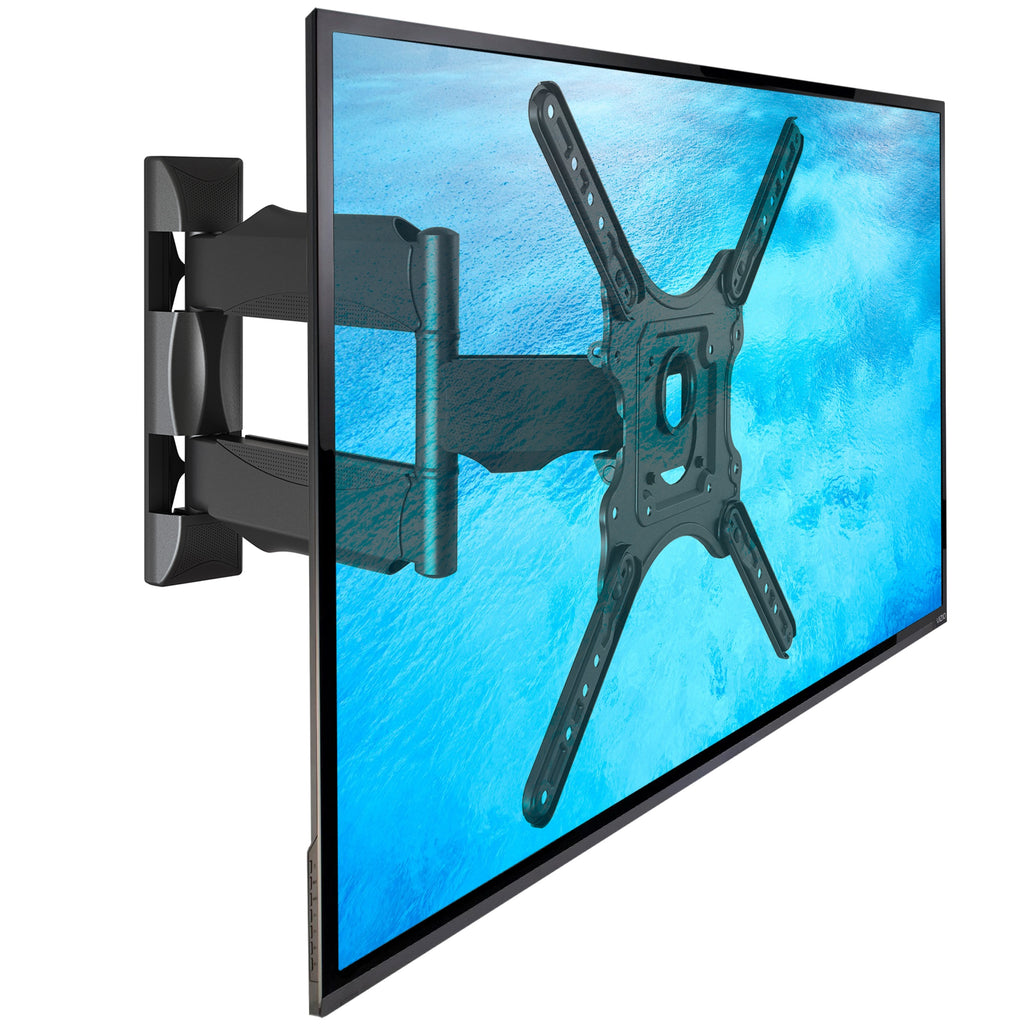

• designed for 32"- 55" Plasma LED LCD TVs
• universal adjustable flat TV mount weighing up to 31,8 kg
• high quality workmanship with attention to detail
• tilt adjustment
• Rotating arm
• small distance from the wall
• tilt correction (reduction of assembly errors)
• handle has ISO and TUV GS certificate
• Compliant with VESA standard
• cable management system
• screw cover grille
• very solid workmanship
• available in black

TECHNICAL PARAMETERS

• max. lifting capacity 31,8 kg
• for TVs 32"- 55"
• rotation adjustment up to 180°
• tilt adjustment in the range of +8° / -5°
• ±4° screen tilt correction
• adjustable distance from the wall in the range of 55 ~ 500 mm
• quality of workmanship confirmed by ISO 9001 and TUV GS
• VESA compatible (mounting hole spacing) standard:
• VESA 100x100 mm
• VESA 100x200 mm
• VESA 200x100 mm
• VESA 200x200 mm
• VESA 200x300 mm
• VESA 300x200 mm
• VESA 300x300 mm
• VESA 300x400 mm
• VESA 400x200 mm
• VESA 400x300 mm
• VESA 400x400 mm

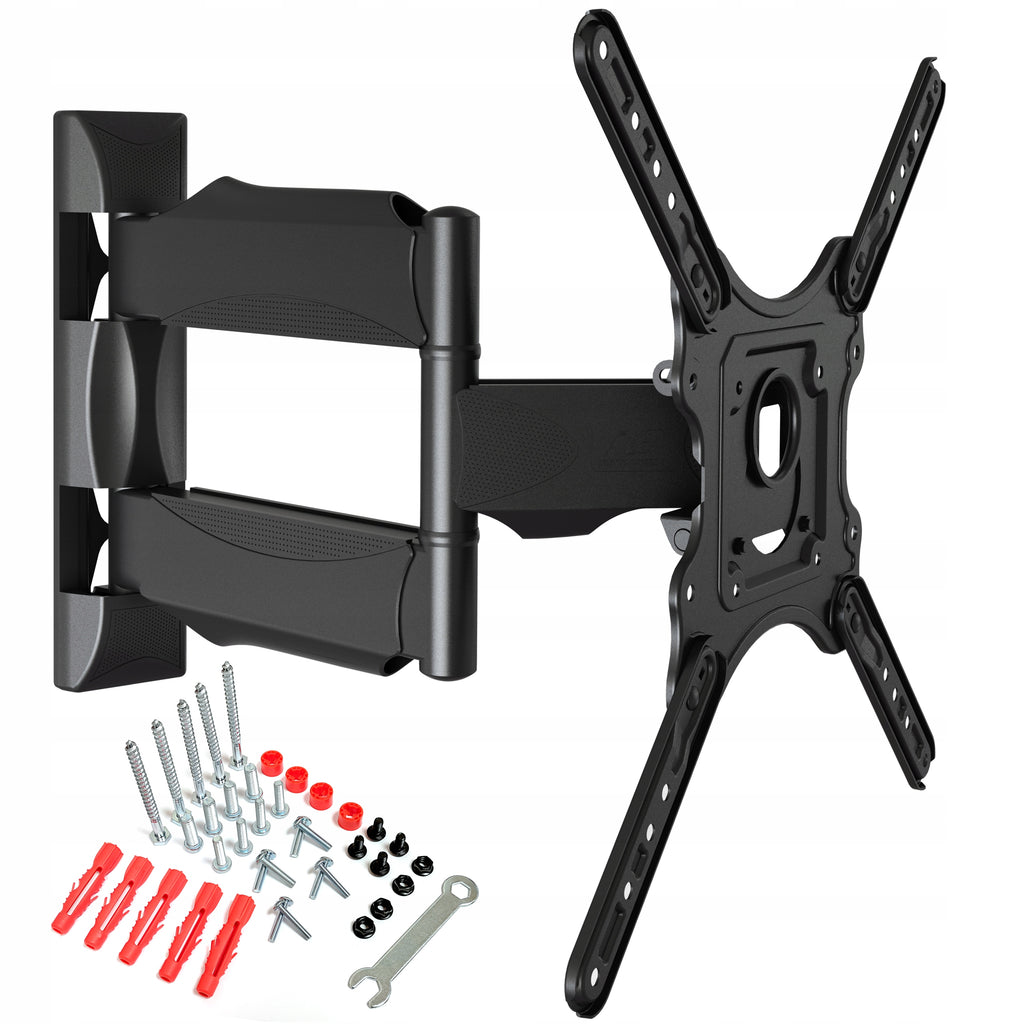

MOUNTING KIT

1. Screw M4×25mm - 4 pcs.
2. Screw M5×25mm - 4 pcs.
3. Screw M6×25mm - 4 pcs.
4. Screw M8×30mm - 4 pcs.
5. Distance 10mm - 4 pcs.
6. Wrench 10mm - 1 pc.
7. Screw 7×70mm - 5 pcs.
8. Pin Ø10×Ø7×66mm - 5 pcs.
9. VESA adapters - 4 pcs.
10. Screw M6x12 + nut M6

COMPOSITION OF THE SET

• handle
• set of screws*
• installation instructions

* standard/universal screws are included to fit most TVs, if they don't fit, then you should buy the right screws on your own!

SPECIFICATION

SCREEN TILT ADJUSTMENT

ROTATING FRAME

• 3 points of rotation
• up to 90 degrees of rotation at TV up to 40 inches

ADJUSTABLE SCREEN DISTANCE FROM THE WALL

CORRECTION OF ASSEMBLY ERRORS

CABLE MANAGEMENT SYSTEM

SCREW MASKING MACHINE

When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.

The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).

EXAMPLE

To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a VESA 400x200 hole spacing. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.

Product No.: PS 5951 PS 6552 NBP4BLK BRTW
